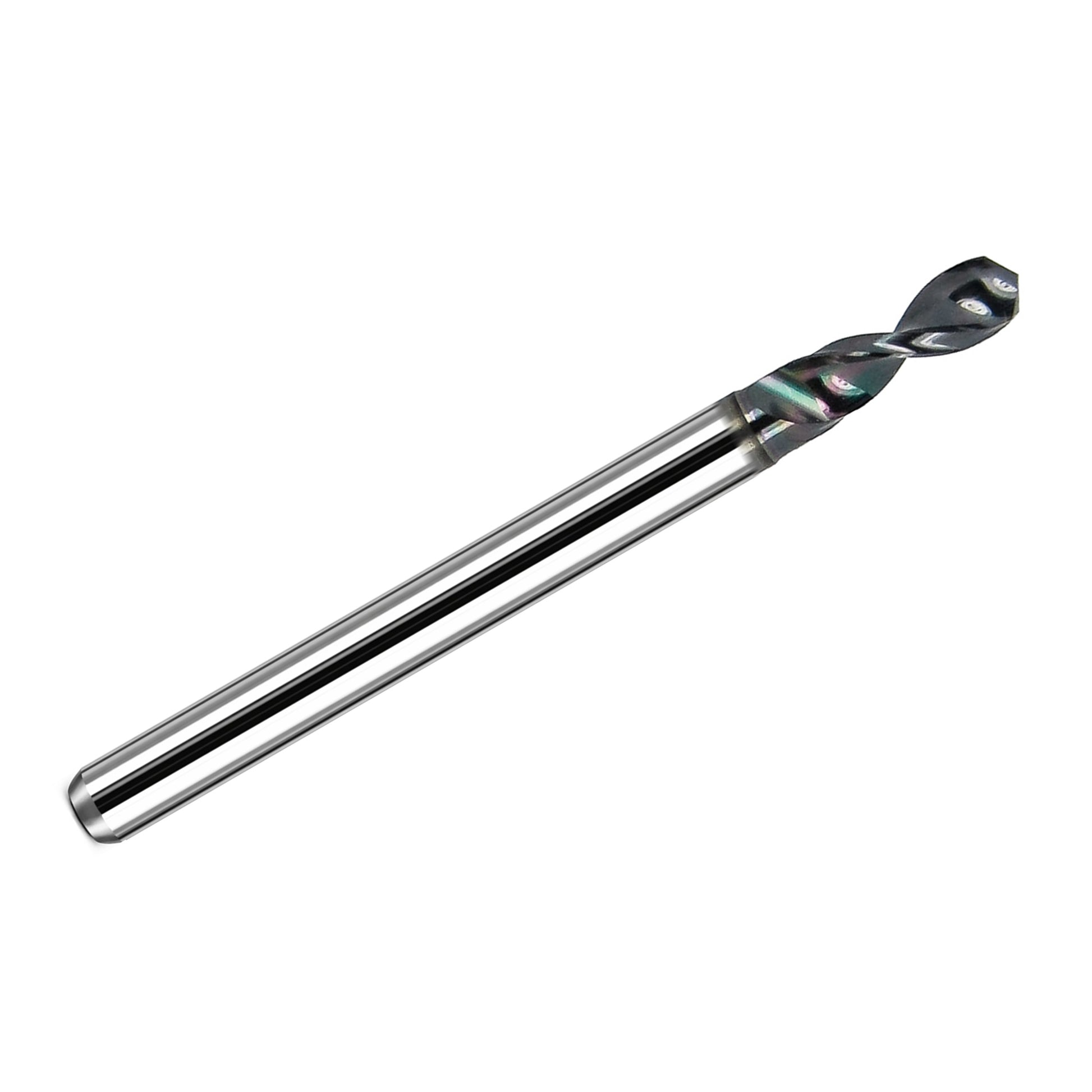

2.85mm (0.1122") Solid Carbide Micro Drill Bit AlTiN Coated Kyocera 226-1122L400 K082

This 2.85mm (0.1122") solid carbide micro drill bit from Kyocera features a durable AlTiN coating and precision 4-facet split point geometry for accurate hole positioning and reduced walking. Manufactured from sub-micron micrograin carbide, this drill is designed for high-precision CNC drilling applications requiring rigidity, wear resistance, and consistent hole quality.

The 130° point angle and spiral flute design provide efficient chip evacuation and stable drilling performance in metals and composite materials. With a 0.400" maximum drilling depth and 3mm (0.118") straight shank, this micro drill is ideal for precision machining setups, toolroom work, and CNC micro drilling operations.

Manufactured in the United States, Kyocera micro drills are known for their consistent quality, tight tolerances, and reliable performance in demanding machining environments.

Common applications include:

• Precision metalworking and micro drilling
• Drilling brass, copper alloys, and cast iron
• Machining titanium and nickel alloys
• Composite and CFRP drilling
• High-accuracy CNC machining operations

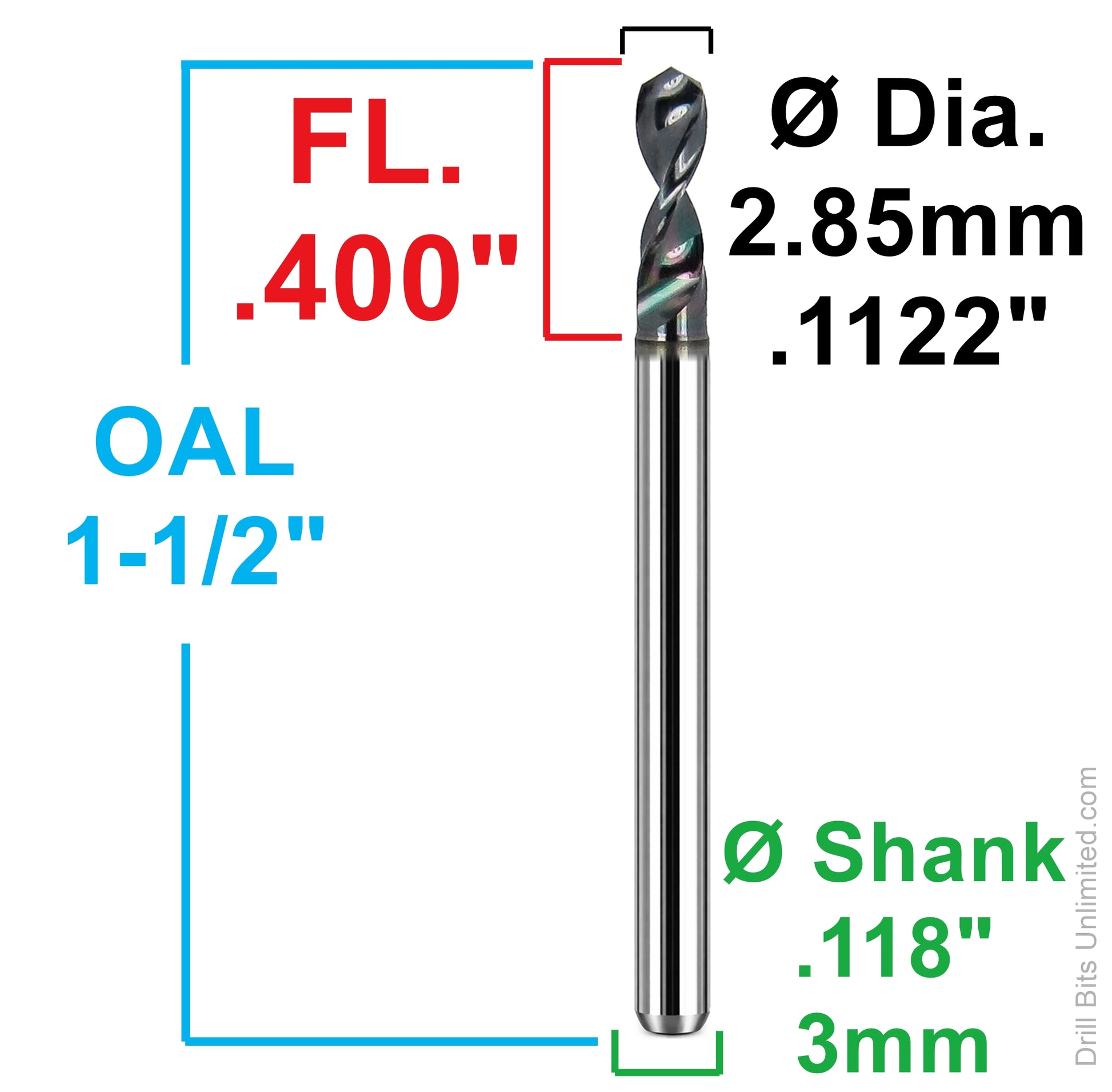

Specifications:

• Diameter: 2.85mm (0.1122")
• Flute Length: 0.400"
• Overall Length: 38mm
• Shank Diameter: 3mm (0.118")
• Point Angle: 130°
• Point Type: 4 Facet Split Point
• Material: Solid Micrograin Carbide
• Coating: AlTiN
• Flutes: 2
• Series: Kyocera 226
• Country of Origin: United States
