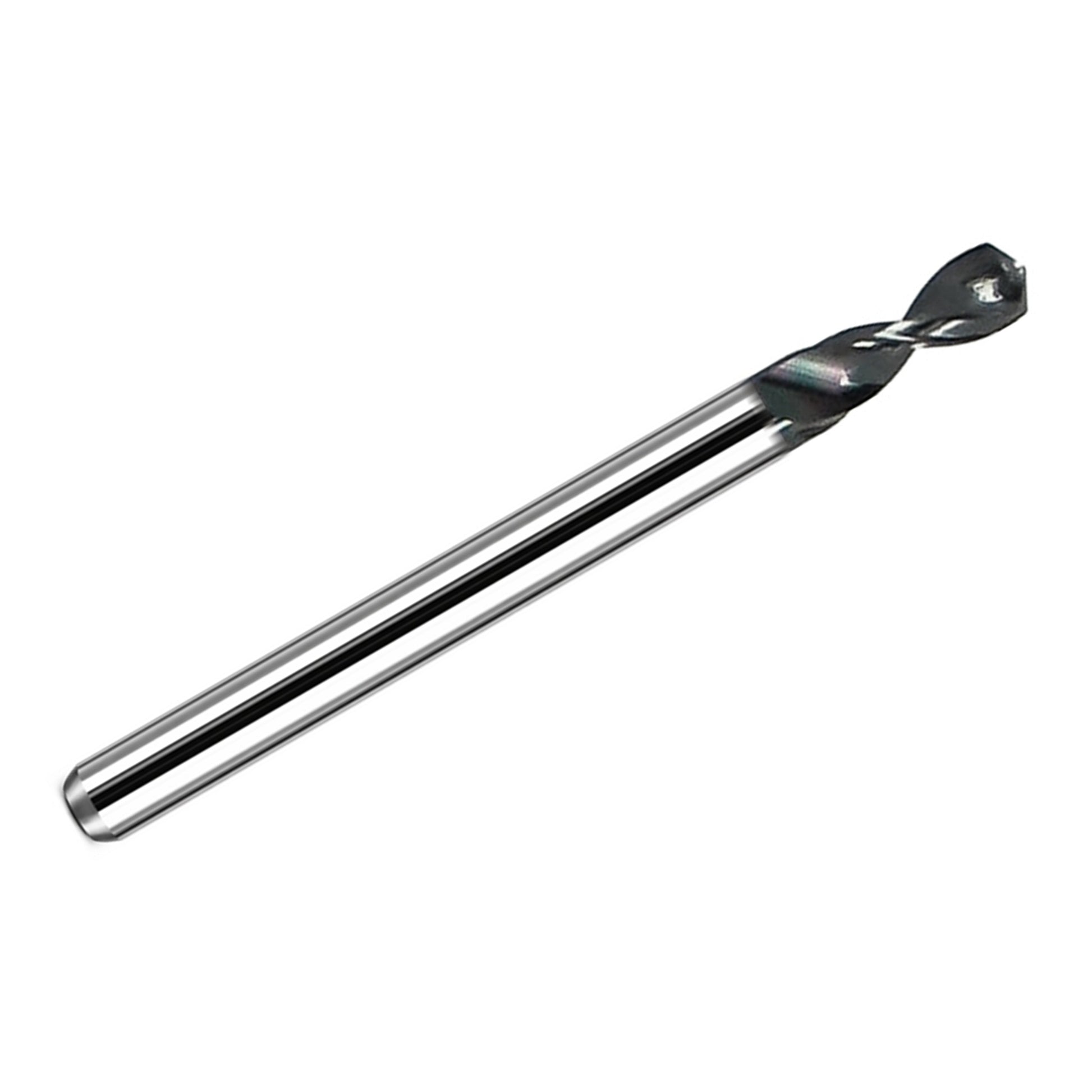

• 2.98mm 0.1173 inch altin coated carbide micro drill bit kyocera 226 series

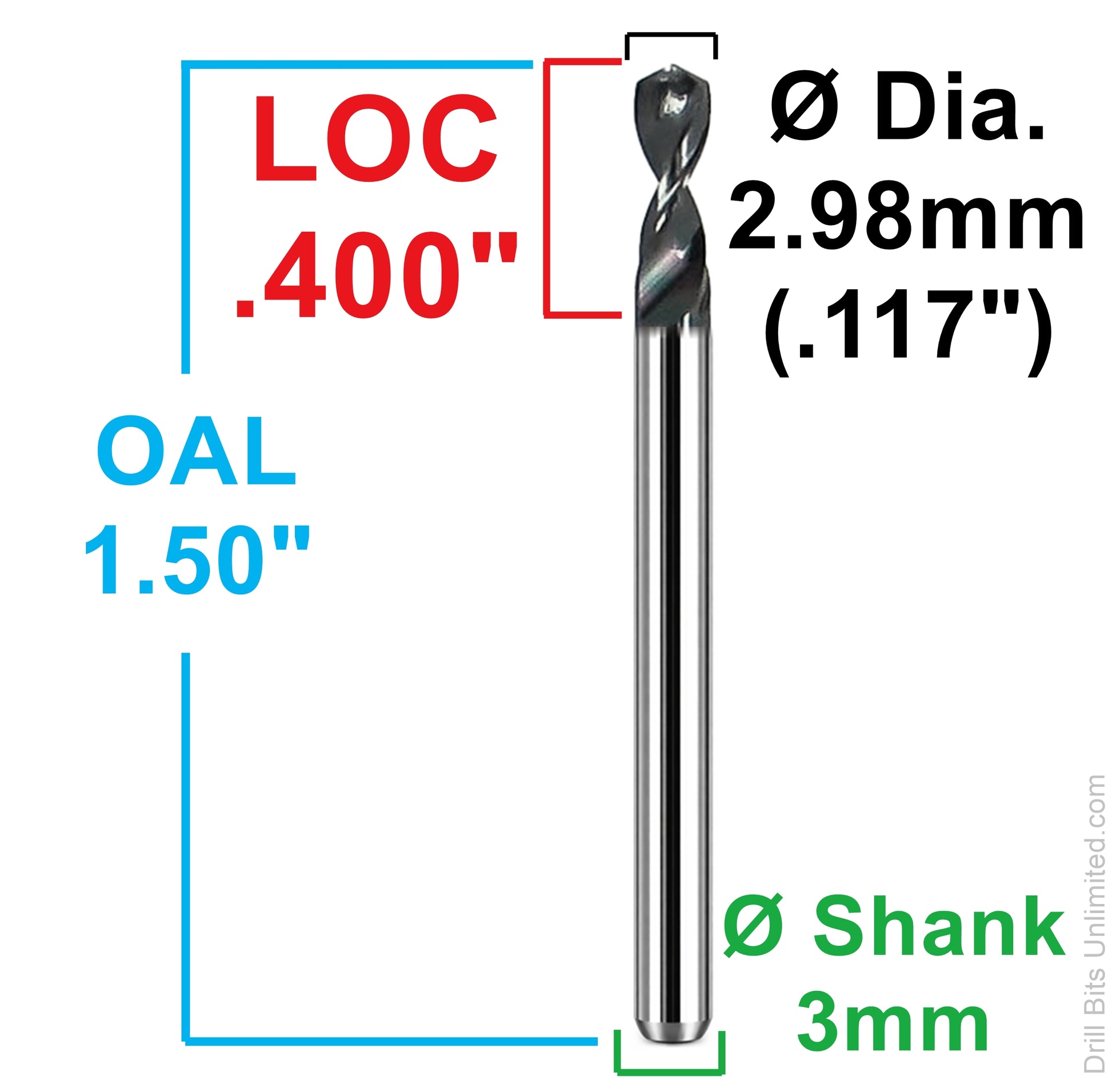

  • 2.98mm 0.117 inch carbide micro drill dimensions loc 0.400 oal 1.50 shank 3mm

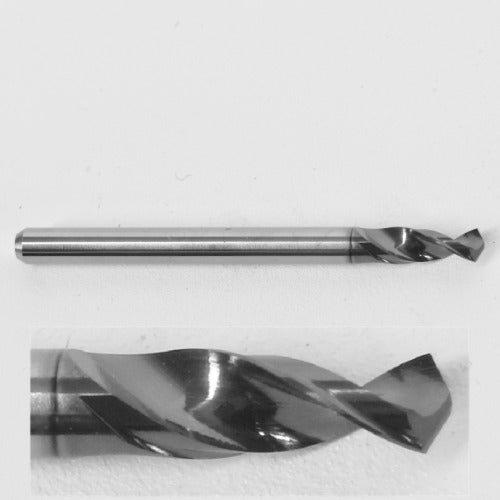

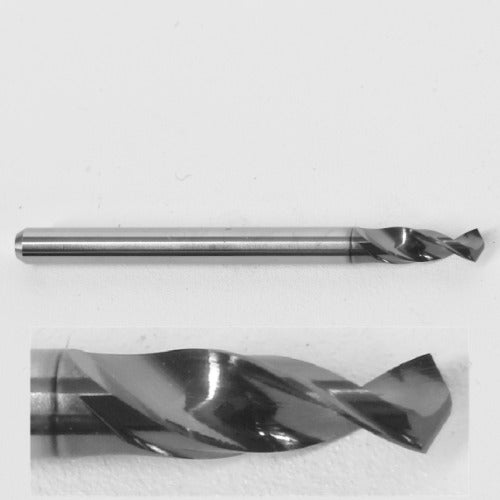

  • 2.98mm carbide micro drill altin coated cutting flutes close up
1 3

Drill Bits Unlimited

2.98mm (0.1173") Carbide Micro Drill Bit AlTiN Coated – Kyocera 226-1173L400 K037

2.98mm (0.1173") Carbide Micro Drill Bit AlTiN Coated – Kyocera 226-1173L400 K037

$5.95 USD
$5.95 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

2.98mm (0.1173") solid carbide micro drill bit manufactured by Kyocera USA, part number 226-1173L400. This AlTiN-coated Series 226 drill is designed for precision CNC drilling in steel, stainless steel, titanium, cast iron, composites, and other difficult materials. The micro-length design provides excellent rigidity and accuracy for high-precision machining.

Key Specifications:

  • Manufacturer: Kyocera USA
  • Series: 226
  • Part Number: 226-1173L400
  • Diameter: 2.98mm (0.1173")
  • Flute Length (LOC): 0.400"
  • Overall Length: 38mm (1.50")
  • Shank Diameter: 3mm (0.1181")
  • Flutes: 2
  • Coating: AlTiN
  • Point Style: 4 Facet
  • Point Angle: 130°
Number of Pieces: 1 Shank Type: Straight
Grade: Micrograin Carbide Drill Bit Material: Solid Carbide
Number of Flutes: 2 Application: Metalworking
Overall Length: 38.00mm Cutting Direction: Right Hand
Drill Bit Dimension Type: Metric Flute Length: 0.4000"
Drill Bit Size: 2.98mm Coolant Through: No
Decimal Equivalent: 0.1173 Point Type: 4 Facet
Drill Bit Point Angle: 130 Degrees Shank Dia.: 0.1181"
Drill Bit Finish: AlTiN List Number: 226
Item: Micro Drill Bit Coolant Fed: Non-Coolant Through
Flute Type: Spiral Primary Material Application: Brass, Cast Iron, CFRP, Cobalt, Composite, Copper Alloy, Graphite, Nickel, Titanium
Drill Bit Point Type: 4 Facet Point Aircraft Drill: No
Material - Machining: Carbide Series: 226
Web Construction: Split Circuit Board Drill: No
Material Grade - Machining: Sub Micron Finish - Machining: AlTiN
Primary Material Application ISO Code: H, M, P Drill Length Class: Micro Length
Web Thinning: X-Thinned Shank Type - Machining: Straight
Measurement System: Metric Maximum Drilling Depth: 0.4000"
Drill Diameter Tolerance: +0.000mm/-0.008mm Spiral Direction: Right Hand
Standards: Not Rated Country of Origin (subject to change): United States
