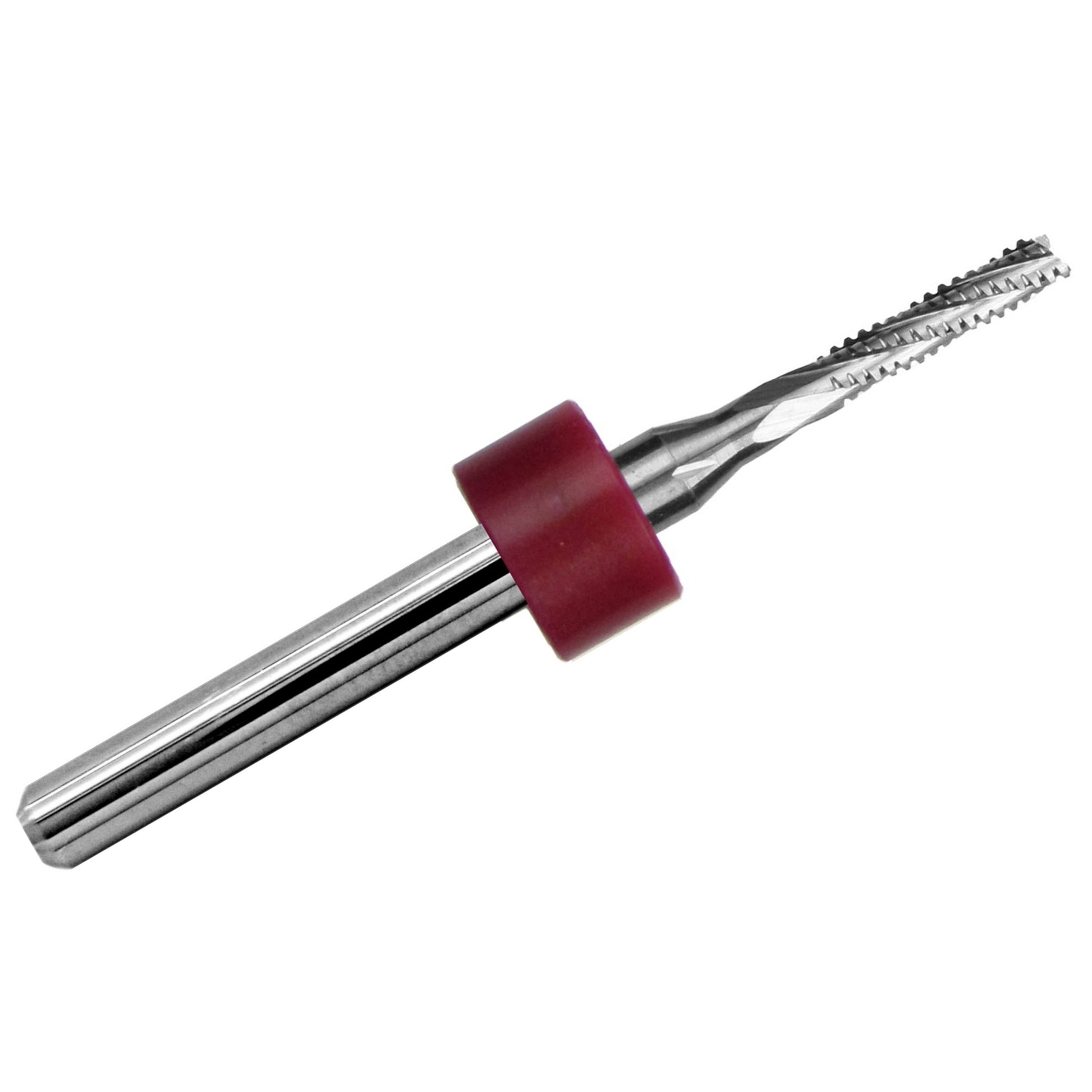

0.0787" (2.00mm) x .315" LOC Chip Breaker Carbide Router, Fish Tail Tip, 1/8" Shank | R166

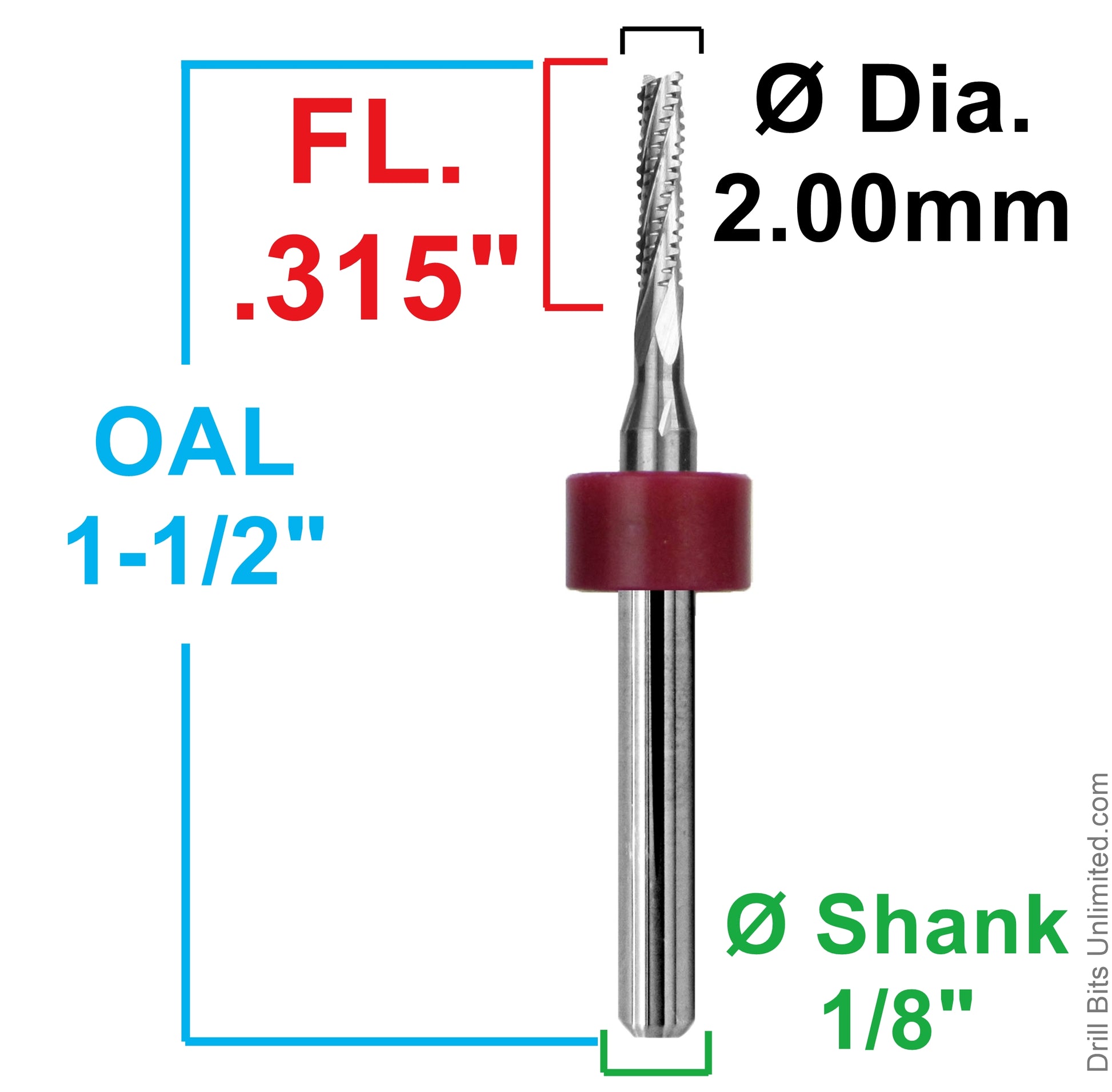

This chip breaker carbide router features a 0.0787" (2.00mm) cutting diameter, .315" LOC, 1-1/2" overall length, and a 1/8" shank, making it ideal for precision routing in abrasive composite materials.

The chip breaker geometry uses a segmented cutting edge designed to break chips into smaller pieces, helping improve chip evacuation, reduce clogging, and minimize heat buildup during cutting.

Not sure whether a chip breaker or diamond flute router is right for your application? Compare chip breaker vs diamond flute routers →

Designed for FR-4, G10, fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers stable cutting performance and extended tool life in demanding applications.

For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →

The up-cut design promotes efficient chip evacuation and improves bottom-edge cut quality, making it well-suited for through-cuts and routing operations.

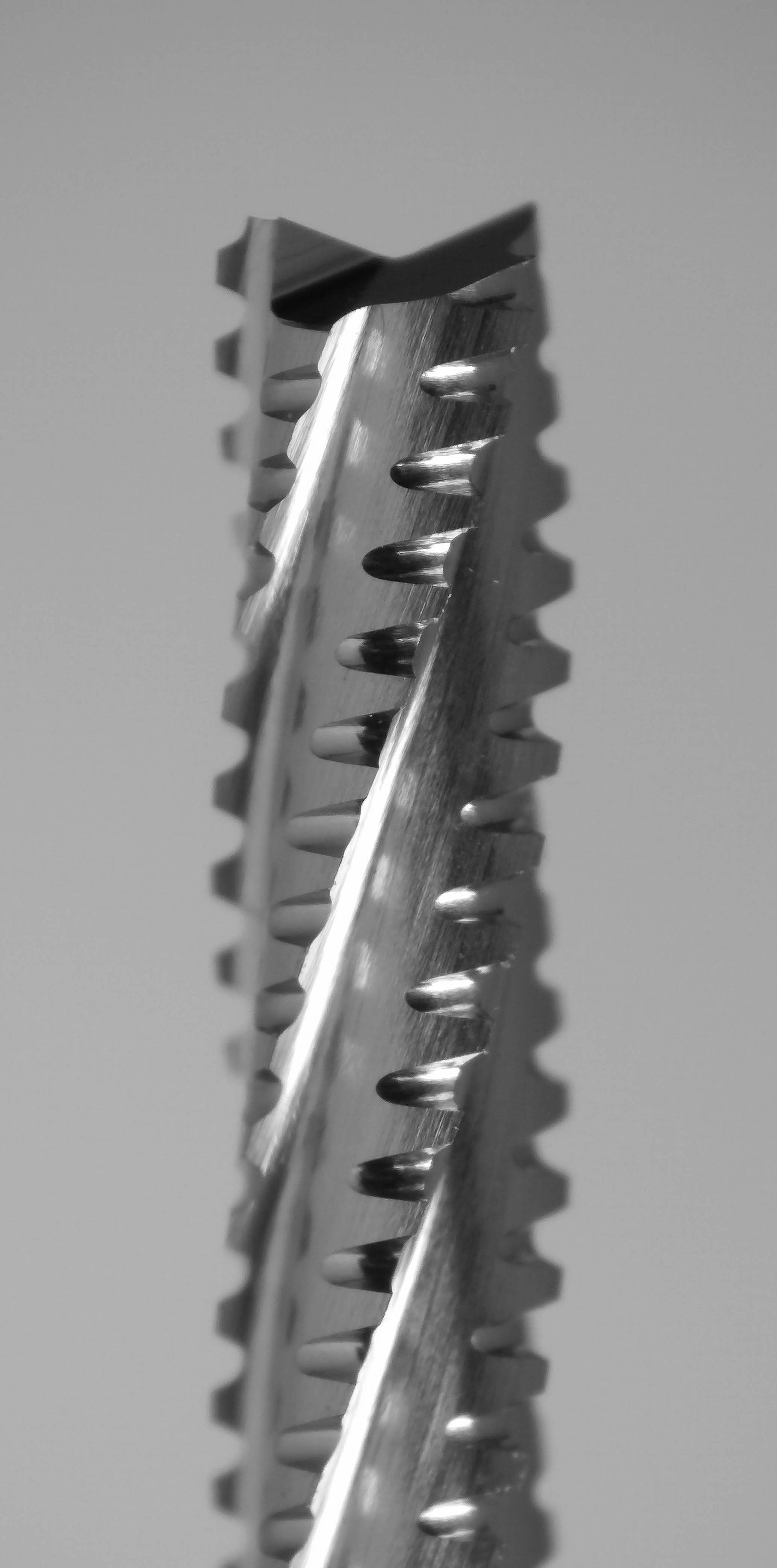

This tool features a fish tail tip, designed for gentle entry into brittle or layered materials, helping reduce chipping, delamination, and surface damage during entry.

👉 View Chip Breaker Router Feed & Speed Chart

Typical Applications

• PCB routing (FR-4, G10)
• Fiberglass and phenolic laminate cutting
• Carbon fiber routing
• Abrasive composite machining
• General routing with controlled entry requirements

Benefits

• Chip breaker geometry improves chip control and reduces clogging
• Efficient chip evacuation helps reduce heat buildup and tool wear
• Up-cut design improves bottom-edge cut quality
• Fish tail tip reduces entry damage and delamination
• .315" LOC provides a balance of depth and rigidity
• Solid carbide construction ensures durability

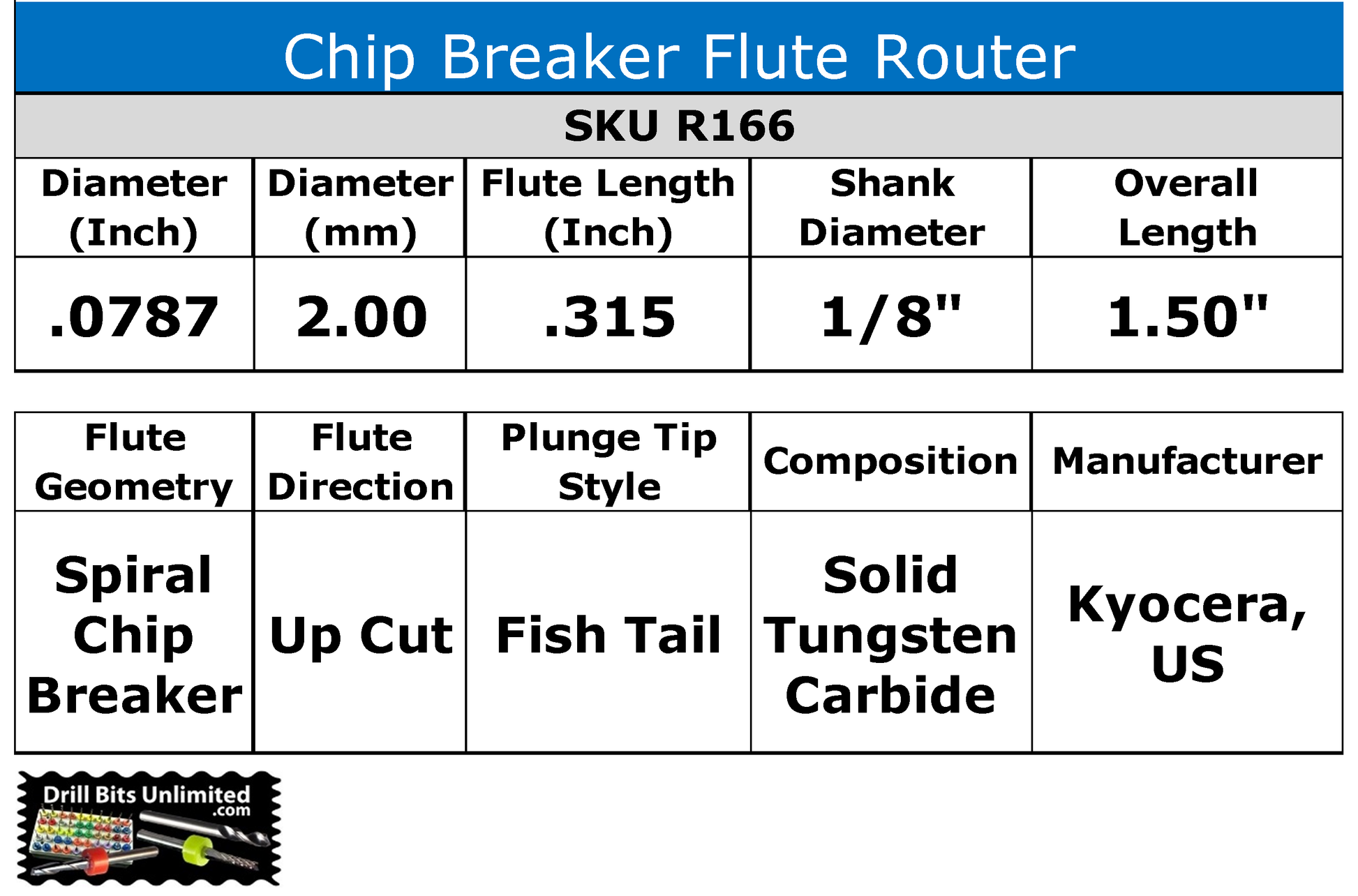

Specifications

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.
