29/64" (0.4531") Kyocera ORION Carbide Drill Bit TiAlN – 160-4531AG2266 K033
29/64" (0.4531") Kyocera ORION Carbide Drill Bit TiAlN – 160-4531AG2266 K033
Regular price
$99.95 USD
Regular price
Sale price
$99.95 USD
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

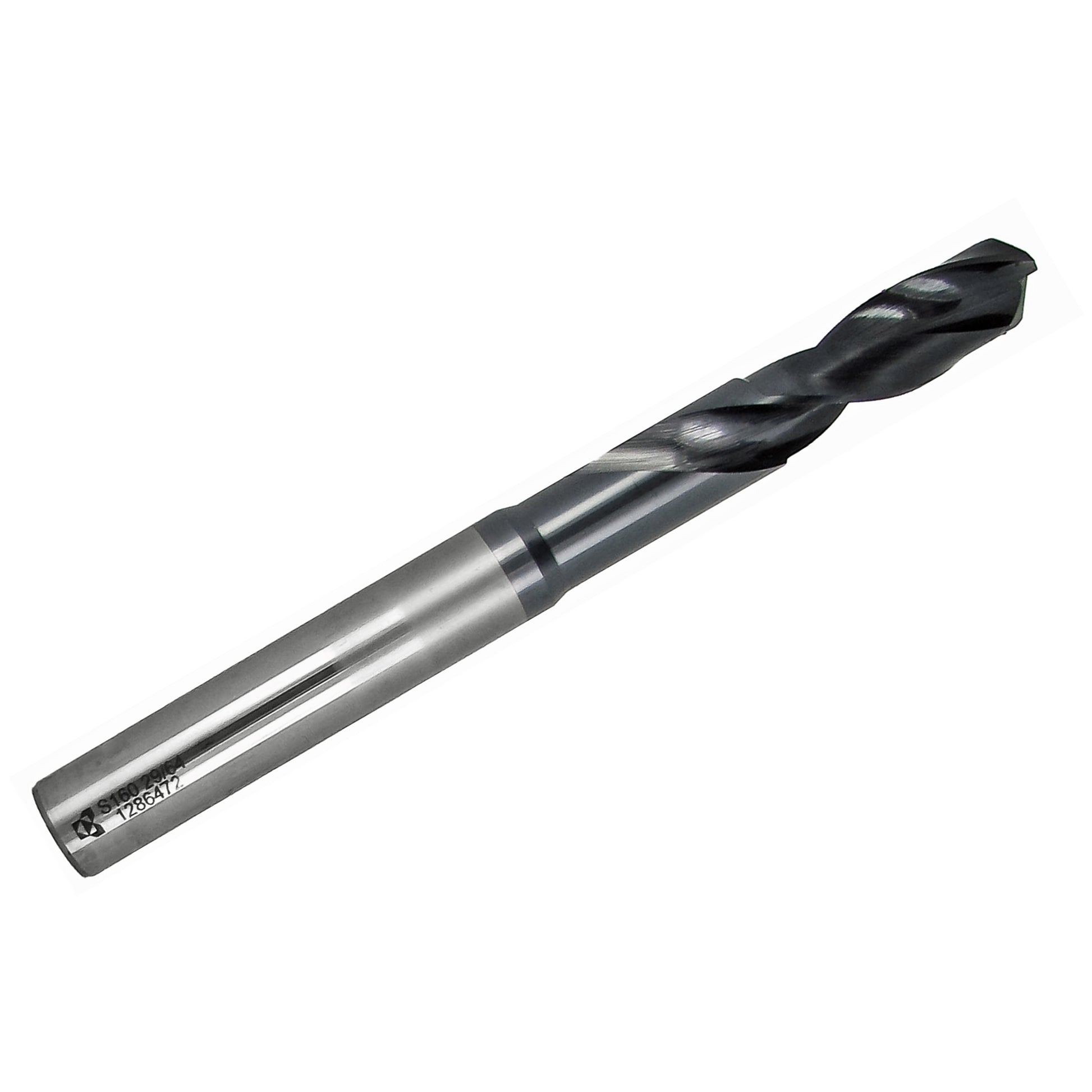

29/64" (0.4531") solid carbide drill bit manufactured by Kyocera USA, part number 160-4531AG2266. This ORION high-performance screw machine length drill features a TiAlN coating for increased wear resistance and heat protection when drilling steel and other metals. The rigid 3xD design provides improved accuracy and tool life in CNC and manual machining applications.

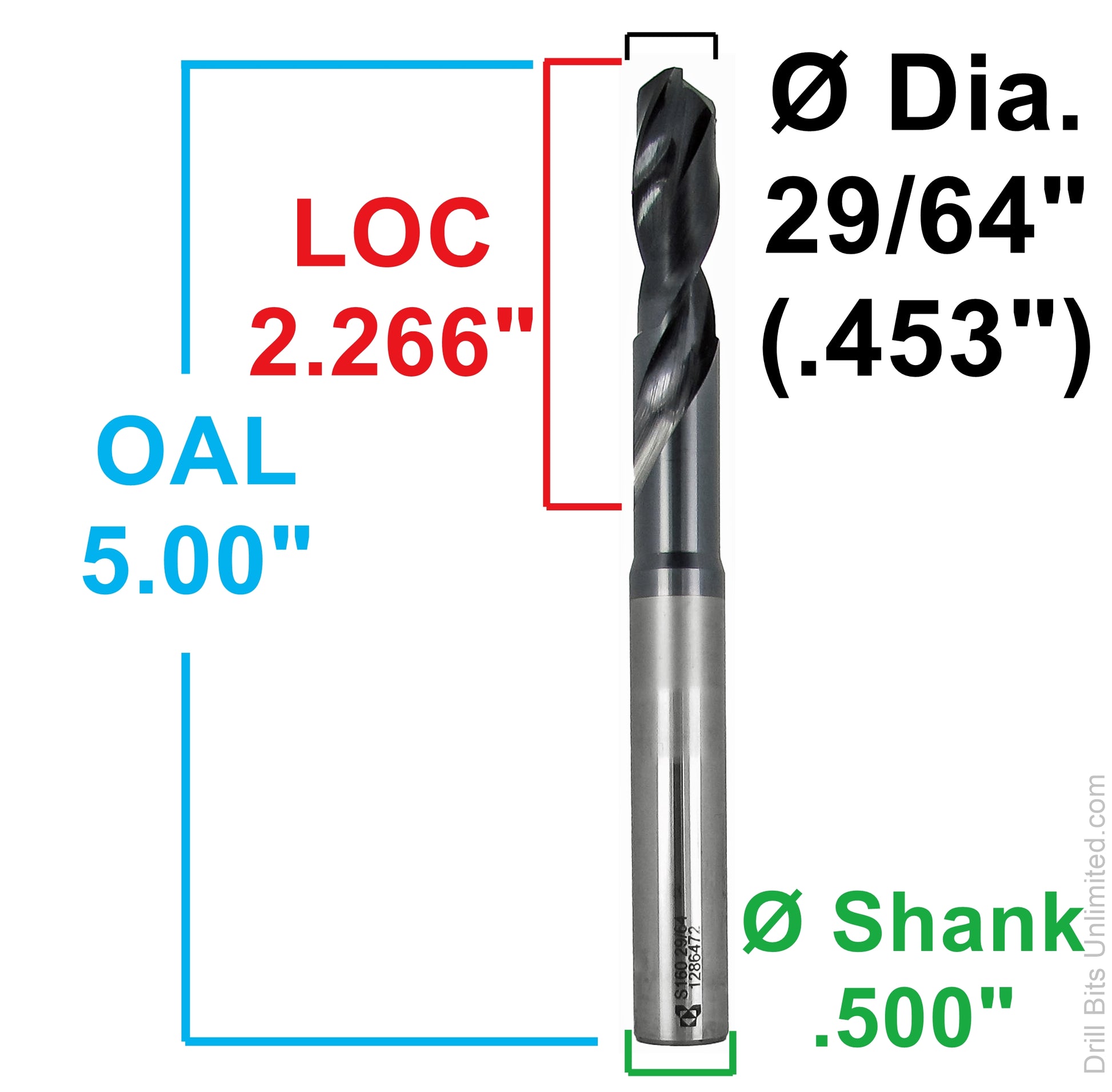

Key Specifications:
- Manufacturer: Kyocera USA
- Series: ORION
- Part Number: 160-4531AG2266
- Diameter: 29/64" (0.4531")
- Flute Length (LOC): 2.266"
- Overall Length: 5.000"
- Shank Diameter: 0.500"
- Flutes: 2
- Coating: TiAlN
- Point Angle: 142°
- Depth Ratio: 3xD
| Overall Length: 5.000" | Depth:Dia. Ratio: 3xD |
| Application: Metalworking | Flute Length: 2.266" |
| Number of Flutes: 2 | Drill Bit Point Angle: 142 Degrees |
| Decimal Equivalent: 0.4531 | Item: Screw Machine Length Drill Bit |
| Shank Type: Straight | Drill Bit Dimension Type: Fractional Inch |
| Coolant Through: No | Drill Bit Size: 29/64" |
| Flute Type: Spiral | Shank Dia.: 0.500" |
| Sizes Included: 29/64" | Cutting Direction: Right Hand |
| Point Type: 6 Facet | Grade: Micrograin |
| Drill Bit Finish: TiAlN | Drill Bit Material: Solid Carbide |
| List Number: 2043 | Depth x Dia. Ratio: 3xD |
| Coolant Fed: Non-Coolant Through | Country of Origin (subject to change): United States |
