0.1200" (3.05mm) x .360" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K034
0.1200" (3.05mm) x .360" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K034
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

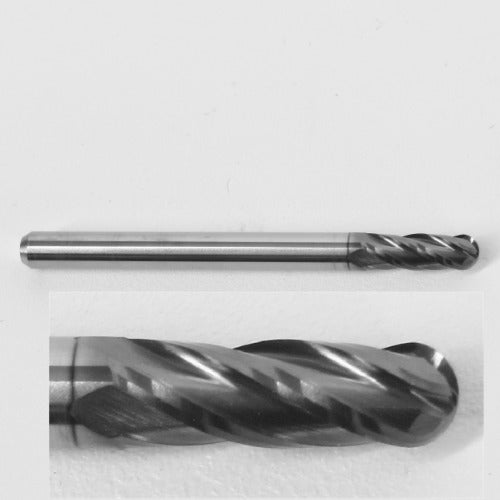

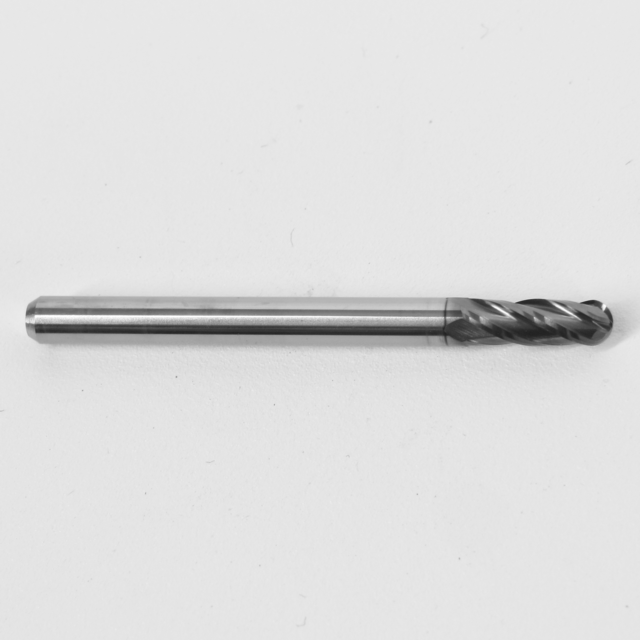

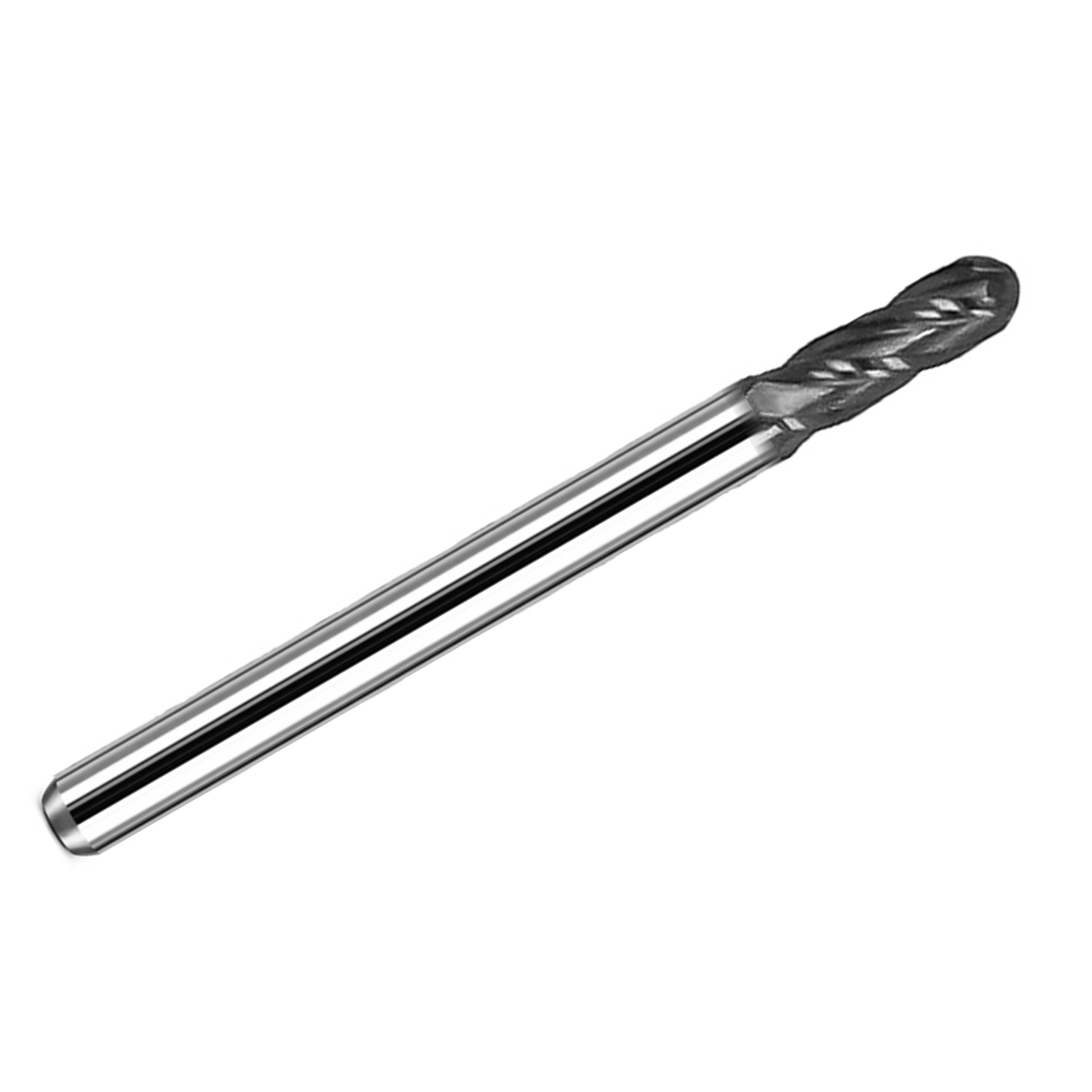

This 0.120" (3.05mm) 4-flute ball nose carbide end mill from Kyocera features a durable AlTiN coating designed to improve heat resistance, reduce wear, and extend tool life in demanding machining environments.
The ball nose geometry allows smooth cutting during 3D contouring, profiling, and finishing operations. Its 4-flute design provides excellent rigidity and stability when machining harder materials.
This tool performs well in steel, stainless steel, cast iron, and superalloys, making it suitable for mold work, detailed contours, and precision finishing passes where strength and surface quality are important.
Manufacturer: Kyocera
Manufacturer Part Number: 1825-1200L360
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profile milling
- Finishing curved surfaces
- Mold and die machining
- Precision CNC milling of hardened materials
Benefits
- Ball nose profile for smooth radiused contours
- AlTiN coating improves heat resistance and wear life
- 4-flute design increases rigidity for harder materials
- Solid carbide construction for strength and accuracy
- Made in the USA by Kyocera

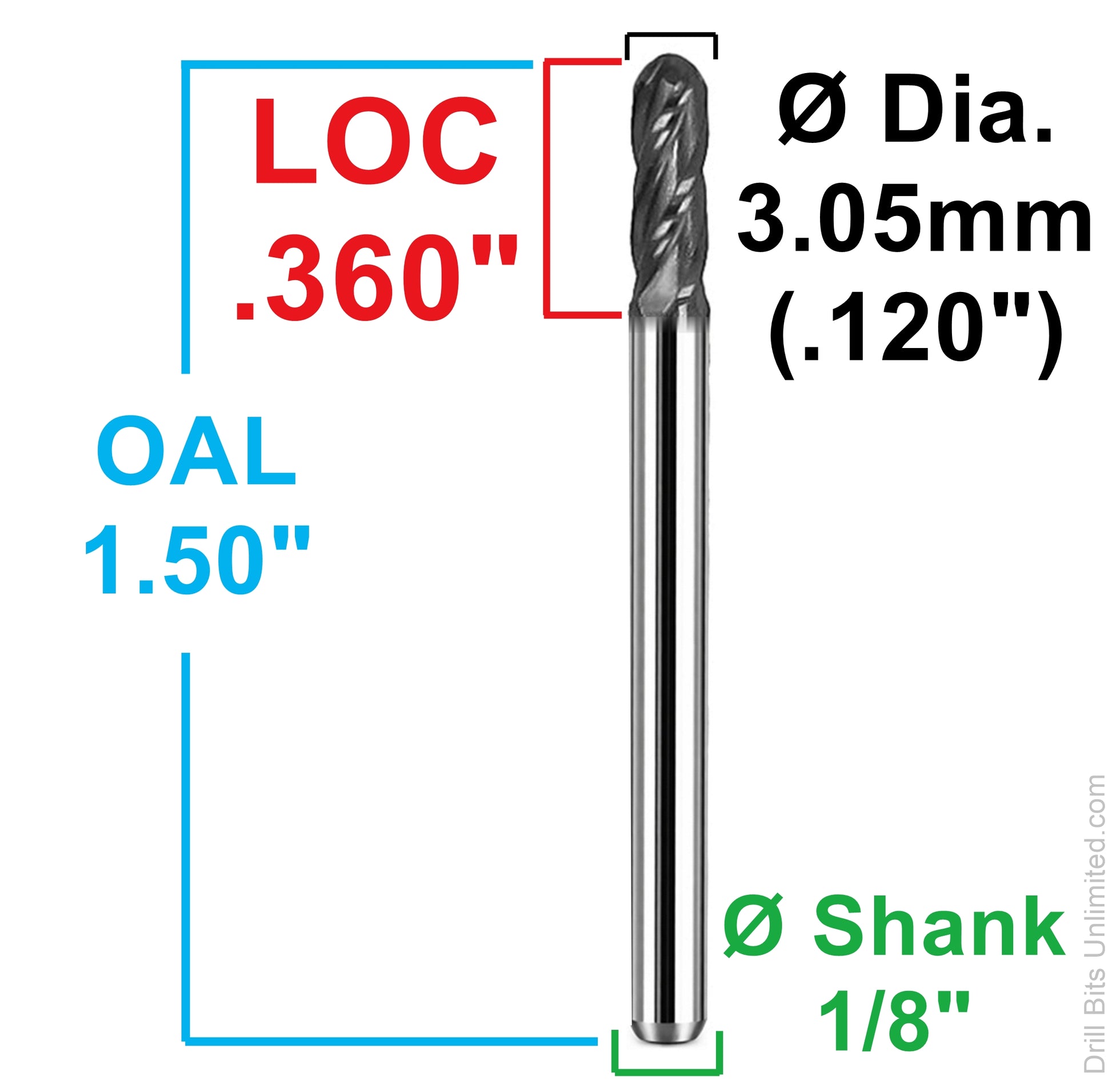

Specifications
| Tool Type | Ball End Mill |
| Diameter | 0.1200" (3.05mm) |
| Flutes | 4 |
| Material | Solid Carbide |
| Coating | AlTiN |
| Helix Angle | 30° |
| Length of Cut | 0.3600" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" |
| Cutting Direction | Right Hand |
| Cutting Type | Center Cutting |
| Compatible Materials | Steel, Stainless Steel, Cast Iron, Superalloys |
| Non-Ferrous Compatibility | No |
| Country of Origin | United States |
