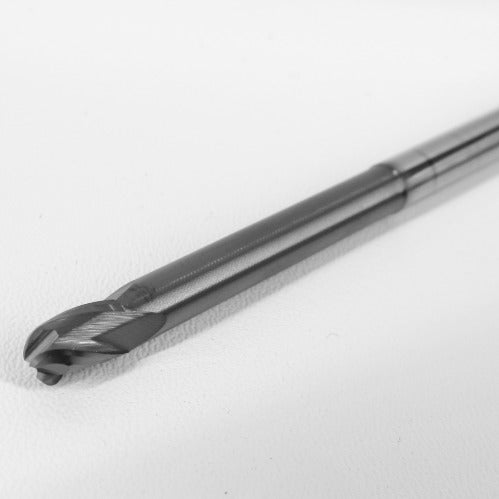

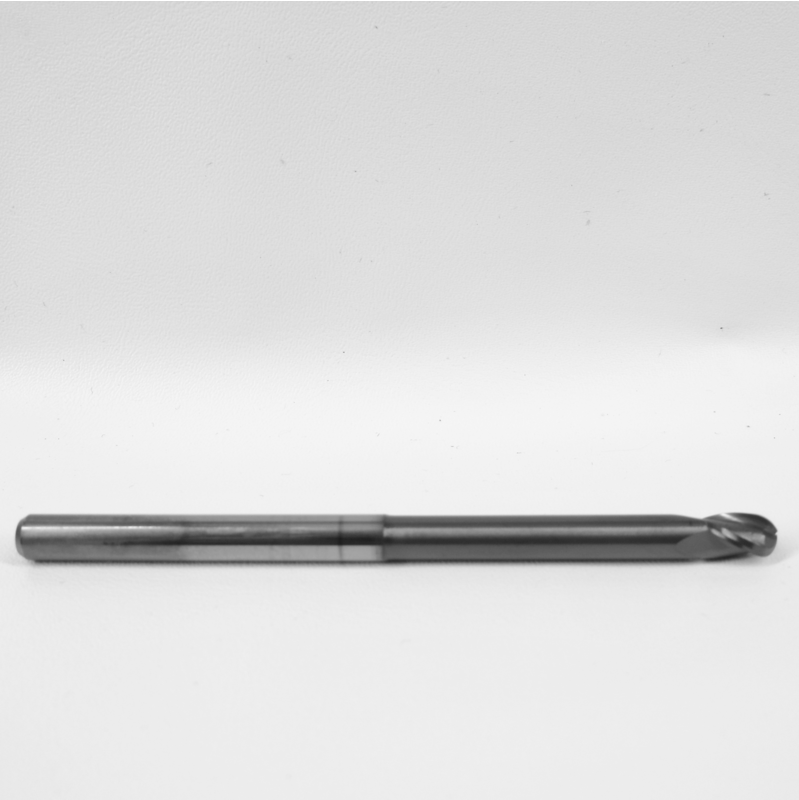

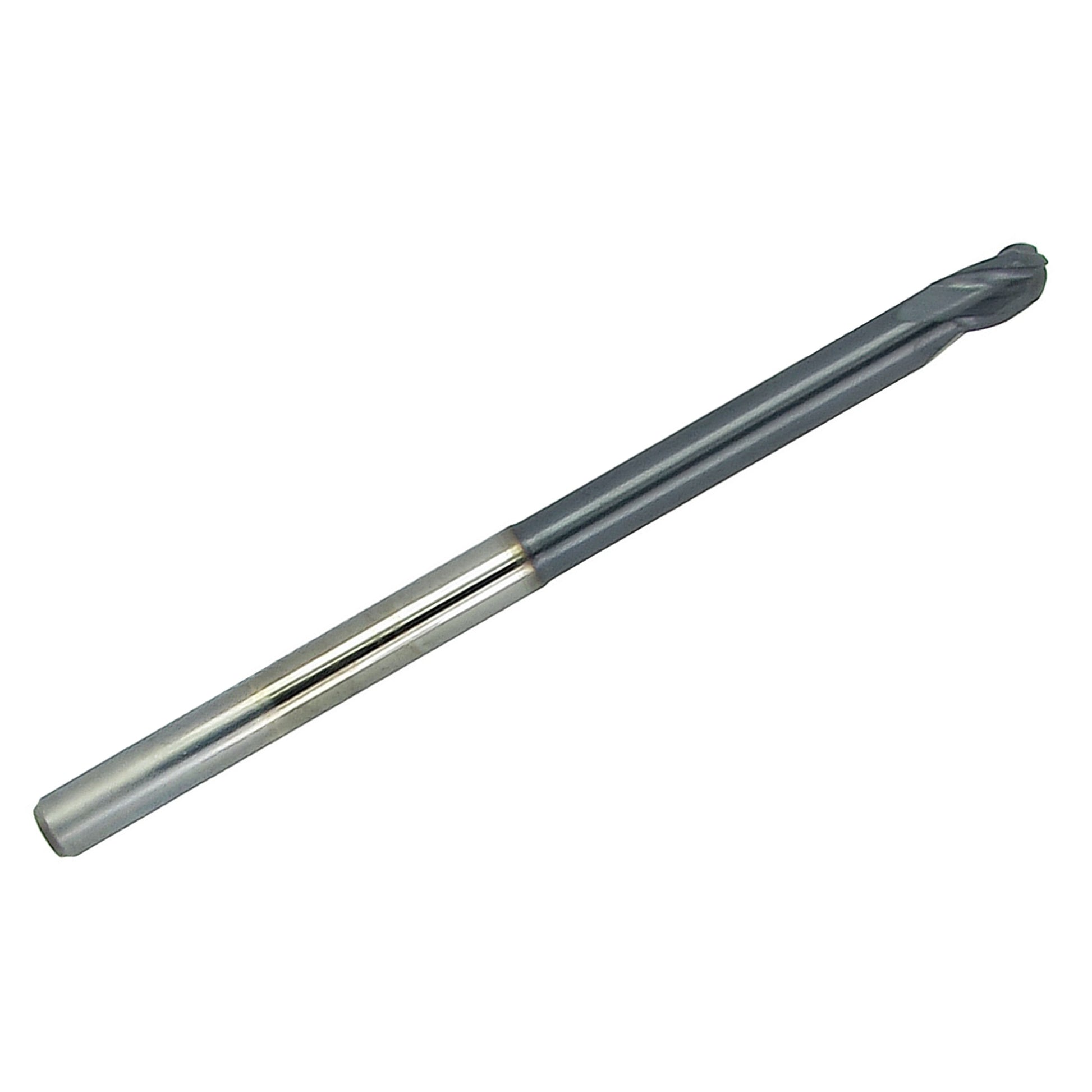

• 3/16" .1875" Diameter Ball Nose End Mill, AlTiN Coated,Carbide, 3 Flute, Extended Reach, Stub Length K007
  • 3/16" .1875" Diameter Ball Nose End Mill, AlTiN Coated,Carbide, 3 Flute, Extended Reach, Stub Length K007
1 3

Drill Bits Unlimted

3/16" .1875" Diameter Ball Nose End Mill, AlTiN Coated,Carbide, 3 Flute, Extended Reach, Stub Length K007

3/16" .1875" Diameter Ball Nose End Mill, AlTiN Coated,Carbide, 3 Flute, Extended Reach, Stub Length K007

$27.95 USD
$27.95 USD
Sale Sold out

8 left in stock

SKU: K007

  • Cutting Diameter (Size): 3/16"

  • Cutting Diameter (Decimal Inch): 0.1875

  • Cutting Diameter (mm): 4.76

  • Shank Diameter (Decimal Inch): 0.1875

  • Overall Length (Decimal Inch): 3.000

  • Overall Length (mm): 76.20

  • Length of Cut (Decimal Inch): 0.281

  • Length of Cut (mm): 7.14

  • Reach Length (Decimal Inch): 1.500

  • Reach Length (mm): 38.10

  • Length Type: Extended Reach, Stub

  • Neck Diameter (Decimal Inch): 0.0518

  • Neck Diameter (mm): 1.32

  • Neck Length (Decimal Inch): 0.660

  • Neck Length (mm): 16.76

  • Helix Angle (Degree): 30

  • Number of Flutes: 3

  • Flute Style: Right Hand Spiral / Medium Helix

  • Hand of Cut: Right-Hand
