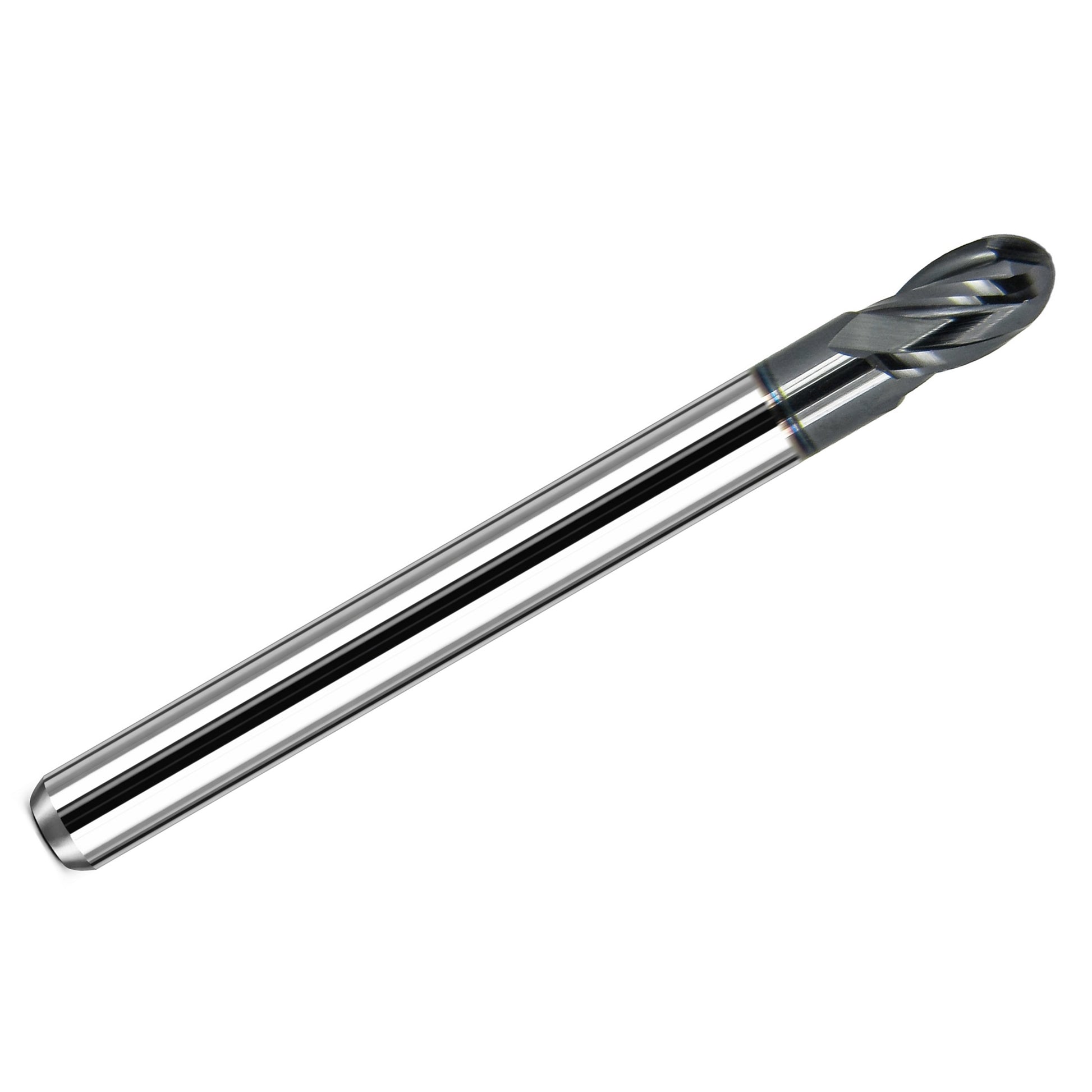

0.1875" (3/16") 4-Flute Ball Nose Carbide End Mill AlTiN Coated Kyocera 1835-1875L312 K172

This 3/16" 4-flute ball nose carbide end mill from Kyocera features a durable AlTiN coating for improved wear resistance and heat protection in demanding CNC milling applications. Manufactured from micrograin solid carbide, it is designed for precision machining, rigidity, and long tool life.

The ball nose tip is well suited for 3D contouring, profiling, and smooth surface finishing, while the 4-flute design provides increased strength and stable performance in tougher materials. This tool features a 3/16" cutting diameter, 0.312" length of cut, 2.00" overall length, and 3/16" shank.

Manufactured in the United States, Kyocera end mills are known for consistent quality, tight tolerances, and reliable performance in professional machining environments.

Common applications include:

• 3D contour milling
• Profiling and finishing operations
• Mold and die work
• Precision CNC machining in steels and hardened materials
• Smooth radius and surface finishing work

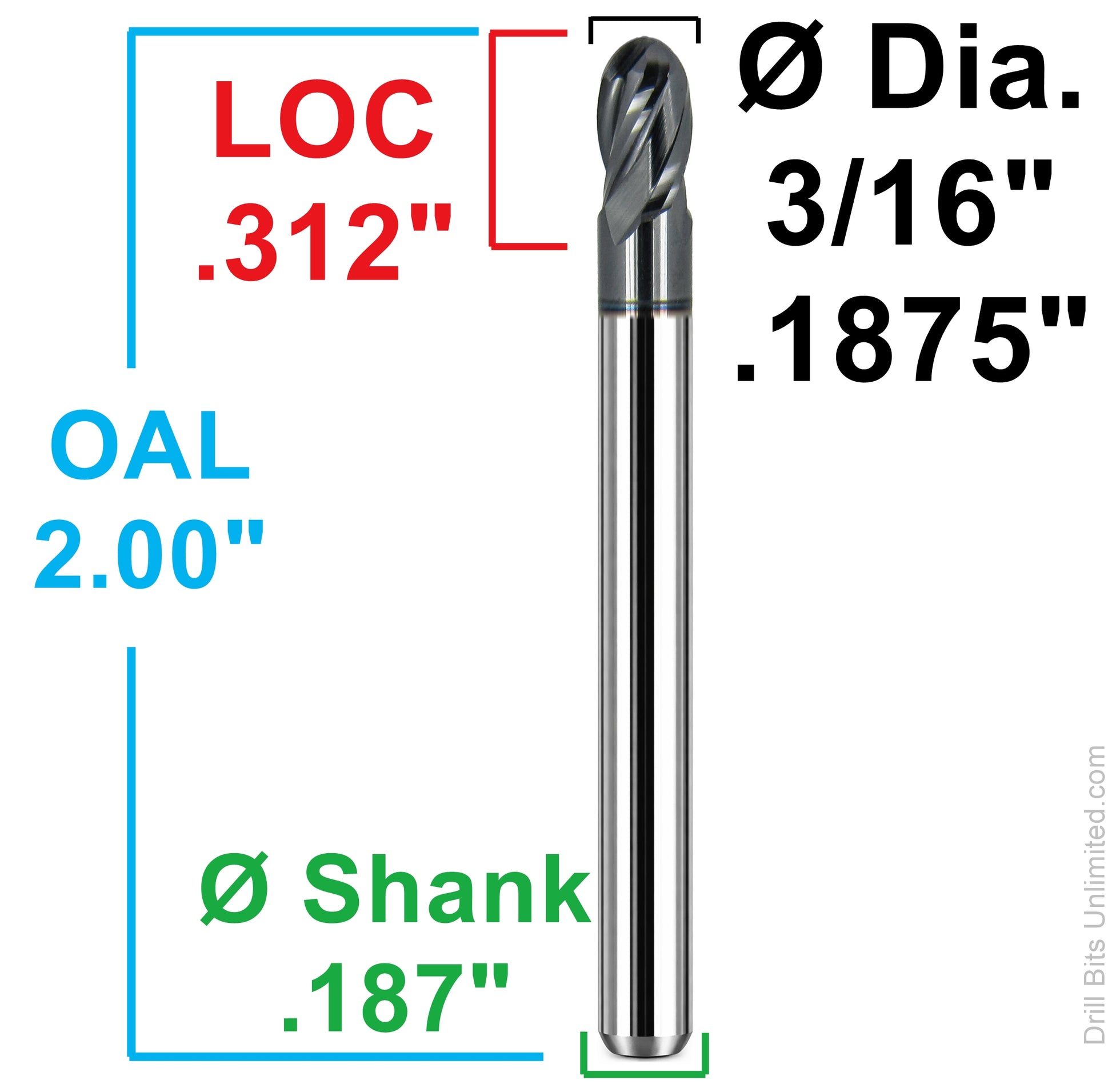

Specifications:

• Diameter: 3/16" (0.1875")
• Length of Cut: 0.312"
• Overall Length: 2.00"
• Shank Diameter: 3/16" (0.187")
• End Style: Ball Nose
• Flutes: 4
• Helix Angle: 30°
• Material: Solid Micrograin Carbide
• Coating: AlTiN
• Series: Kyocera 1835
• Country of Origin: United States
