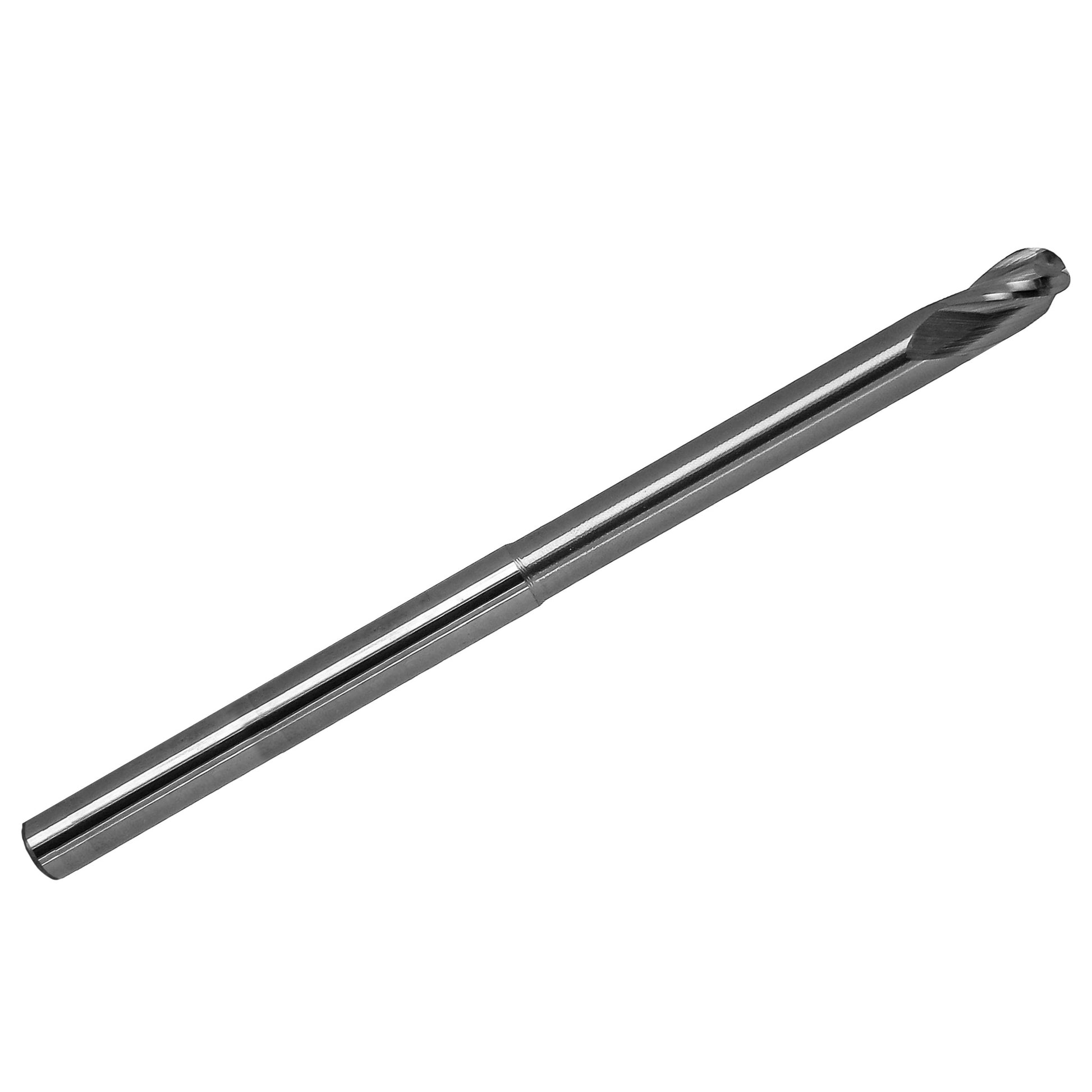

0.1875" (3/16") Ball Nose Carbide End Mill 3-Flute Extended Reach Kyocera USA 1755-1875.1500 K061

This 3/16" (0.1875") 3-flute ball nose carbide end mill from Kyocera is manufactured from micro-grain solid carbide and features an extended neck design for machining deeper cavities and hard-to-reach features in CNC milling applications.

Ball nose end mills are widely used for 3D contour milling, profiling, and surface finishing. The rounded cutting tip allows smooth transitions when machining complex surfaces, molds, dies, and sculpted geometries.

The bright (uncoated) carbide finish provides sharp cutting edges ideal for machining aluminum, plastics, and other non-ferrous materials. The 3-flute geometry balances chip evacuation and rigidity while the extended neck length allows the cutter to reach deeper features without interference from the tool holder.

Manufacturer: Kyocera

Manufacturer Part Number: 1755-1875.1500

Country of Origin: United States

Typical Applications

• 3D contour machining
• Mold and die work
• Deep cavity machining
• Profiling complex surfaces
• CNC machining of aluminum and non-ferrous materials

Benefits

• Ball nose geometry for smooth 3D surface finishing
• 3 flutes balance chip evacuation and rigidity
• Extended neck allows machining deeper features
• Micro-grain carbide provides strength and durability
• Center cutting design allows plunge milling capability

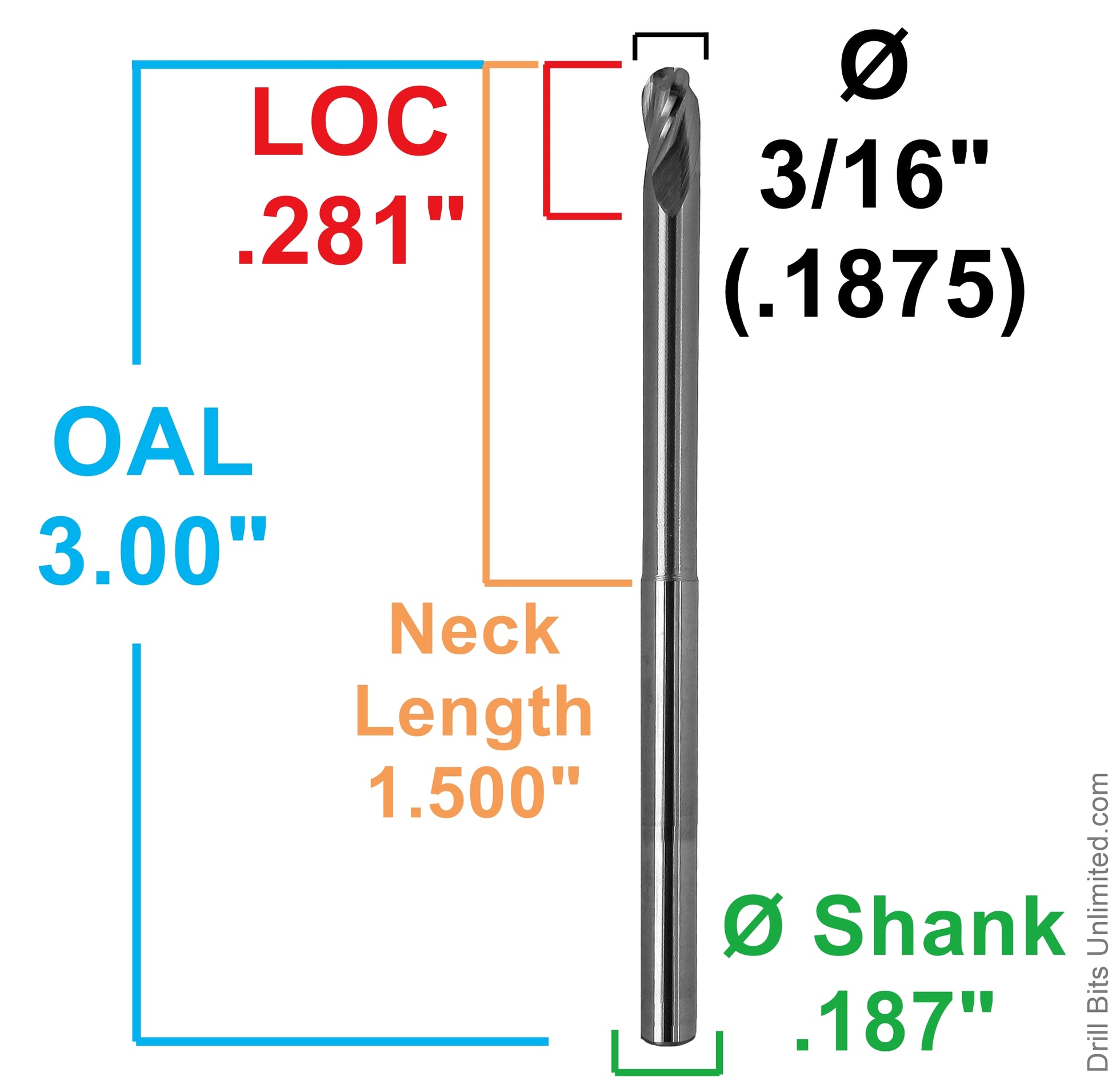

Specifications
