0.0938" (3/32") x .375" LOC 1-Flute Square End Carbide End Mill, 1/8" Shank | M140

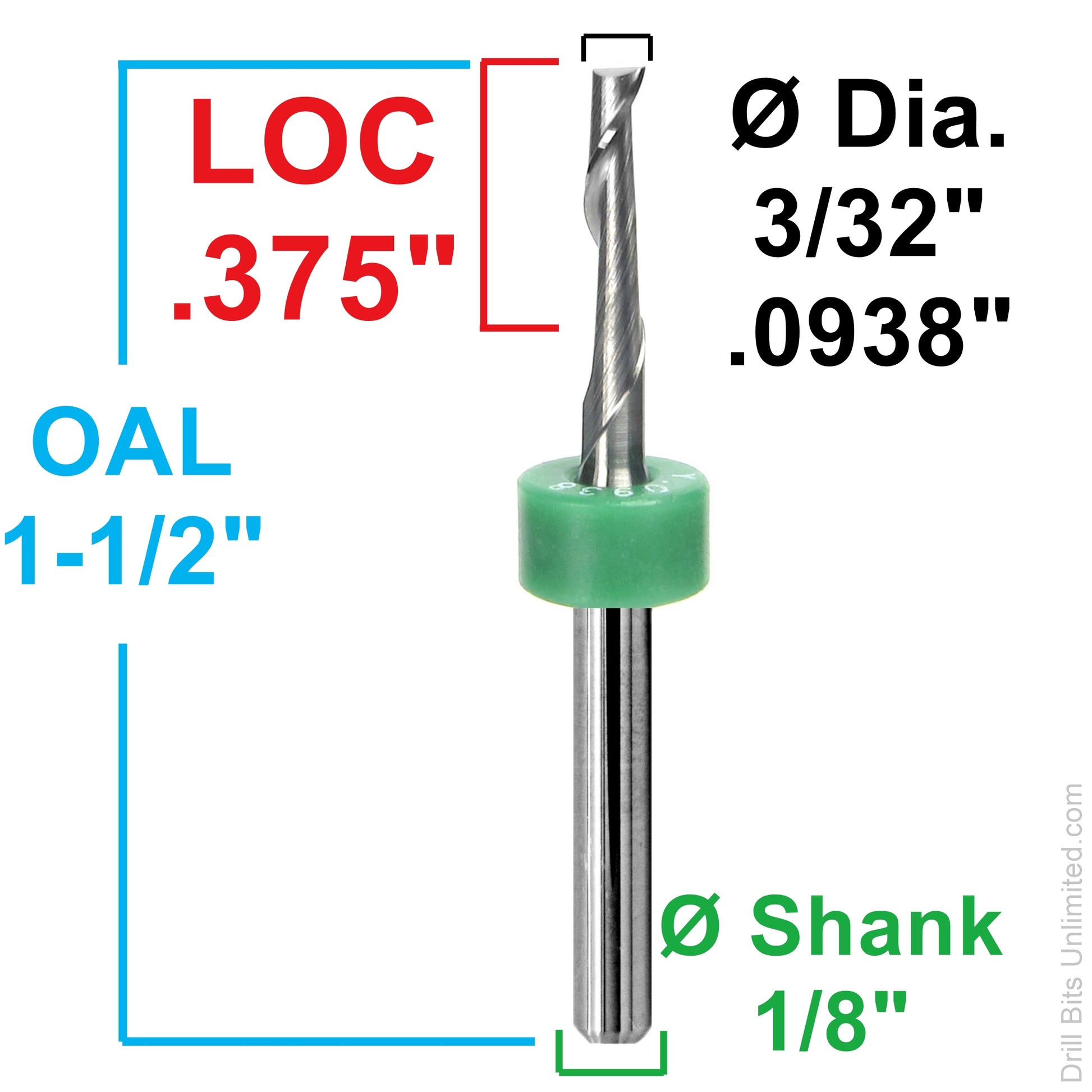

This 1-flute square end carbide end mill features a 0.0938" (3/32" / 2.40mm) cutting diameter, .375" length of cut, 1.50" overall length, and a standard 1/8" shank. Its polished-flute solid tungsten carbide construction makes it a practical choice for CNC routing, milling, profiling, slotting, and trimming in suitable materials.

The single-flute up-cut geometry provides a large flute space for chip evacuation, which can be helpful when cutting plastics, acrylic, wood, aluminum, and other suitable soft non-ferrous materials. Proper feeds, speeds, chip clearing, and secure workholding are important for best results.

The up-cut design helps evacuate chips efficiently by pulling chips up and away from the cut. In many routing applications, up-cut geometry can improve bottom-edge cut quality, but the top edge may require proper hold-down, masking, or finishing depending on the material.

With a .375" LOC, this tool provides useful cutting reach for small CNC work while still using a standard 1/8" shank. Use conservative pass depth and good chip clearing to reduce deflection, chatter, or tool breakage.

Typical Applications

• Plastic and acrylic machining
• Wood routing and detail cutting
• Aluminum and soft non-ferrous material cutting when properly set up
• Profiling and contouring
• Slotting and trimming
• Signmaking and small CNC routing
• Applications requiring efficient chip evacuation

Benefits

• Single-flute design provides large flute space for chip evacuation
• Up-cut geometry helps pull chips up and away from the cut
• Can improve bottom-edge cut quality in many routing applications
• Polished flutes help support smoother chip flow
• .375" LOC provides useful cutting reach for profiles, slots, and trimming work
• Square end geometry is suitable for slotting, profiling, trimming, and general routing work
• Solid tungsten carbide construction provides rigidity and wear resistance
• 1/8" shank fits many compact CNC routers, spindles, and precision collet setups

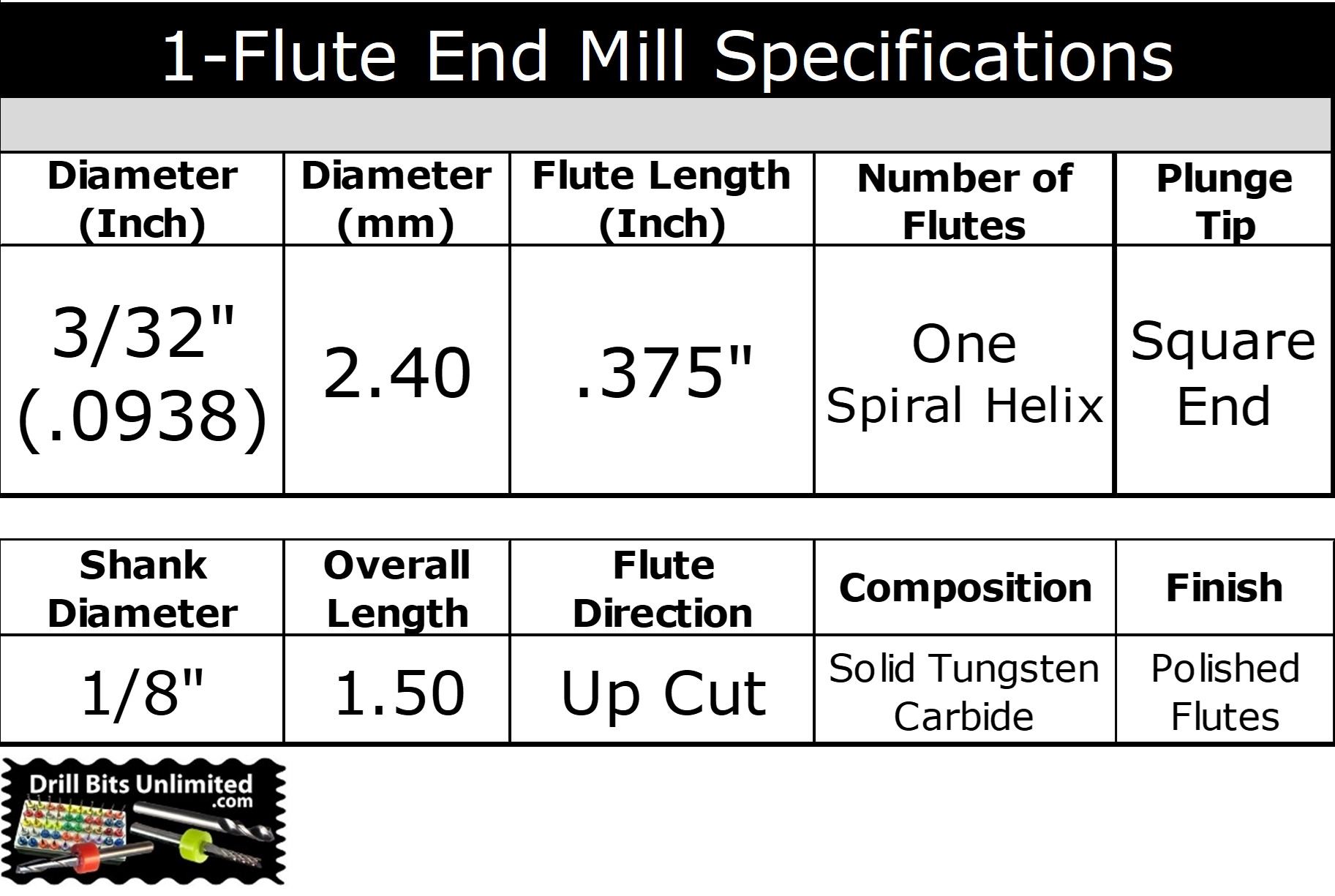

Specifications

End style: Square End — suitable for slotting, profiling, trimming, and general routing work.

Former SKU / item number: M232
