0.0938" (3/32") × .400" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R140A

0.0938" (3/32") × .400" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R140A

Regular price $4.99 USD
Regular price Sale price $4.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

Kyocera 3/32" Diamond-Flute PCB Router | .400" LOC | Drill Point | Up-Cut

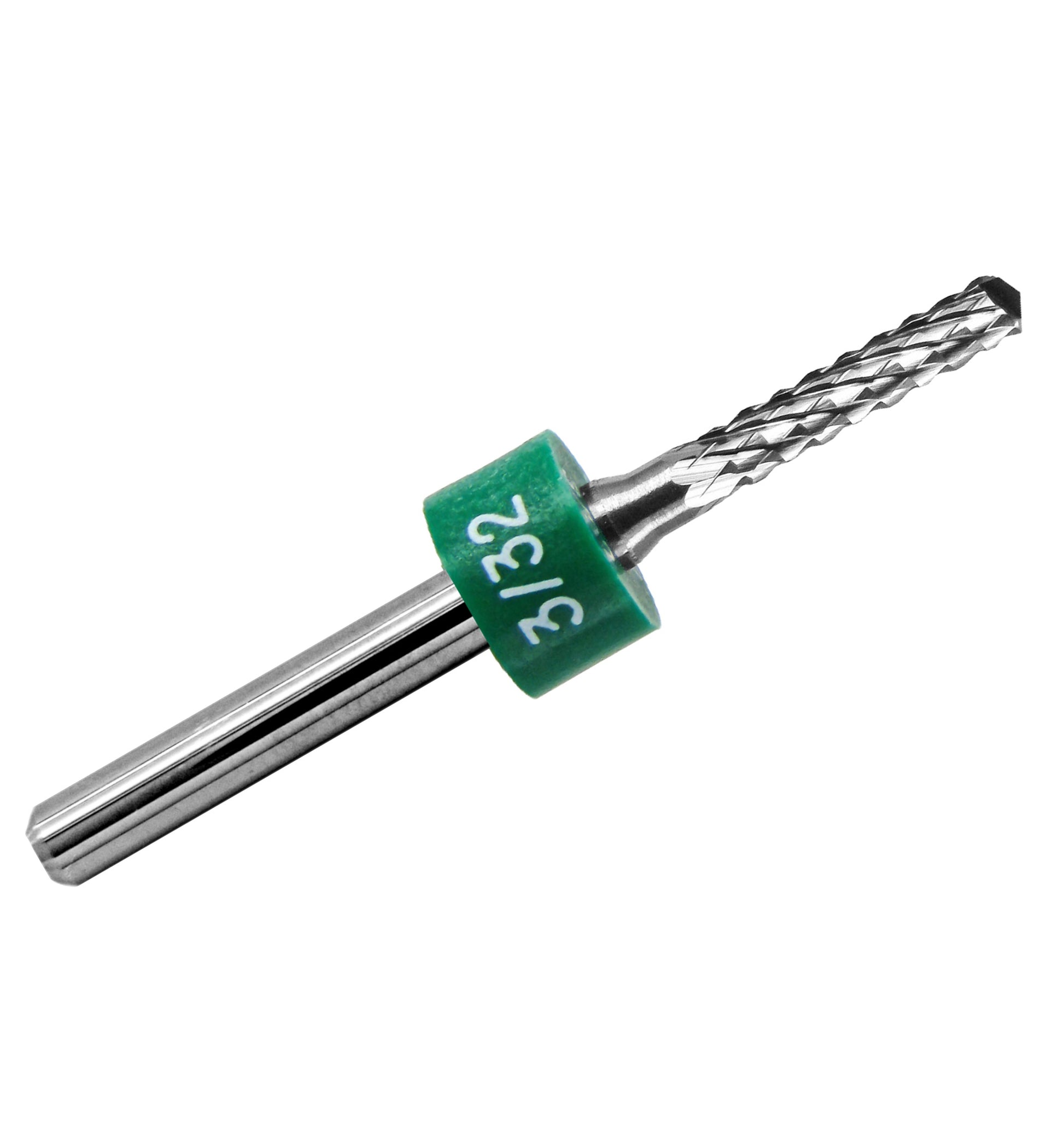

The R140A Kyocera solid carbide diamond-flute router features a 0.0938" (3/32") cutting diameter, 0.400" (10.16mm) length of cut, 1.500" overall length, and 1/8" (3.175mm) shank. This precision CNC router is designed for routing FR4/G10 printed circuit board laminates, fiberglass, phenolic materials, and other abrasive composites.

Its diamond-pattern cutting geometry features numerous small, intersecting cutting edges for controlled material removal. The drill-point tip supports direct entry into suitable workpieces, while the up-cut configuration helps direct cutting debris upward during routing.

Key Features

  • 0.0938" (3/32") cutting diameter: Common fractional size for PCB profiles, slots, board outlines, and internal cutouts
  • 0.400" LOC: Extended 10.16mm cutting reach for suitable thicker laminates and composite panels
  • Diamond-flute geometry: Multiple intersecting cutting edges help control chipping, fiber pull-out, and edge fraying under appropriate cutting conditions
  • Drill-point tip: Pointed end-cutting geometry facilitates plunge entry into suitable materials
  • Up-cut configuration: Helps evacuate chips and routing debris upward during machining
  • Solid tungsten carbide: Offers rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

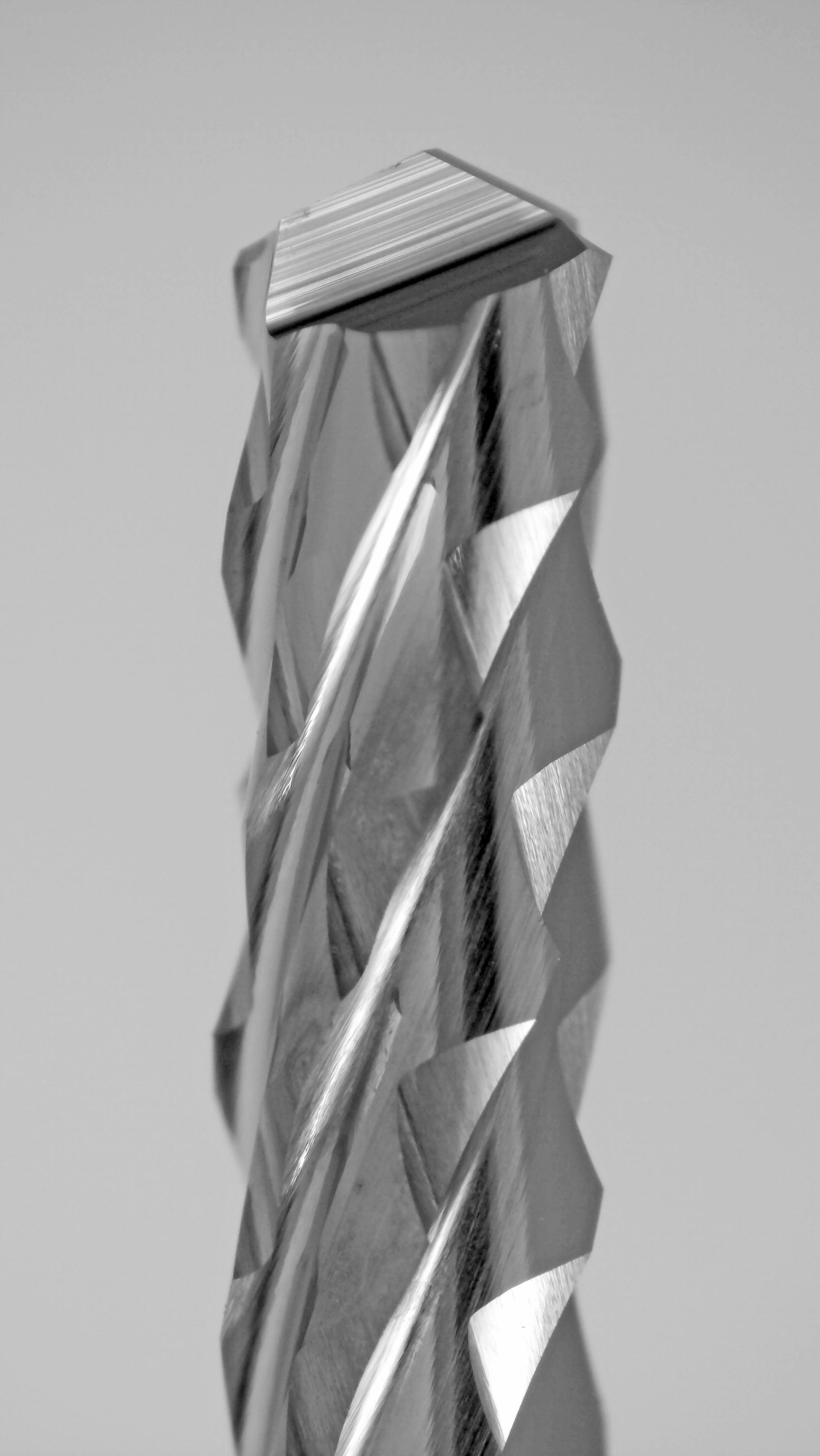

Diamond-Flute Geometry & Drill-Point Tip

Diamond-flute routers, also known as diamond-cut or diamond-pattern routers, use numerous fine, intersecting cutting edges rather than conventional continuous spiral flutes. This cutting geometry is commonly used for machining abrasive and layered materials such as FR4 printed circuit boards, G10 fiberglass laminates, and reinforced composites.

The drill-point tip provides a pointed end-cutting geometry for entry into suitable sheet materials. This makes it useful for starting internal contours, slots, and cutouts where direct plunge entry is required.

Use appropriate plunge feeds and cutting parameters for the workpiece material. Cutting performance, edge quality, and tool life depend on spindle speed, machine rigidity, workholding, and cutting depth.

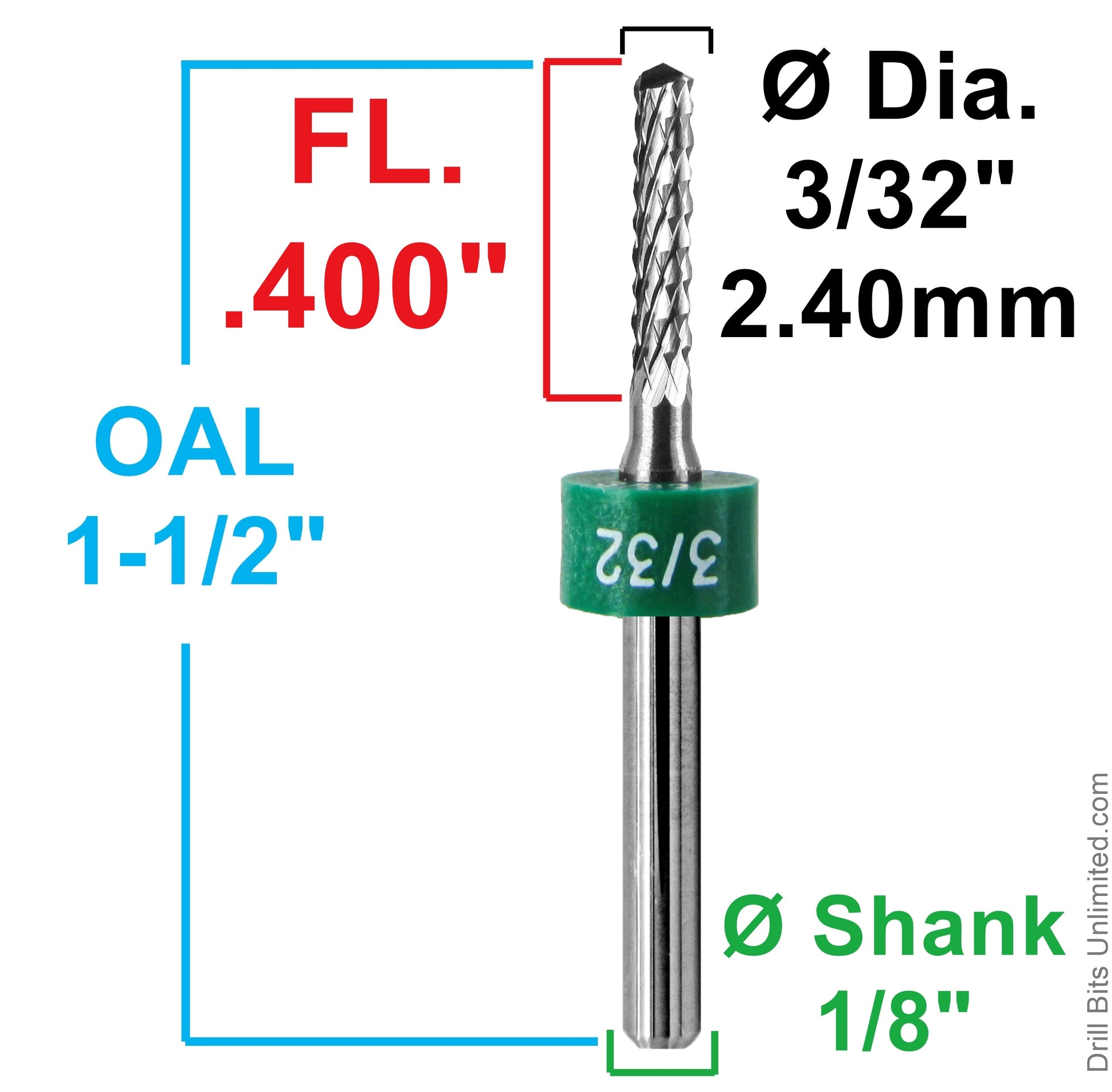

Extended .400" Cutting Length

R140A provides 0.400" (10.16mm) of cutting length, allowing greater cutting reach for suitable thicker PCB laminates and composite sheets.

Select a cutting length appropriate for the material thickness, and provide clearance beneath the workpiece when through-cutting. Avoid excessive cutting loads and unnecessary tool engagement to reduce deflection and breakage.

Material note: Diamond-flute describes the cutting-edge geometry. This is solid carbide tooling, not diamond-coated or PCD tooling.

Typical Applications

  • PCB board outlines, profiles, slots, and internal cutouts
  • FR4 and G10 fiberglass laminate routing
  • Thicker fiberglass and epoxy laminate panels
  • Phenolic laminate machining
  • Fiberglass-reinforced composite trimming
  • Carbon-fiber composites where uncoated carbide tooling is appropriate
  • Precision CNC routing and prototype fabrication

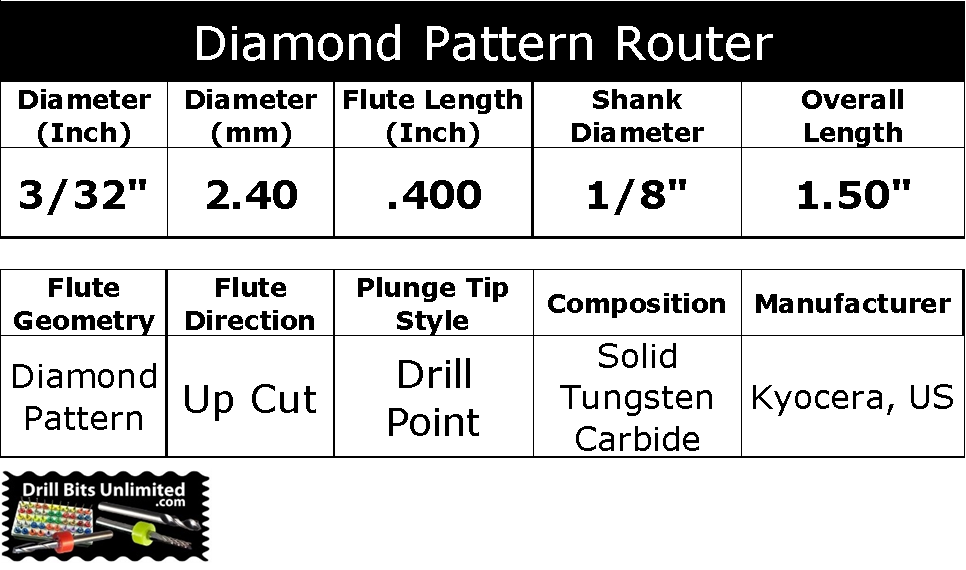

Technical Specifications

DBU SKU R140A
Manufacturer Kyocera
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.0938" (3/32")
Length of Cut (LOC) 0.400" (10.16mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut
Cut Direction Up-Cut / Updraft
Tip Style Drill Point
Tool Material Solid Tungsten Carbide

Feeds & Speeds

Proper spindle speed, feed rate, plunge feed, cutting depth, and secure workholding are important when routing abrasive PCB laminates with carbide tools.

View Carbide Router Feed & Speed Charts and select the Diamond-Flute Router Chart for general starting cutting recommendations for FR4, G10, fiberglass, and other PCB materials.

Recommended cutting conditions are starting points only. Adjust for material, spindle capability, machine rigidity, tool condition, and workholding. Use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Browse additional cutting diameters, lengths of cut, and plunge-tip configurations.

Diamond-Flute Router Guide
Learn about diamond-cut geometry, drill-point and fishtail tips, and selecting suitable routers for abrasive laminates.
