0.0938" (3/32") x .281" LOC AlTiN Coated 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | K083
0.0938" (3/32") x .281" LOC AlTiN Coated 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | K083
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 3% off |
| 25 + | 5% off |
| 50 + | 8% off |
| 100 + | 10% off |
Couldn't load pickup availability

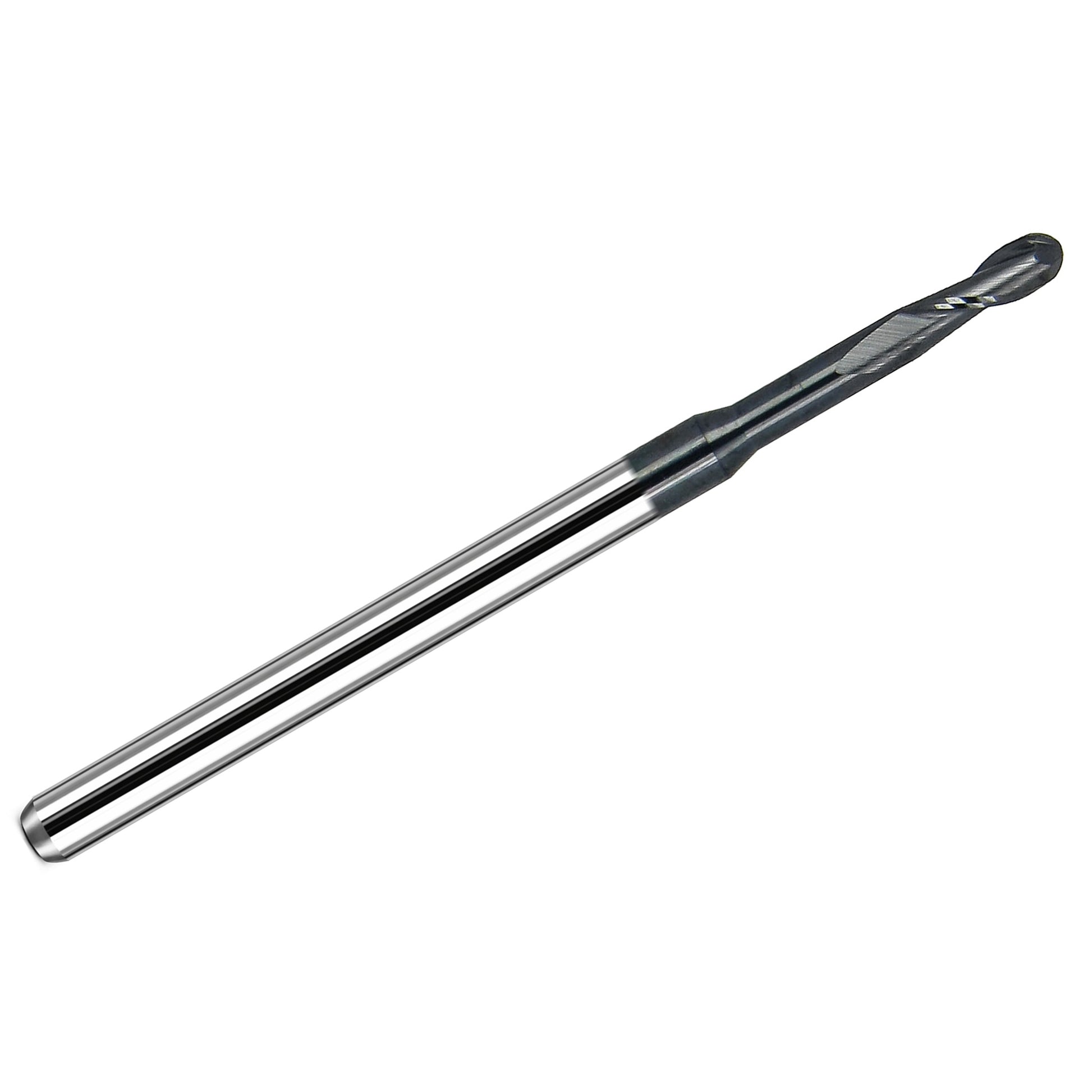

This 3/32" (0.0938") 2-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a durable AlTiN coating for improved wear resistance and heat protection during demanding CNC machining operations.
These precision cutting tools are manufactured in the United States and designed for high accuracy machining where rigidity, long tool life, and consistent performance are critical.

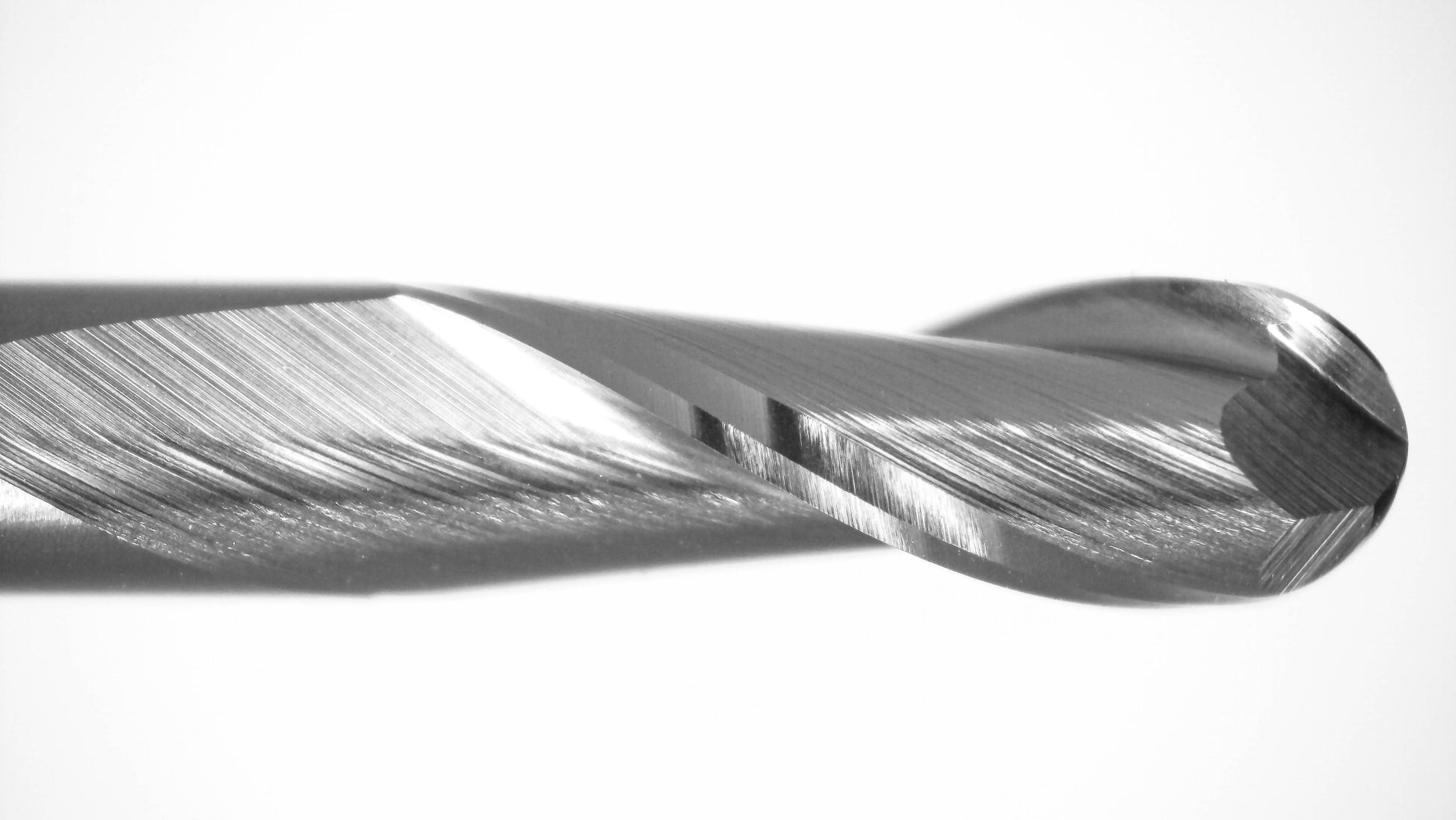

The ball nose geometry allows smooth machining of curved surfaces, contours, and fine details. Its extended neck design improves reach and clearance when machining deeper pockets or features.
The AlTiN coating provides superior heat resistance compared to uncoated tools, making this end mill well suited for machining steel, stainless steel, hardened materials, cast iron, and super alloys.
Manufacturer: Kyocera
Manufacturer Part Number: 1645-0938L590
Country of Origin: United States
Typical Applications
- 3D contour machining
- Precision CNC milling
- Mold and die finishing
- Machining steels and stainless steels
- Machining hardened materials and super alloys
Benefits
- Ball nose geometry for smooth contour machining
- Extended neck improves reach and tool clearance
- AlTiN coating increases heat resistance and tool life
- 2 flutes provide efficient chip evacuation
- Micro-grain carbide for durability and edge retention
- Center cutting design allows plunge milling

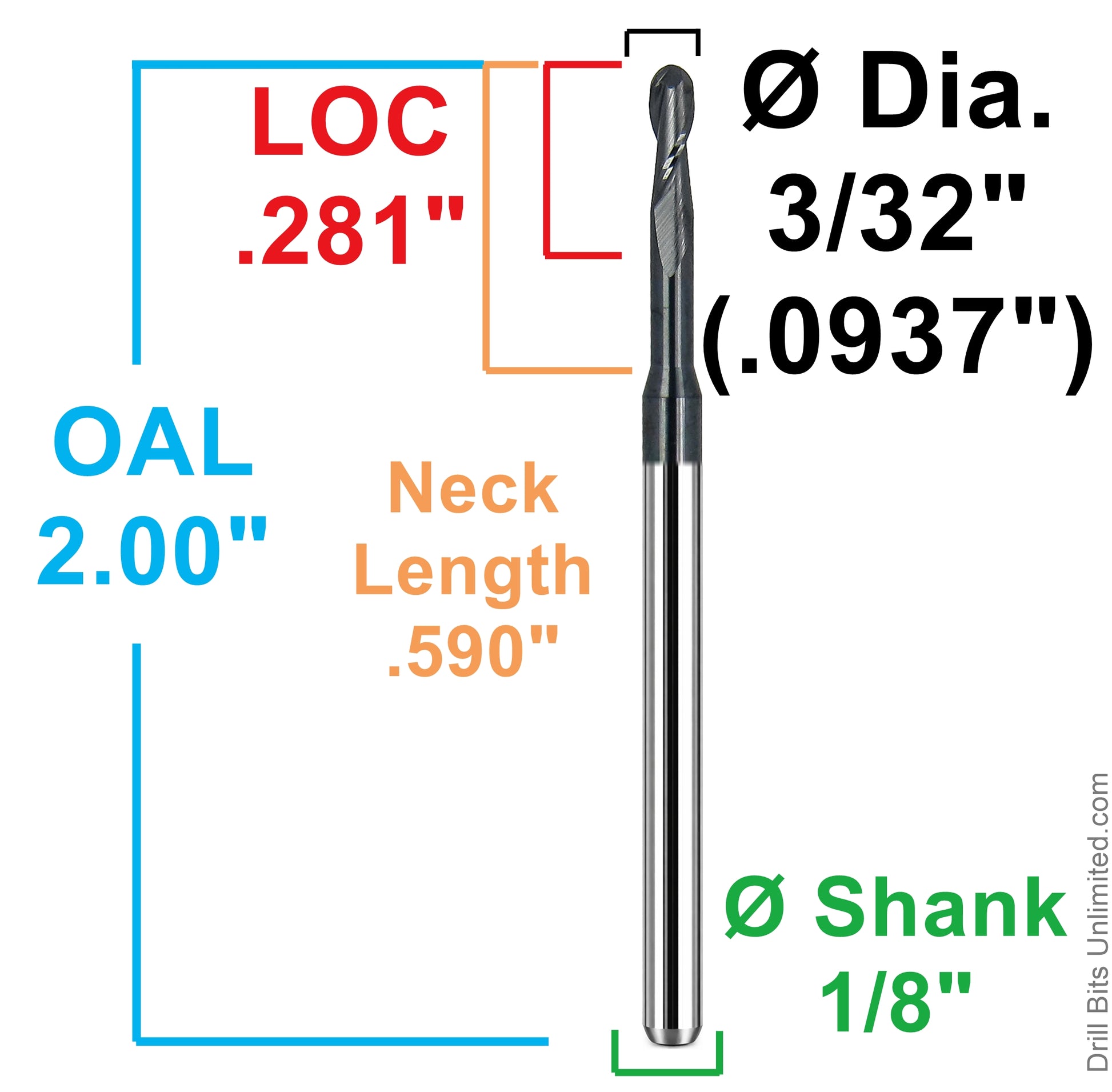

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1645 |
| Milling Diameter | 0.0938" (3/32") |
| Length of Cut (LOC) | 0.281" |
| Neck Length | 0.590" |
| Neck Diameter | 0.0891" |
| Overall Length | 2.000" |
| Shank Diameter | 0.125" (1/8") |
| Number of Flutes | 2 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | AlTiN |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
