0.0938" (3/32") Single Flute Square End Mill Solid Carbide 0.400" LOC 1/8" Shank 1.50" OAL

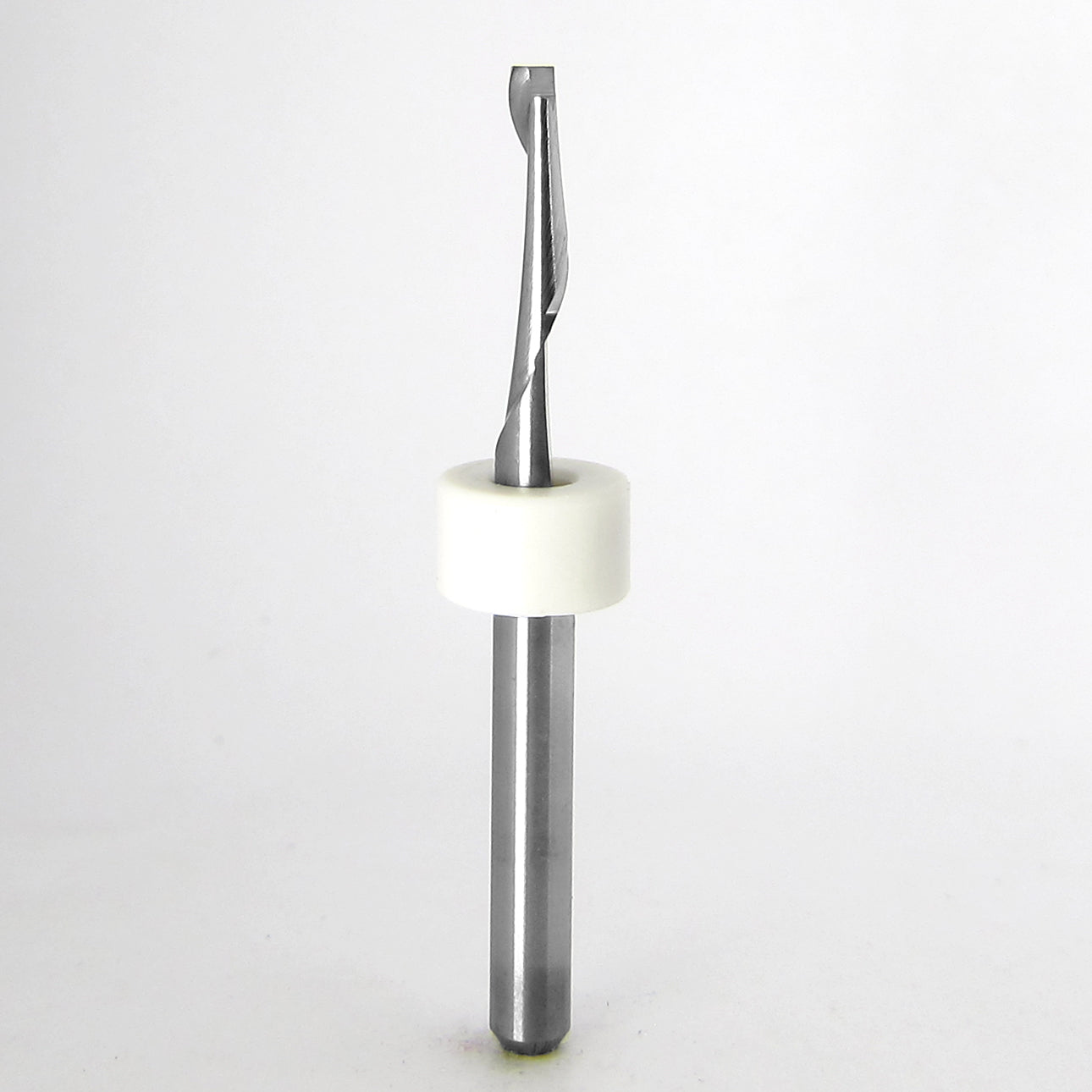

3/32" (0.0938") Single Flute Square End Mill – Solid Carbide

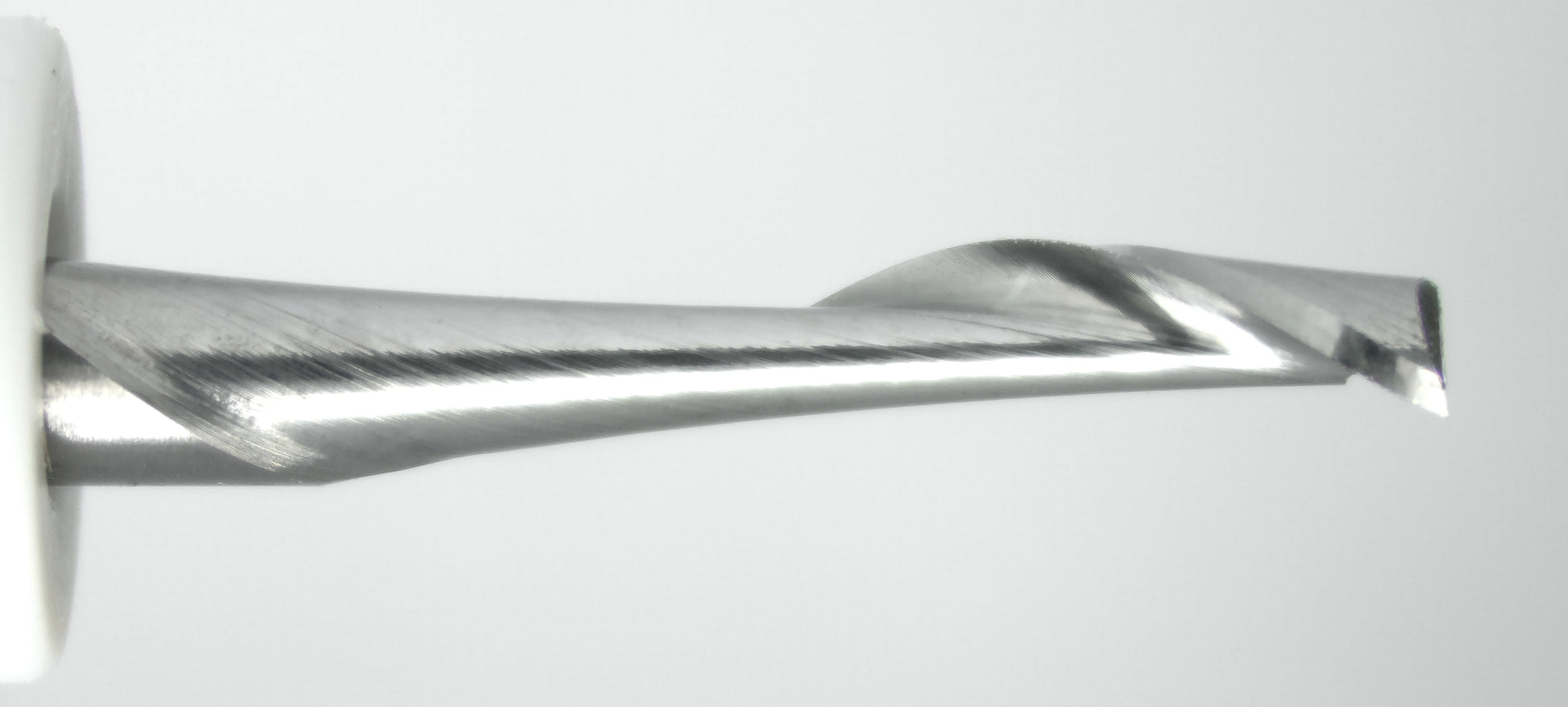

This solid carbide single flute end mill is designed for efficient chip evacuation and smooth cutting in a variety of materials. The single cutting edge reduces cutting forces and helps prevent chip packing, making it well-suited for slotting and lighter cutting applications.

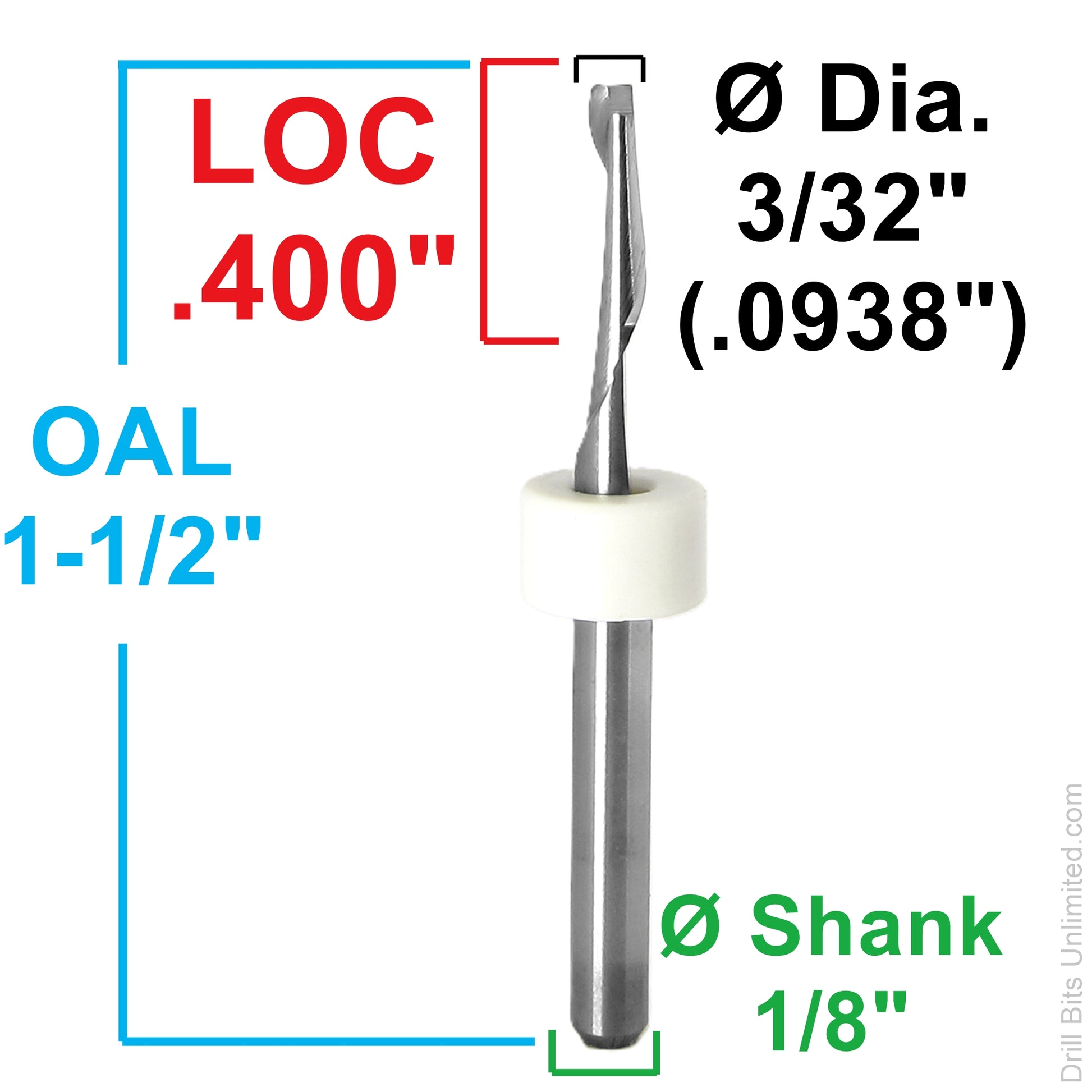

• Diameter: 3/32" (0.0938")
• Length of Cut (LOC): 0.400"
• Overall Length (OAL): 1.50"
• Shank Diameter: 1/8" (3.175mm)
• Flutes: 1 (Single Flute)
• End Type: Square End
• Material: Solid Carbide
• Quantity: Sold Individually

The single flute design allows for larger chip clearance compared to multi-flute tools, making it especially effective in softer materials and applications where chip evacuation is critical.

Common Applications:

• Plastics and acrylics
• Slotting operations
• Soft materials and composites
• Light aluminum cutting
• General CNC routing

⚠️ Note: This is not a true O-flute geometry. While it performs well in plastics, feed rates and spindle speeds should be adjusted to prevent melting or chip welding.
