0.1181" (3.00mm) x 9mm LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 3mm Shank | K028
0.1181" (3.00mm) x 9mm LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 3mm Shank | K028
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

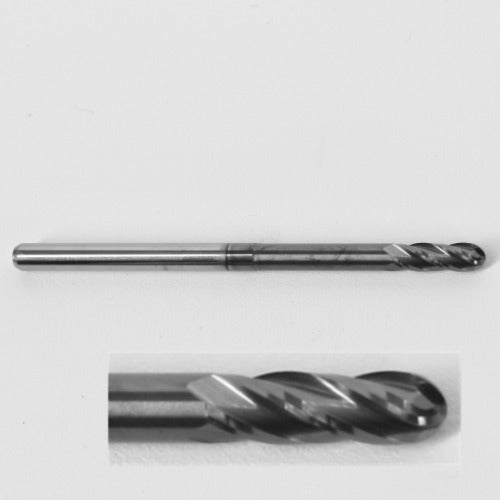

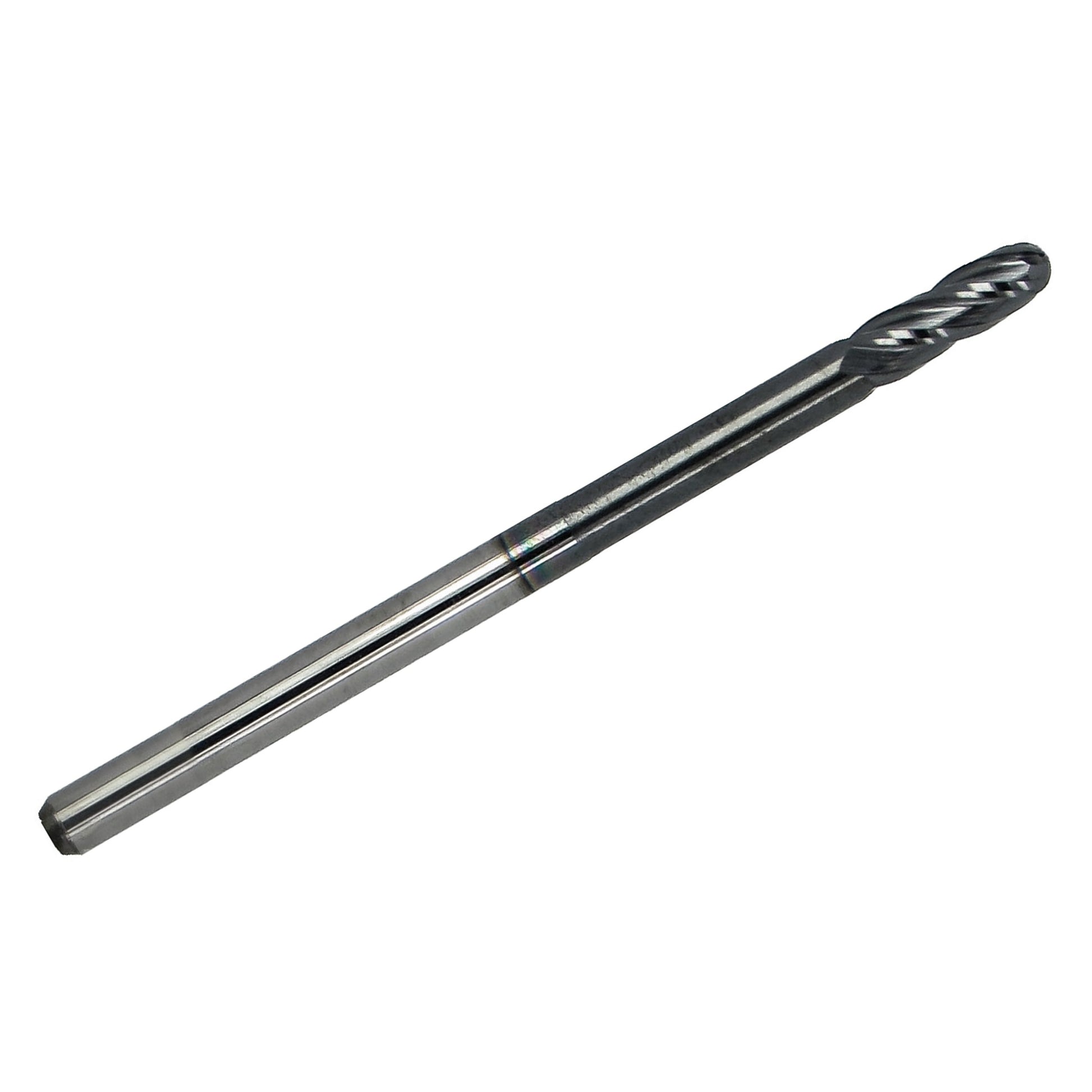

This 3.00mm 4-flute ball nose carbide end mill from Kyocera features an AlTiN coating and an extended reach design for machining deep cavities and complex surfaces.
Ball nose end mills are commonly used for 3D contour milling, mold and die machining, and complex surface finishing. The rounded cutting tip allows smooth transitions and fine surface finishes when machining curved geometries.
The AlTiN coating provides excellent heat resistance and wear protection, making this tool well suited for high-speed machining of hardened steels, stainless steels, and difficult alloys.
Manufacturer: Kyocera
Manufacturer Part Number: 1845-1181L906
Country of Origin: United States
Typical Applications
- 3D contour milling
- Mold and die machining
- Deep cavity machining
- Surface finishing of complex geometries
- High-speed CNC machining
Benefits
- Ball nose geometry for smooth 3D surface finishing
- 4 flutes provide strength and excellent surface finish
- AlTiN coating improves wear resistance and heat tolerance
- Extended reach design allows machining deeper features
- Solid micro-grain carbide construction for rigidity and durability

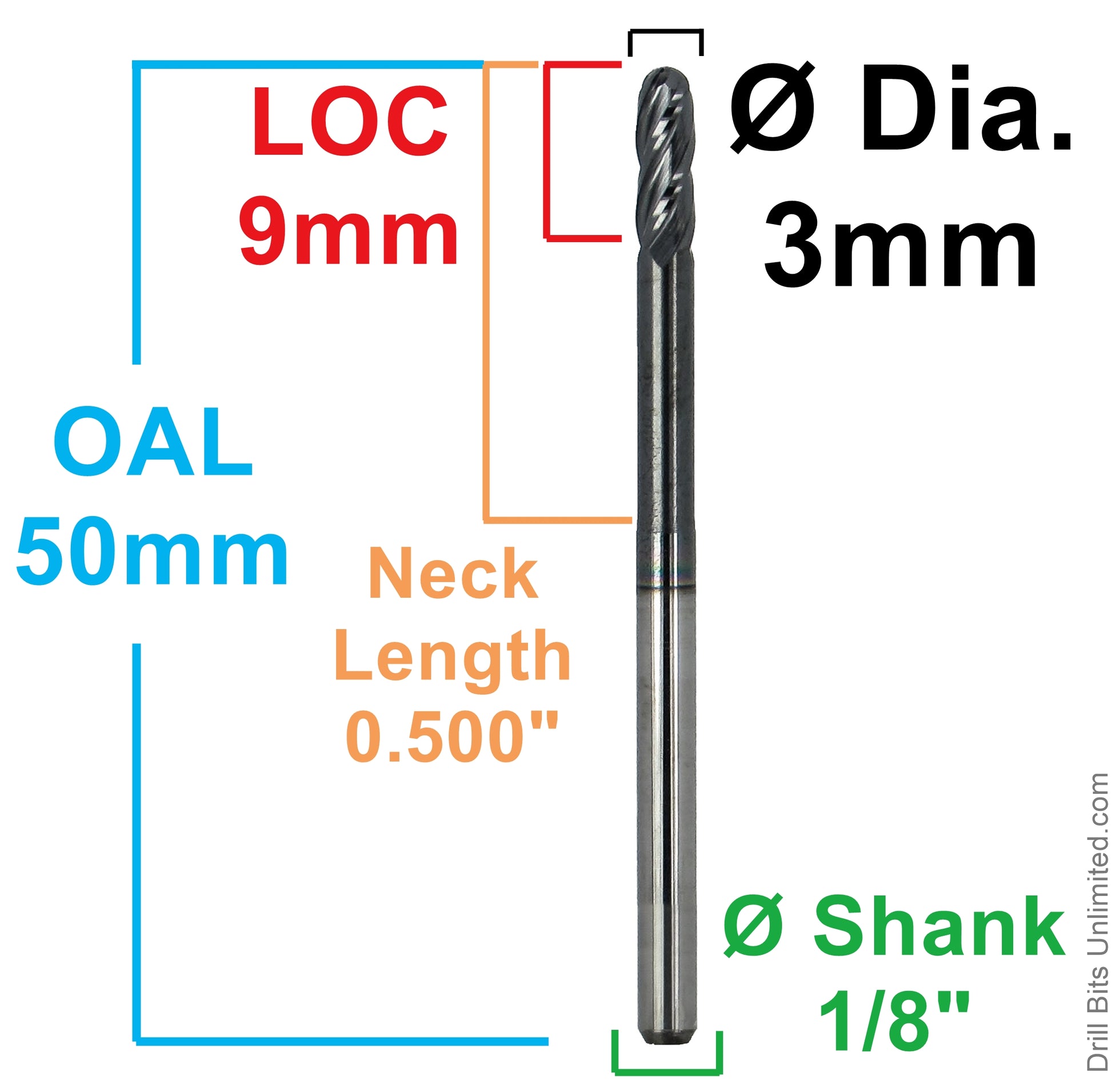

Specifications
| Manufacturer | Kyocera |
| Country of Origin | United States |
| Tool Type | Ball Nose End Mill |
| Diameter | 3.00 mm |
| Flutes | 4 |
| Helix Angle | 30° |
| Length of Cut | 9.00 mm |
| Neck Length | 23.00 mm |
| Overall Length | 50.00 mm |
| Shank Diameter | 3.00 mm |
| Material | Solid Micro-Grain Carbide |
| Coating | AlTiN |
| Cutting Direction | Right Hand |
| Cutting Style | Center Cutting |
| Compatible Materials | Steel, Stainless Steel, Hardened Steel, Cast Iron, Super Alloys |
