0.1575" (4mm) 4-Flute Square End Carbide End Mill AlTiN – Kyocera USA K029

0.1575" (4mm) 4-Flute Square End Carbide End Mill AlTiN – Kyocera USA K029

$24.95 USD
$24.95 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

This 4.00mm 4-flute square end carbide end mill from Kyocera features a durable AlTiN coating and precision ground micro-grain carbide construction for demanding CNC machining applications.

Square end mills are widely used for slotting, profiling, contouring, and general milling. The 4-flute design provides excellent strength and surface finish when machining steels and other difficult materials.

The AlTiN coating improves heat resistance and tool life during high-speed machining of steels, stainless steels, hardened materials, and cast iron.

Manufacturer: Kyocera

Country of Origin: United States

Typical Applications

  • General CNC milling
  • Slotting and profiling
  • Steel and stainless steel machining
  • Hardened materials
  • Cast iron and alloy steels

Benefits

  • Square end geometry for sharp internal corners
  • 4 flutes for improved strength and surface finish
  • AlTiN coating improves wear resistance and heat tolerance
  • Solid micro-grain carbide construction
  • Center cutting design for slotting and plunge milling

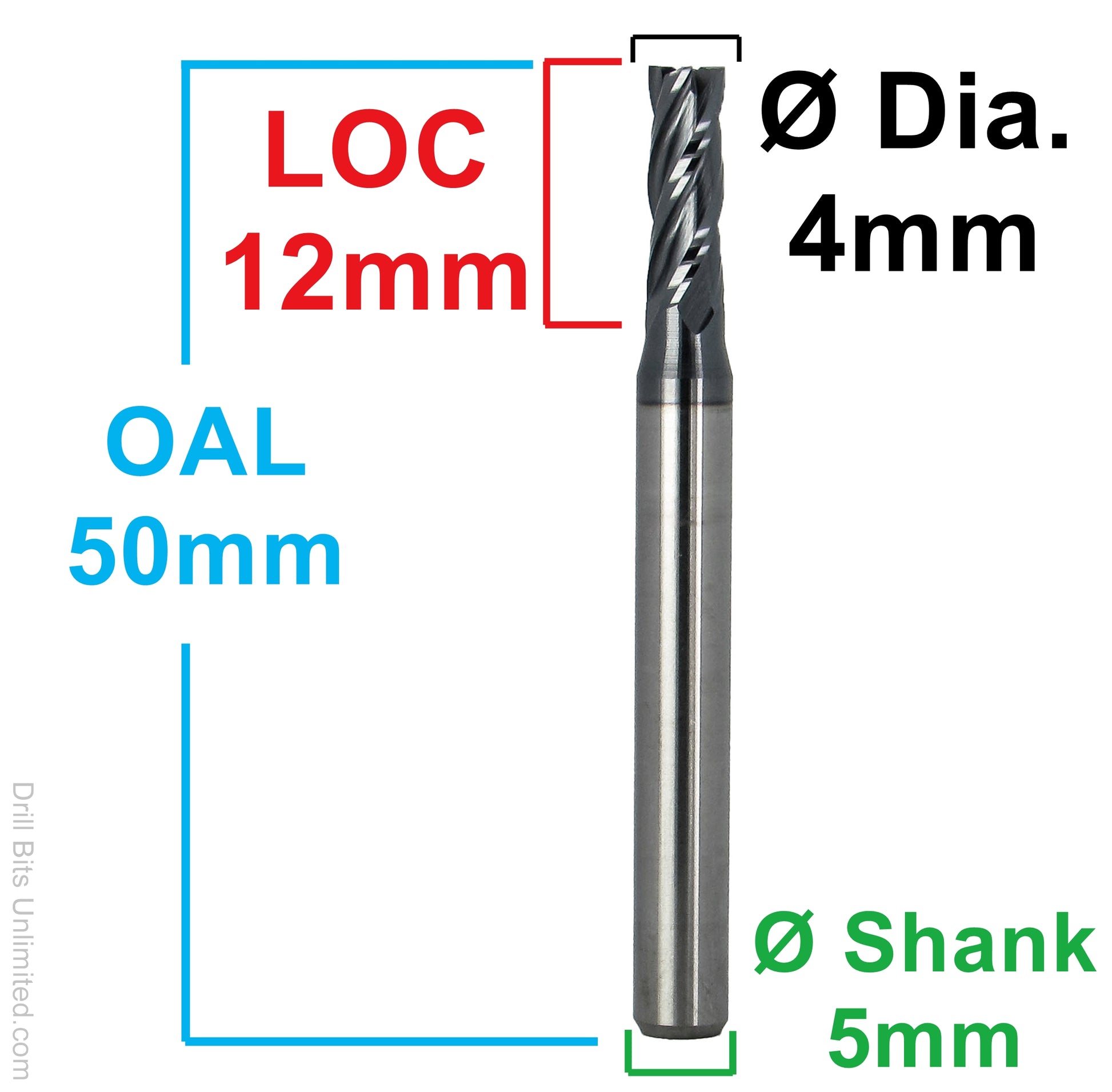

Specifications

Manufacturer Kyocera
Country of Origin United States
Tool Type Square End Mill
Diameter 4.00 mm
Flutes 4
Helix Angle 30°
Length of Cut 12.00 mm
Overall Length 50.00 mm
Shank Diameter 5.00 mm
Material Solid Micro-Grain Carbide
Coating AlTiN
Cutting Direction Right Hand
Cutting Style Center Cutting
Compatible Materials Steel, Stainless Steel, Hardened Steel, Cast Iron, Super Alloys

👉 View End Mill Feed & Speed Calculator
