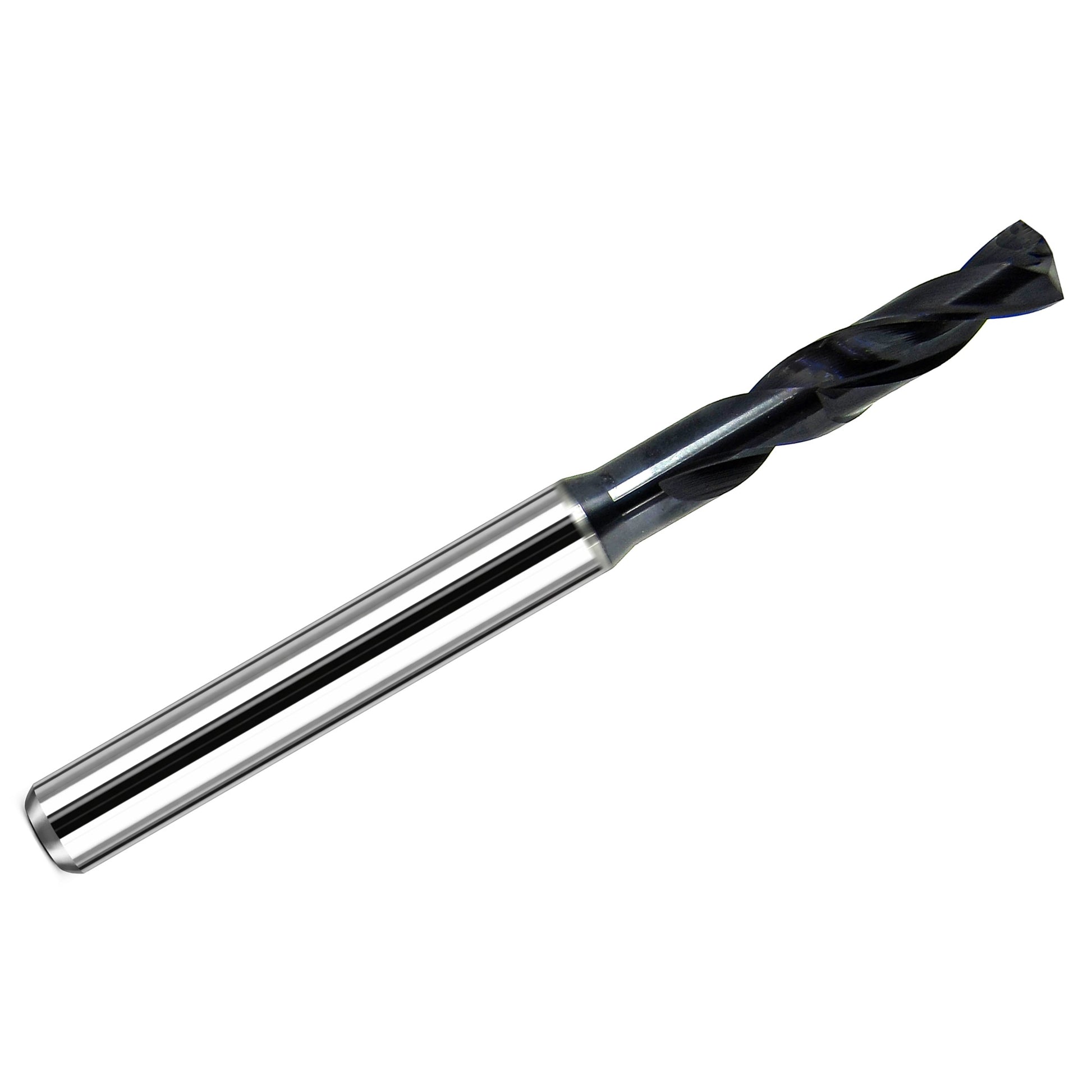

5/16" (.3125") Kyocera ORION Solid Carbide Drill Bit TiAlN 160-3125AG1563 K071
5/16" (.3125") Kyocera ORION Solid Carbide Drill Bit TiAlN 160-3125AG1563 K071
Couldn't load pickup availability
This 5/16" (.3125") Kyocera ORION solid carbide drill is designed for high-performance metal drilling. Manufactured from micrograin carbide and finished with a durable TiAlN coating, it provides excellent wear resistance and heat protection during demanding machining operations.
The 142° 6-facet split point helps reduce walking and improves centering accuracy when starting holes. The 3xD screw machine length design offers excellent rigidity, making this drill ideal for precision drilling in CNC machines and production environments.
The advanced TiAlN coating improves tool life and allows higher cutting speeds when drilling alloy steels, tool steels, stainless steel, and other difficult materials.
Manufacturer: Kyocera
Series: ORION
Manufacturer Part Number: 160-3125AG1563
Country of Origin: United States
Typical Applications
- General metal drilling
- Alloy steel drilling
- Stainless steel drilling
- CNC machining centers
- Production drilling operations
Features
- Solid micrograin carbide construction
- TiAlN coating for improved heat resistance and wear life
- 142° 6-facet point improves centering and reduces walking
- 3xD screw machine length design increases rigidity
- High performance drilling in tough materials
Specifications
| Manufacturer | Kyocera |
| Series | ORION |
| Tool Type | Screw Machine Length Drill |

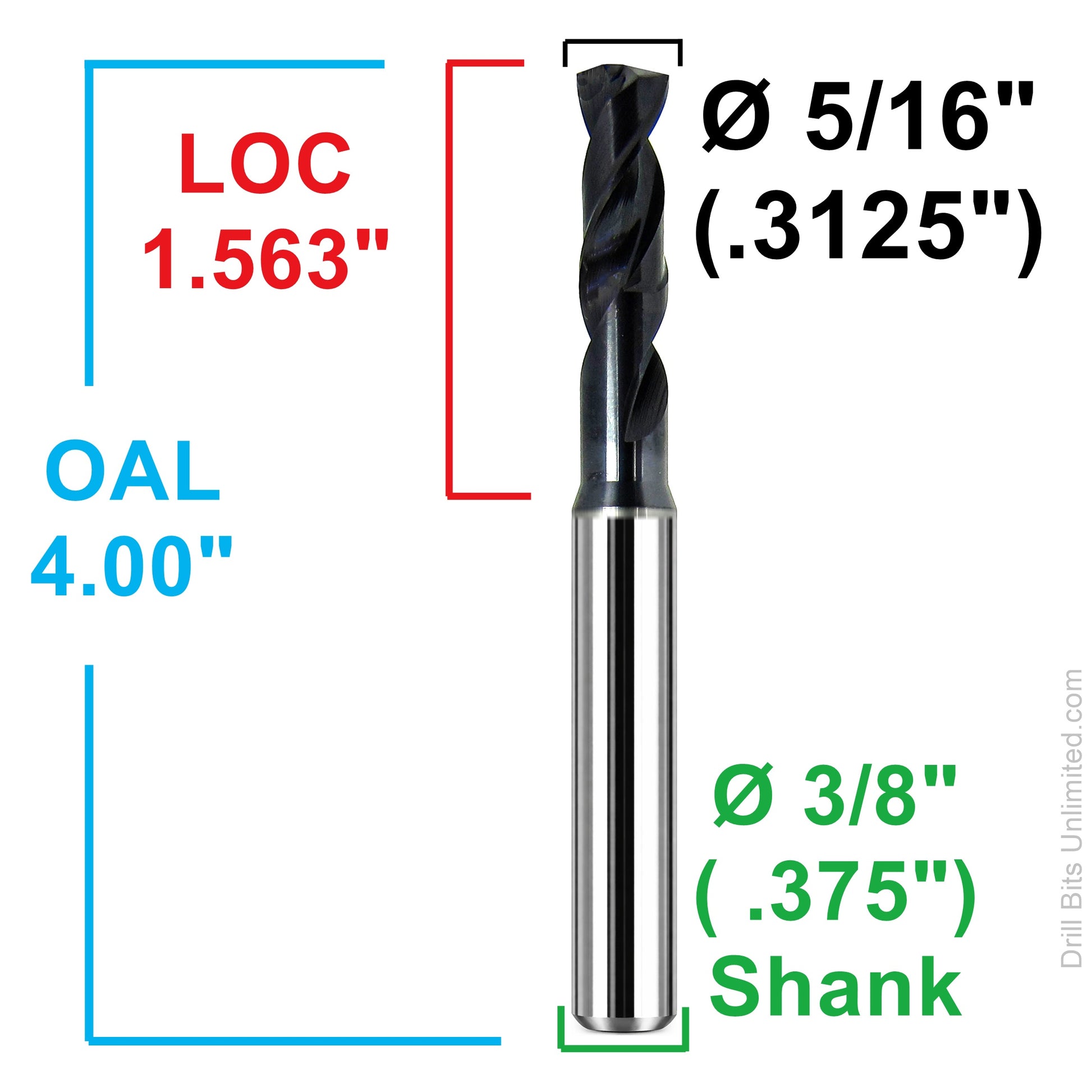

| Drill Size | 5/16" |
| Decimal Equivalent | 0.3125" |
| Flute Length | 1.563" |
| Overall Length | 4.000" |
| Shank Diameter | 0.375" (3/8") |
| Point Angle | 142° |
| Point Type | 6 Facet |
| Number of Flutes | 2 |
| Material | Solid Micrograin Carbide |
| Finish | TiAlN |
| Depth Ratio | 3xD |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Application | Metalworking |
