0.1562" (5/32") x .562" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 3/16" Shank | K042
0.1562" (5/32") x .562" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 3/16" Shank | K042
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

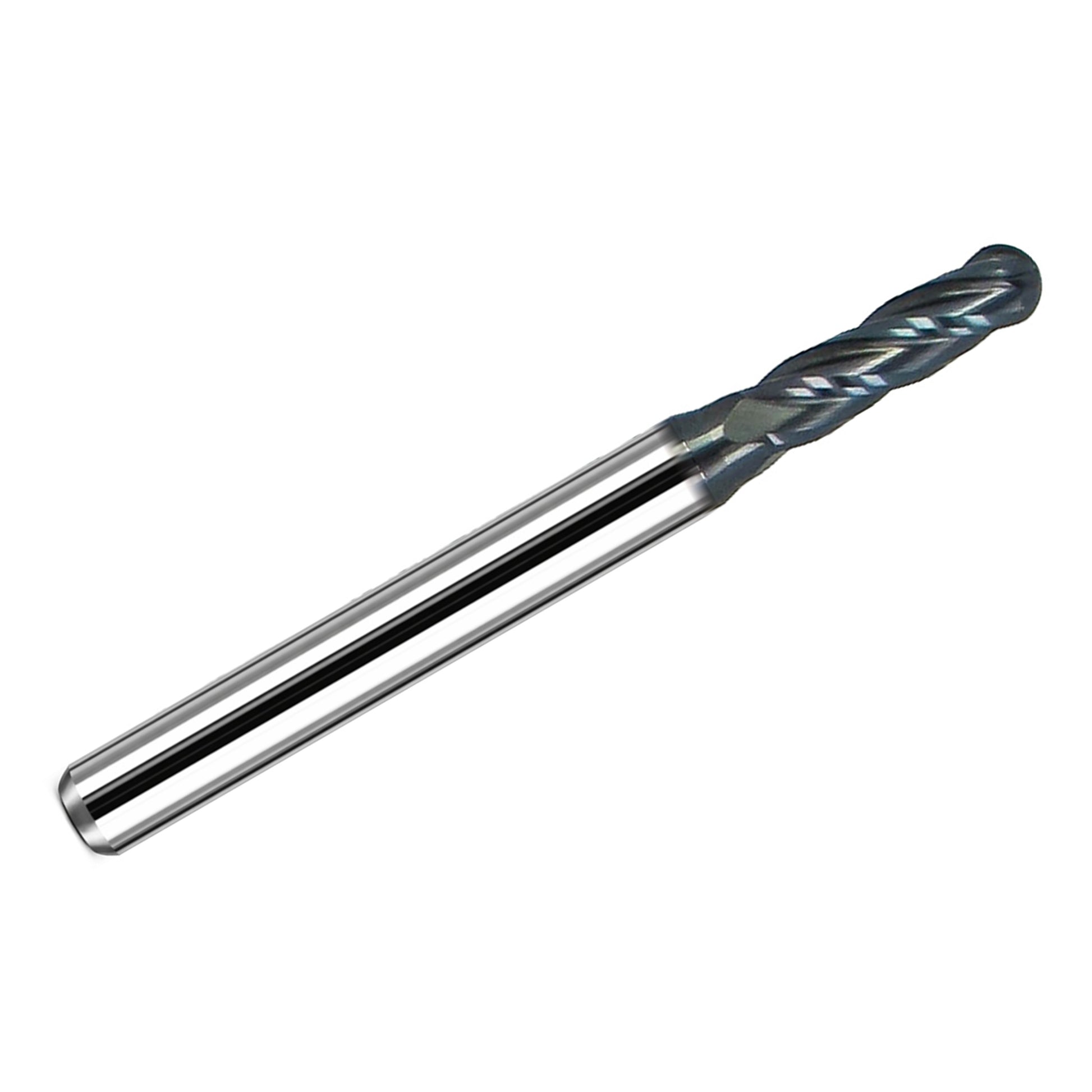

5/32" (0.1562") solid carbide ball nose end mill manufactured by Kyocera USA, part number 1825-1562L562. This AlTiN-coated Series 1825 end mill is designed for precision CNC machining in steel, stainless steel, hardened materials, cast iron, and superalloys. The 4-flute center-cutting geometry provides excellent strength, wear resistance, and surface finish for both roughing and finishing operations.

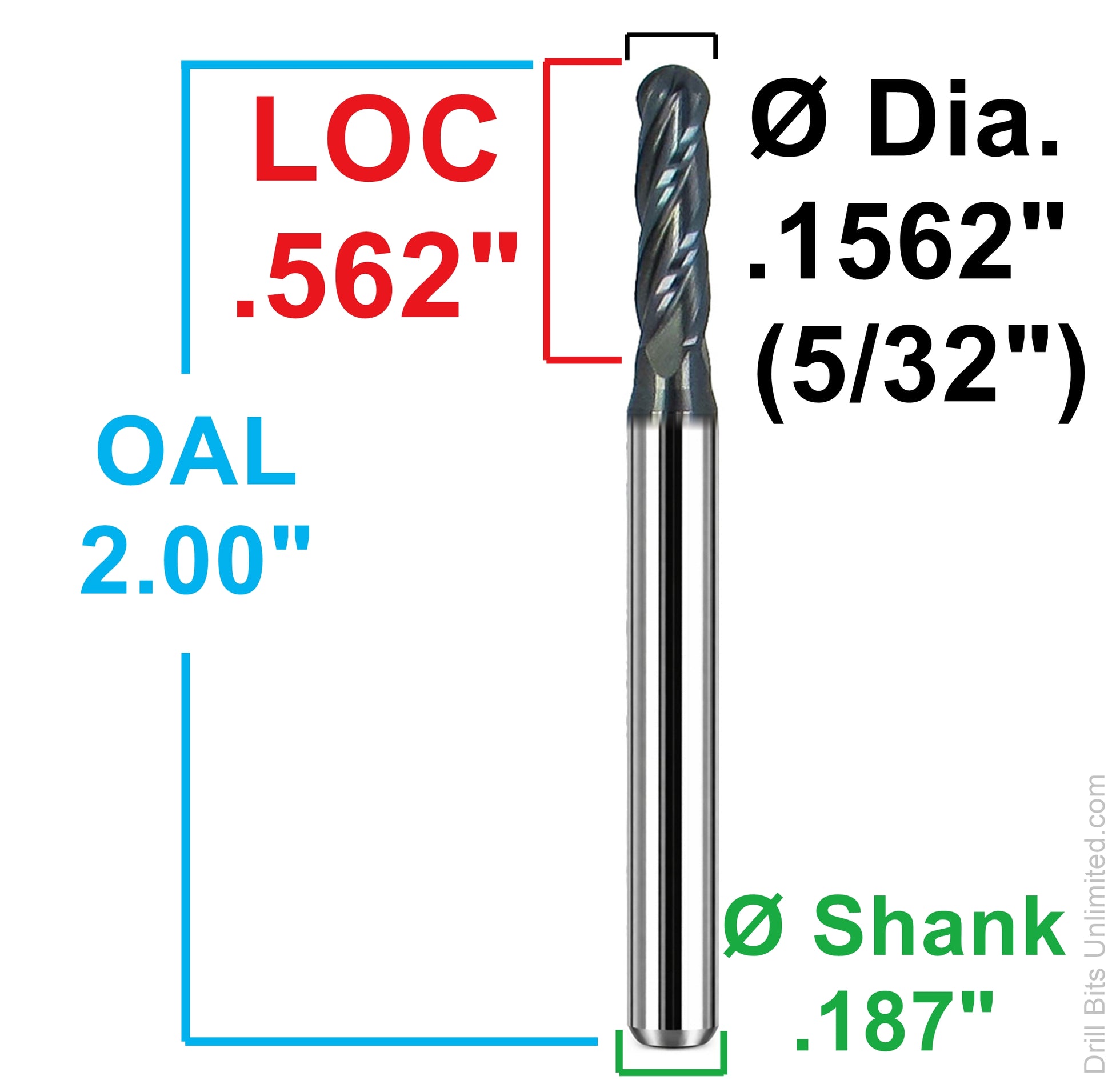

Key Specifications:
- Manufacturer: Kyocera USA
- Series: 1825
- Part Number: 1825-1562L562
- Diameter: 5/32" (0.1562")
- Flute Length (LOC): 0.562"
- Overall Length: 2.00"
- Shank Diameter: 0.187"
- Flutes: 4
- Coating: AlTiN
- Helix Angle: 30°
- Cutting Type: Center Cutting
| Single End/Double End: Single End | Stainless (M) Compatibility: Yes |
| Dimension Type: Decimal inch | Steel (P) Compatibility: Yes |
| Non Ferrous (N) Compatibility: No | Helix Angle: 30 Degrees |
| Milling Dia.: 0.1562" | Hardened (H) Compatibility: Yes |
| Length of Cut: 0.5620" | End Mill Cutting Type: Center Cutting |
| Item: Ball End Mill | End Mill Material: Carbide |
| Super Alloy (S) Compatibility: Yes | End Mill Application: Roughing/Finishing |
| Finish: AlTiN | Shank Dia.: 0.187" |
| Overall Length: 2" | Milling Diameter: 0.1562" |
| List Number: 1825 | Grade: Micro Grain |
| Number of Flutes: 4 | Cutting Direction: Right Hand |
| Cast Iron (K) Compatibility: Yes | End Mill Style: Ball Nose |
| Shank Type: Straight | Finish - Machining: AlTiN |
| Material Grade - Machining: Micro Grain | Country of Origin (subject to change): United States |
