0.1562" (5/32") x .234" LOC 3-Flute Ball Nose Carbide End Mill, 3/16" Shank | K062
0.1562" (5/32") x .234" LOC 3-Flute Ball Nose Carbide End Mill, 3/16" Shank | K062
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

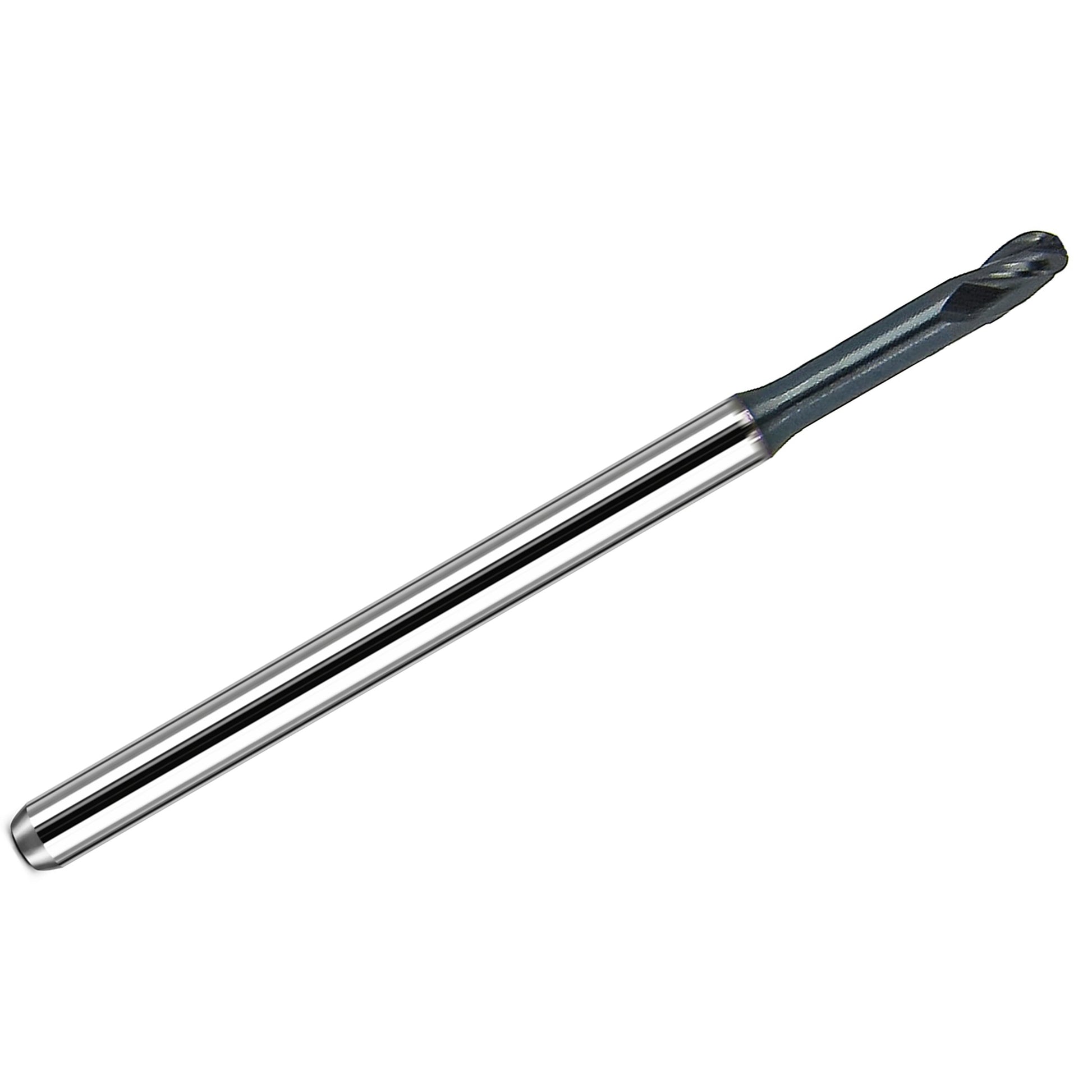

This 5/32" (0.1562") 3-flute ball nose carbide end mill from Kyocera is manufactured from micro-grain solid carbide and features an extended reach neck design for machining deeper cavities and complex surfaces in CNC milling applications.
Ball nose end mills are commonly used for 3D contour milling, mold and die machining, and complex surface finishing. The rounded cutting tip allows smooth transitions and improved surface finish when machining curved geometries and detailed profiles.
The bright (uncoated) carbide finish provides sharp cutting edges ideal for machining aluminum, plastics, graphite, and other non-ferrous materials. The 3-flute geometry provides a strong cutting edge while maintaining good chip evacuation, and the extended neck length allows the tool to reach deeper features while reducing holder interference.
Manufacturer: Kyocera
Manufacturer Part Number: 1755-1562L750
Country of Origin: United States
Typical Applications
- 3D contour milling
- Mold and die machining
- Deep cavity machining
- Profiling complex surfaces
- CNC machining of aluminum and non-ferrous materials
Benefits
- Ball nose geometry for smooth 3D surface finishing
- 3 flutes provide good balance of rigidity and chip evacuation
- Extended reach neck design for machining deeper features
- Micro-grain carbide construction for strength and durability
- Center cutting design allows plunge milling capability

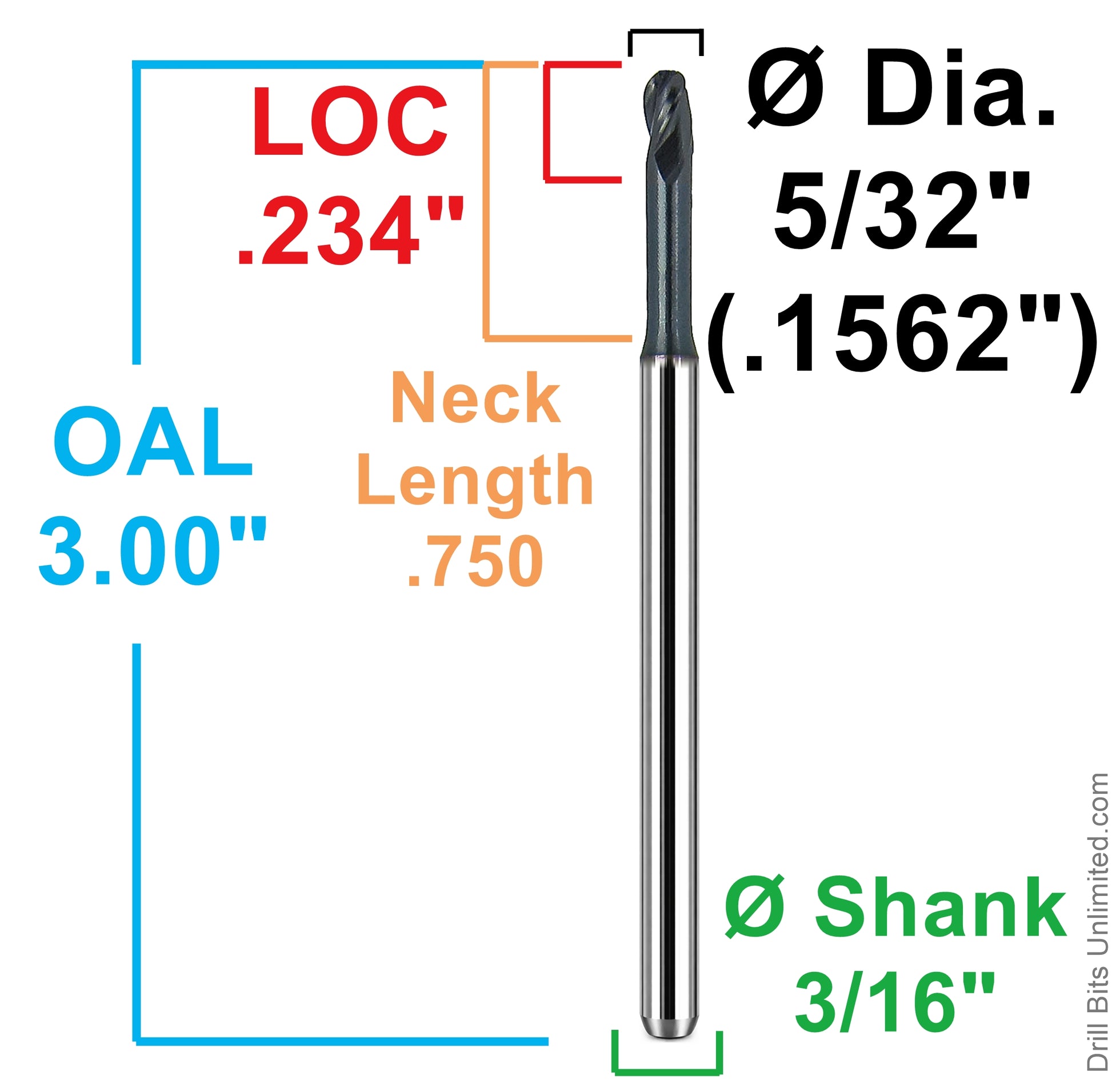

Specifications
| Manufacturer | Kyocera |
| Country of Origin | United States |
| Tool Type | Ball Nose End Mill |
| List Number | 1755 |
| Milling Diameter | 0.1562" (5/32") |
| Length of Cut (LOC) | 0.234" |
| Neck Length | 0.750" |
| Neck Diameter | 0.234" |
| Overall Length | 3.000" |
| Shank Diameter | 0.1875" (3/16") |
| Number of Flutes | 3 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
