0.1562" (5/32") x .500" LOC 4-Flute Ball Nose Carbide End Mill, 3/16" Shank | K049
0.1562" (5/32") x .500" LOC 4-Flute Ball Nose Carbide End Mill, 3/16" Shank | K049
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

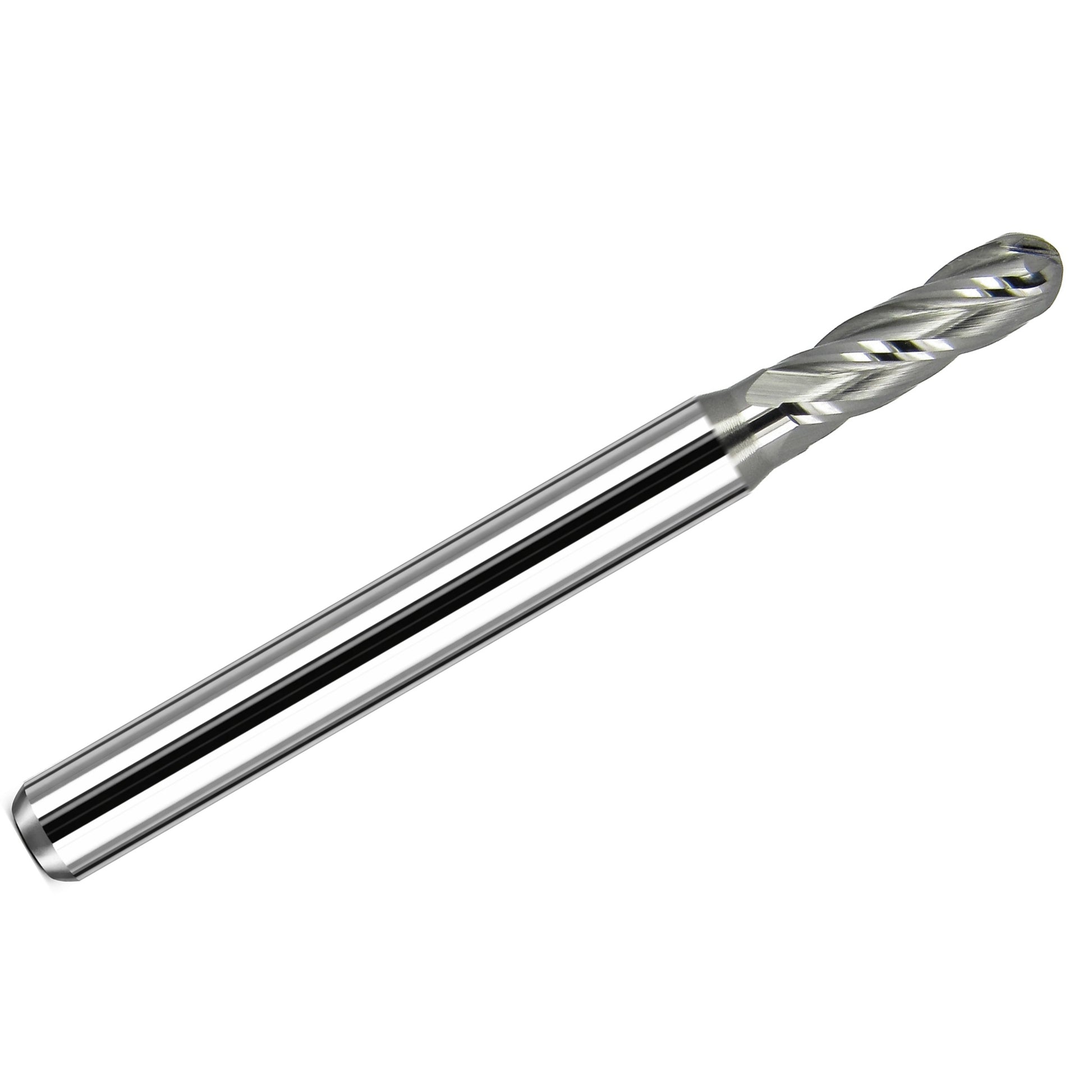

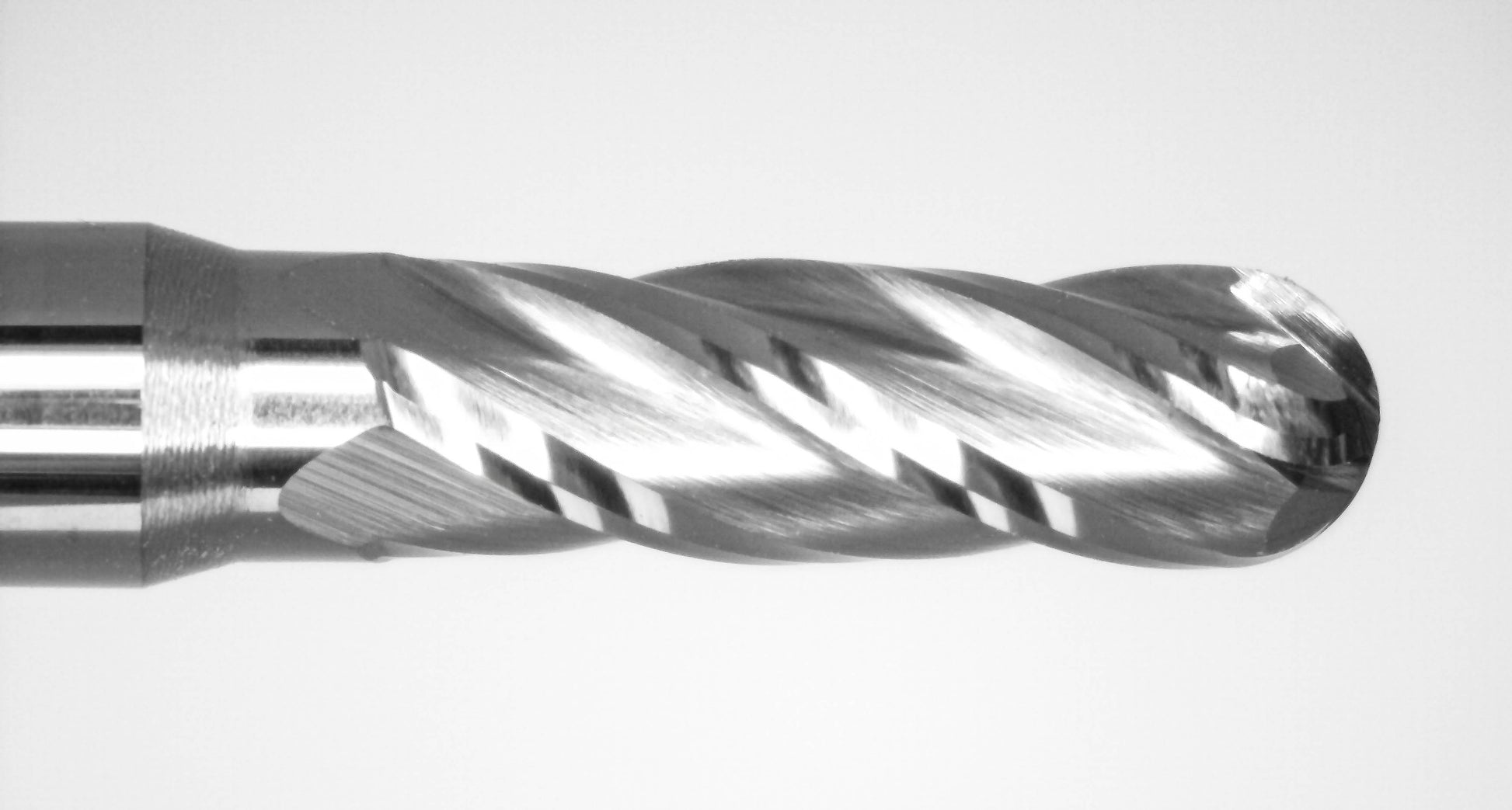

This 5/32" (0.1562") 4-flute solid carbide ball nose end mill is manufactured by Kyocera USA, part number 1825-1563.500. This precision end mill features a bright (uncoated) micro-grain carbide construction and a 4-flute center-cutting geometry designed for accurate CNC milling operations.
Ball nose end mills are commonly used for 3D contour milling, mold and die work, engraving, and detailed surface finishing. The rounded cutting profile allows smooth transitions and fine surface finishes when machining curved surfaces and complex geometries.
The bright micro-grain carbide substrate provides excellent cutting edge sharpness and rigidity. This makes the tool well suited for aluminum, plastics, and other non-ferrous materials, while the 4-flute design and 30° helix angle help produce improved surface finishes in precision CNC machining applications.
Manufacturer: Kyocera USA
Manufacturer Part Number: 1825-1563.500
Country of Origin: United States
Typical Applications
- 3D contour milling
- Mold and die machining
- Surface finishing
- Engraving and detail work
- Precision CNC machining of non-ferrous materials
Benefits
- Ball nose geometry for smooth 3D surface finishing
- 4 flutes provide strength and excellent surface finish
- Micro-grain carbide for durability and rigidity
- Center cutting design allows plunge milling capability
- Precision ground for consistent machining performance

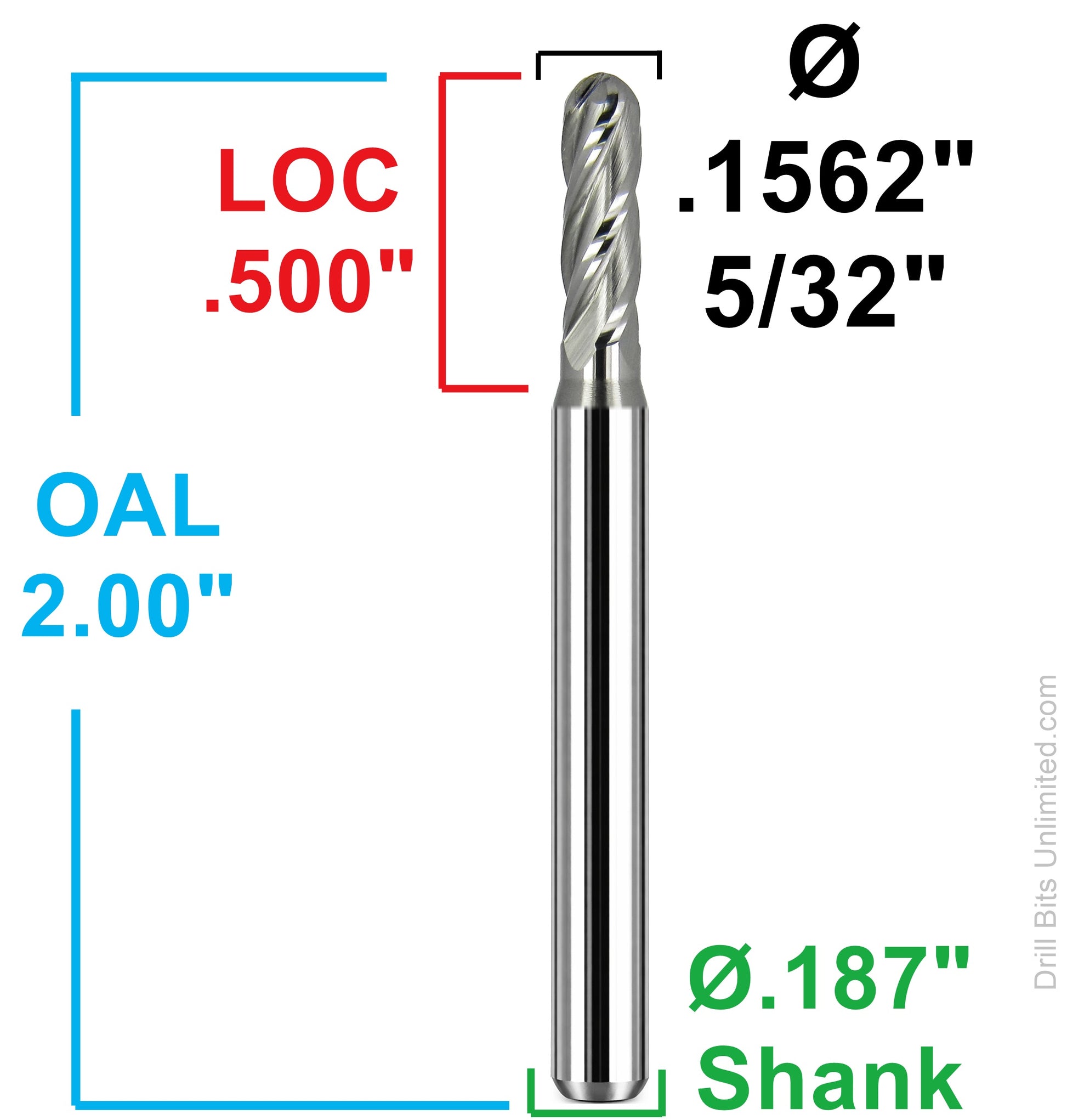

Specifications
| Manufacturer | Kyocera |
| Country of Origin | United States |
| Tool Type | Ball Nose End Mill |
| List Number | 1825 |
| Milling Diameter | 0.1562" (5/32") |
| Length of Cut (LOC) | 0.5000" |
| Overall Length | 2.0" |
| Shank Diameter | 0.187" |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Hardened (H) Compatibility | No |
