0.1562" (5/32") x .562" LOC 4-Flute Ball Nose Carbide End Mill, 3/16" Shank | K012

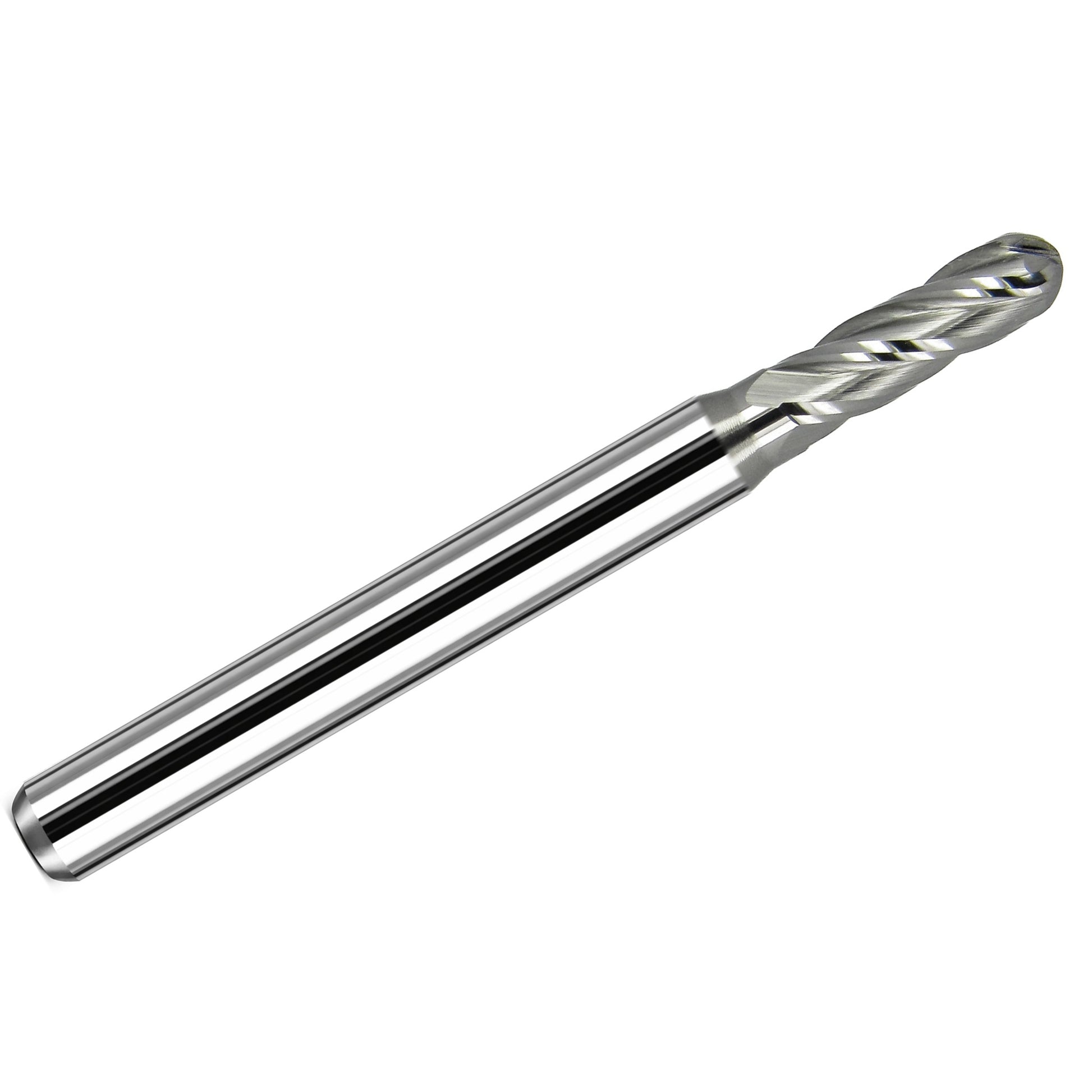

This 5/32" 4-flute ball nose carbide end mill from Kyocera is designed for precision contouring, profiling, and finish milling in CNC applications where smooth blended surfaces and fine detail are important.

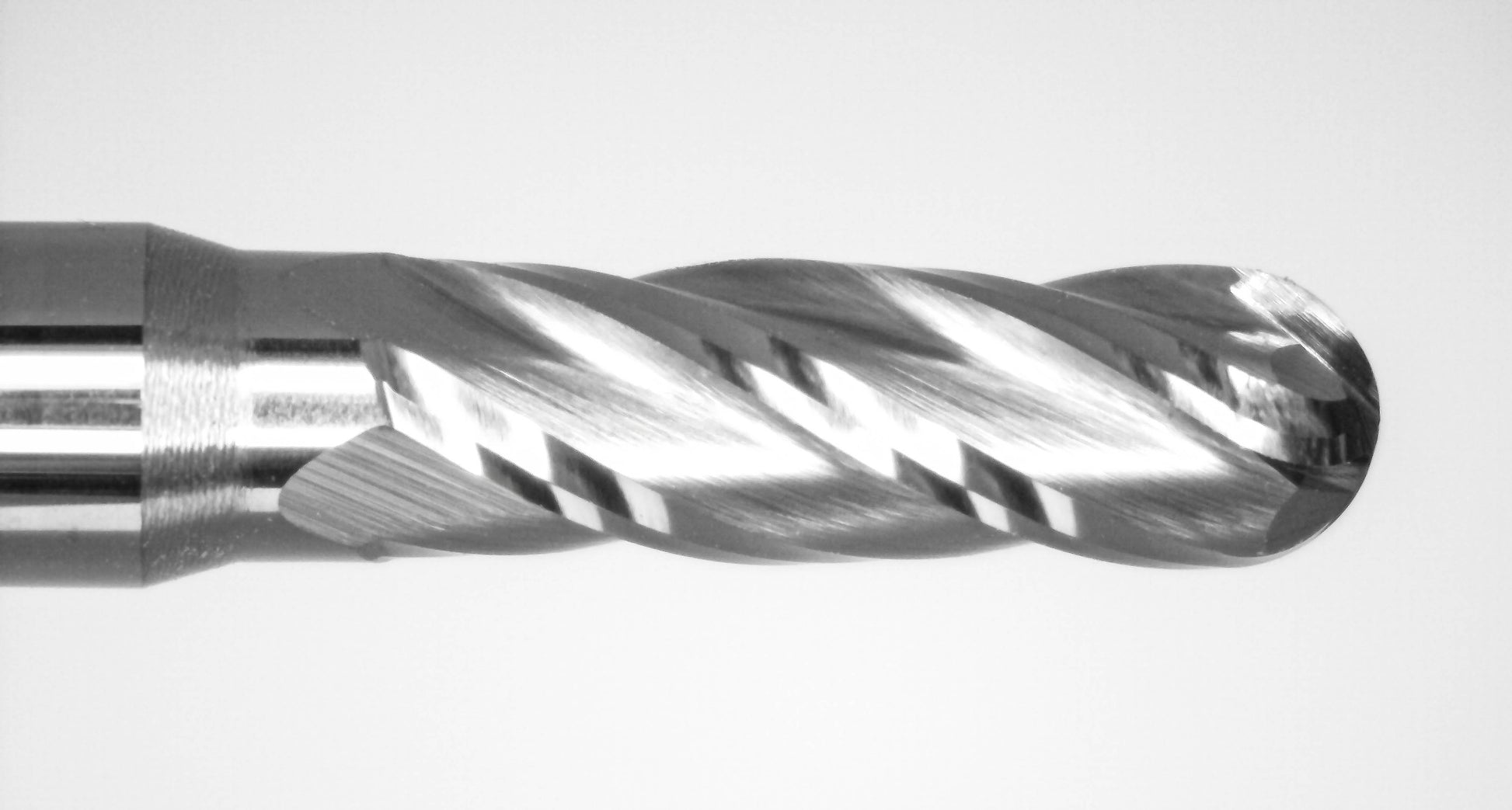

Part of the Kyocera Series 1825 standard-length line, this tool features a ball nose cutting geometry and a 4-flute design for improved finish quality and stable cutting performance.

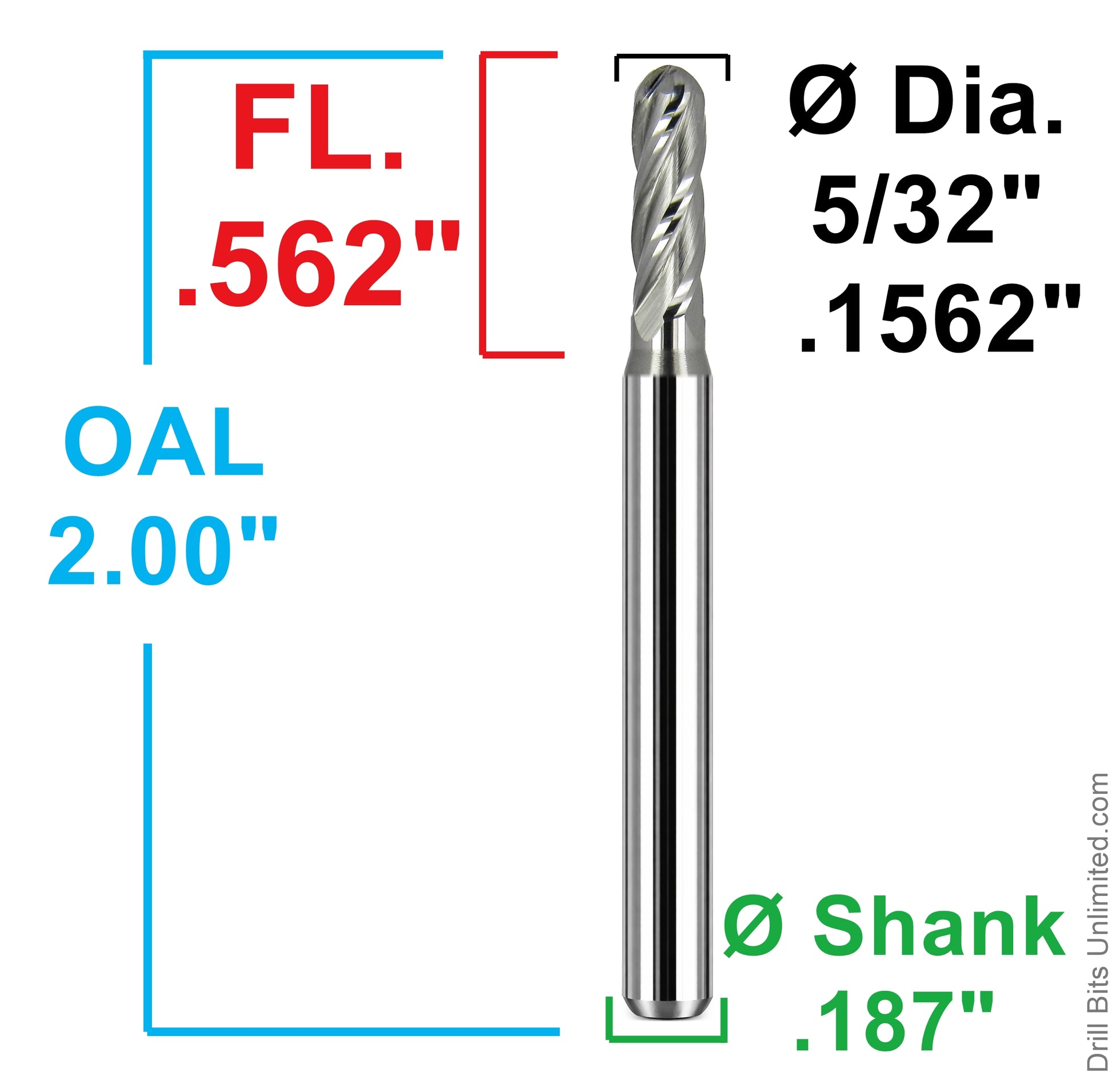

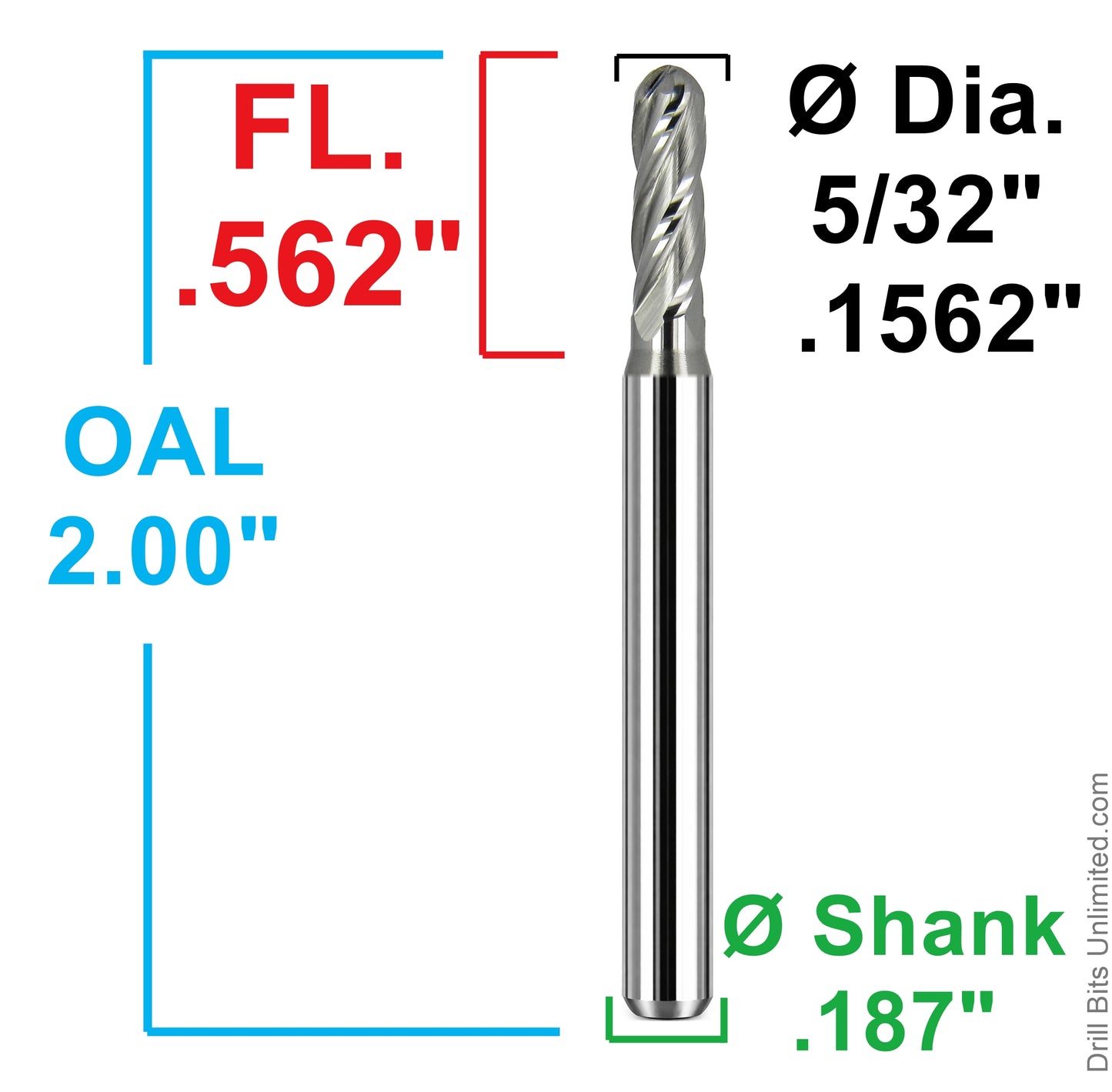

This end mill has a 5/32" (0.1562") cutting diameter, 0.562" length of cut, 2.00" overall length, and a 3/16" shank. Its proportions make it a good fit for precision milling where a compact but capable ball nose tool is needed.

Manufactured from sub-micron grain solid carbide with a bright uncoated finish, this tool is well suited for applications where a sharp cutting edge and clean cutting action are preferred.

This tool is made by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1825-1562.562

Country of Origin: United States

Typical Applications

• 3D contour milling
• Profiling and finishing
• Ball nose machining of curved surfaces
• Fine-detail CNC work
• Precision milling in non-ferrous and general materials

Benefits

• Ball nose geometry for smooth contouring and blended surfaces
• 4 flutes support improved finish quality
• Standard length design balances reach and rigidity
• Bright uncoated finish for sharp cutting performance
• Sub-micron carbide supports precision and wear resistance

Specifications
