0.1969" (5.00mm) x 15mm LOC TITAN-AX 3-Flute Corner Radius Carbide End Mill, 6mm Shank | K054
0.1969" (5.00mm) x 15mm LOC TITAN-AX 3-Flute Corner Radius Carbide End Mill, 6mm Shank | K054
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

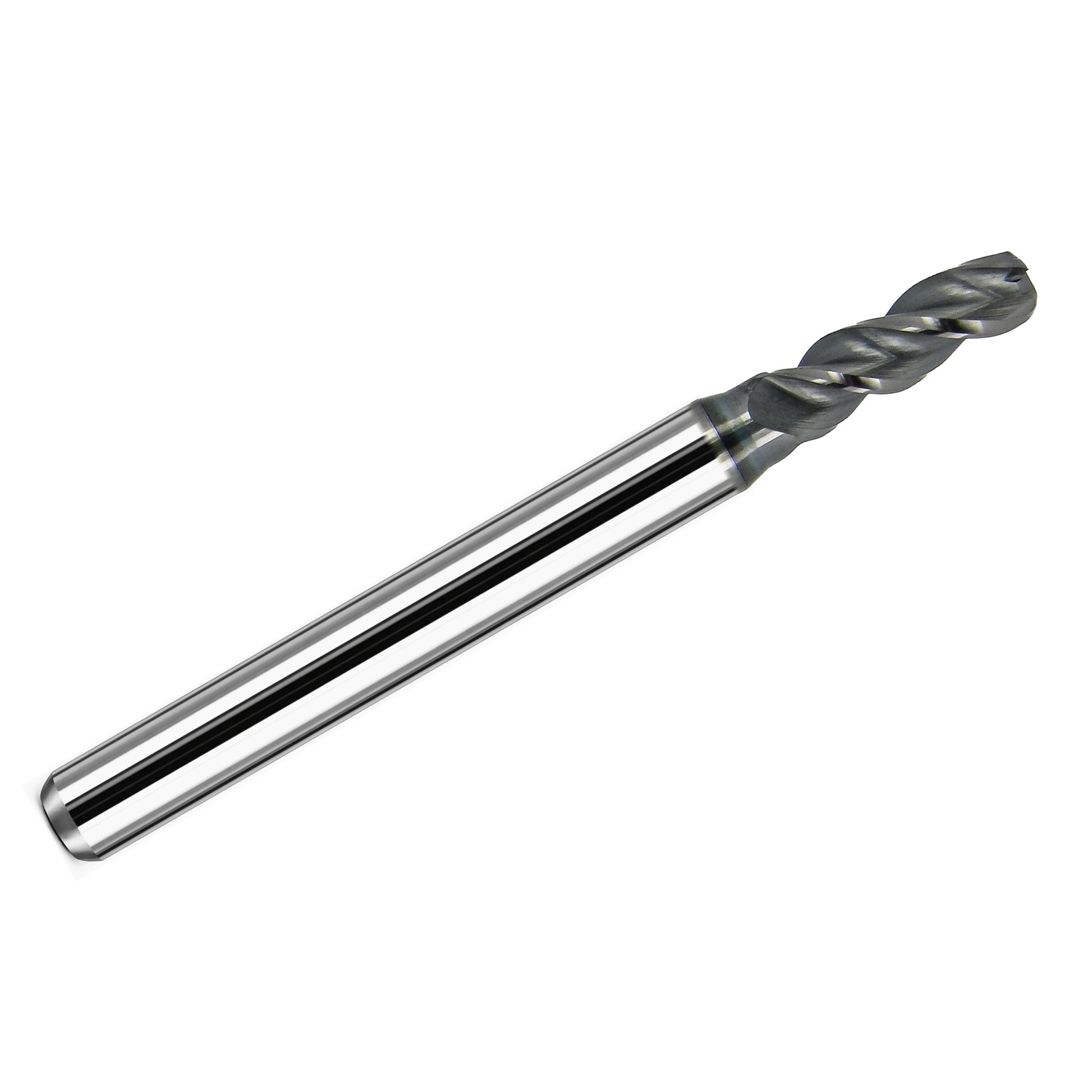

This 5.00mm (0.197") 3-flute corner radius solid carbide end mill is manufactured by Kyocera USA, part number T1969O591CR5. Part of the TITAN-AX™ high-performance series, this tool features an advanced AX coating and precision-ground micro-grain carbide construction designed for demanding CNC machining applications.
Corner radius end mills combine the strength of square end mills with a small radius at the cutting edge, making them ideal for 3D surfacing, profiling, pocketing, and high-performance milling. The reinforced corner radius improves tool life by reducing edge chipping and distributing cutting forces more evenly during machining operations.
The TITAN-AX coating and advanced flute geometry provide improved chip evacuation, excellent heat resistance, and longer tool life when machining steel, stainless steel, cast iron, hardened materials, and superalloys. The variable 32° / 48° helix design helps reduce vibration and improve surface finish during high-speed CNC machining.
Manufacturer: Kyocera USA
Manufacturer Part Number: T1969O591CR5
Country of Origin: United States
Typical Applications
- 3D contour machining
- High-performance milling
- Aerospace component machining
- Medical and miniature precision parts
- Trochoidal milling and dynamic toolpaths
Benefits
- Corner radius strengthens cutting edge and improves tool life
- 3-flute design balances chip evacuation and rigidity
- TITAN-AX coating improves wear resistance and heat tolerance
- Variable helix reduces vibration and improves surface finish
- Precision-ground micro-grain carbide for durability

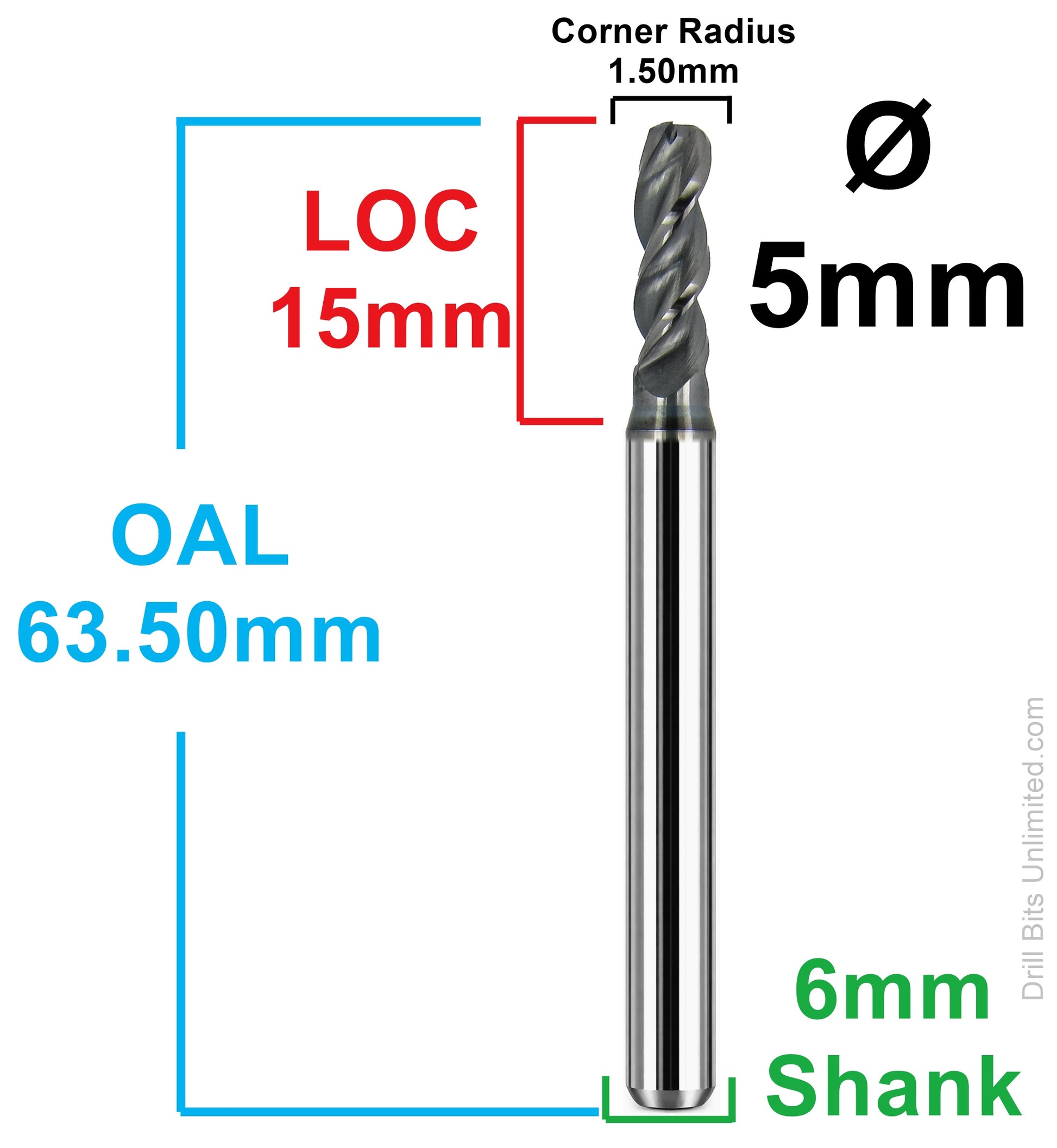

Specifications
| Manufacturer | Kyocera |
| Country of Origin | United States |
| Series | TITAN-AX |
| Tool Type | Corner Radius End Mill |
| Milling Diameter | 5.00mm (0.197") |
| Corner Radius | 1.50mm |
| Length of Cut (LOC) | 15.00mm |
| Overall Length | 63.50mm |
| Shank Diameter | 6.00mm |
| Number of Flutes | 3 |
| Helix Angle | 32° / 48° |
| Material | Micro Grain Solid Carbide |
| Finish / Coating | AX (TITAN-AX) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
