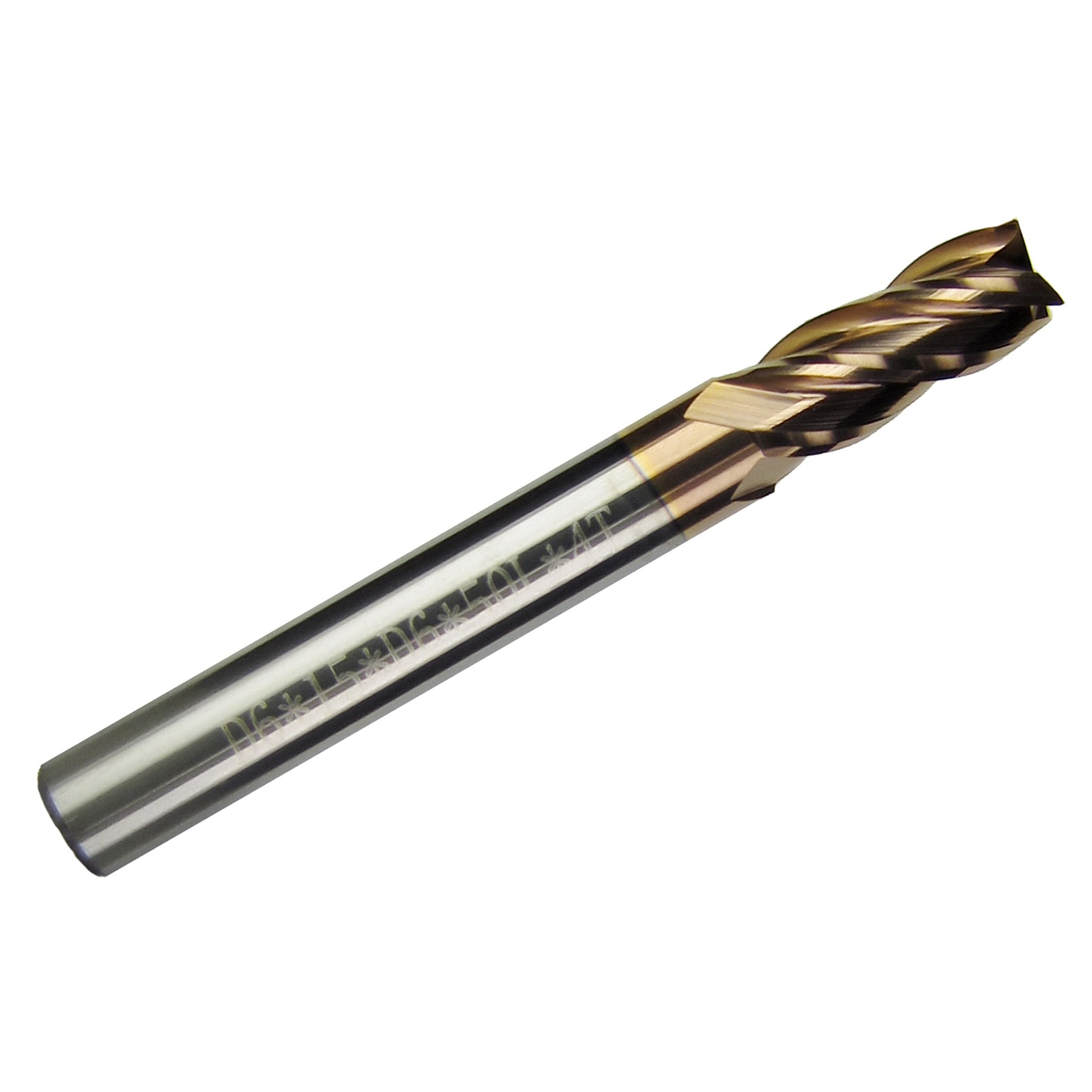

0.2362" (6.00mm) x 15mm LOC AlTiN Coated 4-Flute Square End Carbide End Mill, 6mm Shank | M4-180

This 6.00mm 4-flute solid carbide end mill features a square end, AlTiN coating, and a 55-degree high-helix cutting geometry. The 15mm length of cut provides useful reach for precision milling, profiling, finishing, light slotting, and flat-bottom pocketing in CNC applications.

The AlTiN coating helps improve wear resistance and heat resistance when cutting steels, stainless steels, and other harder materials. The 4-flute square-end design is well suited for finishing passes, contouring, and precision work where a clean flat-bottom cut is needed.

• Tool type: Solid carbide end mill

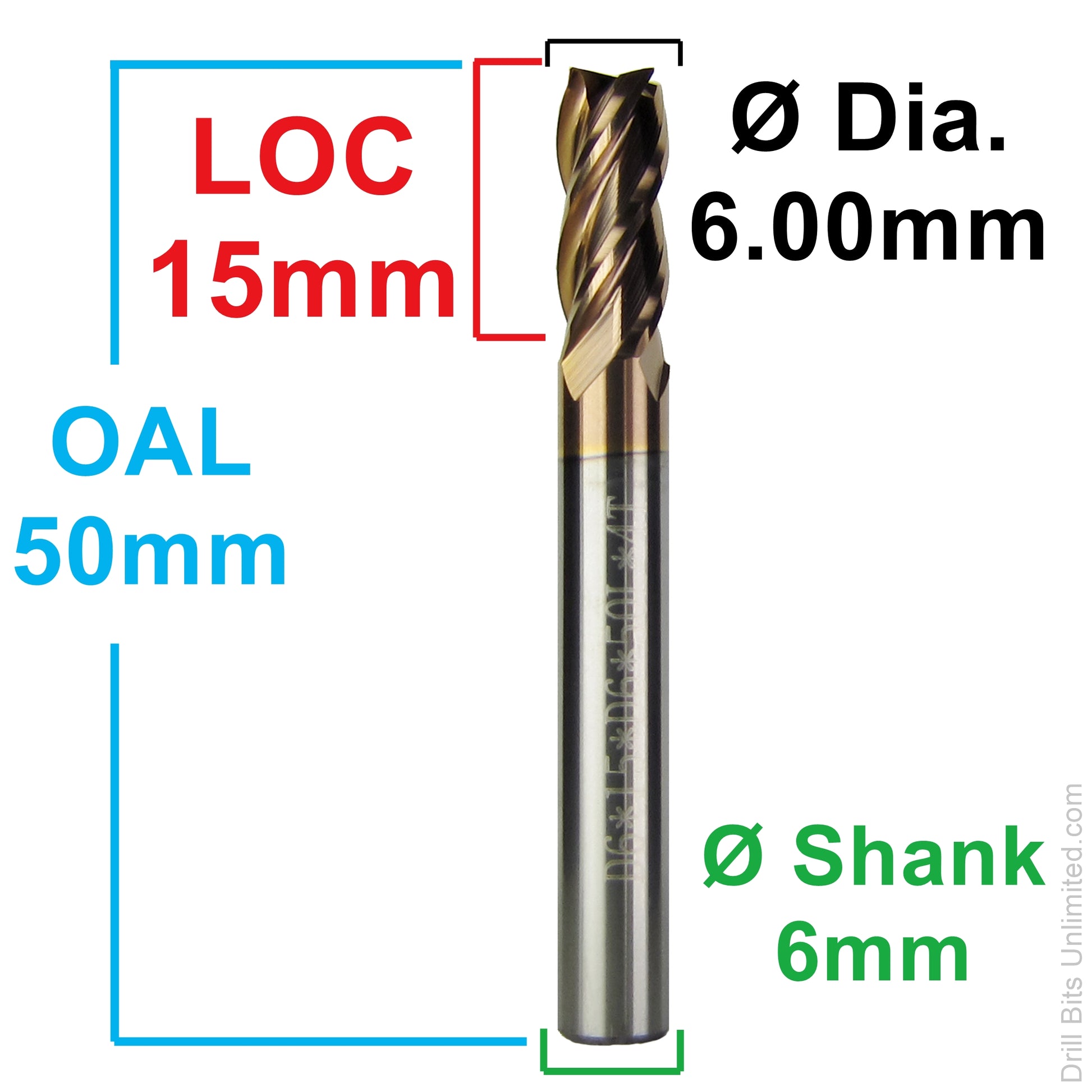

• Cutting diameter: 6.00mm / 0.2362"
• Flutes: 4
• End style: Square end
• Coating: AlTiN-coated
• Helix angle: 55°
• Length of cut: 15mm
• Shank diameter: 6mm
• Overall length: 50mm

Typical Applications

• Precision CNC milling and profiling
• Finishing passes in steels, stainless steels, and other harder materials
• Light slotting and contouring
• Flat-bottom pocketing and small-part machining
• Model making, mold work, prototype work, and general CNC milling

Benefits

• AlTiN coating helps improve heat and wear resistance in demanding materials.
• 4-flute geometry provides a strong cutting edge layout for finishing and light milling operations.
• 55° high-helix design supports smoother cutting action and improved finish quality in suitable applications.
• 15mm LOC provides useful cutting reach for deeper profiles and pockets than the smaller sizes in this series.
• 6mm shank matches the cutting diameter for simple toolholding in 6mm collets.

Specifications

Former SKU / item number: M214
