Kyocera 6.50mm ORION High Performance Carbide Drill, TiAlN Coated, 8mm Shank, 142°, USA Made K157
Kyocera 6.50mm ORION High Performance Carbide Drill, TiAlN Coated, 8mm Shank, 142°, USA Made K157
Couldn't load pickup availability

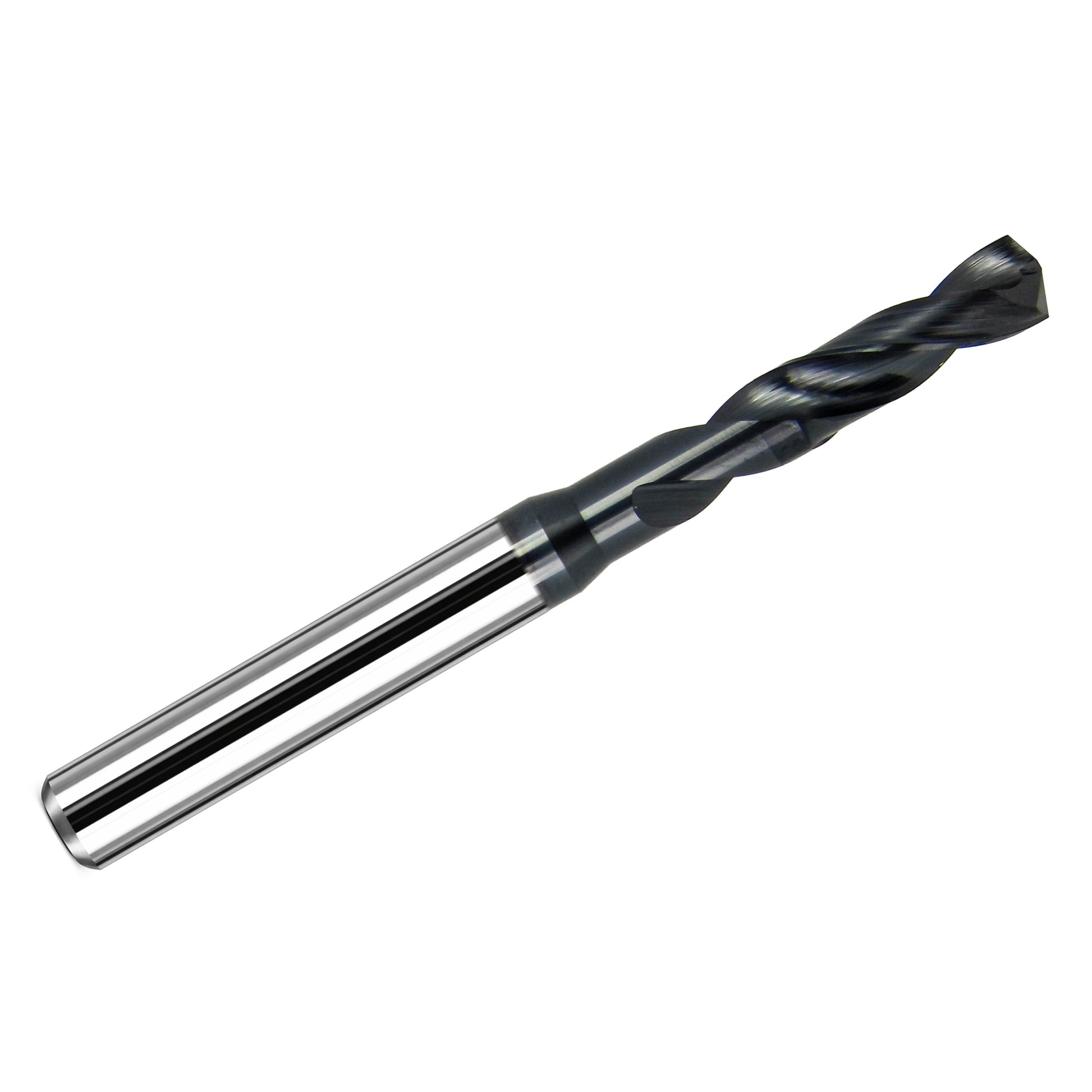

This 6.50mm ORION high performance solid carbide drill is manufactured by Kyocera and features a TiAlN-family AlTiN Nano coating for improved heat resistance, wear life, and drilling performance in demanding metalworking applications.
Kyocera ORION drills are designed for high positional accuracy, reduced heat buildup, and reliable hole quality. This drill features a 2-flute spiral design, 142° 6-facet point geometry, and a 3xD drilling configuration for efficient, precise holemaking.
This metric-shank drill is especially well suited for steel, stainless steel, cast iron, and other demanding workpiece materials. The advanced point geometry helps improve centering accuracy and supports stable entry in production drilling applications.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 165-2559AG1280
Country of Origin: United States
Typical Applications
- Production drilling in steel and stainless steel
- General metalworking holemaking
- Precision CNC drilling
- High-accuracy pilot and through-hole drilling
- Applications requiring strong heat resistance and tool life
Benefits
- ORION high performance geometry for accurate holemaking
- 142° 6-facet point improves centering and drilling stability
- AlTiN Nano / TiAlN-family coating improves wear resistance
- Solid carbide construction supports rigidity and precision
- 3xD design balances reach, strength, and chip evacuation
Specifications
| Manufacturer | Kyocera |
| Tool Type | High Performance Drill |
| Series | 165 ORION Metric Shank |

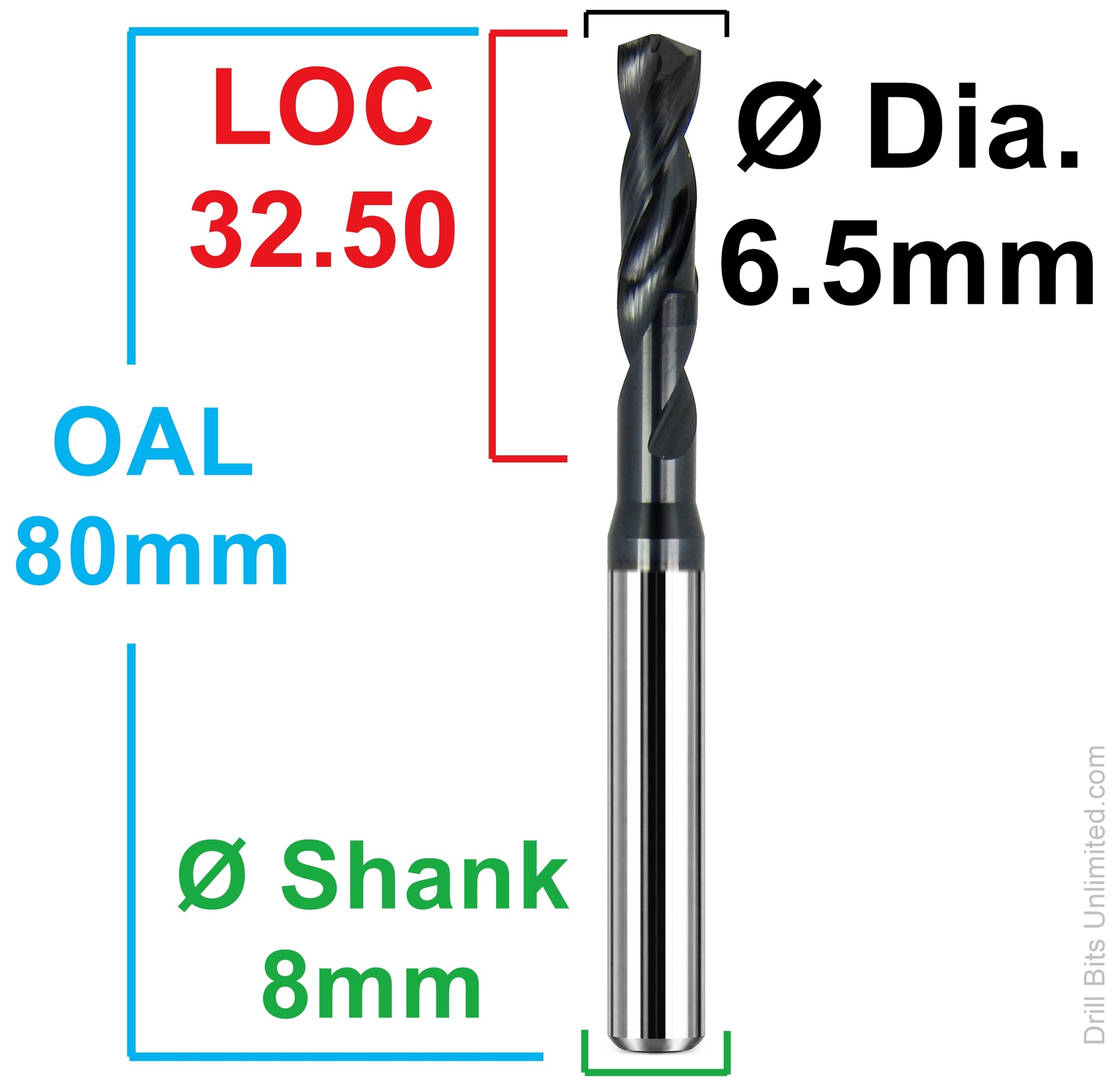

| Drill Diameter | 6.50 mm |
| Decimal Equivalent | 0.2559" |
| Shank Diameter | 8.00 mm |
| Overall Length | 80.00 mm |
| Flute Length (L1) | 19.50 mm |
| Max Length of Cut (L2) | 32.50 mm |
| Depth x Diameter Ratio | 3xD |
| Point Angle | 142° |
| Point Geometry | 6 Facet |
| Number of Flutes | 2 |
| Flute Type | Spiral |
| Material | Solid Carbide |
| Grade | Micro Grain Carbide |
| Finish | AlTiN Nano / TiAlN Coated |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Application | Metalworking |
| Country of Origin | United States |
