0.2362" (6.00mm) x 9mm LOC 2-Flute Square End Carbide End Mill, 6mm Shank | K175

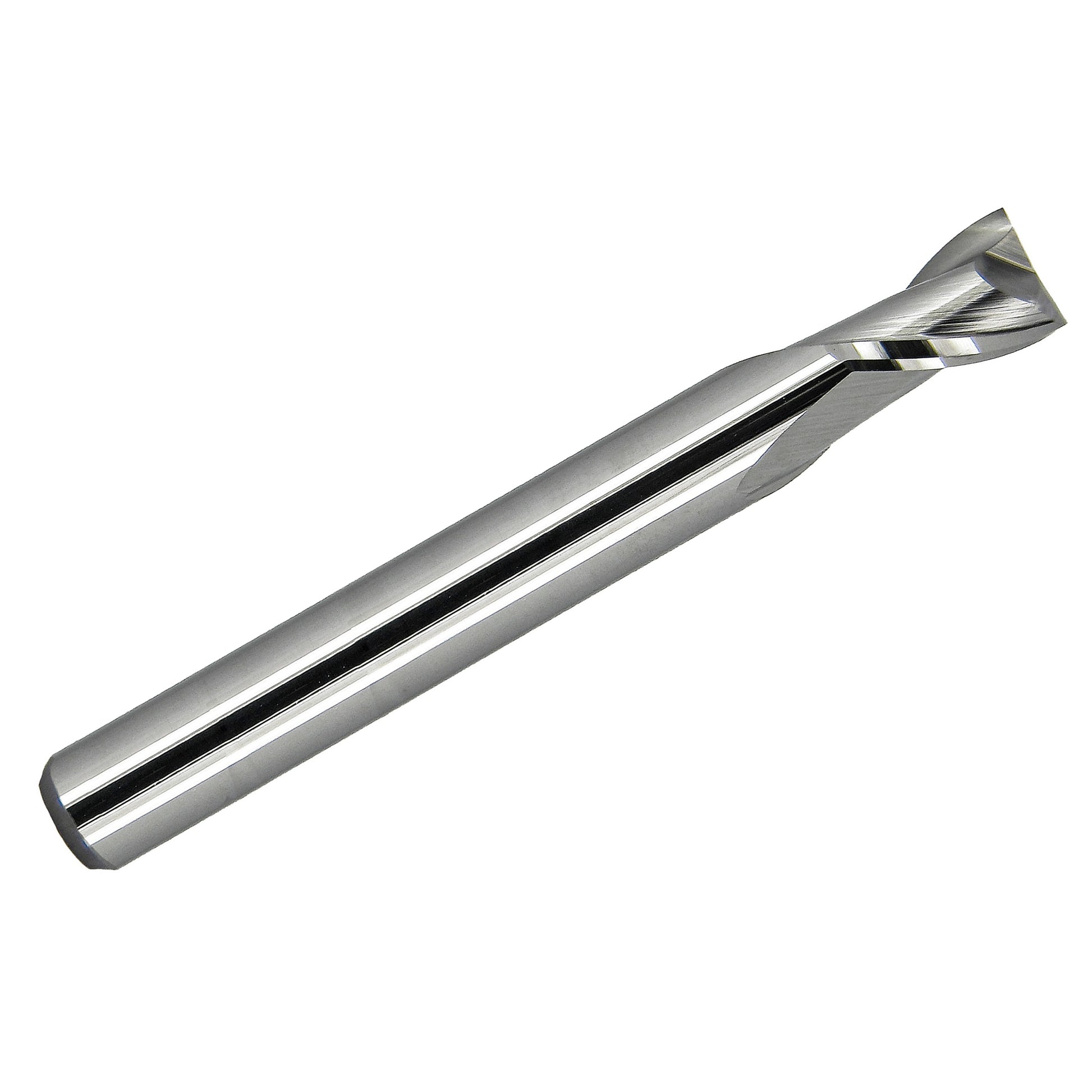

This 6mm 2-flute stub length square end carbide end mill from Kyocera is made from micrograin solid carbide for excellent rigidity, precision, and dependable tool life in CNC milling applications. Its stub length design provides added strength and stability, making it well suited for general-purpose machining and shorter-reach milling operations.

The 2-flute geometry offers efficient chip evacuation, while the square end is ideal for slotting, profiling, and side milling. This tool features a 6mm cutting diameter, 9mm length of cut, 50mm overall length, and 6mm shank. The center-cutting design also allows plunge entry in appropriate applications.

Manufactured in the United States, Kyocera cutting tools are known for consistent quality, tight tolerances, and reliable performance in professional machining environments.

Common applications include:

• General-purpose CNC milling
• Slotting and side milling
• Profiling and contouring
• Machining non-ferrous metals and stainless steels
• Short-reach milling where added rigidity is beneficial

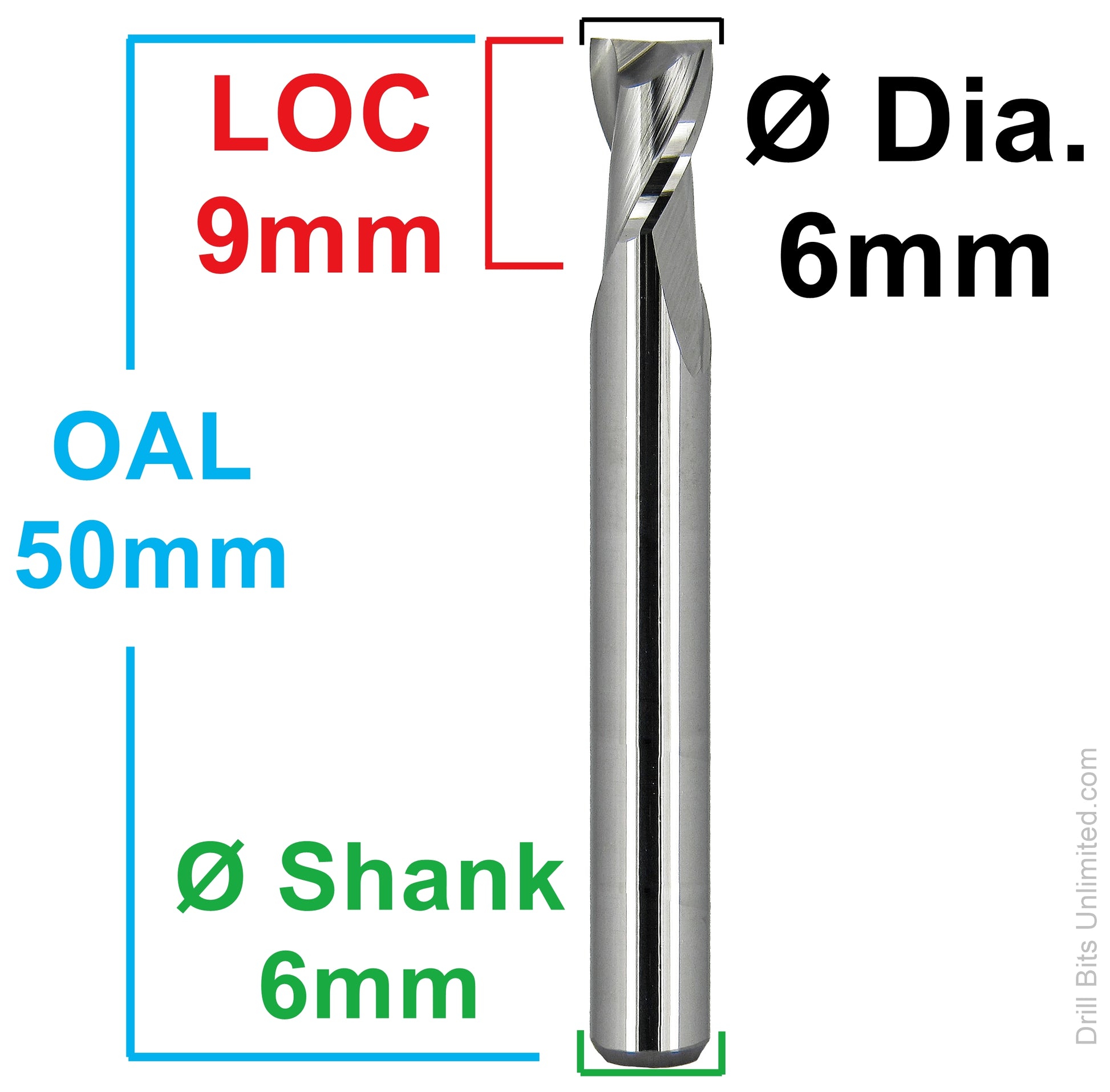

Specifications:

• Diameter: 6mm
• Length of Cut: 9mm
• Overall Length: 50mm
• Shank Diameter: 6mm
• End Style: Square End
• Flutes: 2
• Helix Angle: 30°
• Material: Solid Micrograin Carbide
• Finish: Bright (Uncoated)
• Series: Kyocera 1620
• Country of Origin: United States
