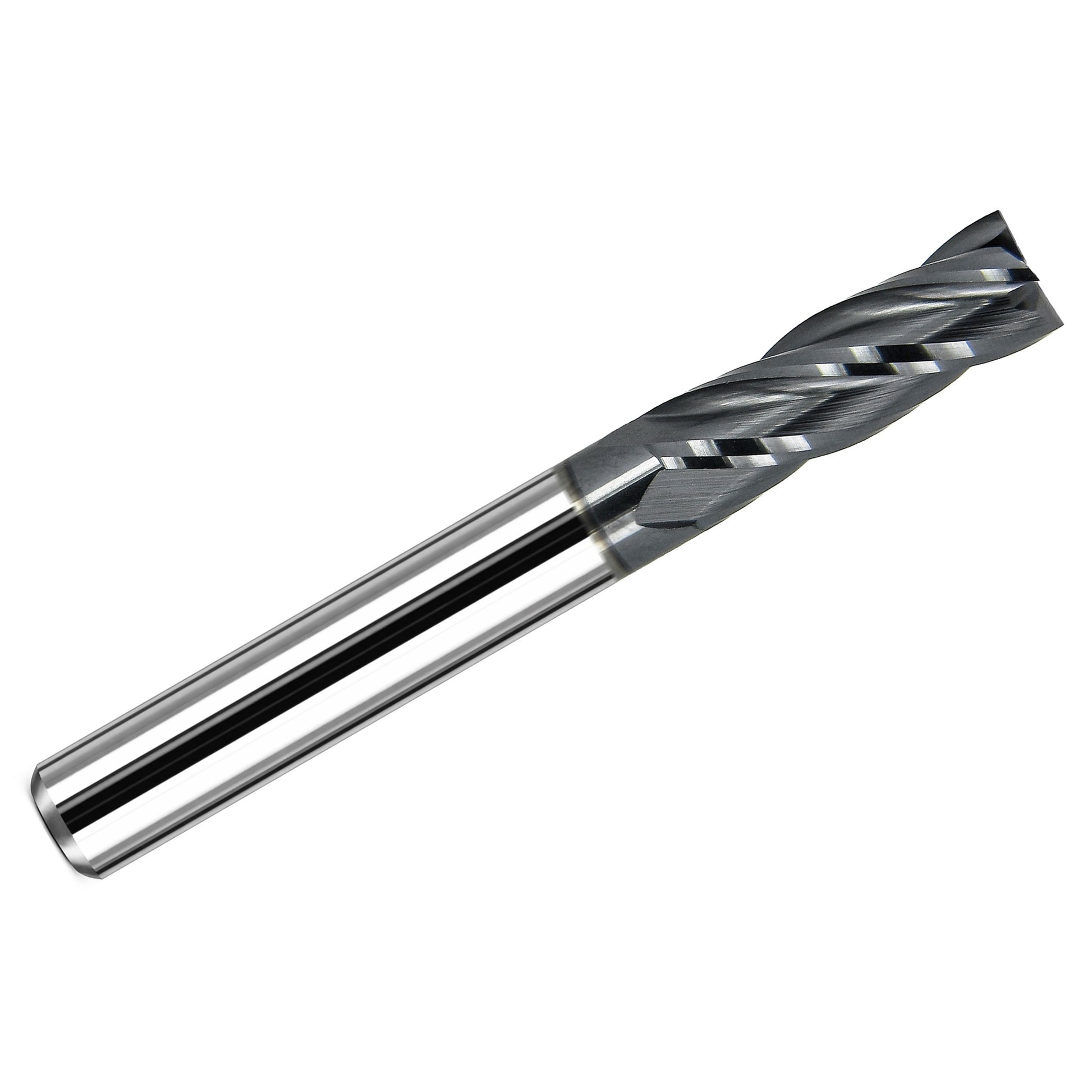

0.2362" (6.00mm) x 18mm LOC AlTiN Coated 4-Flute Square End Carbide End Mill, 6mm Shank | K174

This 6mm 4-flute square end carbide end mill from Kyocera features a durable AlTiN coating for enhanced wear resistance and heat protection in demanding CNC milling applications. Constructed from micrograin solid carbide, it delivers excellent rigidity, precision, and long tool life.

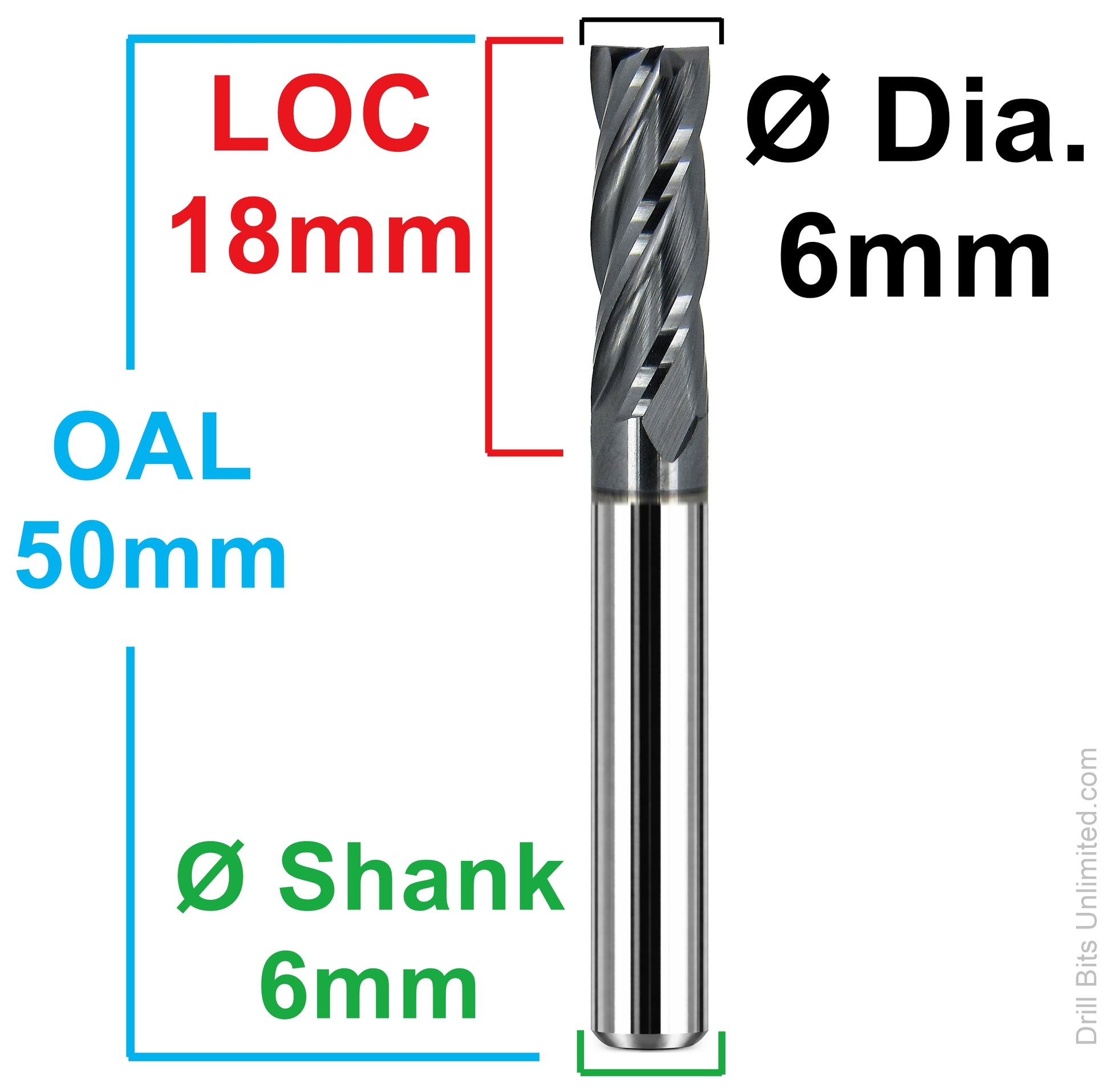

The square end geometry is ideal for slotting, profiling, and general-purpose milling, while the 4-flute design provides increased strength and improved performance in harder materials. This tool features a 6mm cutting diameter, 18mm length of cut, 50mm overall length, and 6mm shank.

Manufactured in the United States, Kyocera cutting tools are known for consistent quality, tight tolerances, and reliable performance in professional machining environments.

Common applications include:

• General-purpose milling and profiling
• Slotting and side milling
• Machining steels, stainless steels, and cast iron
• Production milling and finishing operations
• CNC machining requiring strength and stability

Specifications:

• Diameter: 6mm
• Length of Cut: 18mm
• Overall Length: 50mm
• Shank Diameter: 6mm
• End Style: Square End
• Flutes: 4
• Helix Angle: 30°
• Material: Solid Micrograin Carbide
• Coating: AlTiN
• Series: Kyocera 1810
• Country of Origin: United States
