6mm Carbide Corner Radius End Mill – 3 Flute, 1mm Radius, Kyocera TITAN-AX K006
6mm Carbide Corner Radius End Mill – 3 Flute, 1mm Radius, Kyocera TITAN-AX K006
Couldn't load pickup availability
✔ Premium Kyocera TITAN-AX coating
✔ Designed for steel, stainless and titanium
✔ 3-flute geometry for high-efficiency milling

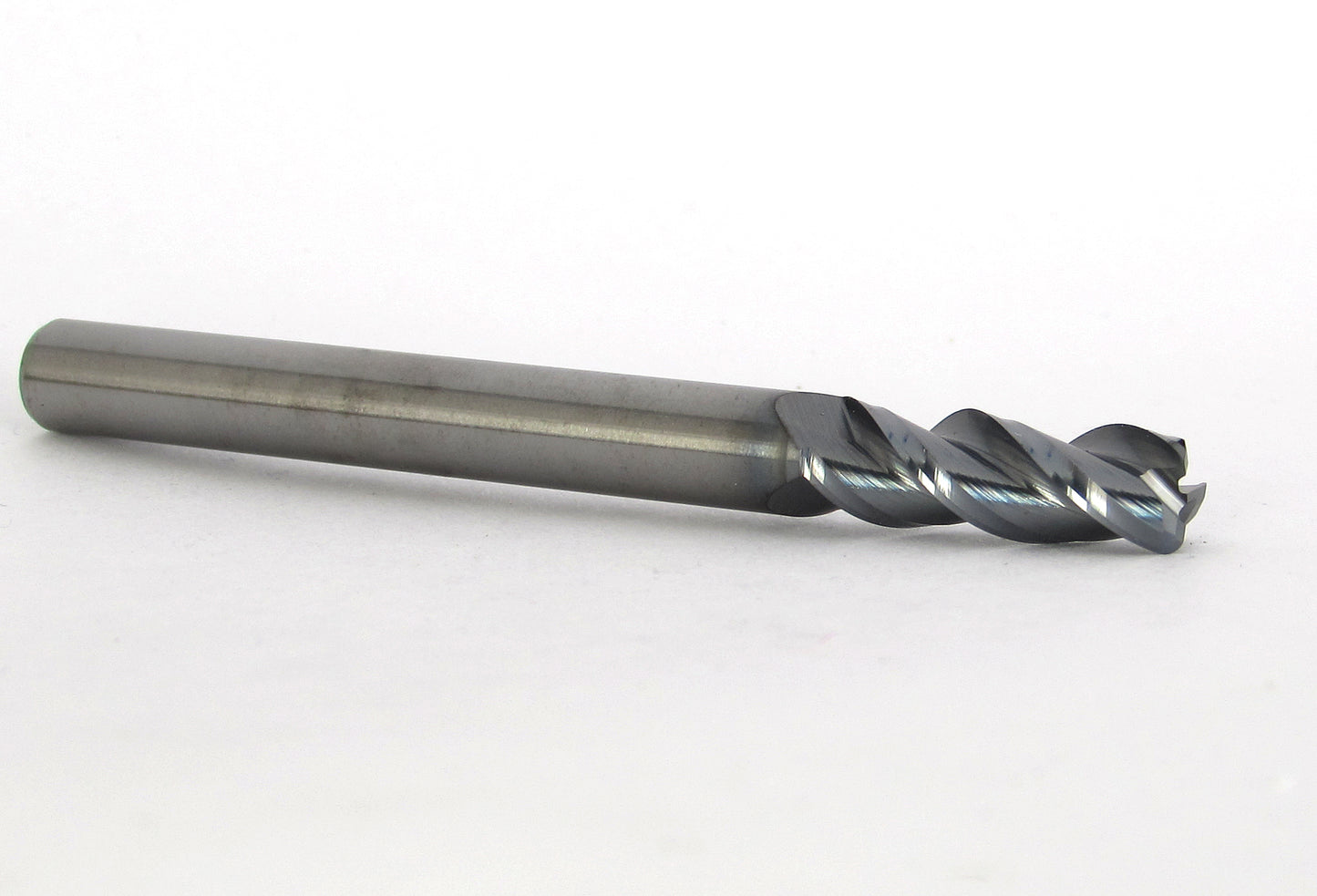

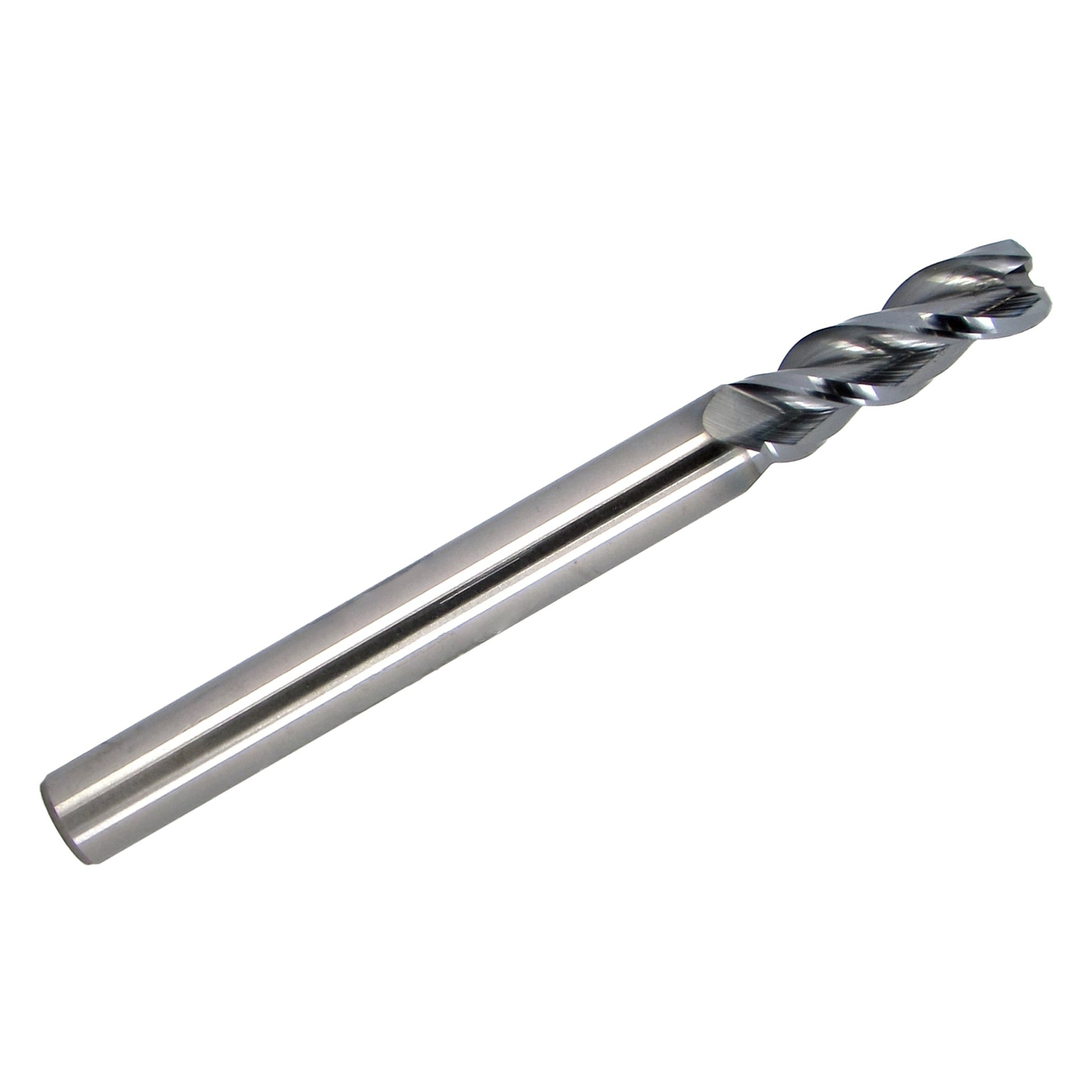

This 6.00mm solid carbide corner radius end mill features a 3-flute design and 1mm corner radius for improved tool life and reduced edge chipping during milling operations. The TITAN-AX coating provides excellent heat resistance and wear protection when machining difficult materials.
Designed for high-performance machining of steel, stainless steel, titanium, super alloys, and hardened materials, this end mill delivers stable cutting, excellent chip evacuation, and consistent surface finishes in demanding CNC applications.
Sold individually — price is per end mill.
Manufacturer: Kyocera
Series: TITAN-AX
Manufacturer Part Number: T23620709CR4
Alternate Format: T2362-0709-CR4
Benefits
- Smooth cutting with excellent chip evacuation
- Corner radius improves tool strength and edge life
- Consistent part size and surface finish
- Rigid shank design for improved clamping stability
- Ideal for deeper pocketing and high-efficiency milling
- Suitable for trochoidal milling strategies
| Tool Type | Corner Radius End Mill |
| Cutting Diameter | 6.00mm |
| Corner Radius | 1.00mm |
| Flutes | 3 |
| Material | Solid Micrograin Carbide |
| Coating | TITAN-AX |

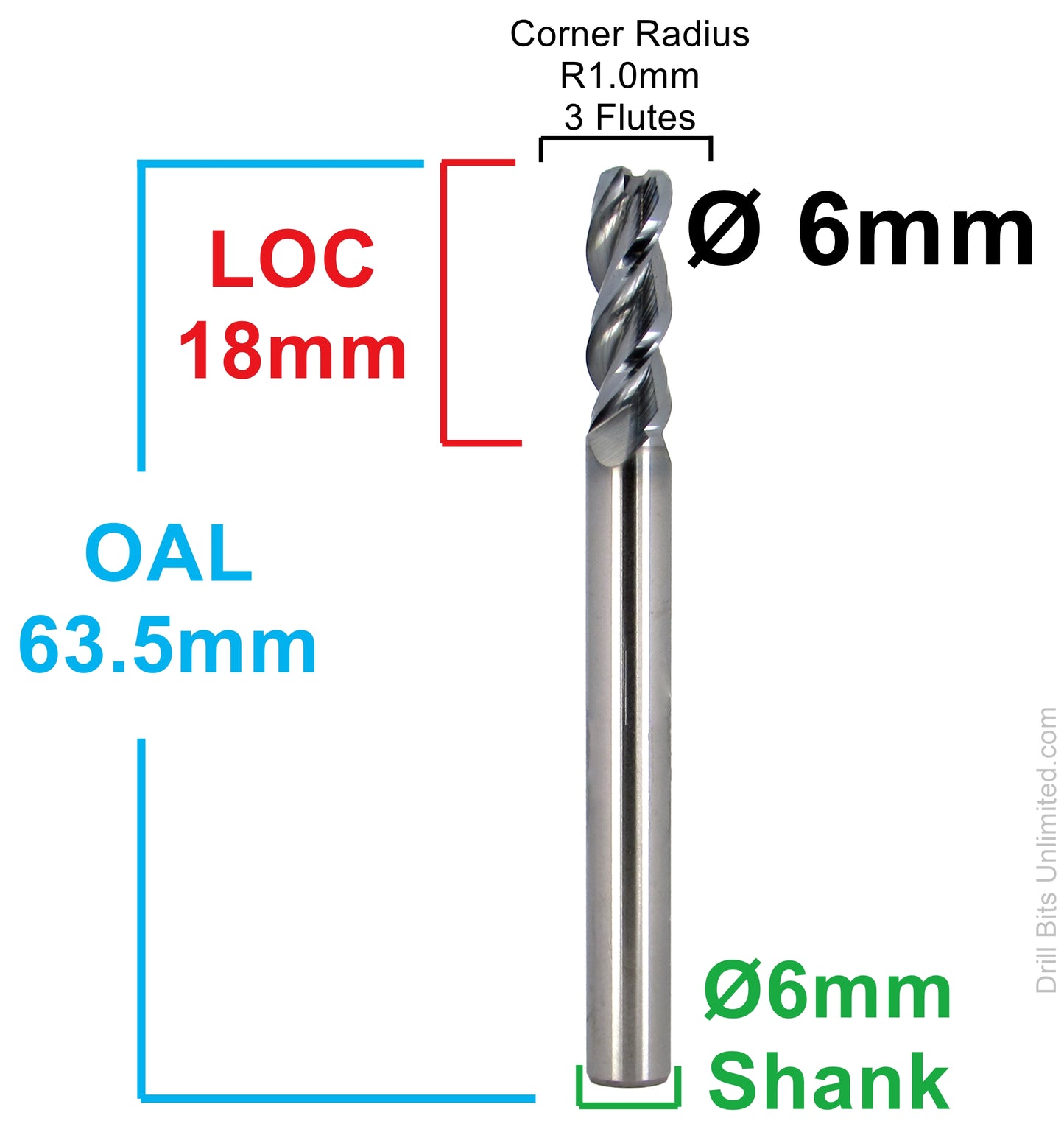

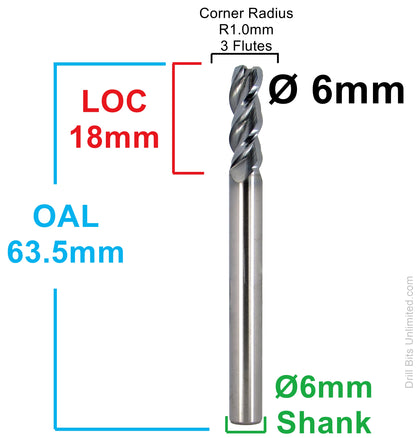

| Length of Cut | 18.00mm |
| Overall Length | 63.50mm |
| Shank Diameter | 6.00mm |
| Cutting Direction | Right Hand |
| Helix Angle | 32° / 48° |
| Cutting Type | Center Cutting |
| Applications | Steel (P), Stainless (M), Cast Iron (K), Super Alloys (S), Hardened Materials (H) |
| Compatibility | Steel, Stainless Steel, Titanium, Super Alloys, Hardened Materials |
| Measurement System | Metric |
