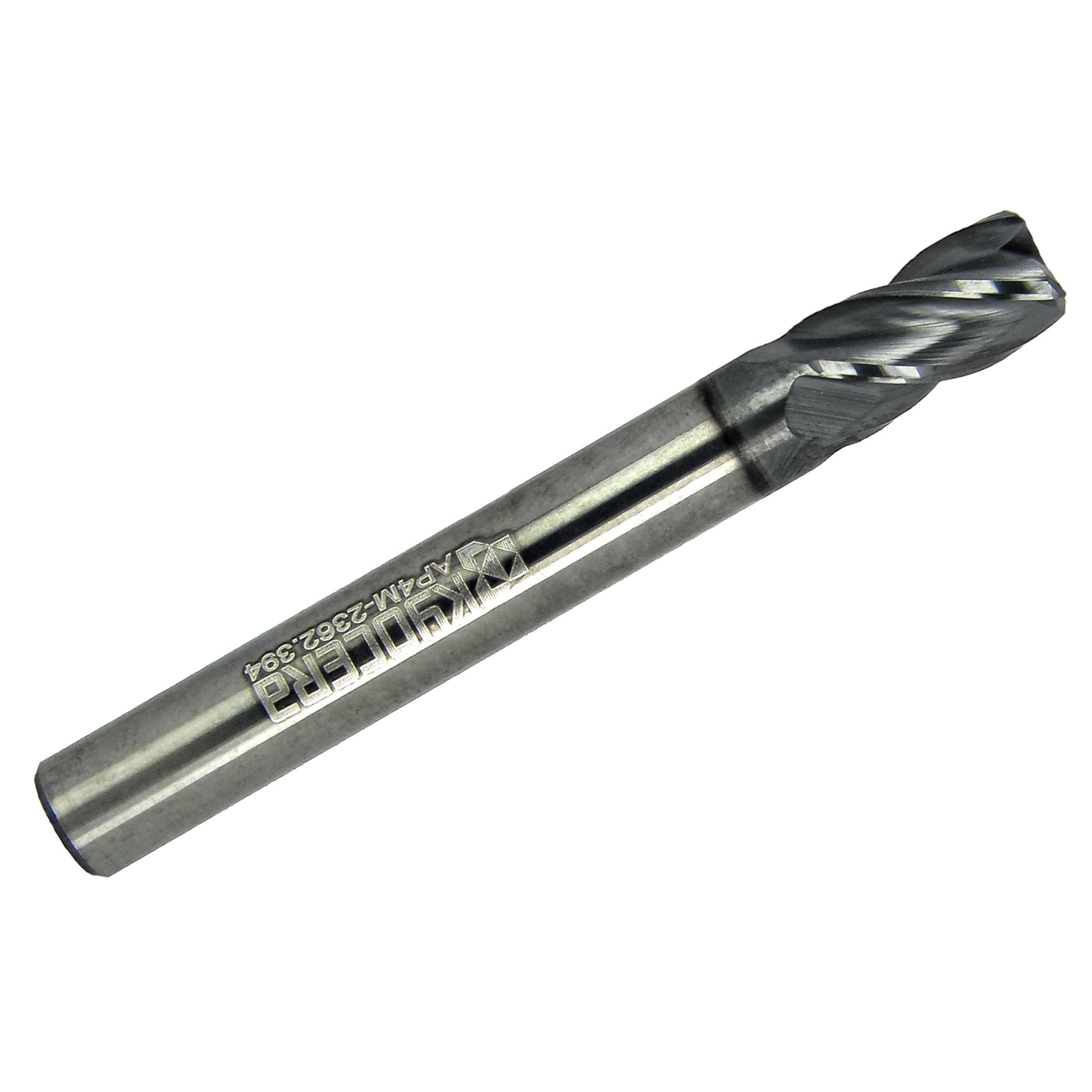

6mm Kyocera 4-Flute Corner Radius Carbide End Mill AlCrN AP4M-2362.394 K085

This 6mm 4-flute corner radius carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a durable AlCrN coating designed to improve heat resistance and wear performance during demanding CNC machining operations.

The corner radius design (0.010") strengthens the cutting edge and reduces chipping compared to sharp square corners. This geometry improves tool life and produces stronger edges when machining steels and difficult materials.

The variable helix design (32° / 38°) reduces vibration and chatter during machining, allowing smoother cutting and improved surface finishes in precision CNC milling applications.

The AlCrN coating provides excellent oxidation resistance and thermal stability, making this end mill well suited for machining steel, stainless steel, cast iron, hardened materials, and super alloys.

Manufacturer: Kyocera

Manufacturer Part Number: AP4M-2362.394

Typical Applications

• Precision CNC milling
• General steel machining
• Stainless steel machining
• Mold and die work
• High performance finishing operations

Benefits

• Corner radius strengthens cutting edge and reduces chipping
• Variable helix design minimizes chatter
• AlCrN coating improves heat resistance and wear life
• 4 flutes provide rigidity and smooth finishes
• Center cutting design allows plunge milling
• Micro-grain carbide provides durability and edge retention

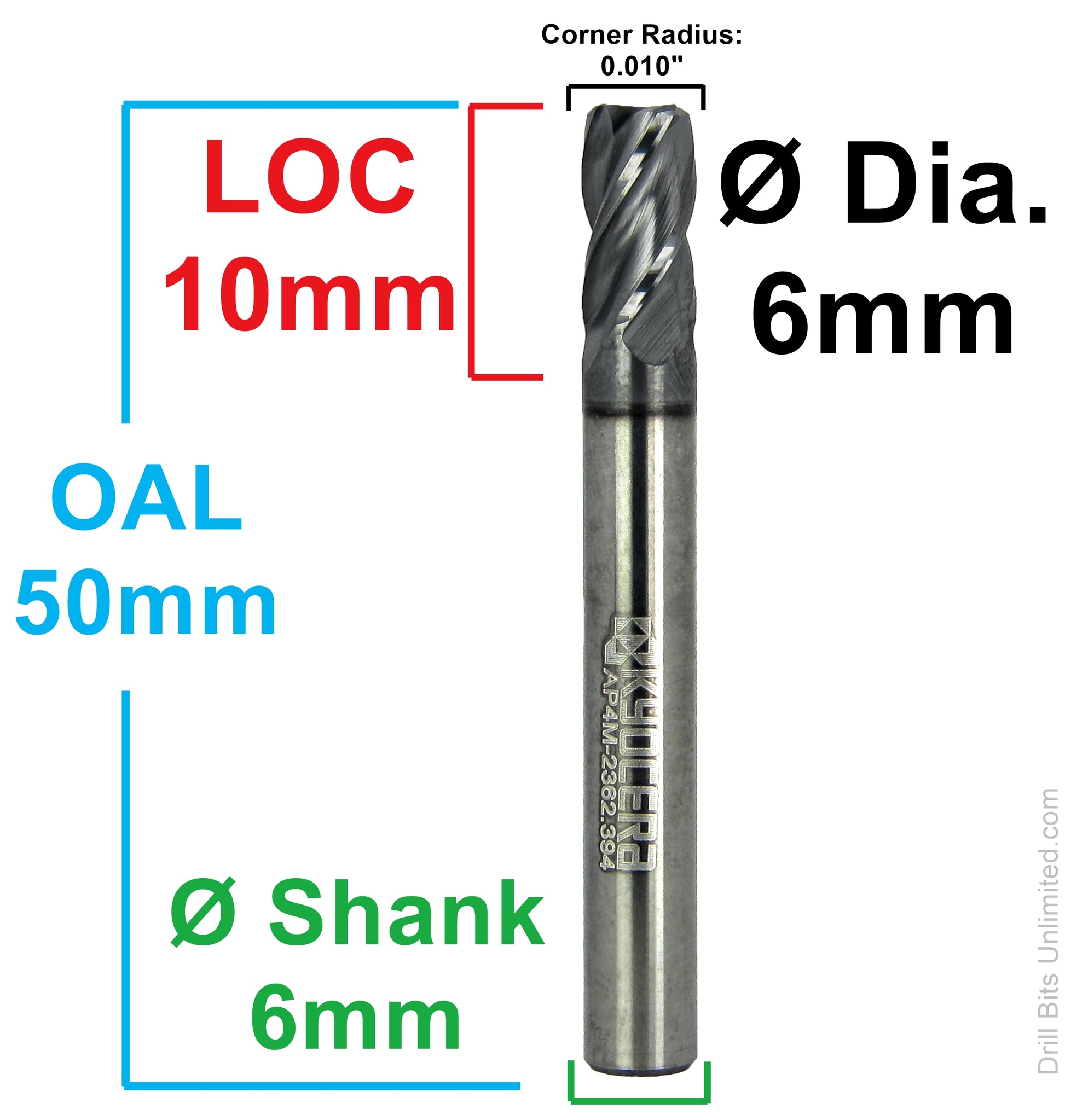

Specifications
