90° Solid Carbide V-Groove Engraving Bit – 1/8" Shank – 1.50" OAL – 3 Pack

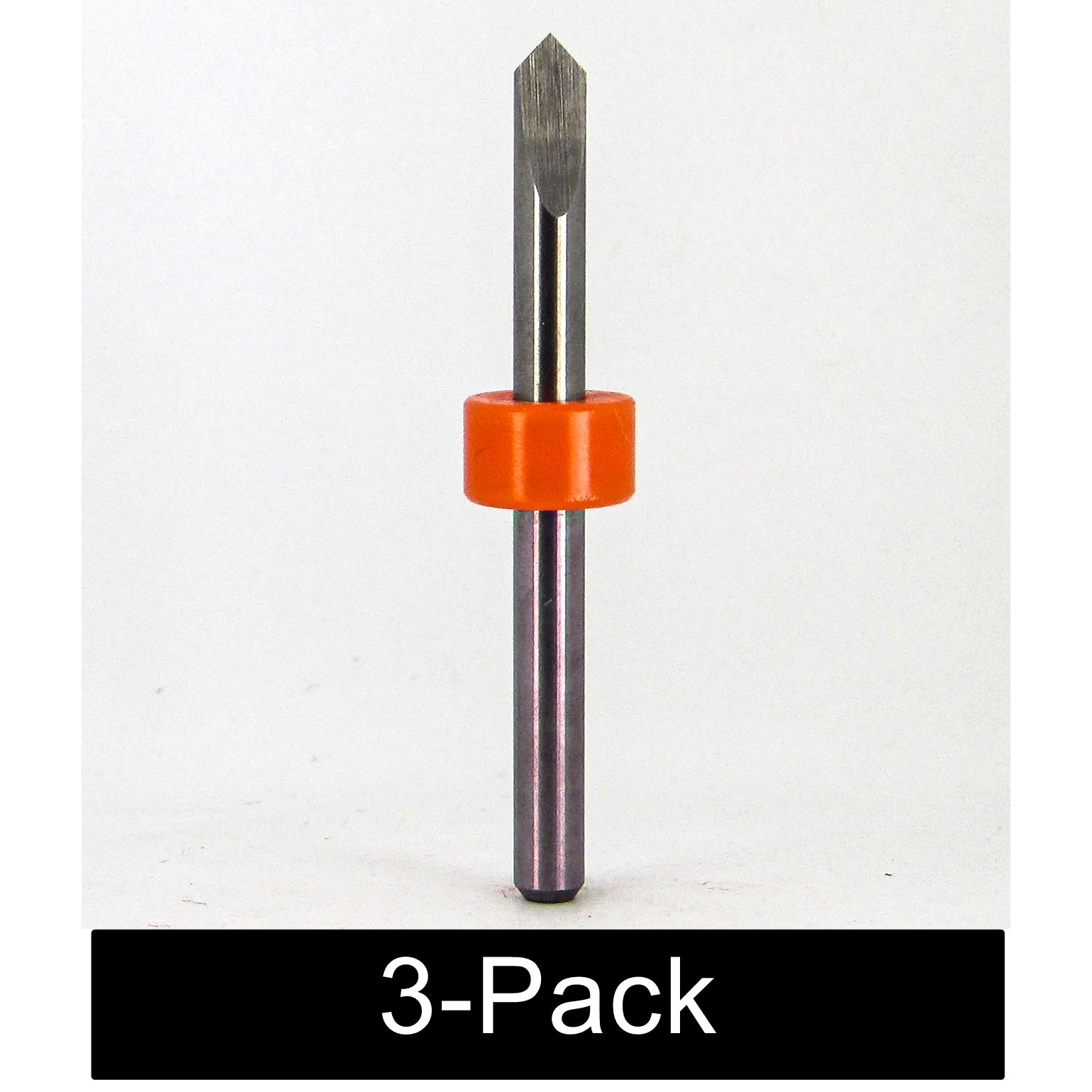

Includes 3 carbide engraving bits.

90° Solid Carbide V-Groove Engraving Bits – 1/8" Shank – 1.50" OAL (3 Pack)

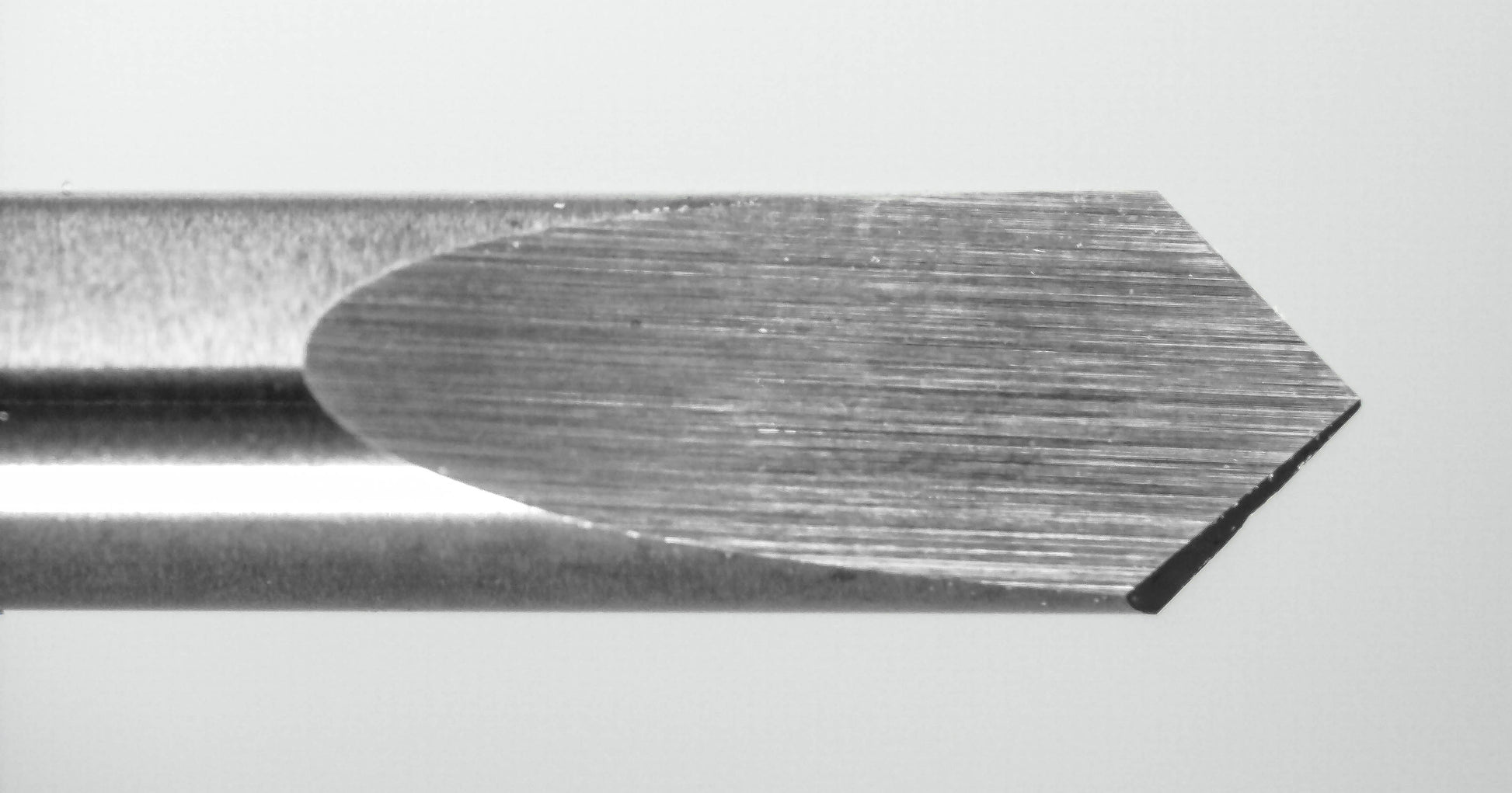

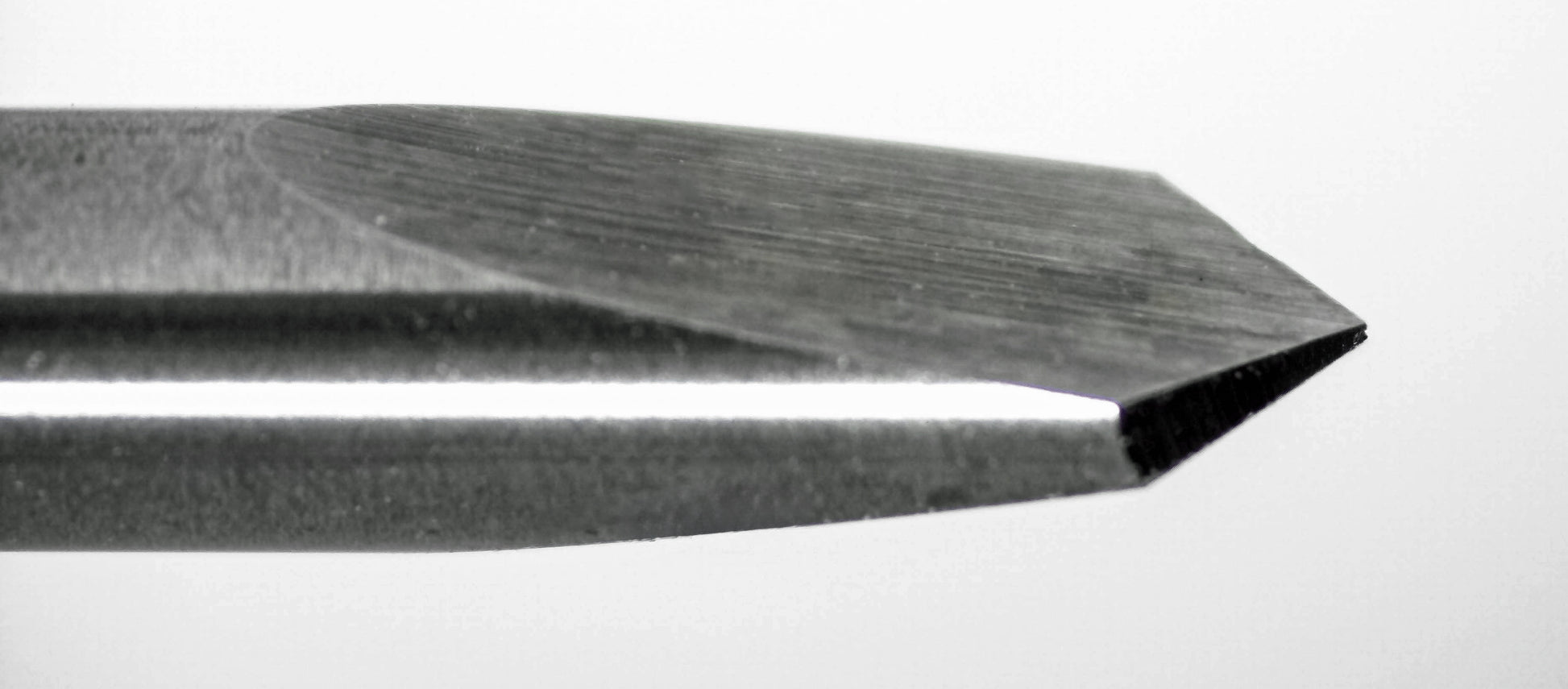

These solid carbide engraving bits feature a 90° included angle and a sharp point tip, making them well suited for engraving, chamfering, and general V-groove cutting. The pointed geometry allows line width to increase with depth of cut, making these bits useful for lettering, decorative engraving, and other detail work.

Built for durability and clean cutting performance across a range of materials.

Specifications:

• Included Angle: 90°
• Tip Type: Sharp Point
• Shank Diameter: 1/8" (3.175mm)
• Overall Length: 1.50"
• Material: Solid Carbide
• Cut Style: V-Groove Engraver
• Quantity: 3 Pieces

About 90° V-Groove Engraving Bits:

90° V-bits are commonly used for engraving, chamfering, and wider groove work where a broader included angle is preferred. The sharp point geometry produces variable line width based on cutting depth, making these tools useful for a wide range of CNC engraving applications.

Compared with narrower-angle V-bits, a 90° tool creates wider lines at the same depth and is often preferred for bold lettering, decorative cuts, and general-purpose engraving.

Common Applications:

• Engraving plastics and acrylics
• Wood engraving and sign making
• Chamfering and decorative V-grooves
• PCB engraving and isolation routing
• Light engraving in aluminum and brass
