.0500"–.1250" / 1.25–3.175mm Kyocera Diamond Flute Router Bit Set – Fish Tail – 10 Pc – R1-N

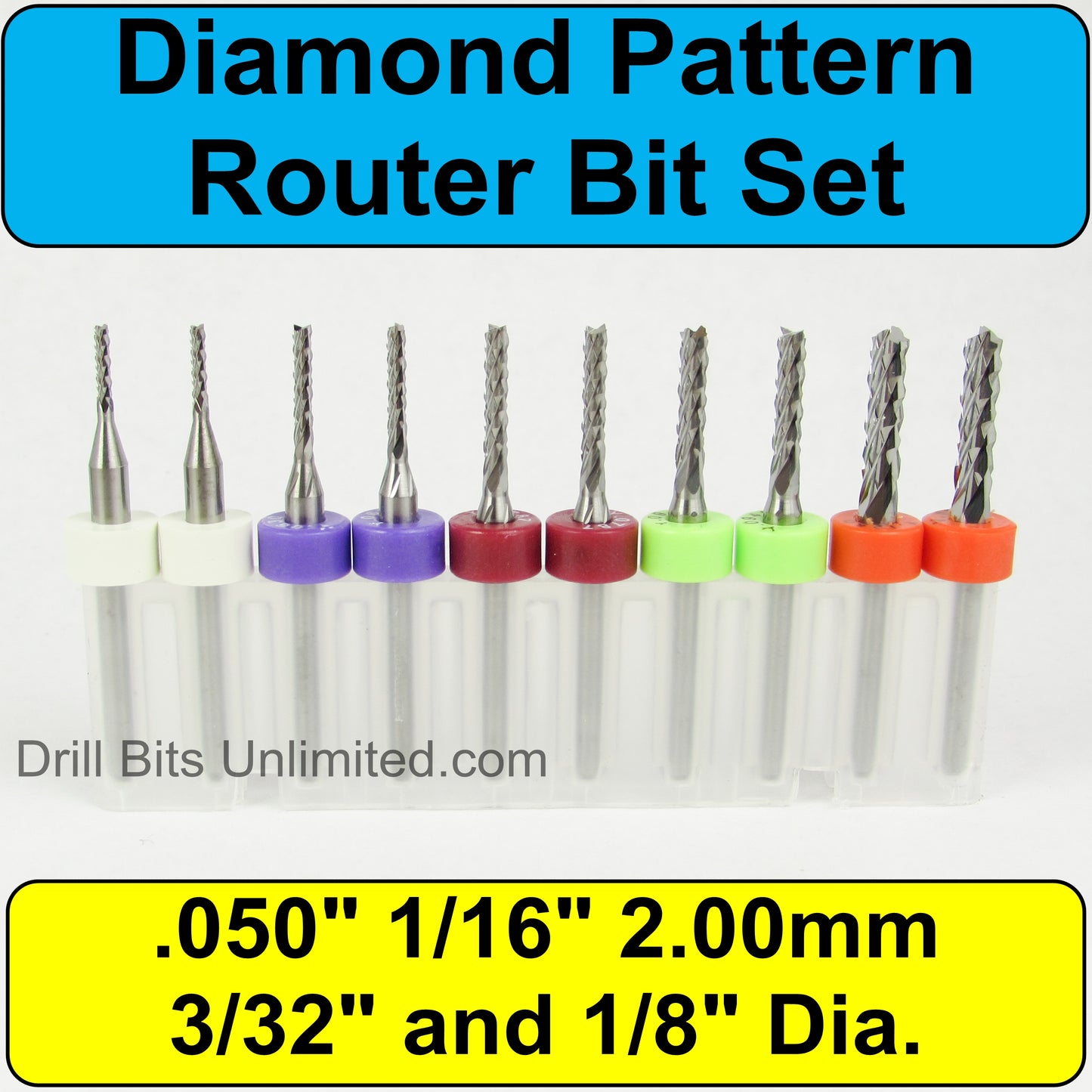

This Kyocera diamond flute router bit set includes ten new solid carbide router bits in five useful sizes, ranging from .0500" to .1250" / 1.25mm to 3.175mm diameter. The set includes two pieces of each size, making it a convenient assortment for PCB routing, G10/FR4, fiberglass, composites, ceramics, plastics, wood, and other small CNC routing applications.

These are Kyocera USA diamond flute router bits made from solid tungsten carbide. Each tool has a 1/8" shank, 1.50" overall length, up-cut flute direction, and fish tail plunge tip.

The diamond flute geometry, also called diamond pattern or diamond cut, uses many small cutting edges to produce a gentle, controlled cutting action. This geometry is especially useful for abrasive, brittle, or layered materials where reducing chipping, fraying, delamination, and edge breakout is important. These are not diamond-coated tools.

Fish tail plunge tips provide a gentler entry in brittle or layered sheet materials such as PCB board, fiberglass, G10/FR4, and composites. This helps reduce fracturing, splintering, delamination, and back-side breakout when routing delicate or layered materials.

Manufacturer: Kyocera

Set / Part Number: R1-N

Country of Origin: Made in USA

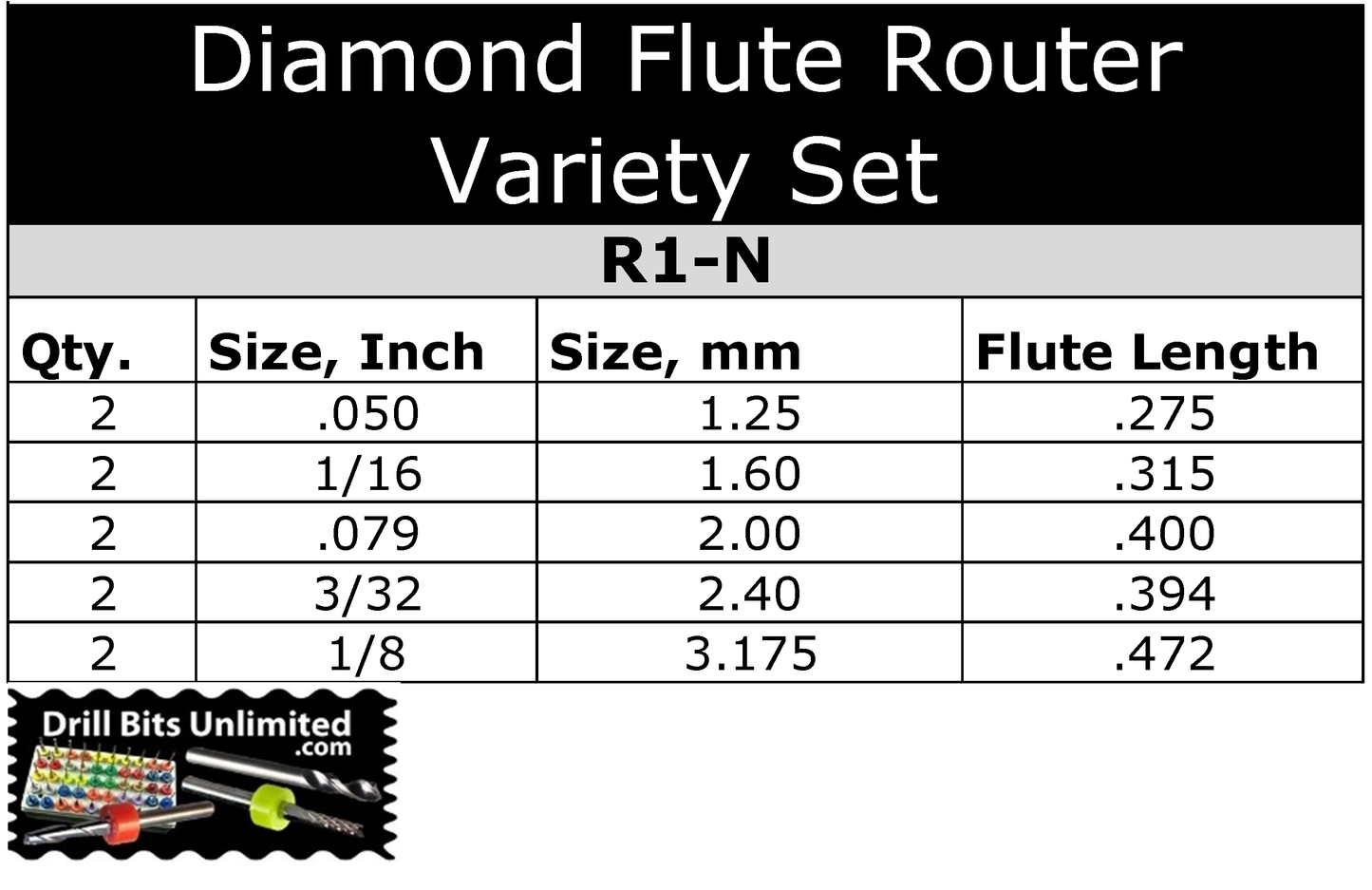

Included Sizes

Typical Applications

• PCB routing and circuit board material cutting
• G10, FR4, and fiberglass materials
• Composite and reinforced plastic materials
• Ceramics and abrasive materials, when suitable for your setup
• Carbon fiber and graphite materials, when suitable for your setup
• Wood, plastics, and abrasive sheet materials
• Small CNC routing, trimming, profiling, and cutout work

Benefits

• Ten new Kyocera solid carbide router bits in five useful sizes
• Two pieces each of five common router diameters
• Made in USA quality
• Diamond flute geometry provides many small cutting edges for a gentle, controlled cut
• Helps reduce chipping, fraying, delamination, and edge breakout in brittle or layered materials
• Fish tail plunge tips provide a gentler entry in materials prone to fracturing or back-side breakout
• Up-cut flute direction helps pull chips and dust upward out of the cut
• 1/8" shanks fit many CNC routers, collets, and rotary tool holders
• Convenient value assortment for stocking common diamond flute router sizes

Specifications
