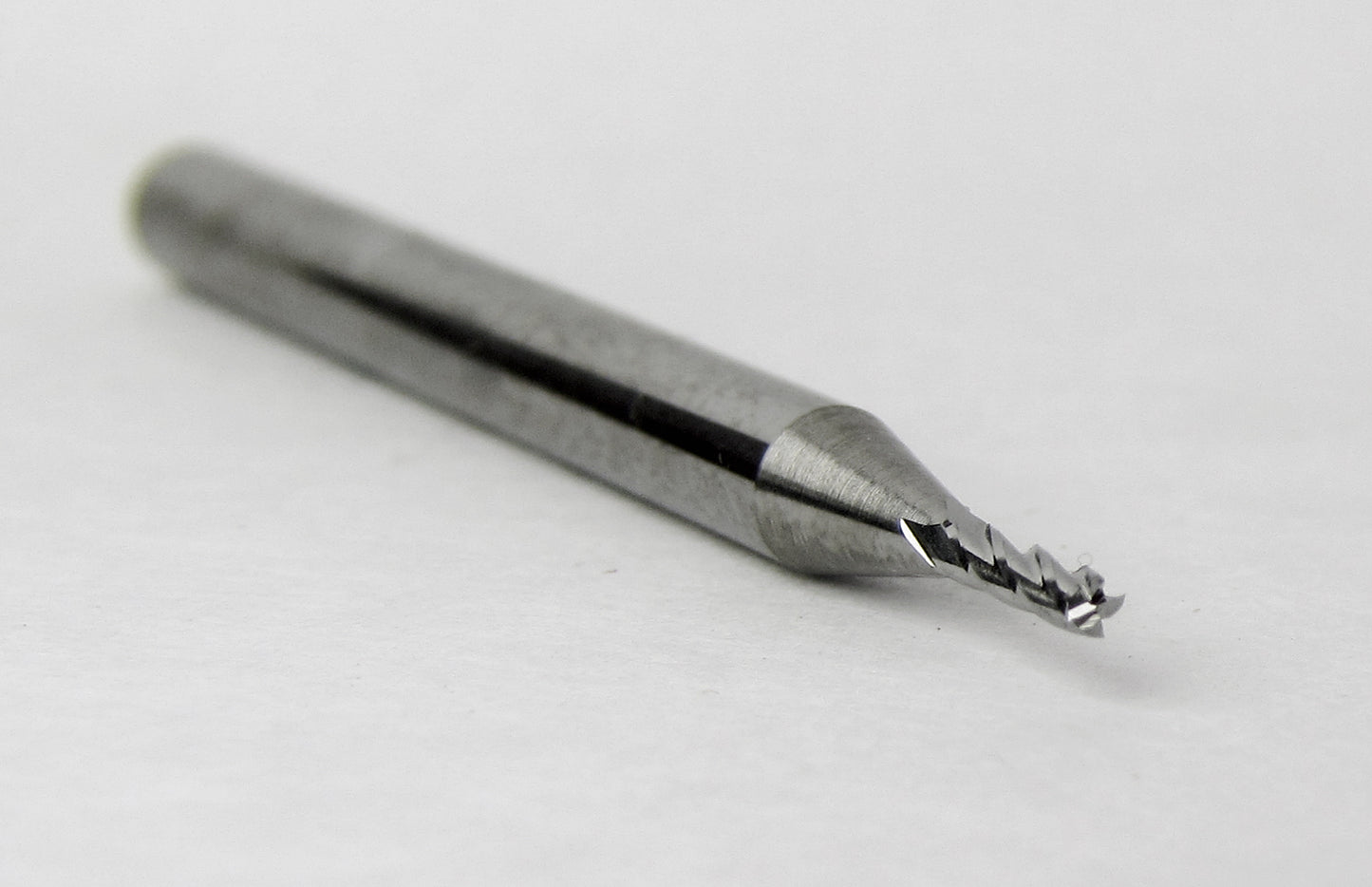

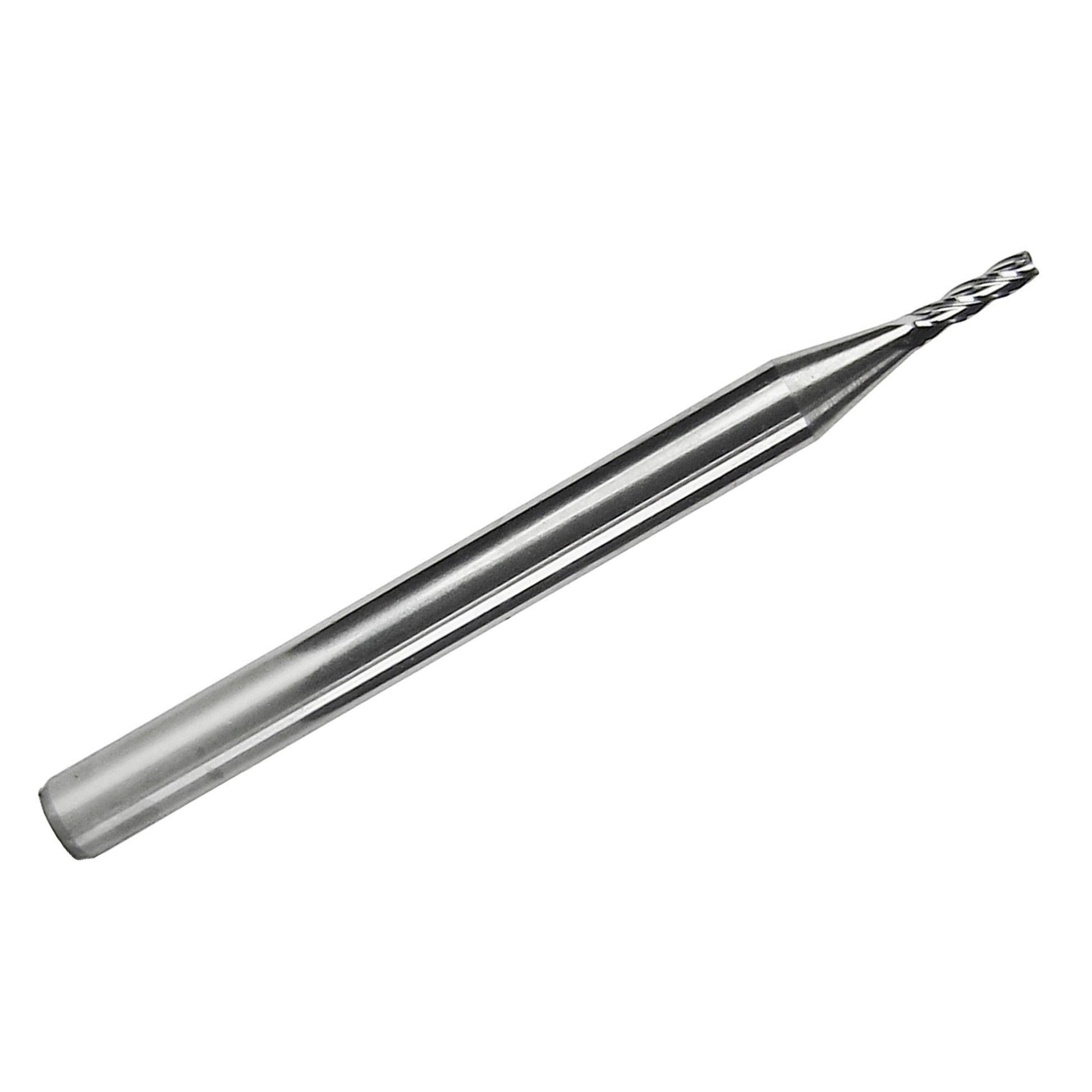

0.0460" x .138" LOC 4-Flute Square End Carbide End Mill, 1/8" Shank | M4-110

This Harvey Tool 0.046" 4-flute solid carbide miniature end mill features a square end, stub-length cutting geometry, and an uncoated finish. The short 0.138" length of cut helps provide added rigidity for small-diameter CNC milling, profiling, finishing, and detail work.

The 4-flute square-end design is well suited for finishing passes, light slotting, contouring, and precision flat-bottom work. Because this is an uncoated miniature carbide end mill, it is best used with proper speeds, feeds, and a rigid setup, especially when cutting steels or harder materials.

• Manufacturer: Harvey Tool
• Manufacturer part number: 73046
• Tool type: Solid carbide miniature end mill

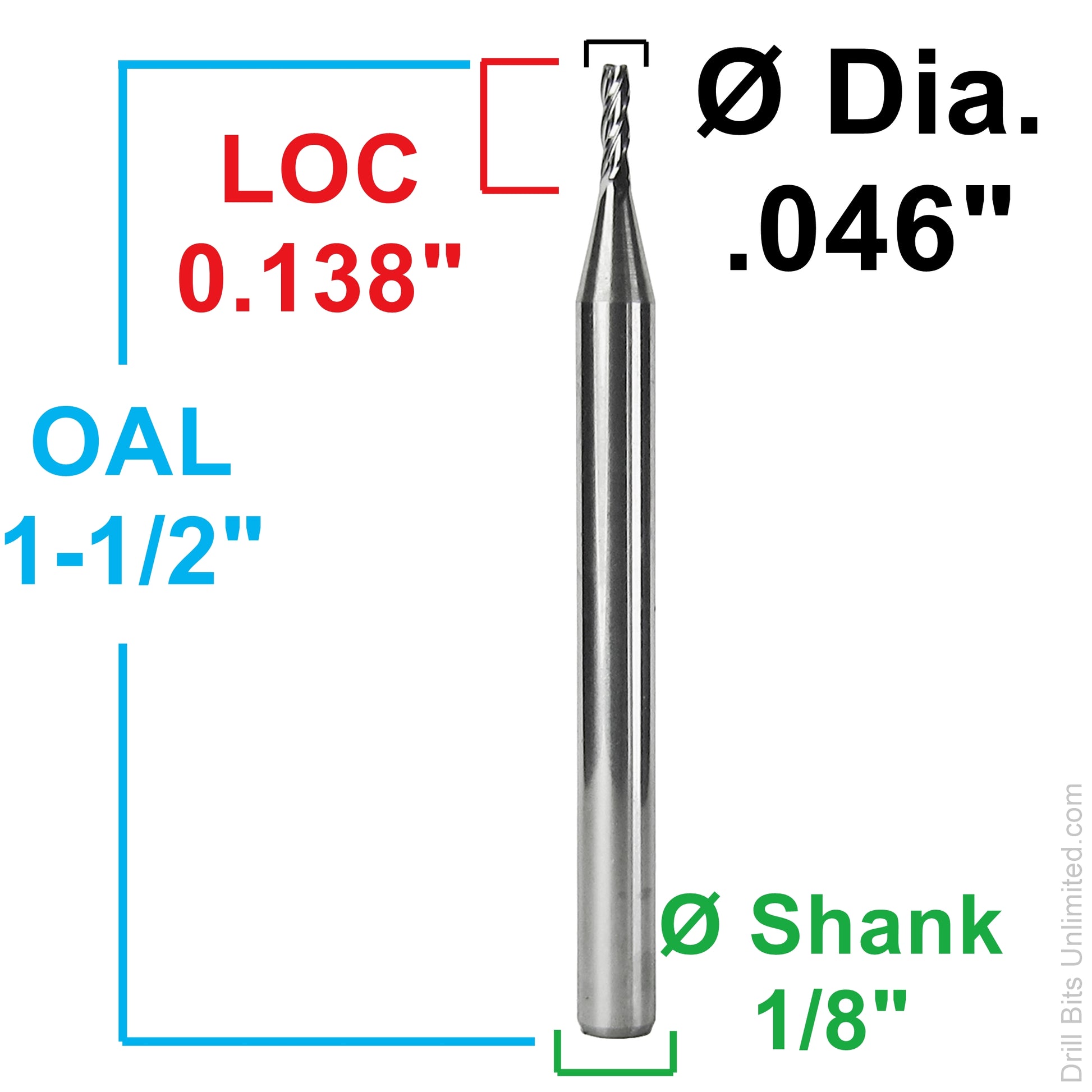

• Cutting diameter: 0.046"
• Flutes: 4
• End style: Square end
• Coating: Uncoated
• Length of cut: 0.138"
• Shank diameter: 1/8"
• Overall length: 1-1/2"

Typical Applications

• Precision CNC milling and profiling
• Small-detail machining
• Finishing passes and light milling operations
• Flat-bottom pocketing and contour work
• Model making, mold work, prototype work, and small-part machining

Benefits

• Harvey Tool brand miniature end mill for precision small-diameter machining.
• 4-flute geometry provides a strong cutting edge layout for finishing and light milling operations.
• Square-end design is useful for flat-bottom pockets, profiles, and detail work.
• Stub-length 0.138" LOC helps improve rigidity compared with longer-reach tools of the same diameter.
• 1/8" shank fits common precision collets and CNC toolholding setups.

Specifications

Former SKU / item number: M236
