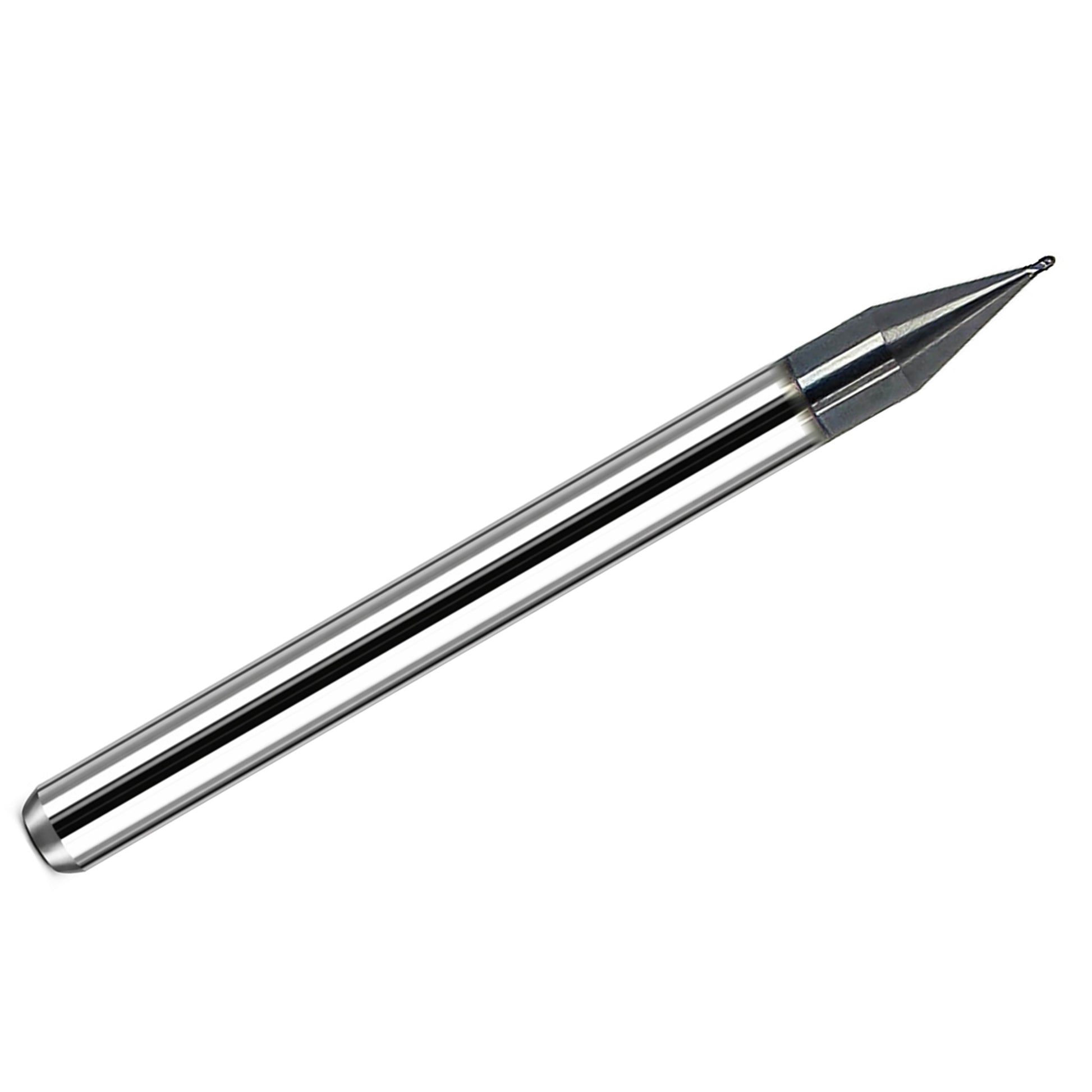

0.0170" (0.43mm) x .026" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K116
0.0170" (0.43mm) x .026" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K116
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

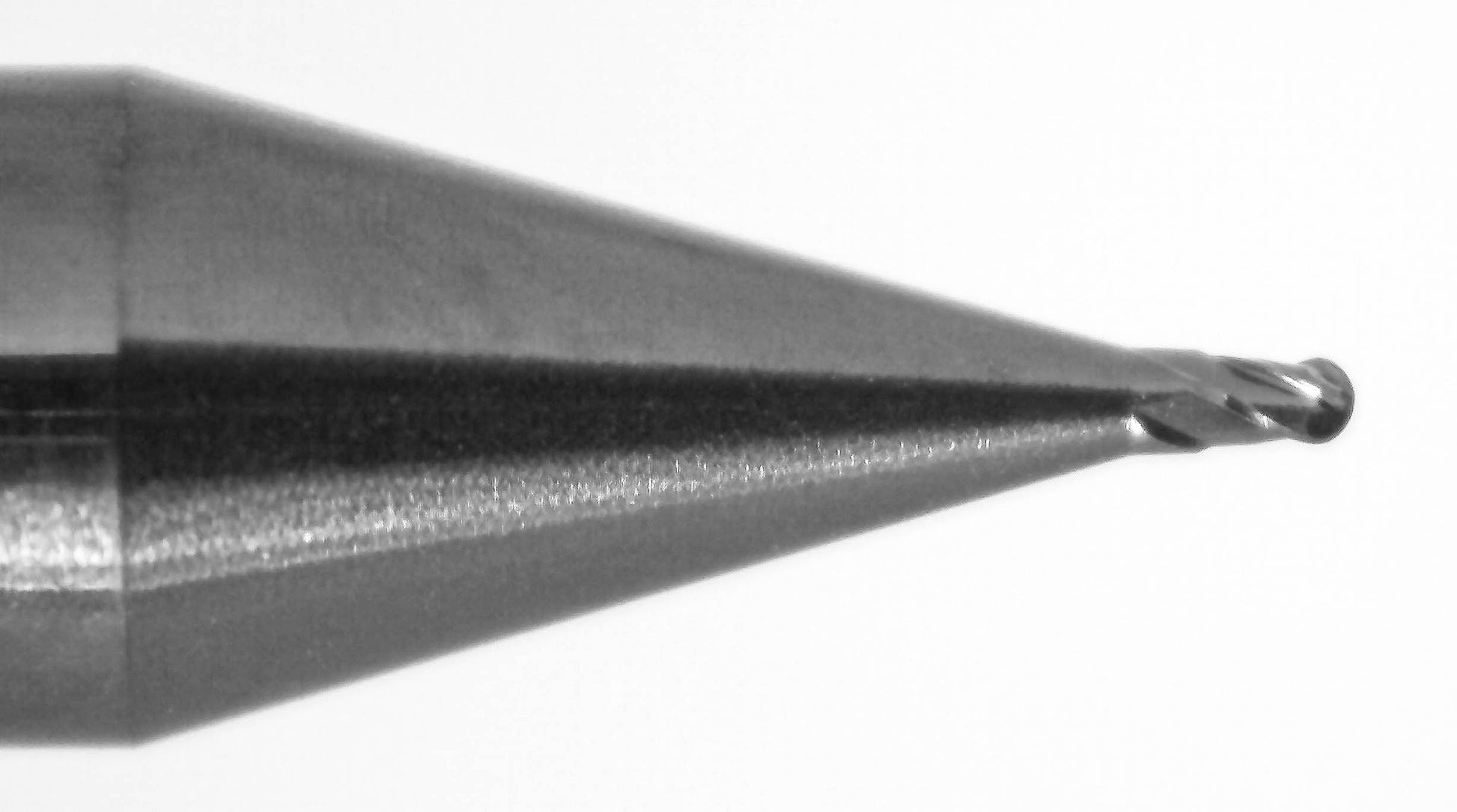

This 0.017" (0.43mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a high-performance AlTiN coating for demanding CNC machining applications.
Ball nose end mills are designed for 3D contouring, profiling, and precision finishing. The rounded cutting tip allows smooth machining of extremely fine features and intricate geometries while producing excellent surface finish.
The AlTiN coating improves wear resistance and heat resistance, making this tool ideal for steel, stainless steel, cast iron, hardened materials, and super alloys.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0170L026
Country of Origin: United States
Typical Applications
- Ultra-fine 3D contour milling
- Micro machining and engraving
- Precision finishing operations
- Mold and die detail work
- High-accuracy CNC applications
Benefits
- Ultra micro-diameter for extremely fine detail work
- Ball nose geometry enables smooth contouring
- AlTiN coating increases tool life in hard materials
- 4 flutes provide rigidity and surface finish quality
- Micro-grain carbide enhances strength and wear resistance
- Center-cutting design allows plunge capability

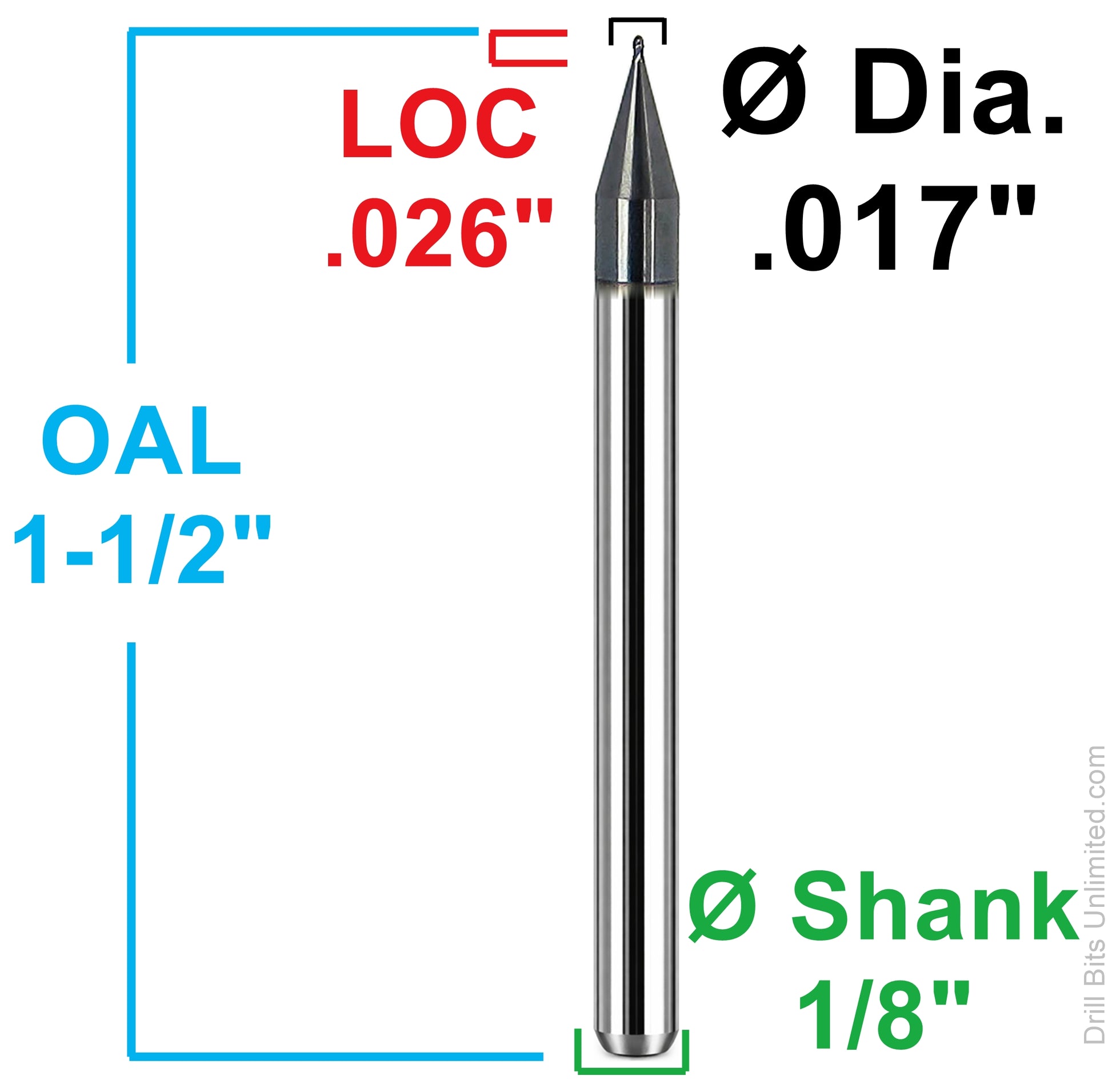

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1835 |
| Milling Diameter | 0.0170" (0.43mm) |
| Length of Cut (FL) | 0.0260" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Steel Compatibility | Yes |
| Stainless Steel Compatibility | Yes |
| Cast Iron Compatibility | Yes |
| Hardened Material Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| Non-Ferrous Compatibility | No |
| Country of Origin | United States |
