0.0250" (0.64mm) x .075" LOC 4-Flute Corner Radius Carbide End Mill, 1/8" Shank | K143

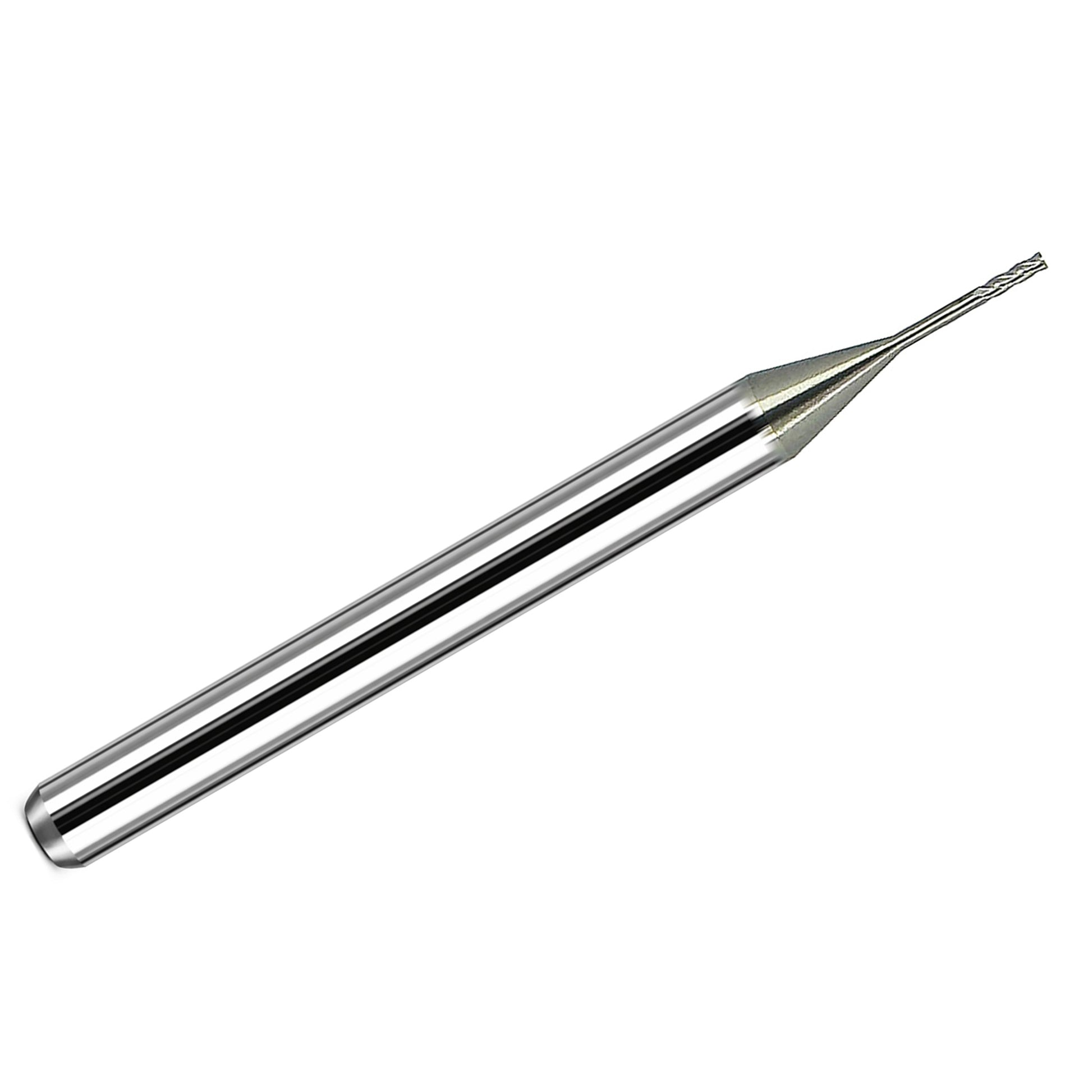

This 0.0250" (0.64mm) 4-flute extended reach square end carbide end mill is manufactured by Kyocera from solid micro-grain carbide and is made in the USA. It features a bright uncoated finish and a compact miniature geometry for precision CNC milling applications.

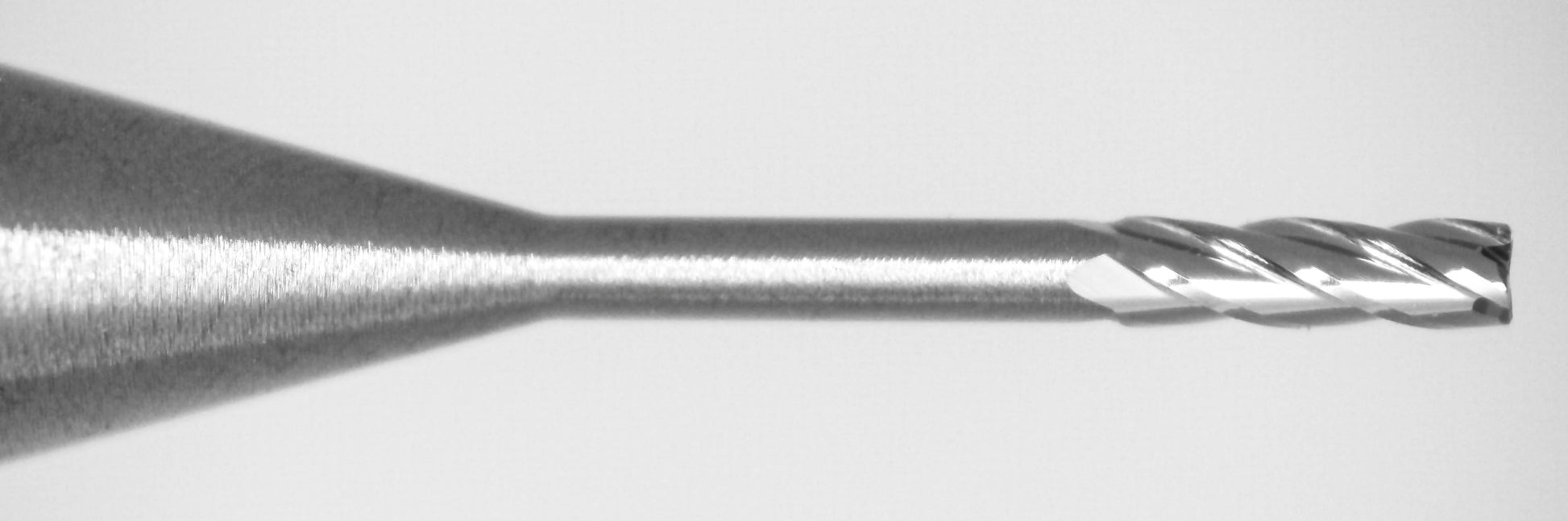

The extended reach design provides additional clearance beyond the cutting length, helping improve access when machining narrow slots, small pockets, and detailed features where a standard flute length may not provide enough reach.

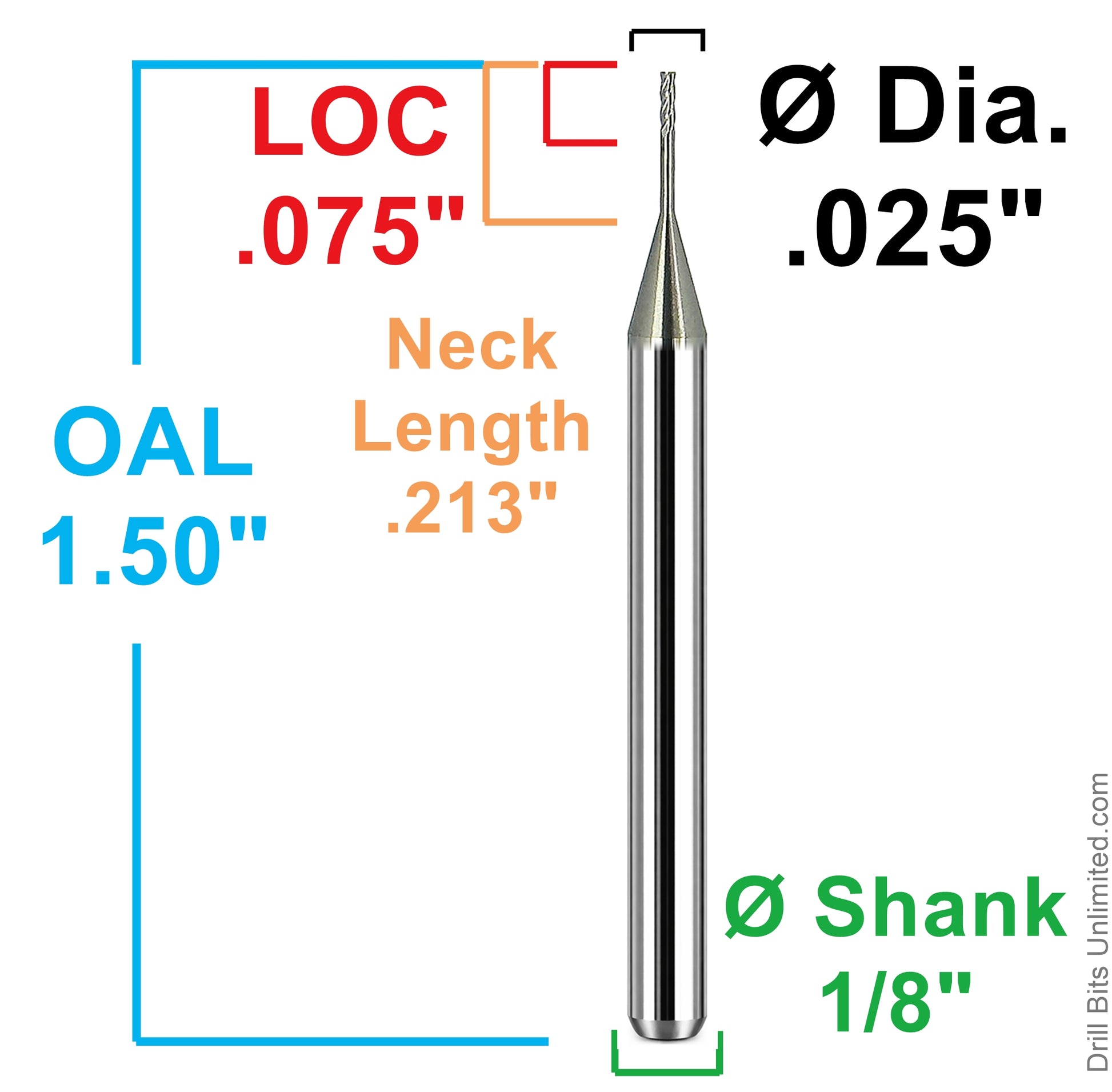

This tool has a 0.075" length of cut, 0.213" extended reach length, and a 1/8" shank. The 4-flute square end geometry is designed for miniature diameter end milling and is well suited for fine-detail work requiring sharp corners and flat-bottom features.

Per the manufacturer listing, this tool is intended for non-ferrous metals, non-metals, and titanium alloy applications. The center-cutting design also supports plunge entry where appropriate.

Manufacturer: Kyocera

Series: 1840

Manufacturer Part Number: 1840-0250.213

Country of Origin: United States

Typical Applications

• Miniature diameter end milling
• Fine-detail slotting and profiling
• Micro pockets and narrow features
• Precision CNC milling in non-ferrous materials
• Titanium alloy and specialty miniature machining applications

Benefits

• Extended reach geometry improves access in tight machining areas
• 4 flutes provide added rigidity in miniature milling work
• Square end geometry produces sharp corners and flat-bottom cuts
• Center-cutting design allows plunge entry where appropriate
• Solid carbide construction supports precision and wear resistance
• Made in the USA by Kyocera

Specifications

👉 View End Mill Feed & Speed Calculator
