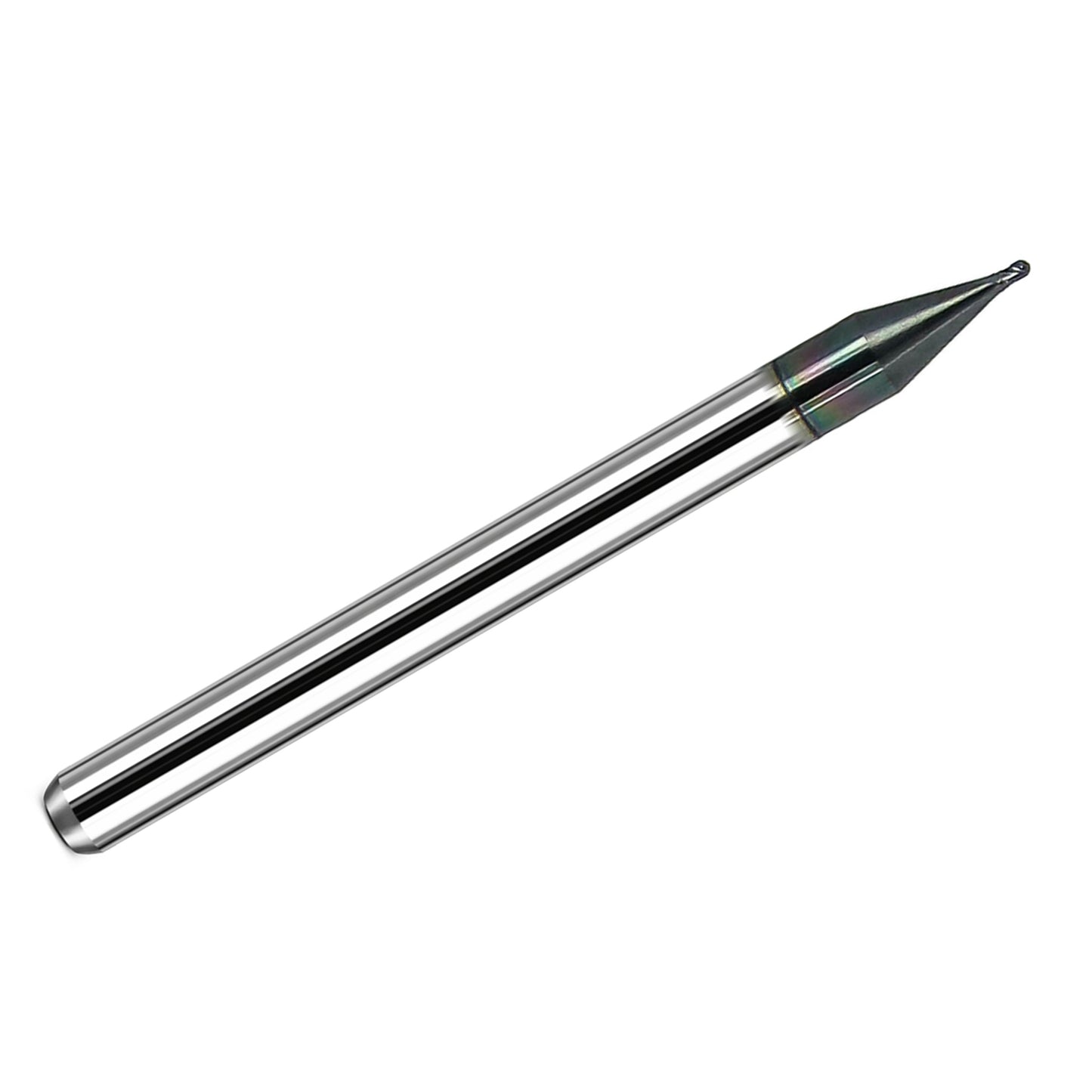

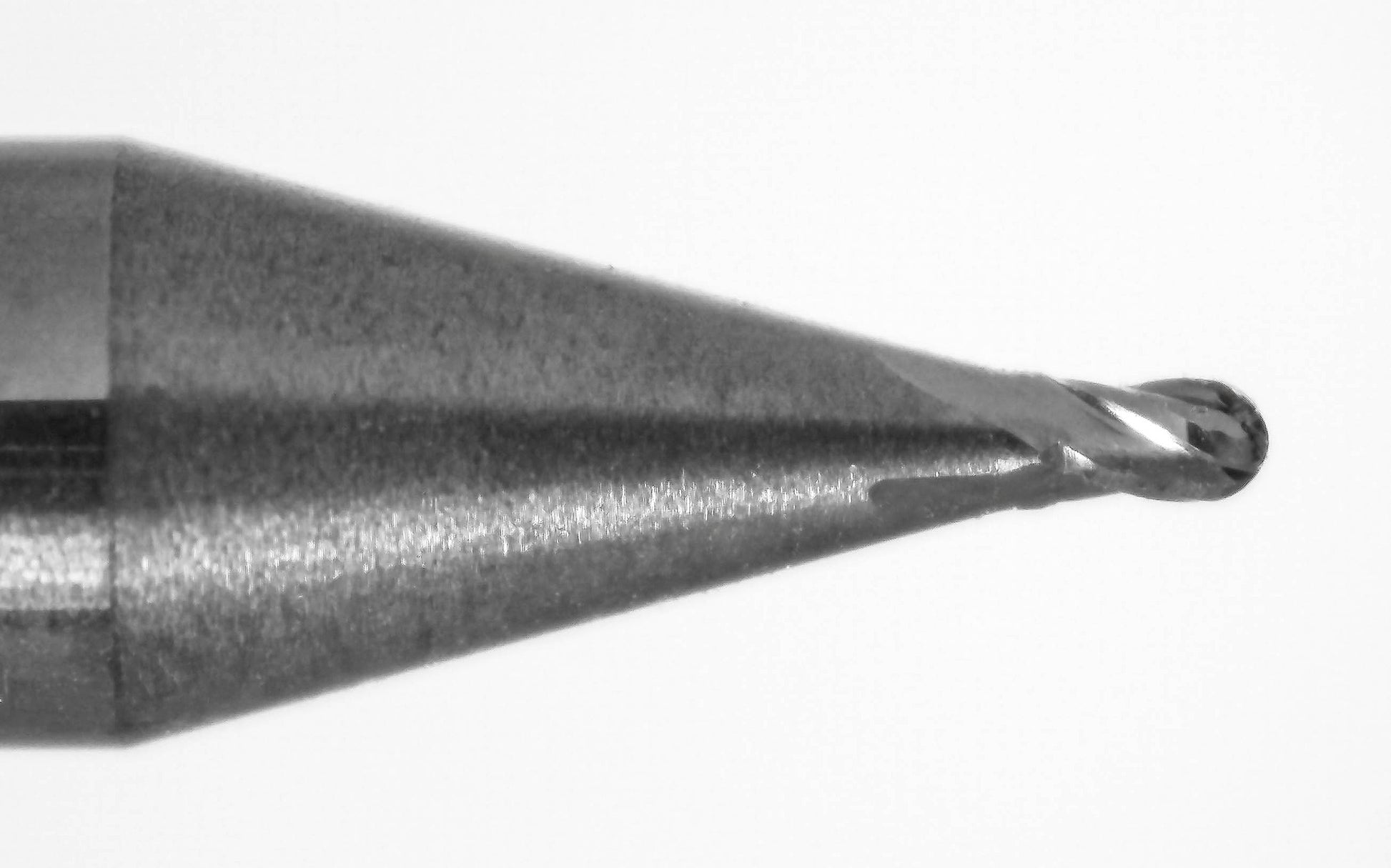

Kyocera 0.026" (0.65mm) 4-Flute Ball Nose Carbide End Mill AlTiN 1/8" Shank 1835-0260L039 K115

This 0.026" (0.65mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a high-performance AlTiN coating for demanding CNC machining applications.

Ball nose end mills are designed for 3D contouring, profiling, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces and fine detail features while producing excellent surface finish.

The AlTiN coating improves wear resistance and heat resistance, making this tool ideal for steel, stainless steel, cast iron, hardened materials, and super alloys.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1835-0260L039

Country of Origin: United States

Typical Applications

• Micro 3D contour milling
• Fine detail machining
• Precision CNC finishing
• Mold and die work
• Tool steel machining

Benefits

• Micro-diameter tool for fine detail and precision work
• Ball nose geometry enables smooth contouring and finishing
• AlTiN coating increases tool life in hard materials
• 4 flutes provide rigidity and improved surface finish
• Micro-grain carbide enhances durability and edge retention
• Center-cutting design allows plunge milling

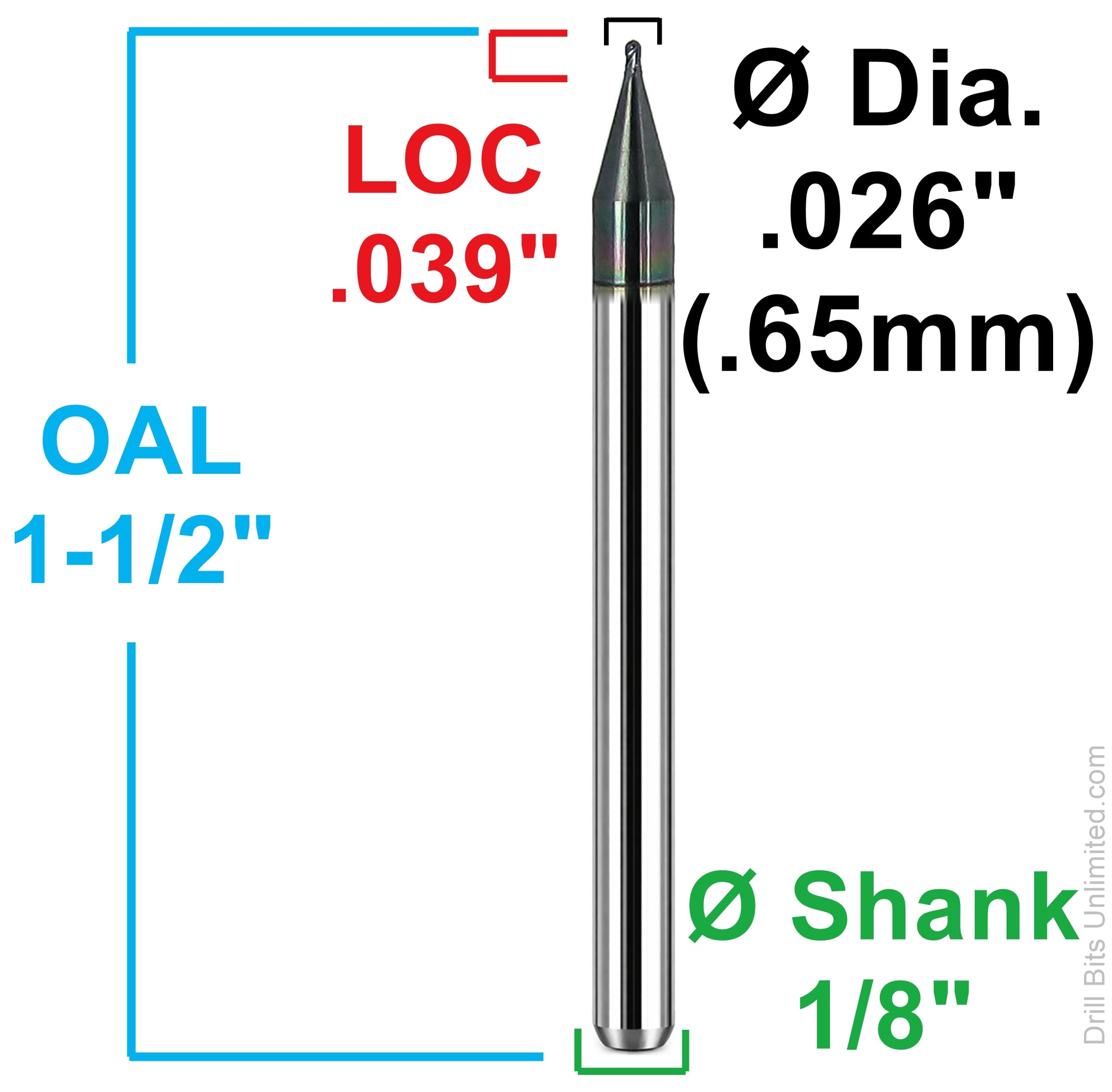

Specifications
