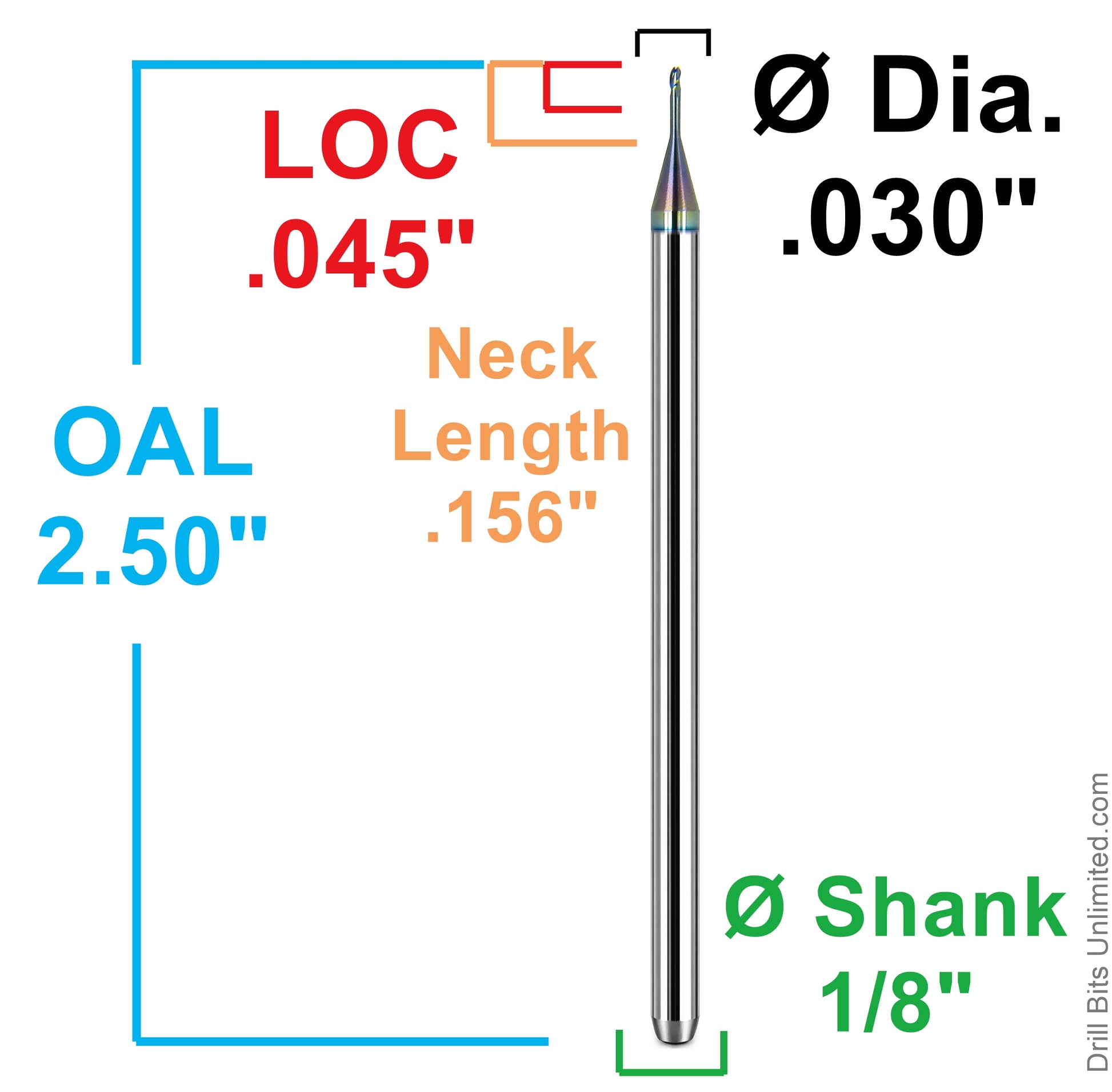

0.0300" Kyocera (0.76mm) 3-Flute Ball Nose Carbide End Mill Extended Reach AlTiN 1/8" Shank 1755-0300L156 K110

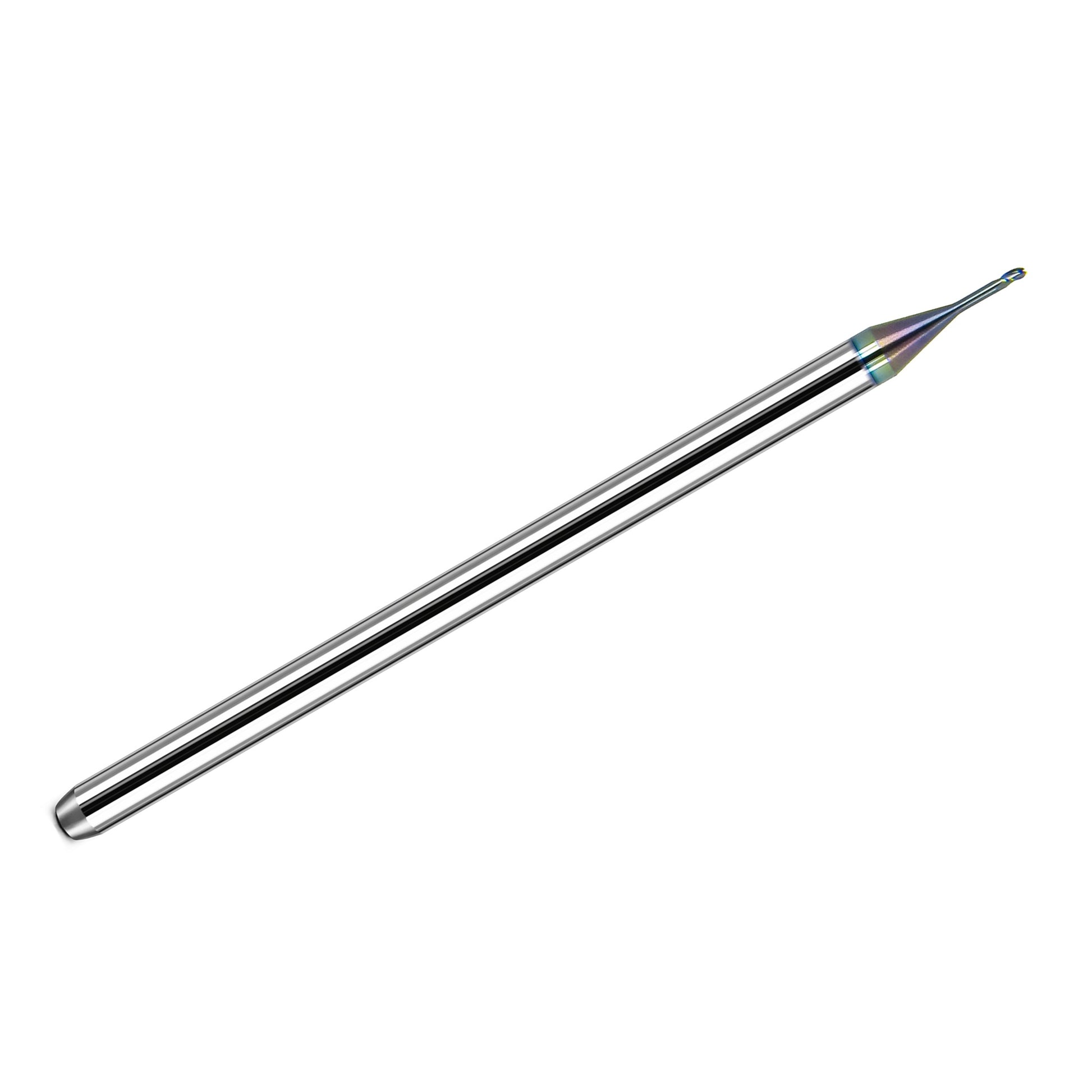

This 0.030" (0.76mm) 3-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a high-performance AlTiN coating for demanding CNC machining applications.

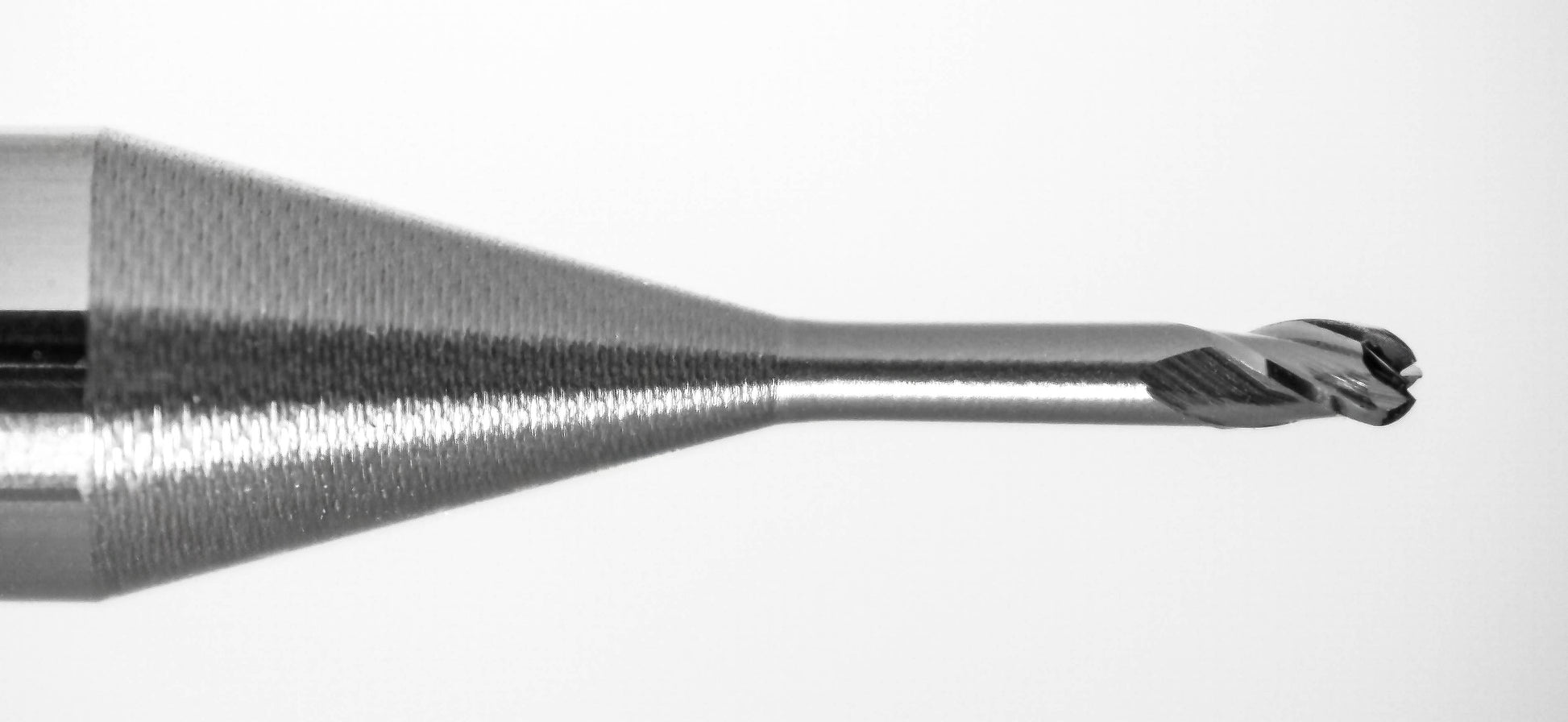

Ball nose end mills are designed for 3D contouring, profiling, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces and fine detail features while producing excellent surface finish.

This tool features an extended reach neck design, allowing access to tight spaces and deep features while minimizing tool interference and maintaining cutting stability.

The AlTiN coating improves wear resistance and heat resistance, making this tool ideal for steel, stainless steel, cast iron, hardened materials, and super alloys.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1755-0300L156

Country of Origin: United States

Typical Applications

• 3D contour milling
• Micro feature machining
• Deep cavity and hard-to-reach areas
• Precision CNC finishing operations
• Mold and die machining

Benefits

• Extended reach neck allows access to deep and narrow features
• Ball nose geometry enables smooth contouring and fine detail finishing
• AlTiN coating improves tool life and heat resistance
• 3 flutes provide a balance of strength and chip evacuation
• Micro-grain carbide enhances durability and edge retention
• Center-cutting design allows plunge milling

Specifications
