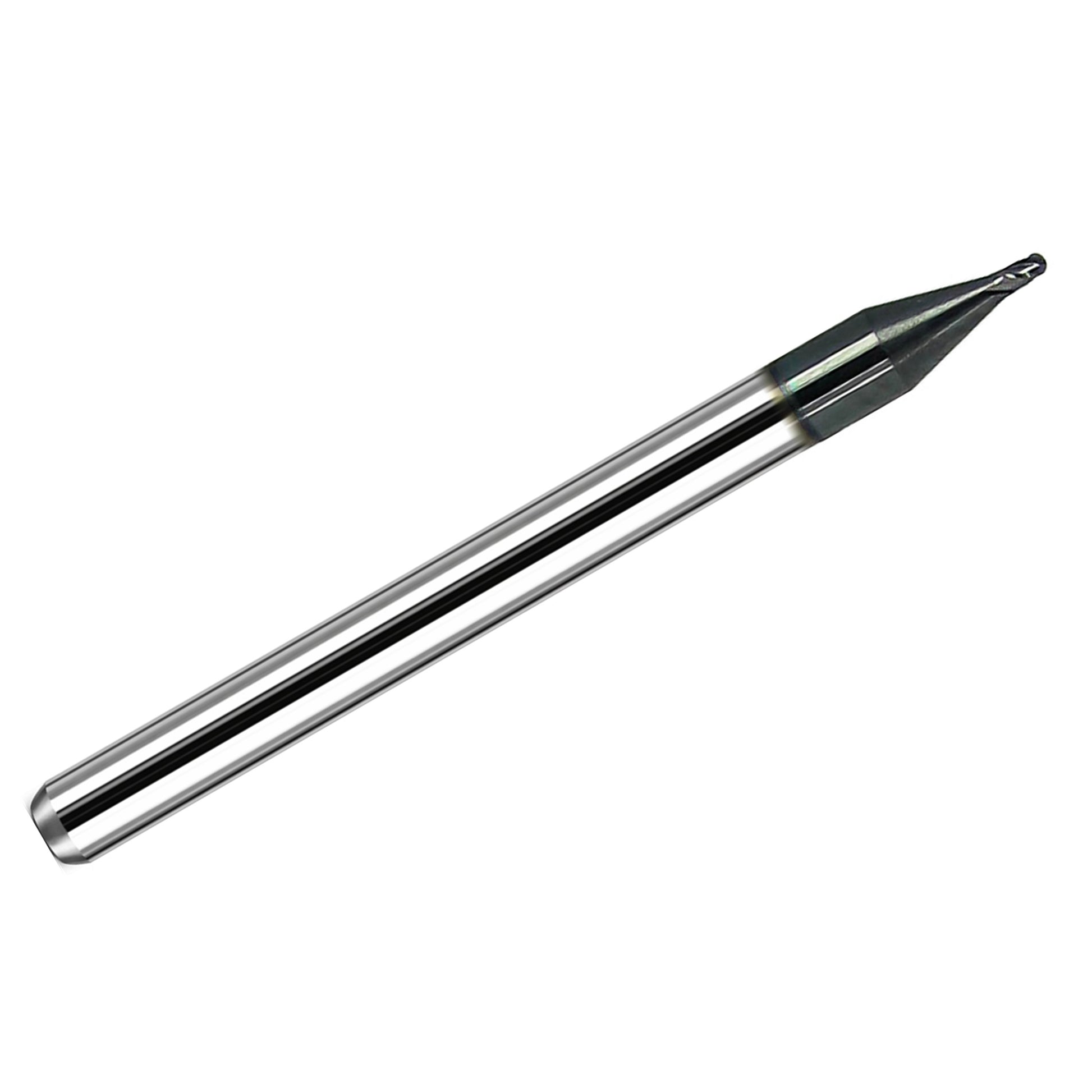

Kyocera 0.035" (0.90mm) 4-Flute Ball Nose Carbide End Mill AlTiN 1/8" Shank 1835-0350L052 K114

This 0.035" (0.90mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a high-performance AlTiN coating for demanding CNC machining applications.

Ball nose end mills are designed for 3D contouring, profiling, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces and fine detail features while producing excellent surface finish.

The AlTiN coating improves wear resistance and heat resistance, making this tool ideal for steel, stainless steel, cast iron, hardened materials, and super alloys.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1835-0350L052

Country of Origin: United States

Typical Applications

• 3D contour milling
• Mold and die finishing
• Precision CNC machining
• Tool steel machining
• Stainless steel machining

Benefits

• Ball nose geometry for smooth contouring and profiling
• AlTiN coating increases tool life in hard materials
• 4 flutes provide high rigidity and improved surface finish
• Micro-grain carbide for durability and edge retention
• Center-cutting design allows plunge milling

Specifications
