0.0350" (0.9mm) x .105" LOC 2-Flute Square End Carbide End Mill, 1/8" Shank | K142
0.0350" (0.9mm) x .105" LOC 2-Flute Square End Carbide End Mill, 1/8" Shank | K142
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 3% off |
| 25 + | 5% off |
| 50 + | 8% off |
| 100 + | 10% off |
Couldn't load pickup availability

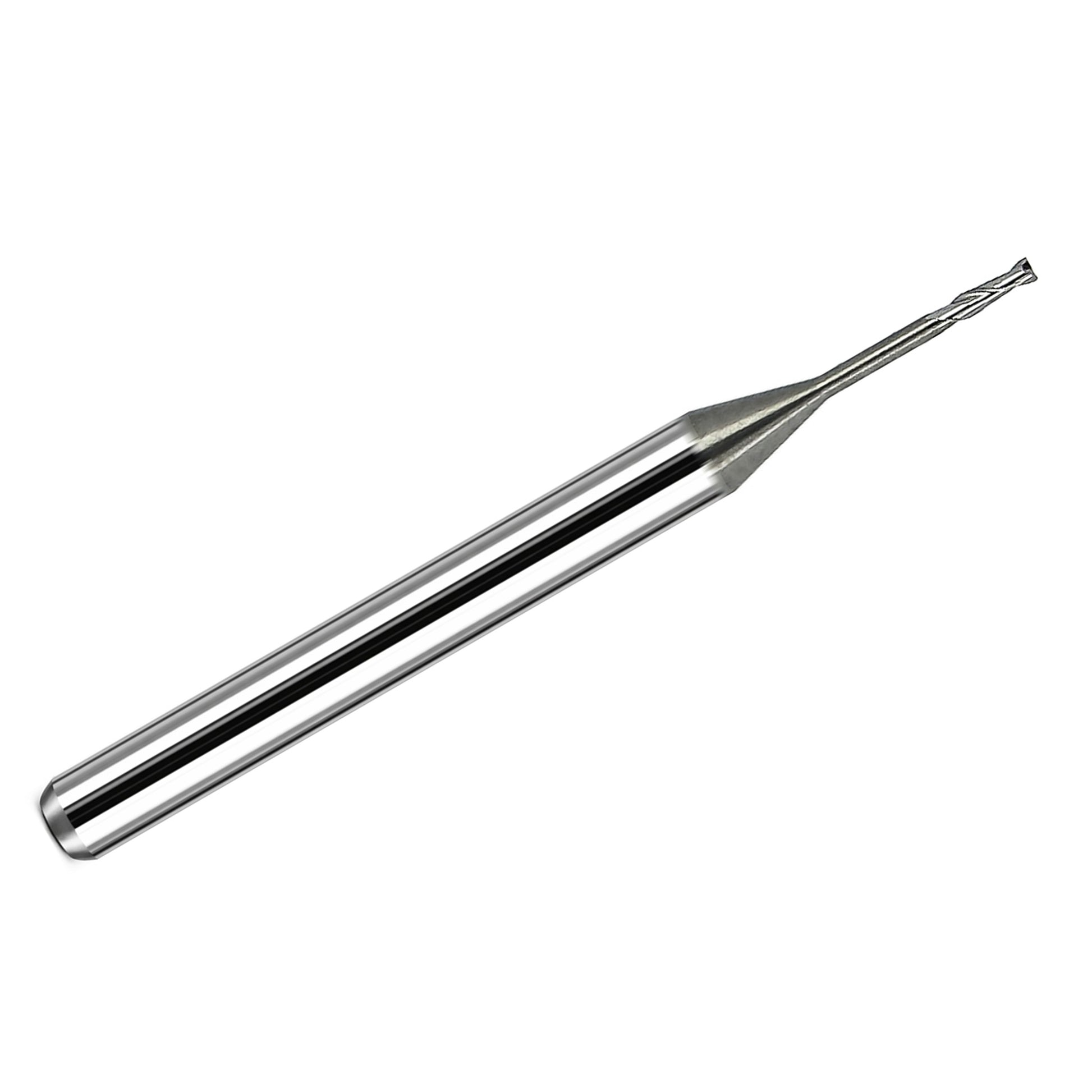

This 0.0350" 2-flute square end carbide end mill is manufactured by Kyocera and made in the USA. It features an extended reach design for improved access in narrow or hard-to-reach machining areas.
Square end mills are designed for slotting, profiling, side milling, and precision finishing. The flat cutting end produces sharp corners and flat-bottom features, making this tool a strong choice for detailed CNC milling work.

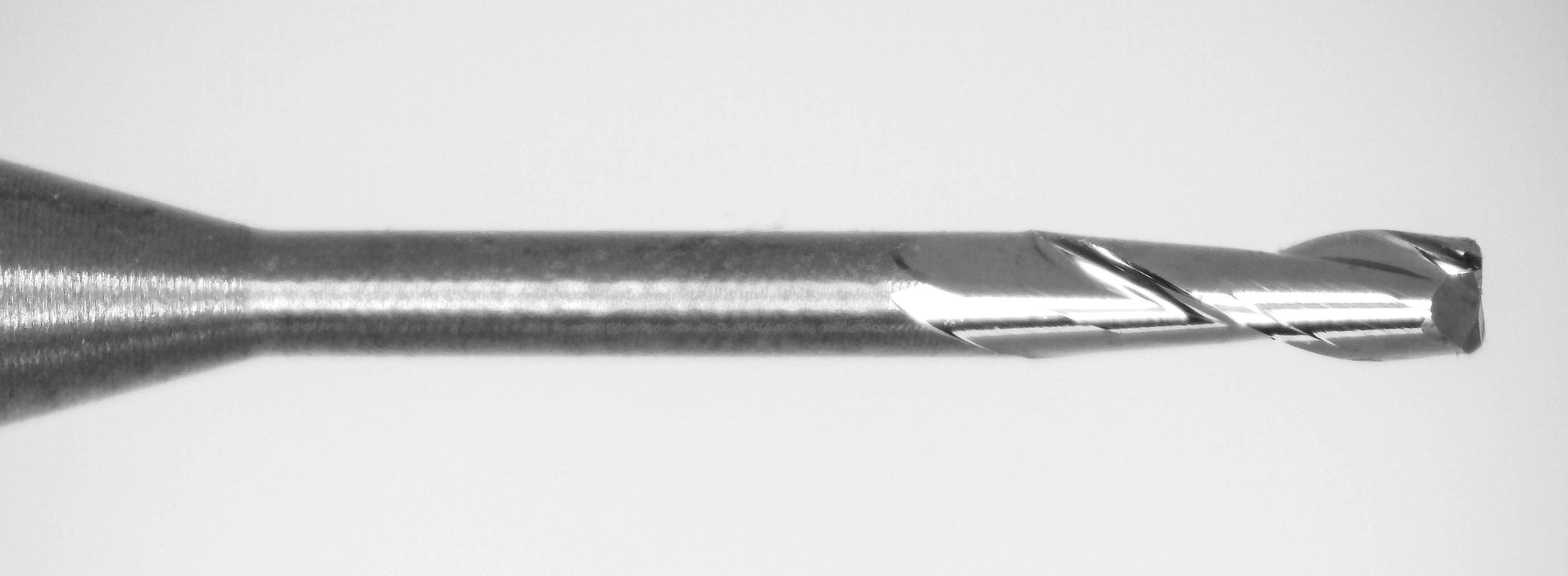

This tool has a 0.3150" neck length and a reduced 0.0331" neck diameter, which helps provide extra reach and clearance near walls, shoulders, and adjacent features. The 0.1050" length of cut helps maintain cutting control while reaching beyond standard flute geometry.
As an uncoated micro-grain carbide tool, it is especially well suited for non-ferrous materials and selected specialty materials per the manufacturer compatibility data.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Series: 1640
Manufacturer Part Number: 1640-0350.315
Country of Origin: United States
Typical Applications
- Extended-reach slotting and profiling
- Machining near walls and shoulders
- Precision side milling
- Detailed CNC milling in confined areas
- Non-ferrous material machining
Benefits
- Extended reach geometry improves access in tight machining areas
- Reduced neck diameter helps provide clearance near adjacent features
- Square end geometry produces sharp corners and flat-bottom cuts
- 2 flutes support good chip evacuation in small-diameter work
- Center-cutting design allows plunge entry where appropriate
- Made in the USA by Kyocera

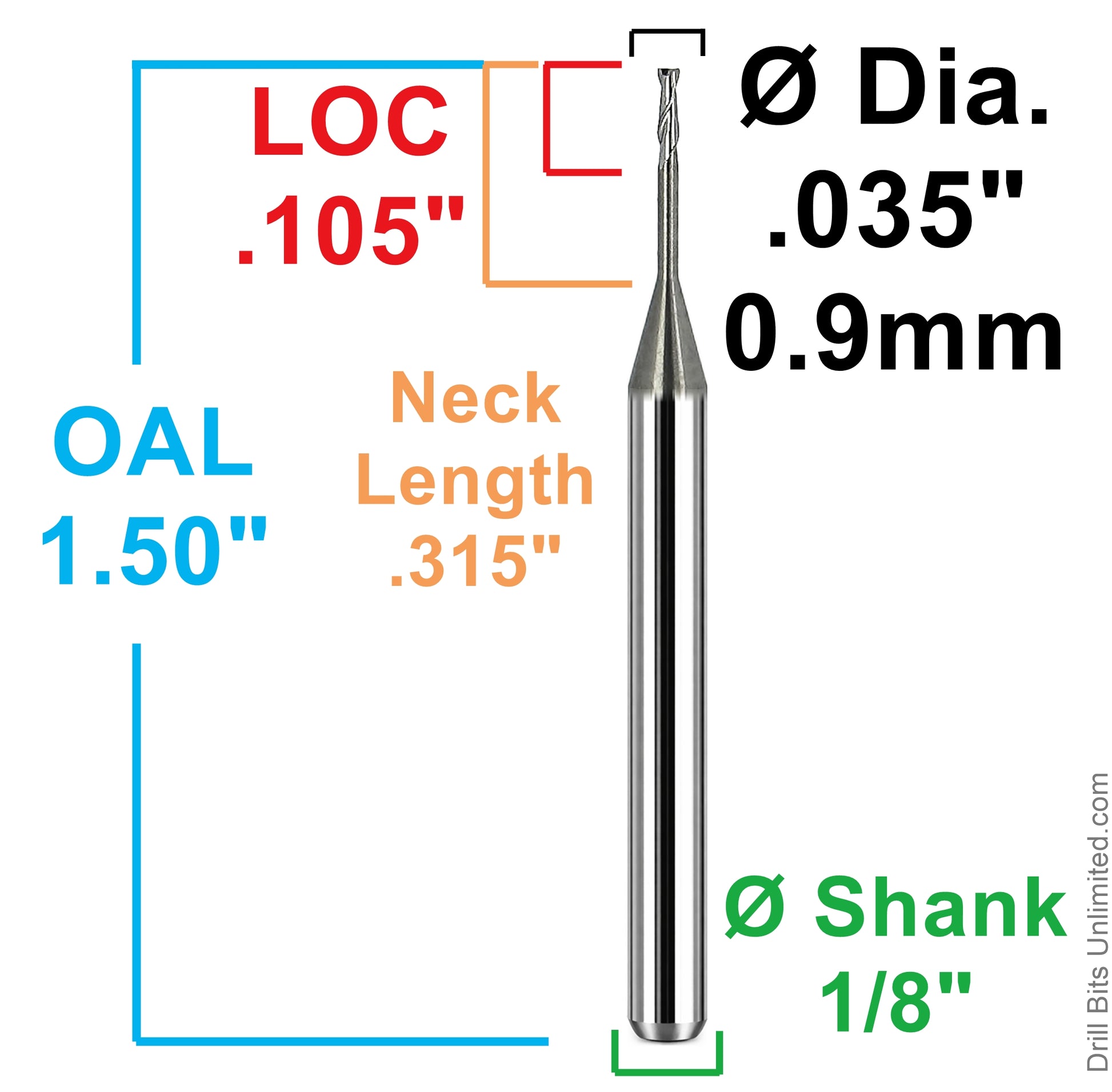

Specifications
| Manufacturer | Kyocera |
| Tool Type | Square End Mill |
| Series | 1640 |
| Milling Diameter | 0.0350" |
| Length of Cut (LOC) | 0.1050" |
| Neck Length | 0.3150" |
| Neck Diameter | 0.0331" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 2 |
| Helix Angle | 30° |
| Material | Micro Grain Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Length Style | Extended Reach |
| Application | Roughing / Finishing |
| Non-Ferrous Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| Steel Compatibility | No |
| Stainless Steel Compatibility | No |
| Cast Iron Compatibility | No |
| Hardened Material Compatibility | No |
| Country of Origin | United States |
