0.0380" (0.97mm) x .057" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K112
0.0380" (0.97mm) x .057" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K112
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

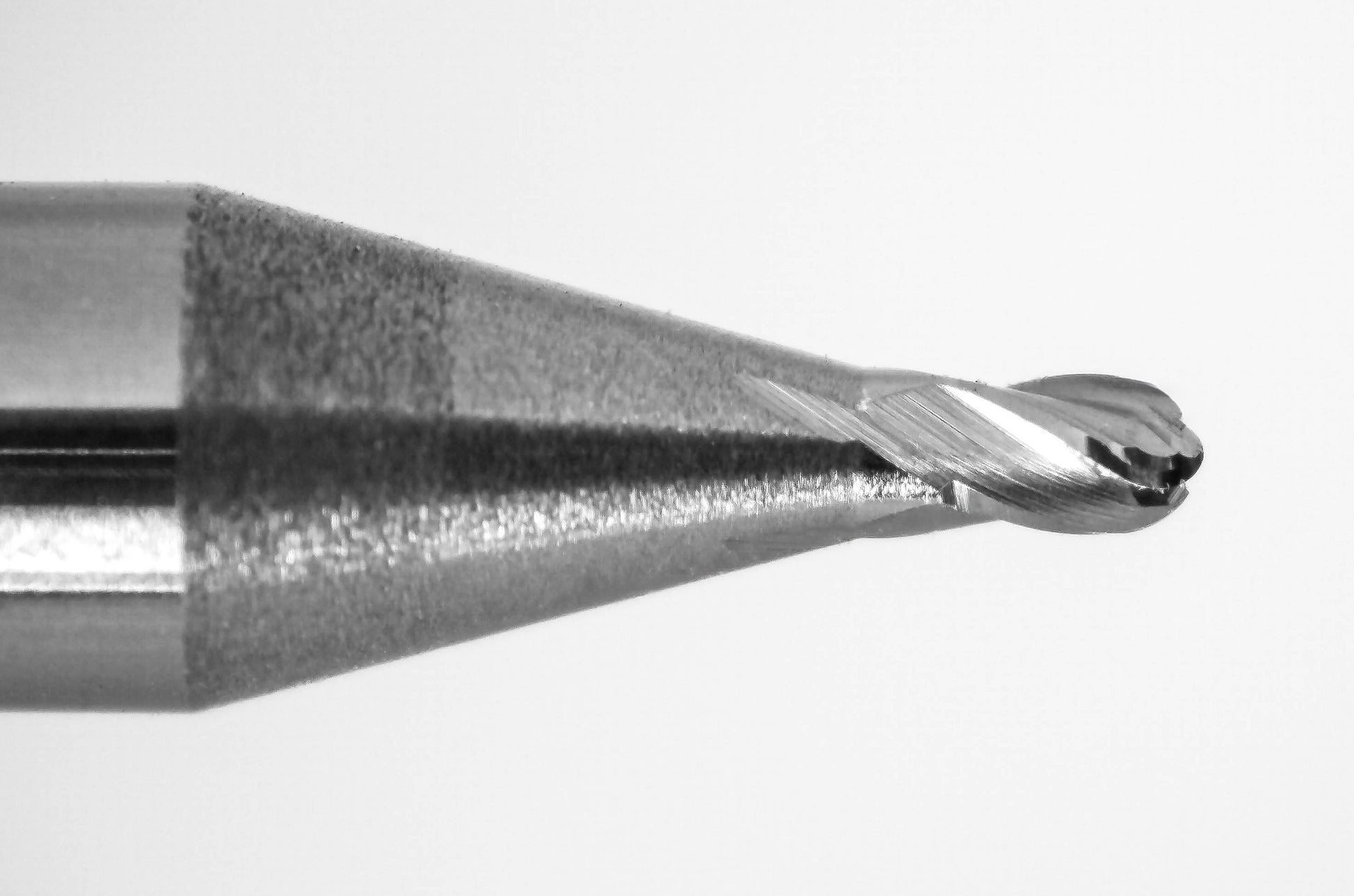

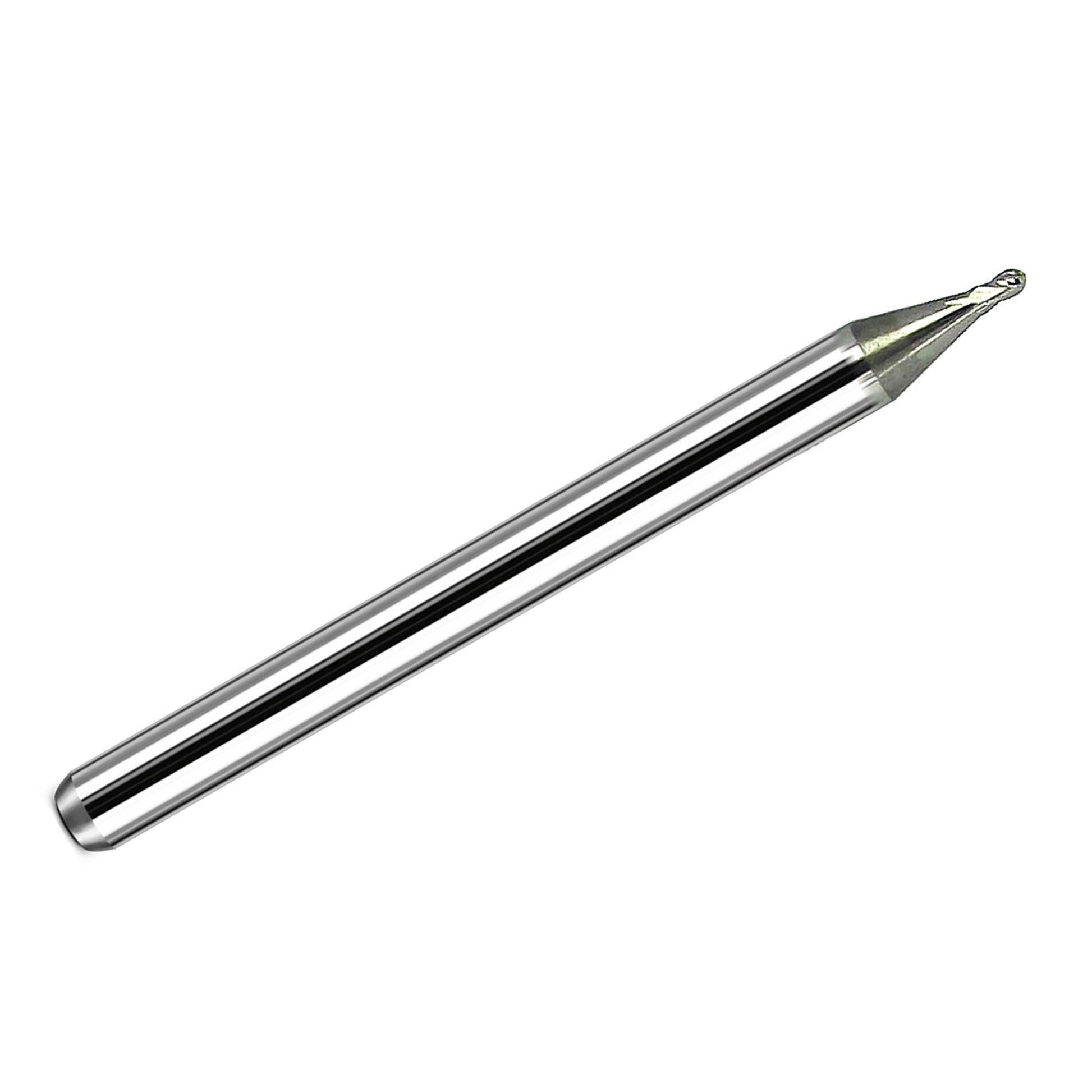

This 0.038" (0.97mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and is uncoated for optimal performance in non-ferrous materials.
Ball nose end mills are designed for 3D contouring, profiling, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces and fine detail features while producing excellent surface finish.
The uncoated carbide construction provides sharp cutting edges and prevents material buildup, making this tool ideal for aluminum, plastics, and other non-ferrous materials.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0380.057
Country of Origin: United States
Typical Applications
- 3D contour milling
- Aluminum machining
- Plastic and acrylic machining
- Precision finishing operations
- Light profiling and detail work
Benefits
- Uncoated cutting edges reduce material buildup in non-ferrous materials
- Ball nose geometry enables smooth contouring and finishing
- 4 flutes provide improved surface finish and rigidity
- Micro-grain carbide enhances durability and edge retention
- Center-cutting design allows plunge milling

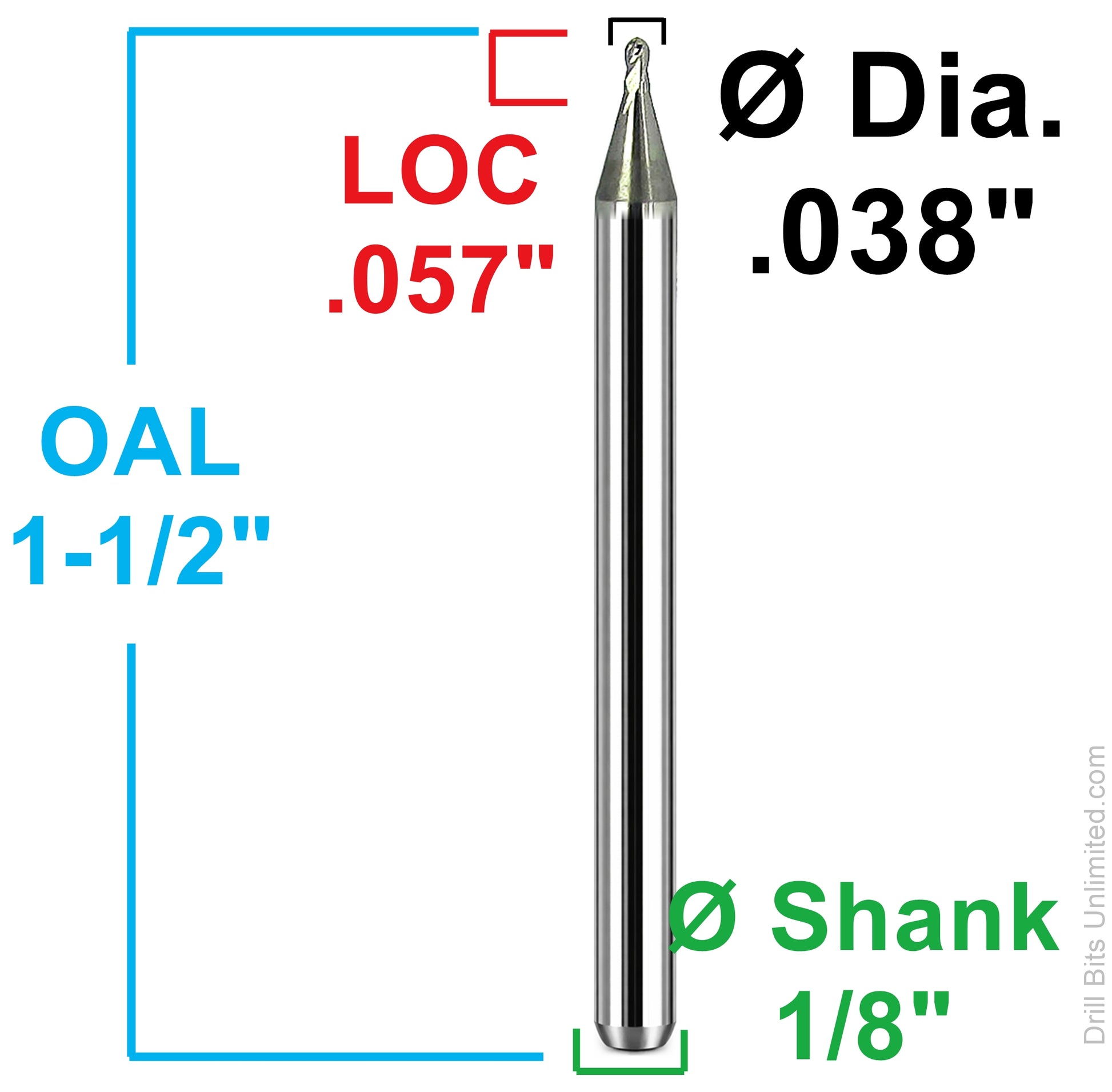

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1835 |
| Milling Diameter | 0.0380" (0.97mm) |
| Length of Cut (FL) | 0.0570" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Uncoated |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non-Ferrous Compatibility | Yes |
| Steel Compatibility | No |
| Stainless Steel Compatibility | No |
| Cast Iron Compatibility | No |
| Hardened Material Compatibility | No |
| Super Alloy Compatibility | No |
| Country of Origin | United States |
