0.0450" (1.15mm) x .225" LOC AlTiN Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K122
0.0450" (1.15mm) x .225" LOC AlTiN Coated 3-Flute Square End Carbide End Mill, 1/8" Shank | K122
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

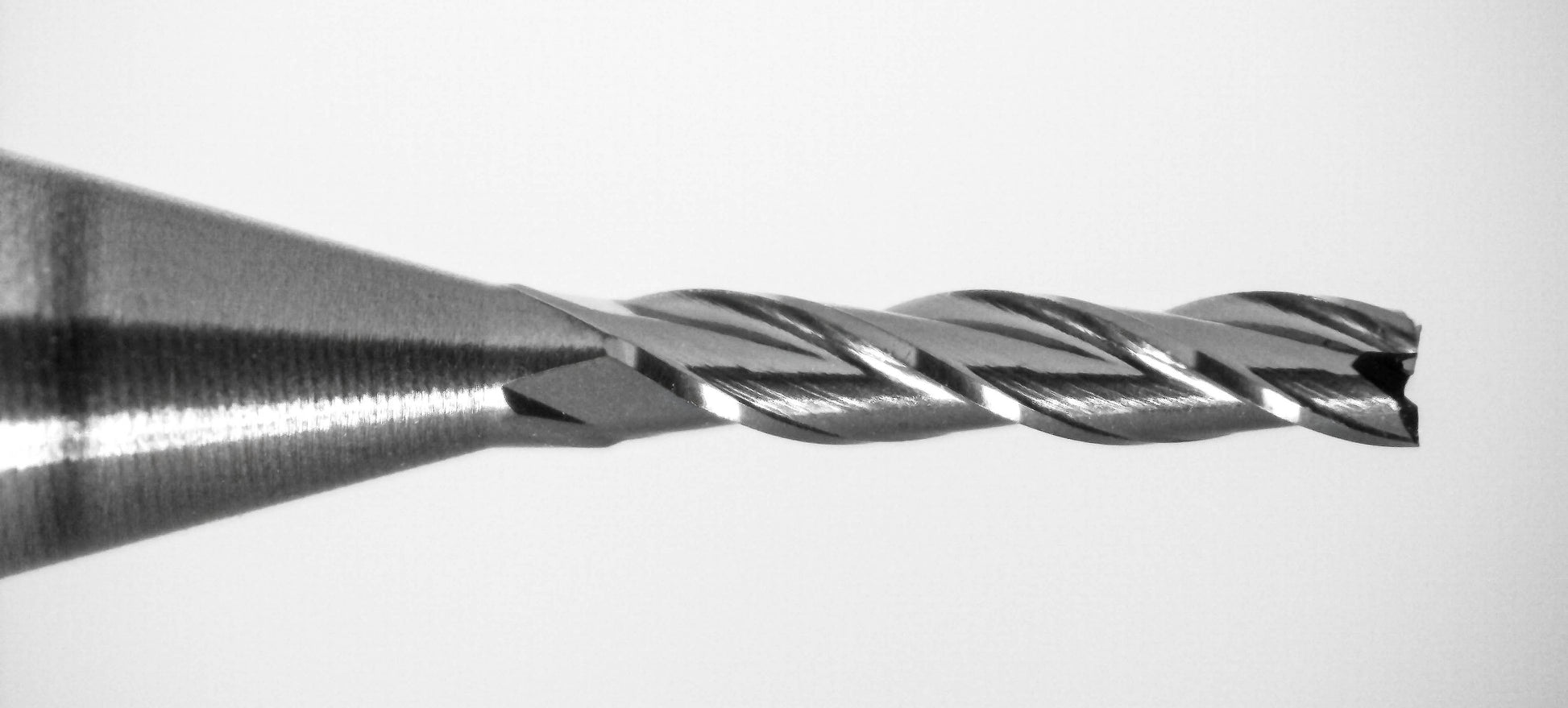

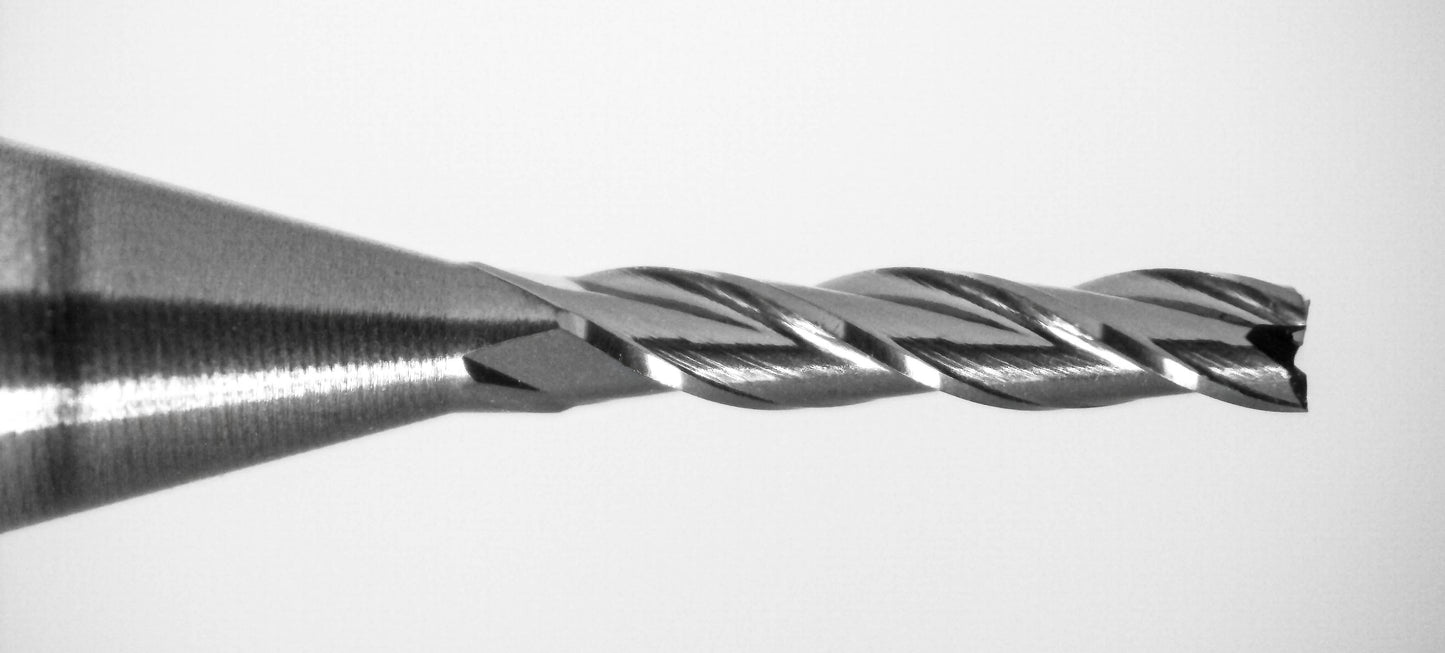

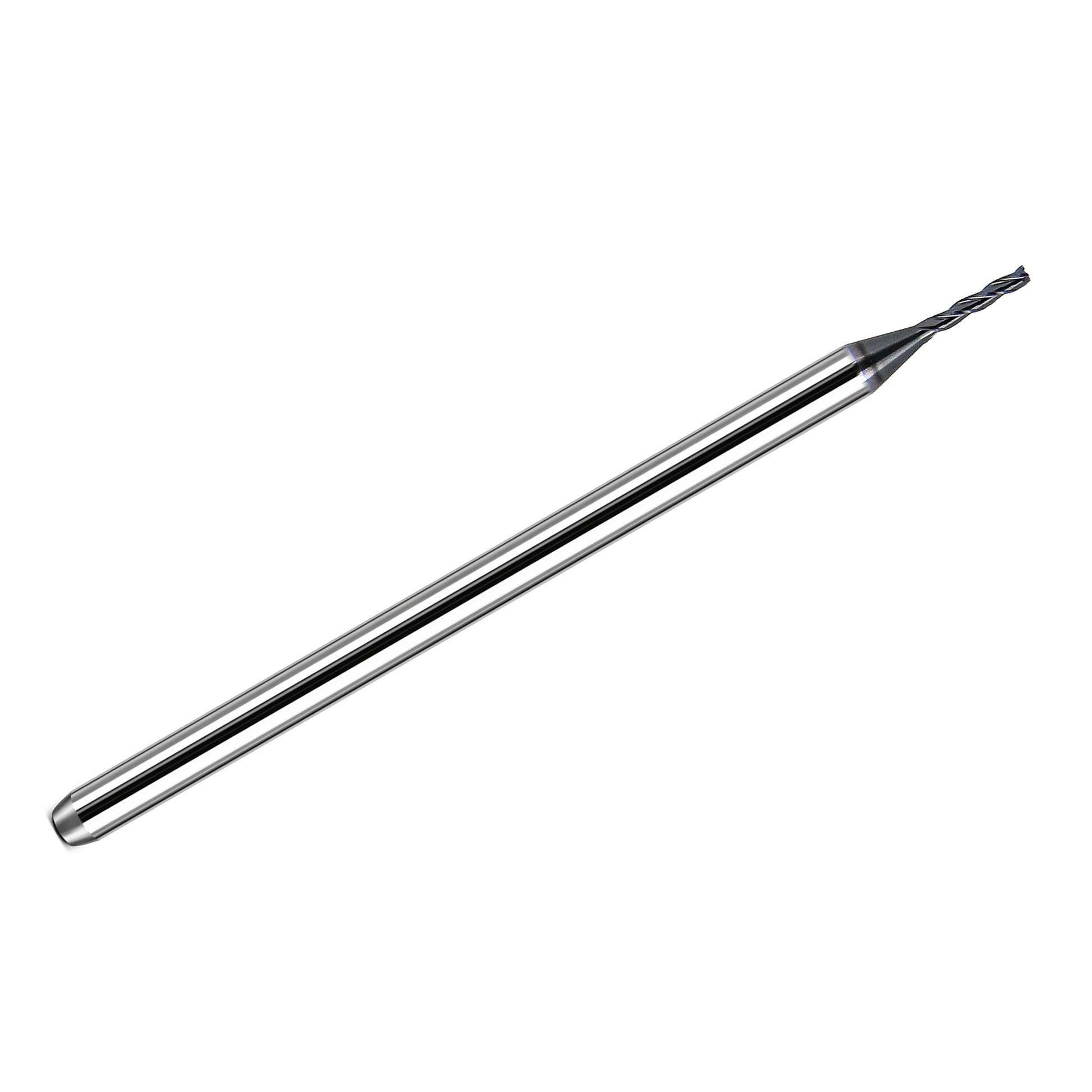

This 0.0450" (1.15mm) 3-flute square end carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features a high-performance AlTiN coating for demanding CNC milling applications.
Square end mills are designed for slotting, profiling, side milling, and precision finishing. The flat cutting end produces sharp corners and clean walls, making this tool a strong choice for general-purpose machining and detailed feature work.
The AlTiN coating improves wear resistance and heat resistance, making this tool ideal for steel, stainless steel, cast iron, hardened materials, and super alloys.
This standard-length 3-flute square end mill offers a strong balance of rigidity, reach, and chip control for precision machining.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Series: 1710
Manufacturer Part Number: 1710-0450L225
Country of Origin: United States
Typical Applications
- Slotting and profiling
- General-purpose CNC milling
- Precision side milling
- Tool steel machining
- Stainless steel and alloy machining
Benefits
- Square end geometry produces sharp corners and flat-bottom features
- 3 flutes provide a strong balance of rigidity and chip evacuation
- AlTiN coating improves wear resistance in harder materials
- Sub-micron carbide supports edge retention and tool life
- Center-cutting design allows plunge entry where appropriate
- Standard-length design helps balance reach and stiffness

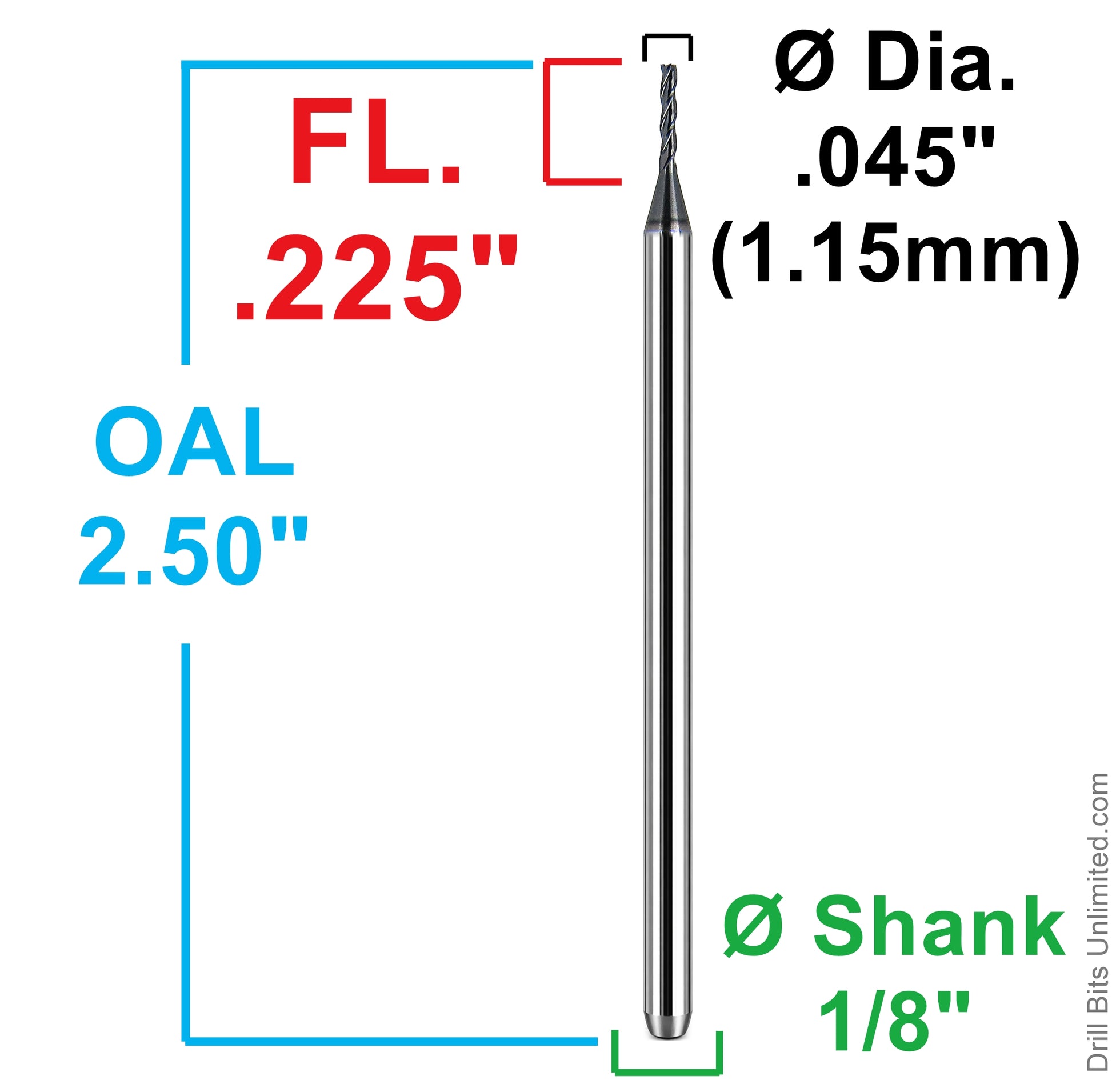

Specifications
| Manufacturer | Kyocera |
| Tool Type | Square End Mill |
| Series | 1710 |
| Milling Diameter | 0.0450" (1.15mm) |
| Length of Cut (FL) | 0.2250" |
| Overall Length | 2.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 3 |
| Helix Angle | 30° |
| Material | Sub-Micron Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Steel Compatibility | Yes |
| Stainless Steel Compatibility | Yes |
| Cast Iron Compatibility | Yes |
| Hardened Material Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| Non-Ferrous Compatibility | No |
| Country of Origin | United States |
