0.1100" (2.8mm) x .330" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K119
0.1100" (2.8mm) x .330" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K119
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

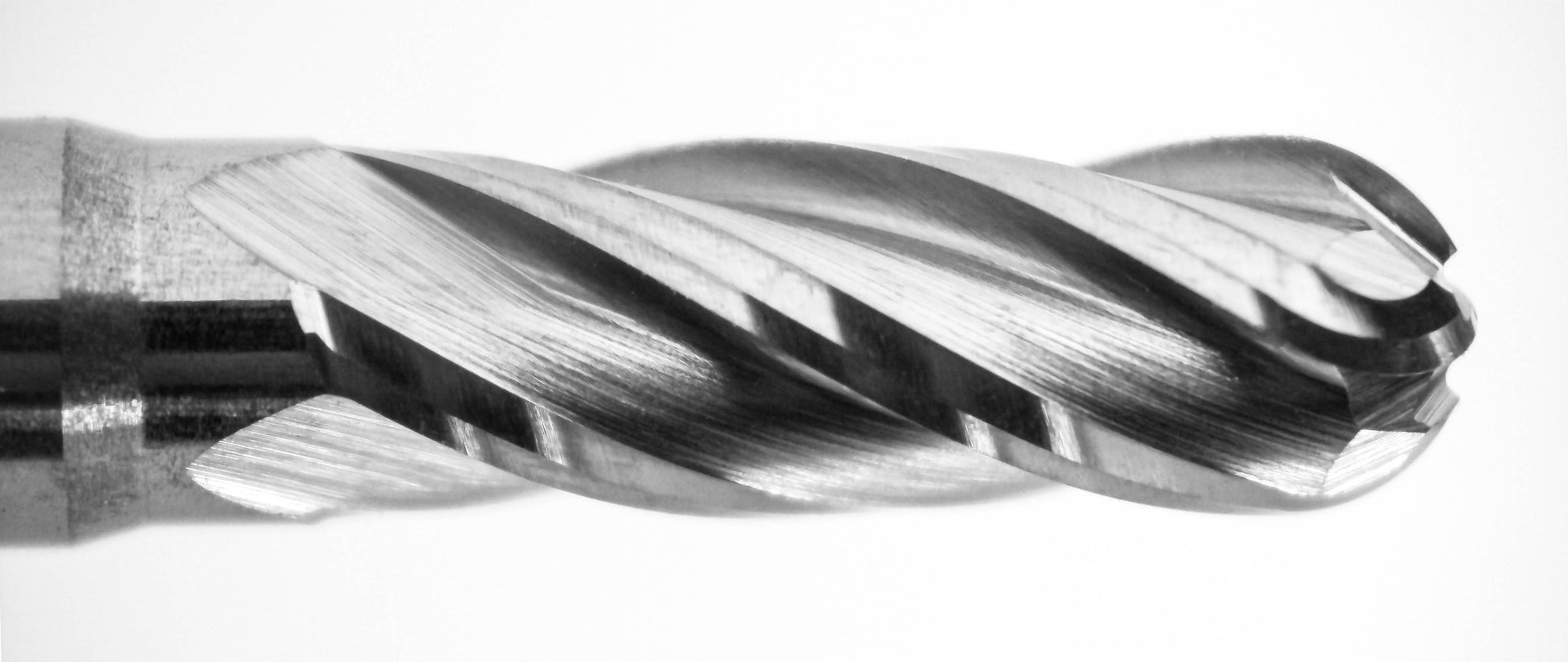

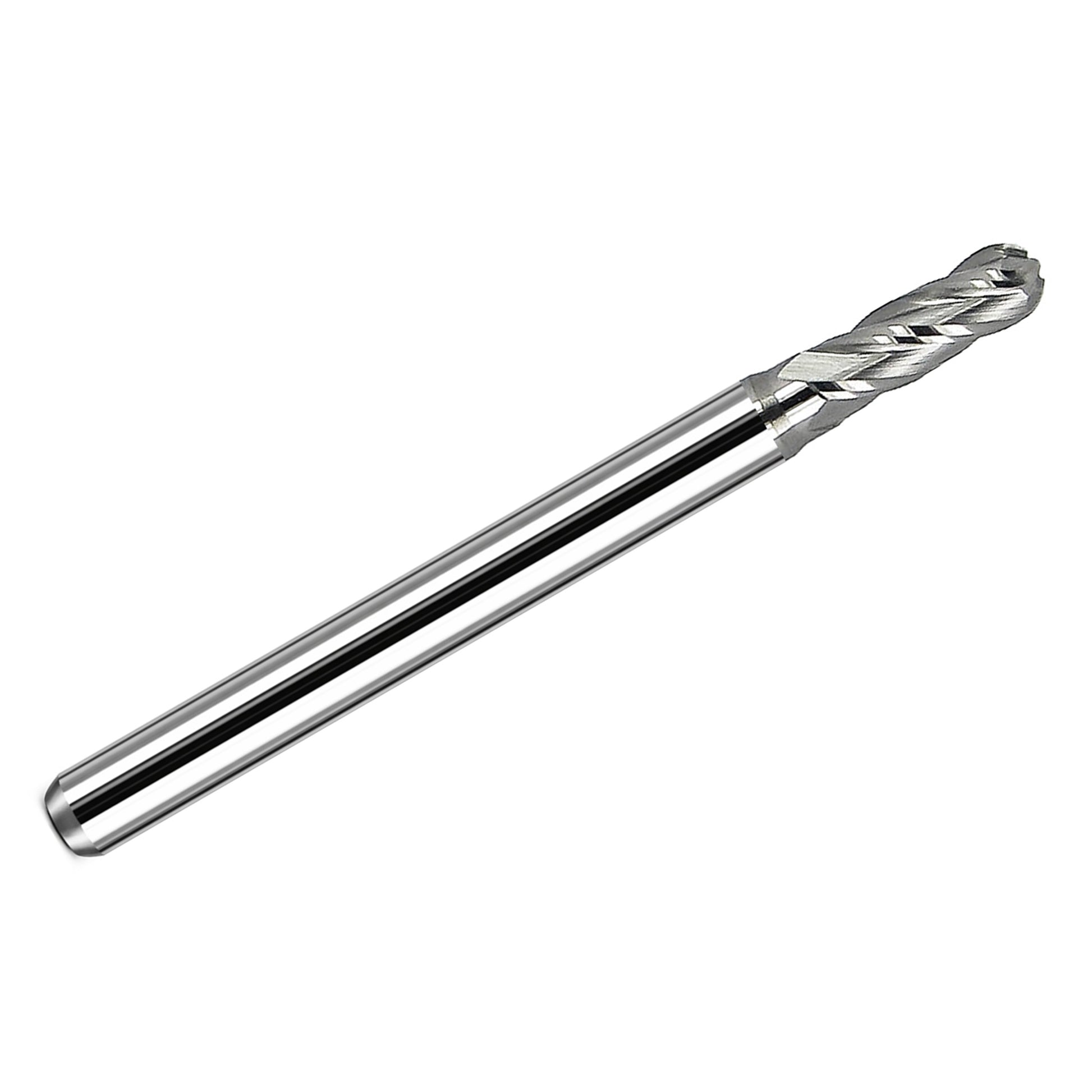

This 0.110" (2.80mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features a bright uncoated finish for precision milling applications.
Ball nose end mills are designed for 3D contouring, profiling, and finishing. The rounded cutting tip helps produce smooth surface finishes on curved features, blended transitions, and detailed milled profiles.
This standard-length 4-flute ball nose end mill is well suited for precision work in aluminum, brass, copper, plastics, and other non-ferrous materials where a sharp, uncoated cutting edge is preferred.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Series: 1825
Manufacturer Part Number: 1825-1100.330
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profile milling
- Finish milling in non-ferrous materials
- Plastic and composite machining
- General precision CNC milling
Benefits
- Ball nose geometry for smooth contouring and blended finishes
- 4 flutes provide stability and improved surface finish
- Bright uncoated cutting edges are well suited to non-ferrous materials
- Sub-micron carbide improves wear resistance and edge retention
- Standard-length design offers a strong balance of reach and rigidity
- Center-cutting style supports plunge entry where appropriate
Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| Series | 1825 |

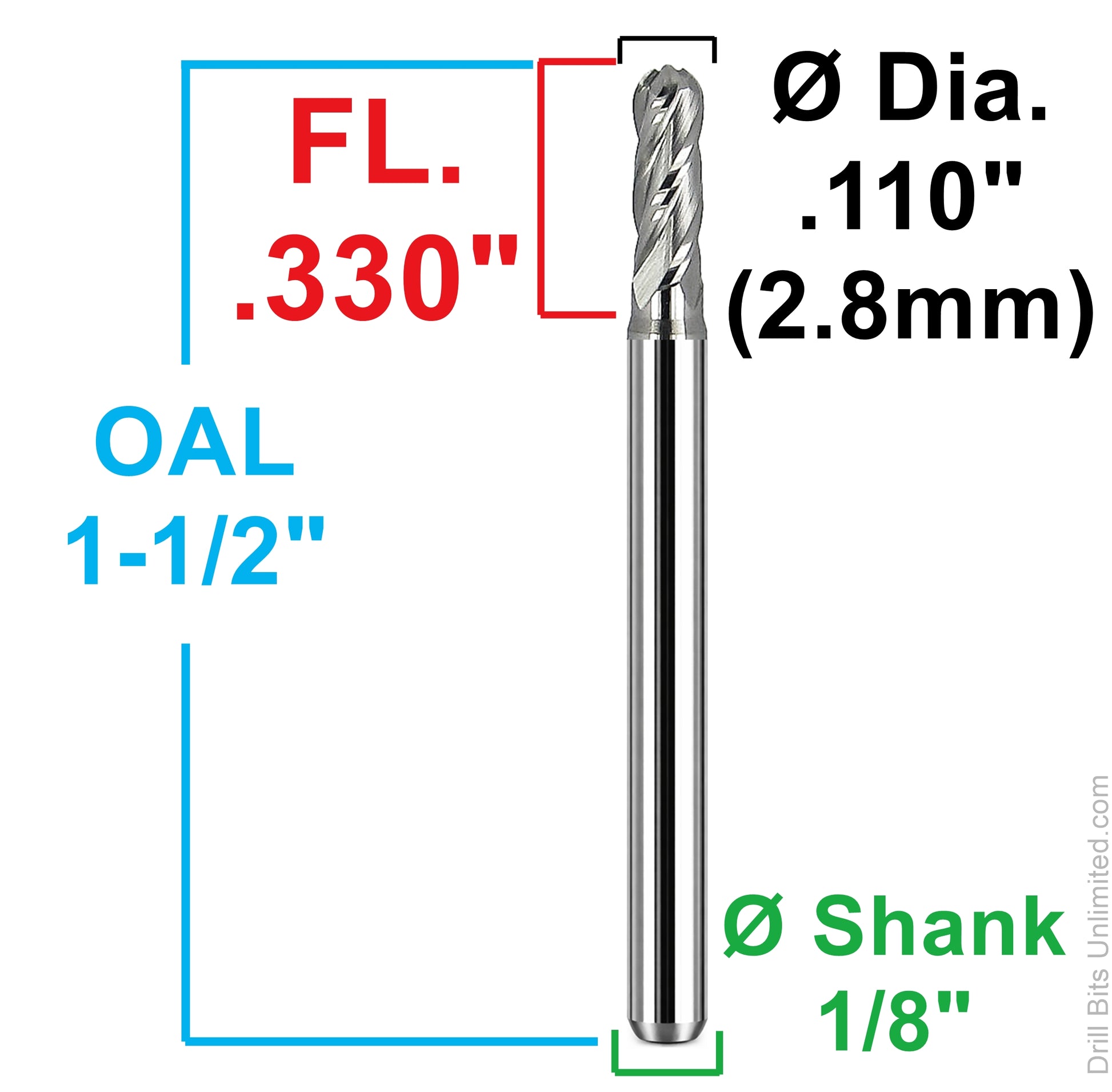

| Milling Diameter | 0.1100" (2.80mm) |
| Length of Cut (FL) | 0.3300" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Sub-Micron Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| End Style | Ball Nose |
| Length Style | Standard Length |
| Country of Origin | United States |
