0.0098" (0.25mm) x 0.38mm LOC 4-Flute Square End Carbide End Mill, 3mm Shank | K105
0.0098" (0.25mm) x 0.38mm LOC 4-Flute Square End Carbide End Mill, 3mm Shank | K105
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

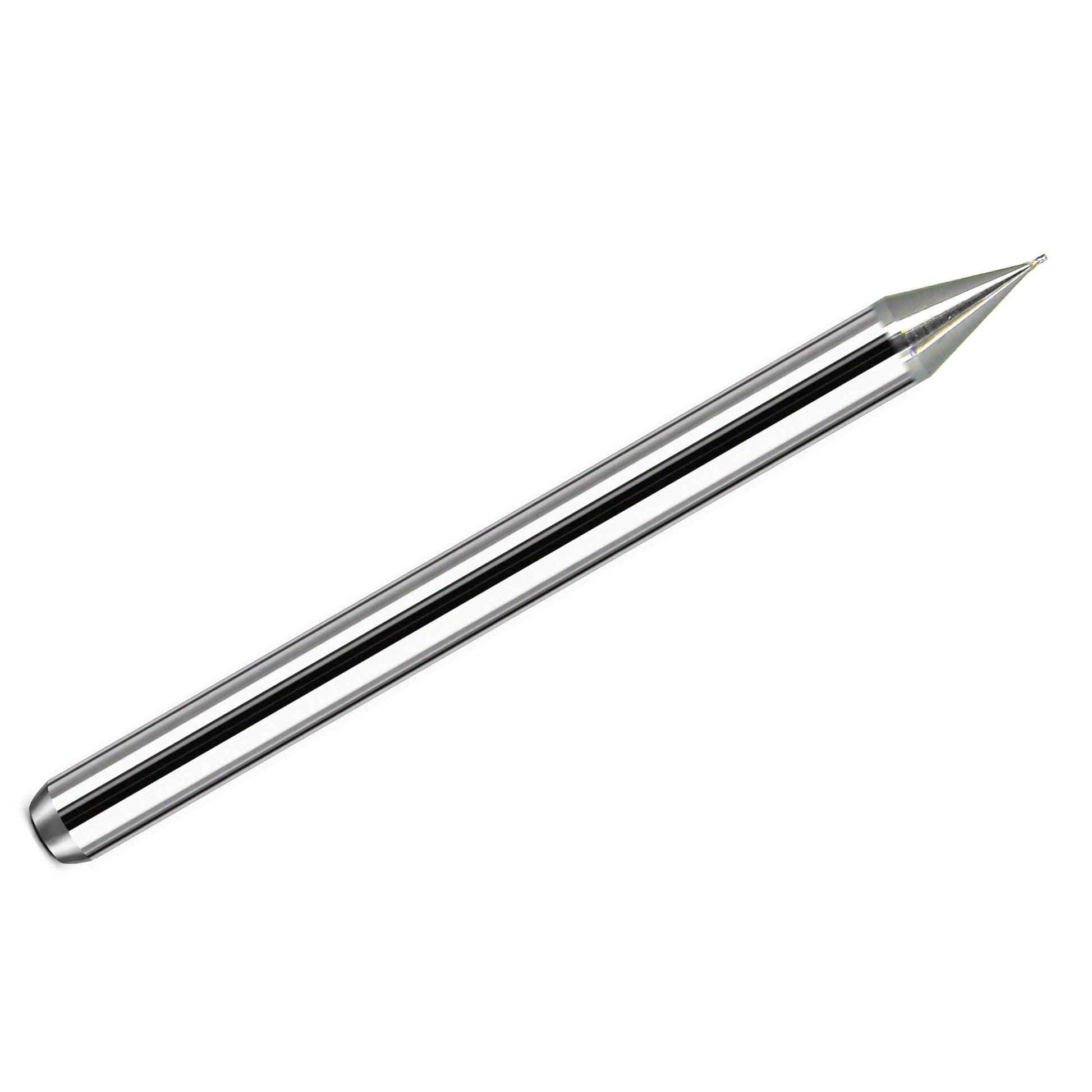

This 0.25mm 4-flute square end carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a bright (uncoated) finish for precision micro machining applications.
Square end mills are designed for slotting, profiling, and precision milling. The flat cutting end produces sharp corners and clean edges, making this tool ideal for fine-detail machining and micro feature work.
The uncoated finish provides sharp cutting edges and is best suited for non-ferrous materials such as aluminum, plastics, and composites, while also being capable of machining select super alloys.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1820-0098.015
Country of Origin: United States
Typical Applications
- Micro milling and fine feature machining
- Slotting and profiling
- PCB and precision component machining
- Aluminum and plastic machining
- High-precision CNC applications
Benefits
- Stub length design improves rigidity and reduces deflection
- 4 flutes provide excellent surface finish and stability
- Uncoated cutting edges deliver sharp, clean cuts in softer materials
- Micro-grain carbide for durability and long tool life
- Center-cutting design allows plunge milling

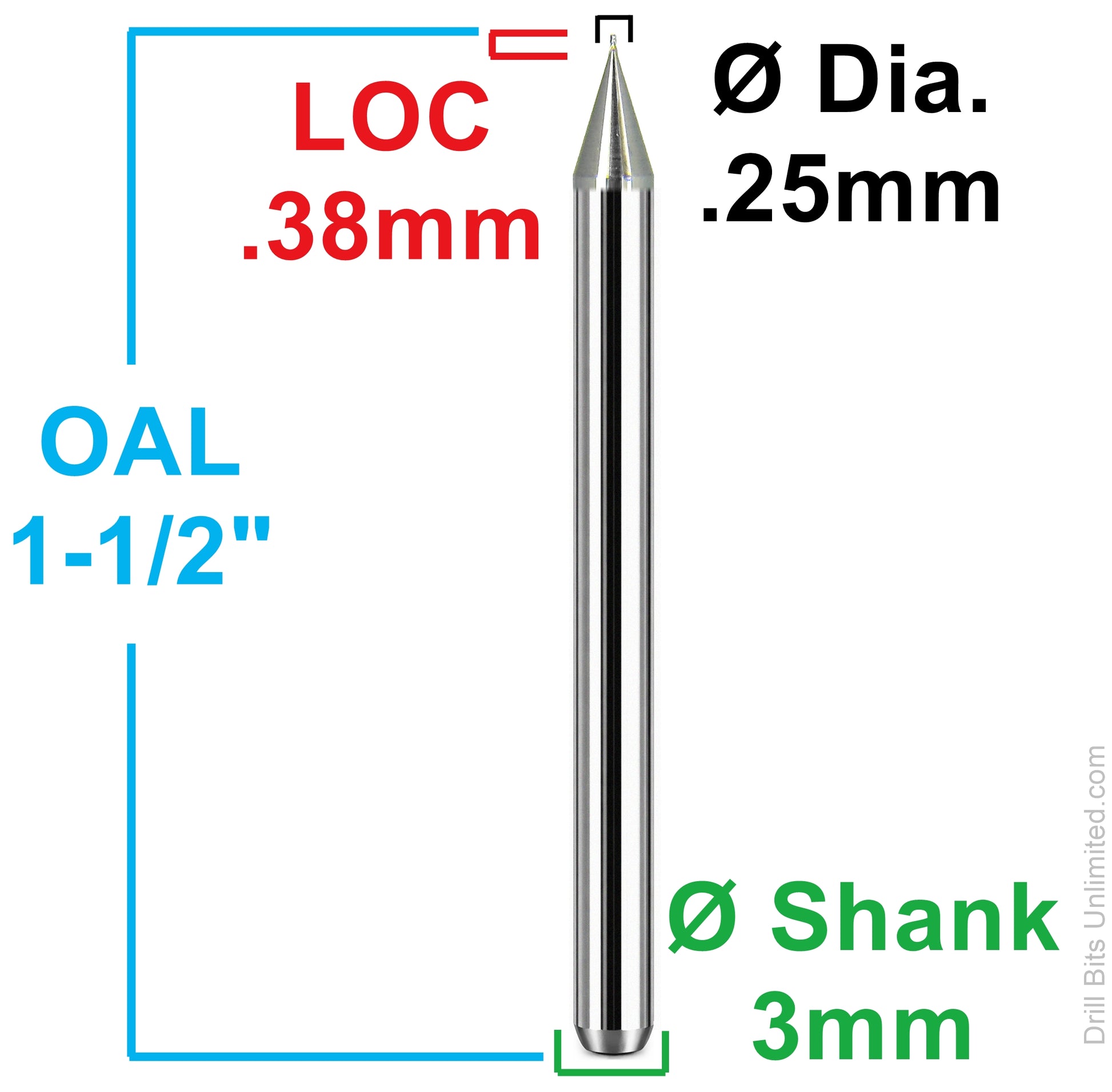

Specifications
| Manufacturer | Kyocera |
| Tool Type | Square End Mill |
| List Number | 1820 |
| Milling Diameter | 0.25mm |
| Length of Cut (FL) | 0.38mm |
| Overall Length | 38mm (1.5") |
| Shank Diameter | 3mm |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non-Ferrous Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| Steel Compatibility | No |
| Stainless Steel Compatibility | No |
| Cast Iron Compatibility | No |
| Hardened Material Compatibility | No |
| Country of Origin | United States |
