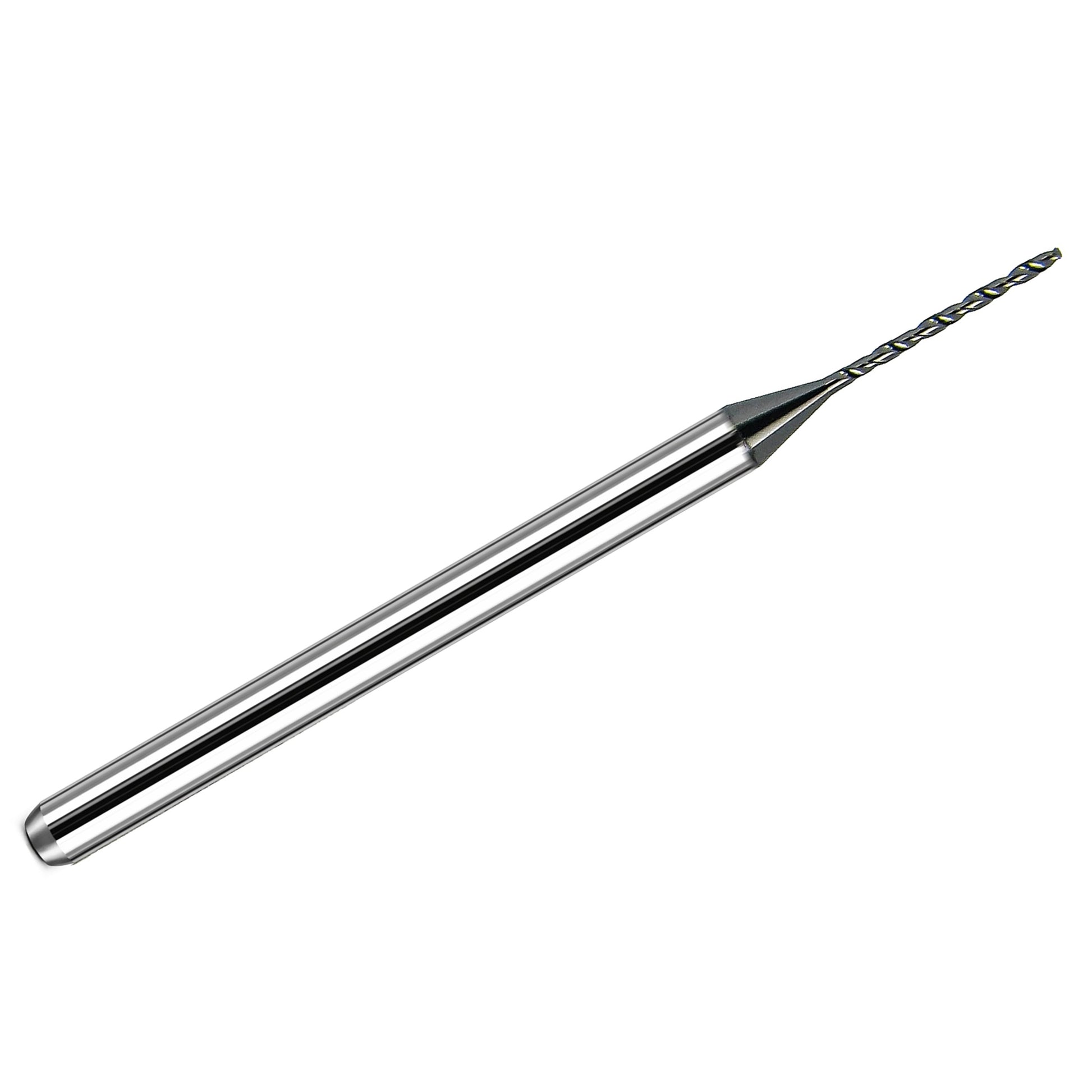

• Kyocera 0.80mm carbide micro drill bit DLC coated with 3mm shank

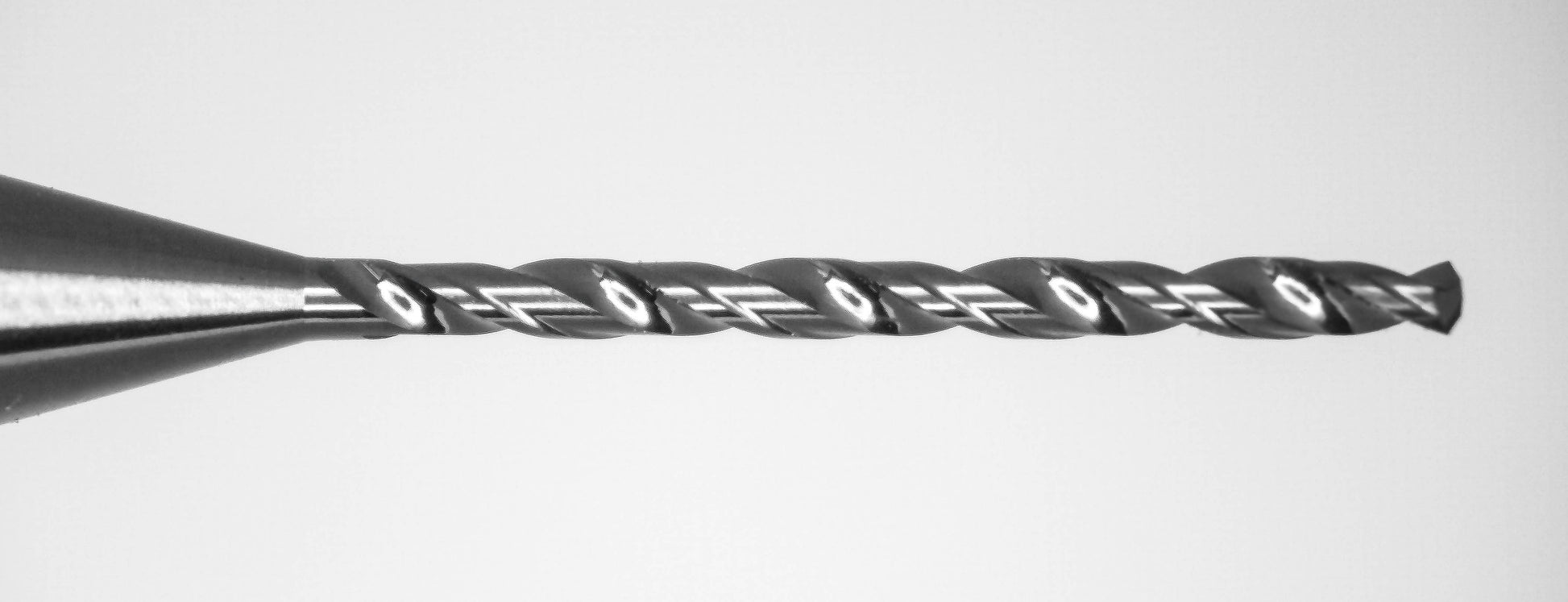

  • Close-up of Kyocera 0.80mm DLC coated micro drill tip

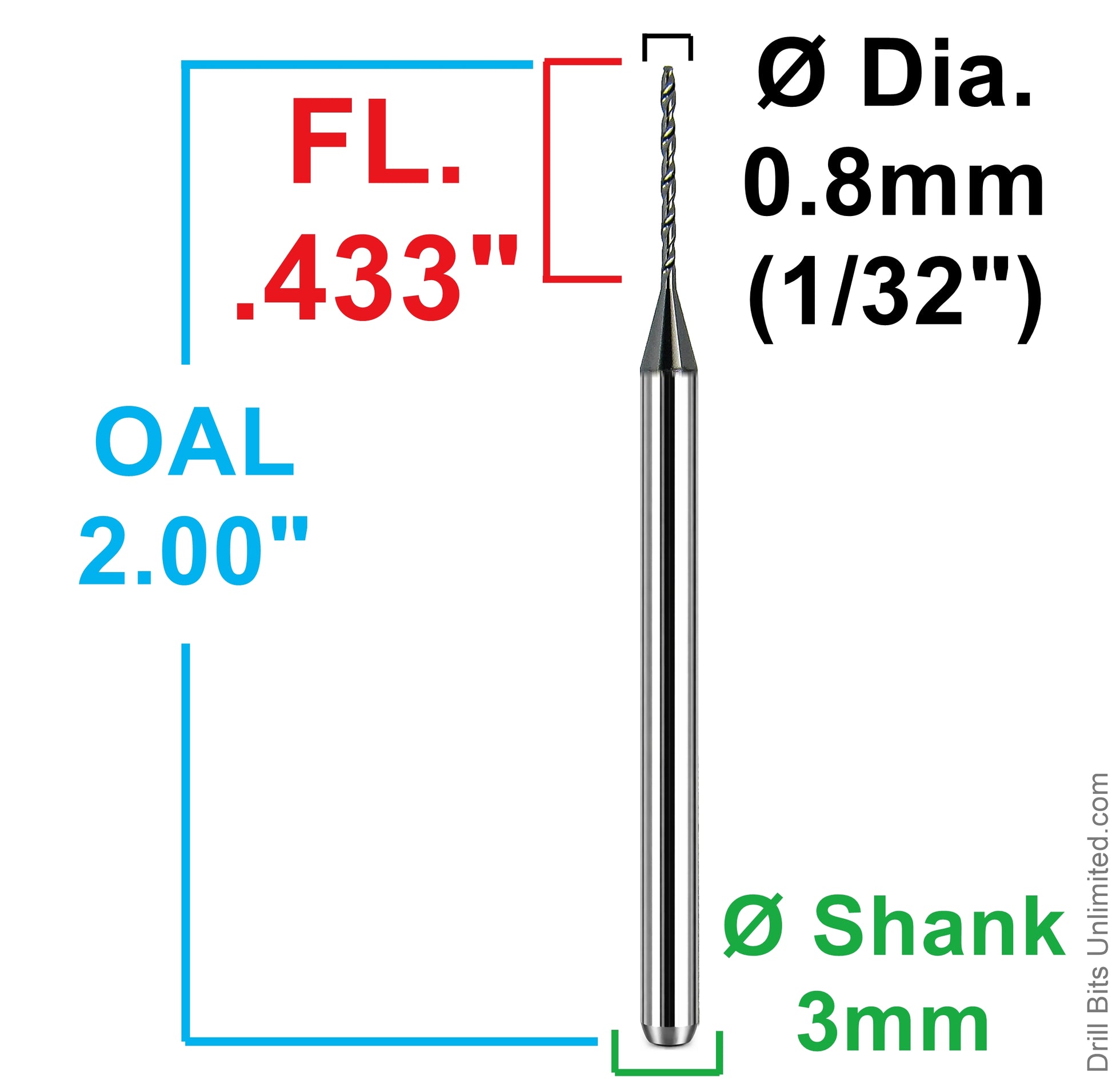

  • Kyocera 0.80mm micro drill dimensional diagram showing 0.433 inch flute length 2.00 inch overall length and 3mm shank
1 3

Drill Bits Unlimited

Kyocera 0.80mm (0.0315", 1/32") Carbide Micro Drill Bit DLC Coated 3mm Shank 226-0315D433 K126

Kyocera 0.80mm (0.0315", 1/32") Carbide Micro Drill Bit DLC Coated 3mm Shank 226-0315D433 K126

$17.95 USD
$17.95 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

This 0.80mm (0.0315", 1/32") solid carbide micro drill bit is manufactured by Kyocera and features a DLC (Diamond-Like Carbon) coating for improved wear resistance, reduced friction, and cleaner drilling performance in demanding applications.

The DLC coating is especially useful in abrasive and non-ferrous materials where reduced built-up edge and improved surface quality are important. This drill is designed for precision CNC drilling where accuracy, consistency, and tool life matter.

With a 3mm shank, 0.433" flute length, and 2.00" overall length, this micro drill offers a good balance of reach, rigidity, and precise hole-making performance.

This tool is manufactured by Kyocera.

Manufacturer: Kyocera

Series: 226

Manufacturer Part Number: 226-0315D433

Typical Applications

  • Precision CNC drilling
  • Non-ferrous material drilling
  • Composite and abrasive material drilling
  • Printed circuit and fine-feature drilling
  • General micro-hole production

Benefits

  • DLC coating helps reduce friction and improve wear resistance
  • Solid carbide construction supports rigidity and long tool life
  • 3mm shank provides secure holding and good concentricity
  • Micro drill geometry supports accurate hole placement
  • Suitable for precision production environments

Specifications

Manufacturer Kyocera
Tool Type Micro Drill Bit
Series 226
Drill Diameter 0.80mm (0.0315", 1/32")
Flute Length 0.433"
Overall Length 2.00"
Shank Diameter 3mm (0.118")
Material Solid Carbide
Finish / Coating DLC (Diamond-Like Carbon)
Depth Stop Ring No
Package Quantity 1
