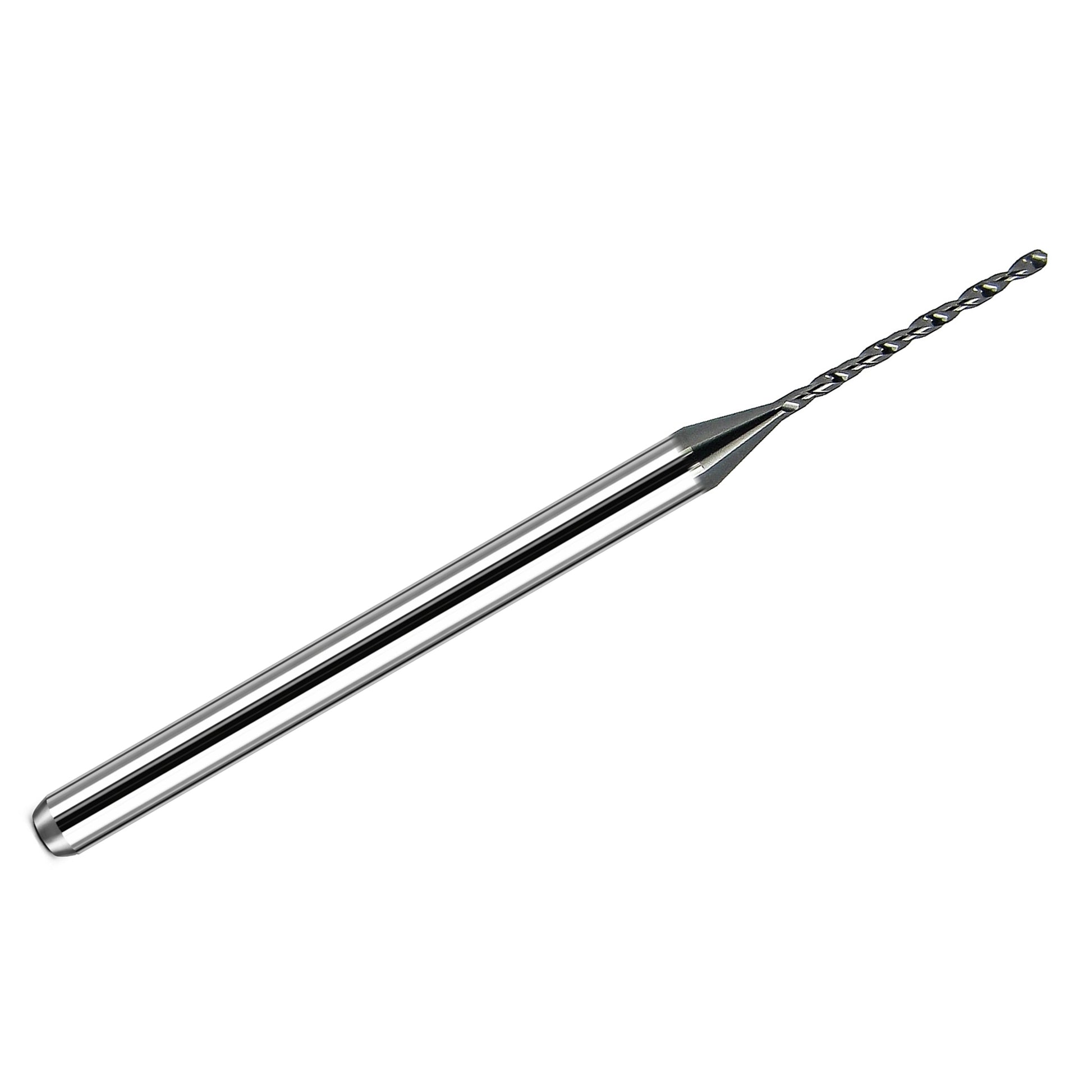

Kyocera 0.90mm (0.0354") Carbide Micro Drill Bit DLC Coated 3mm Shank 226-0354D512 K124

This 0.90mm (0.0354") solid carbide micro drill bit is manufactured by Kyocera and features a DLC (Diamond-Like Carbon) coating for improved wear resistance, reduced friction, and cleaner drilling performance in demanding applications.

The DLC coating is especially useful in abrasive and non-ferrous materials where reduced built-up edge and improved surface quality are important. This drill is designed for precision CNC drilling where accuracy, consistency, and tool life matter.

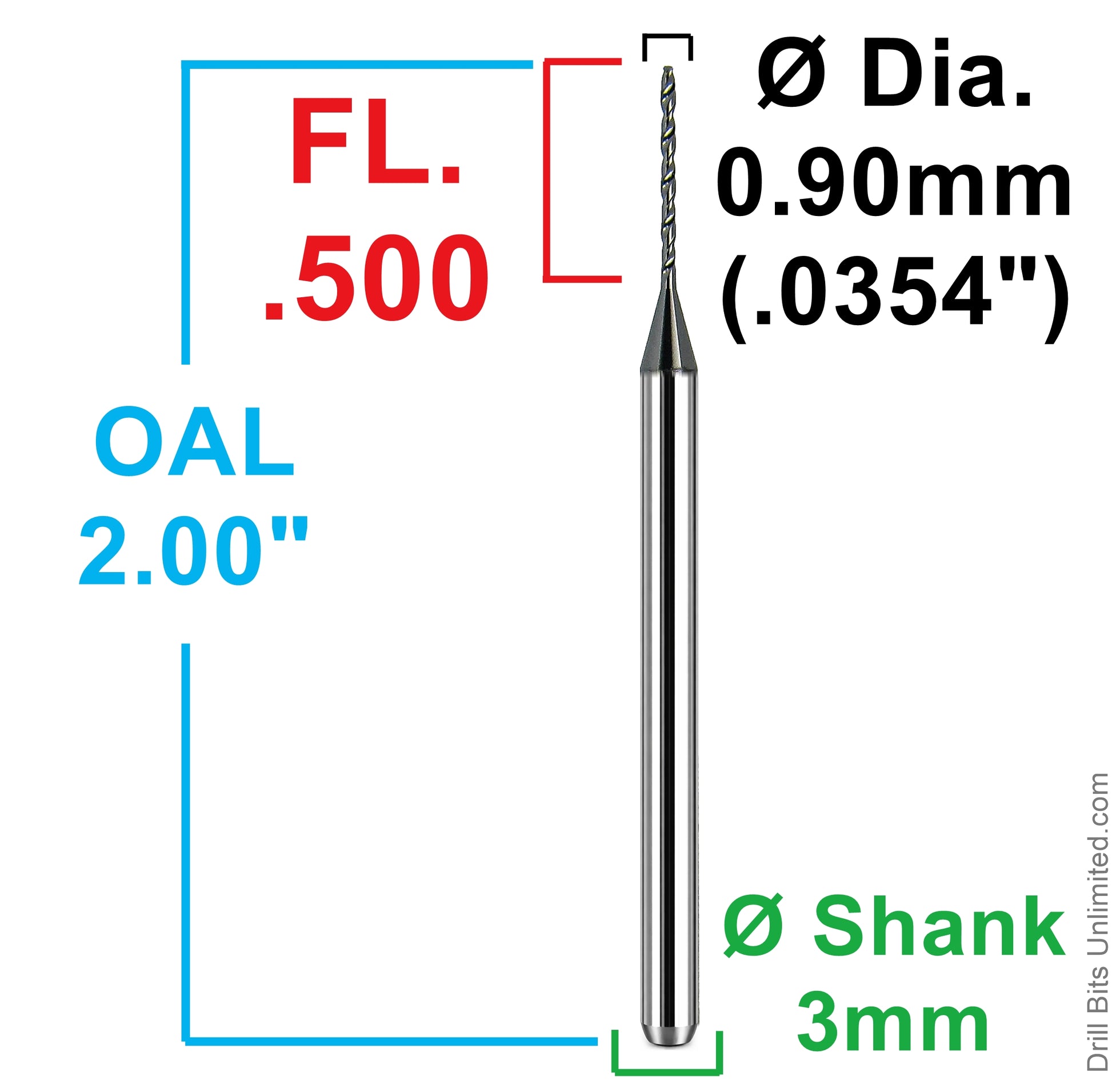

With a 3mm shank, 0.500" flute length, and 2.00" overall length, this micro drill offers a good balance of reach, rigidity, and precise hole-making performance.

This tool is manufactured by Kyocera.

Manufacturer: Kyocera

Series: 226

Manufacturer Part Number: 226-0354D512

Typical Applications

• Precision CNC drilling
• Non-ferrous material drilling
• Composite and abrasive material drilling
• Printed circuit and fine-feature drilling
• General micro-hole production

Benefits

• DLC coating helps reduce friction and improve wear resistance
• Solid carbide construction supports rigidity and long tool life
• 3mm shank provides secure holding and good concentricity
• Micro drill geometry supports accurate hole placement
• Suitable for precision production environments

Specifications
