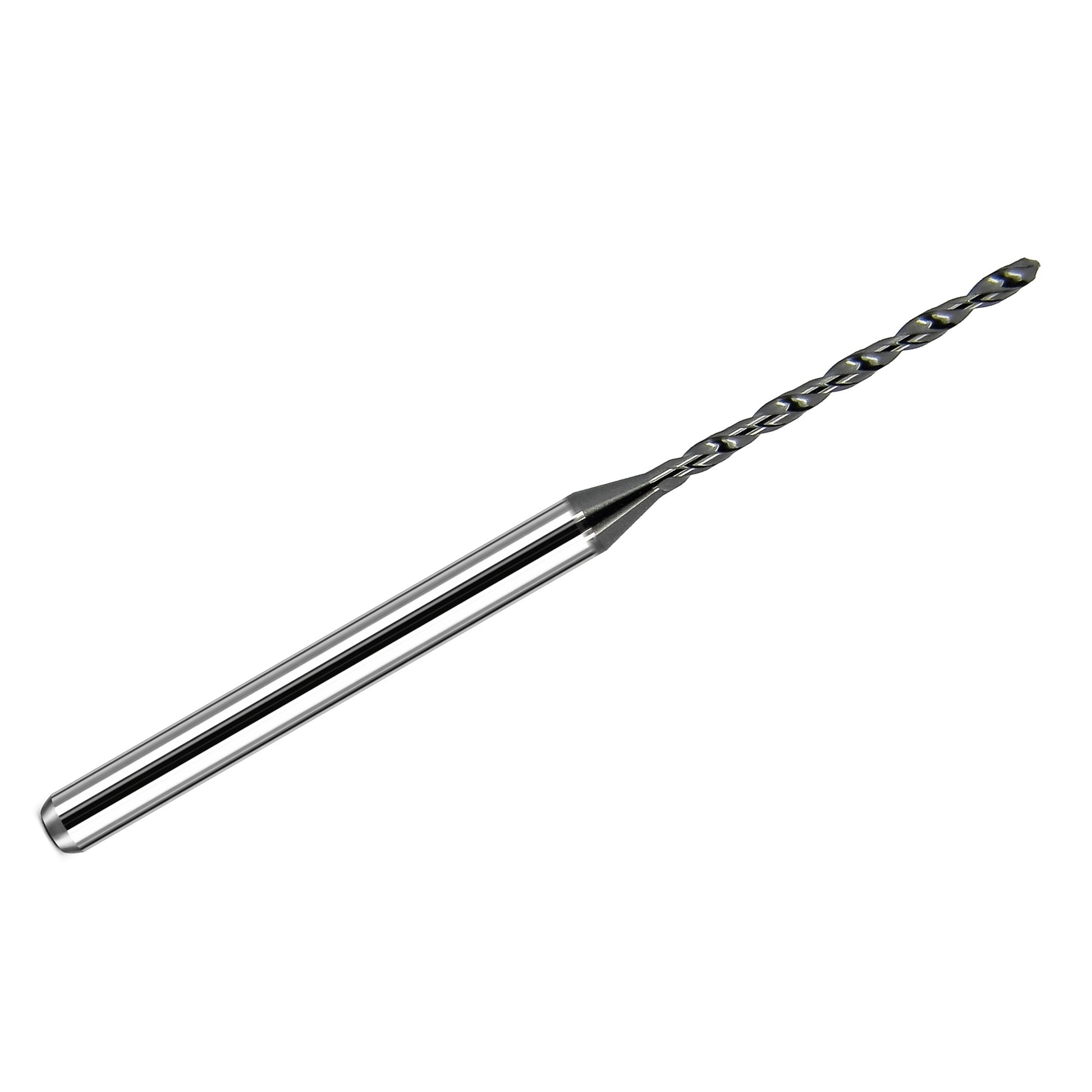

Kyocera 1.30mm (0.0512") Carbide Micro Drill Bit DLC Coated 3mm Shank 226-0512D749 K130

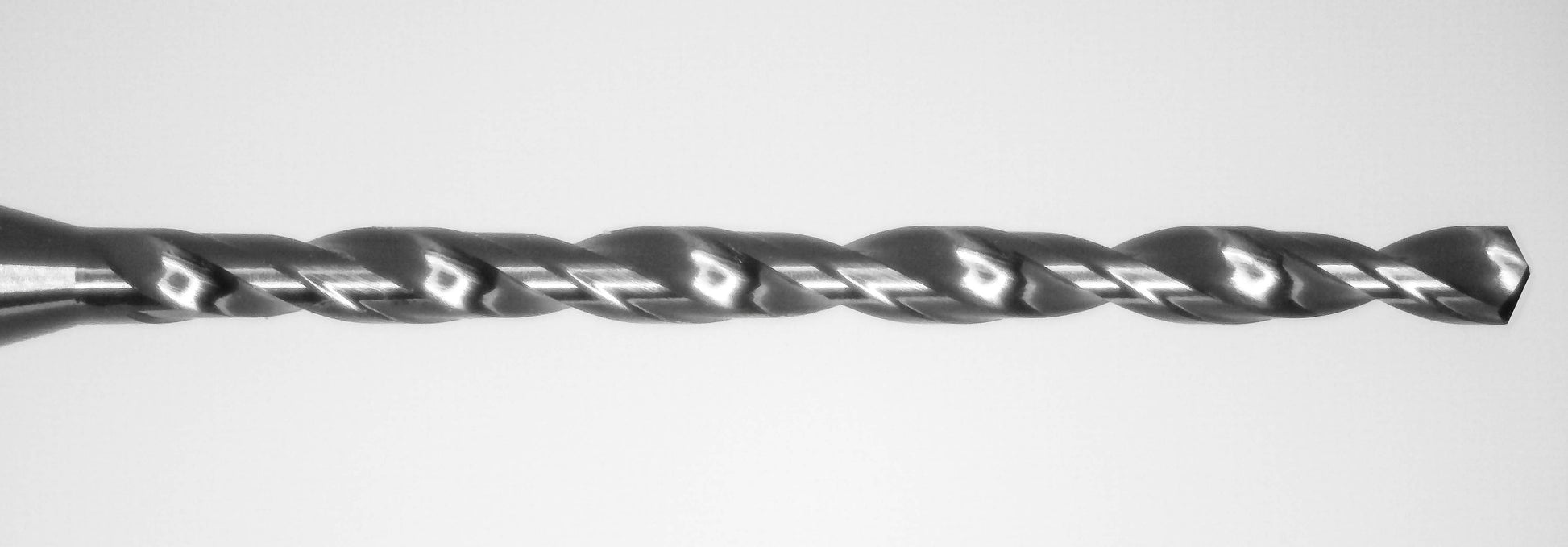

This 1.30mm (0.0512") solid carbide micro drill bit is manufactured by Kyocera and made in the USA. It features a DLC (Diamond-Like Carbon) coating for reduced friction, improved wear resistance, and cleaner drilling performance in demanding applications.

The DLC coating is especially useful in abrasive and non-ferrous materials where reduced built-up edge and improved hole quality are important. This drill is designed for precision CNC drilling where consistency, tool life, and accurate hole placement matter.

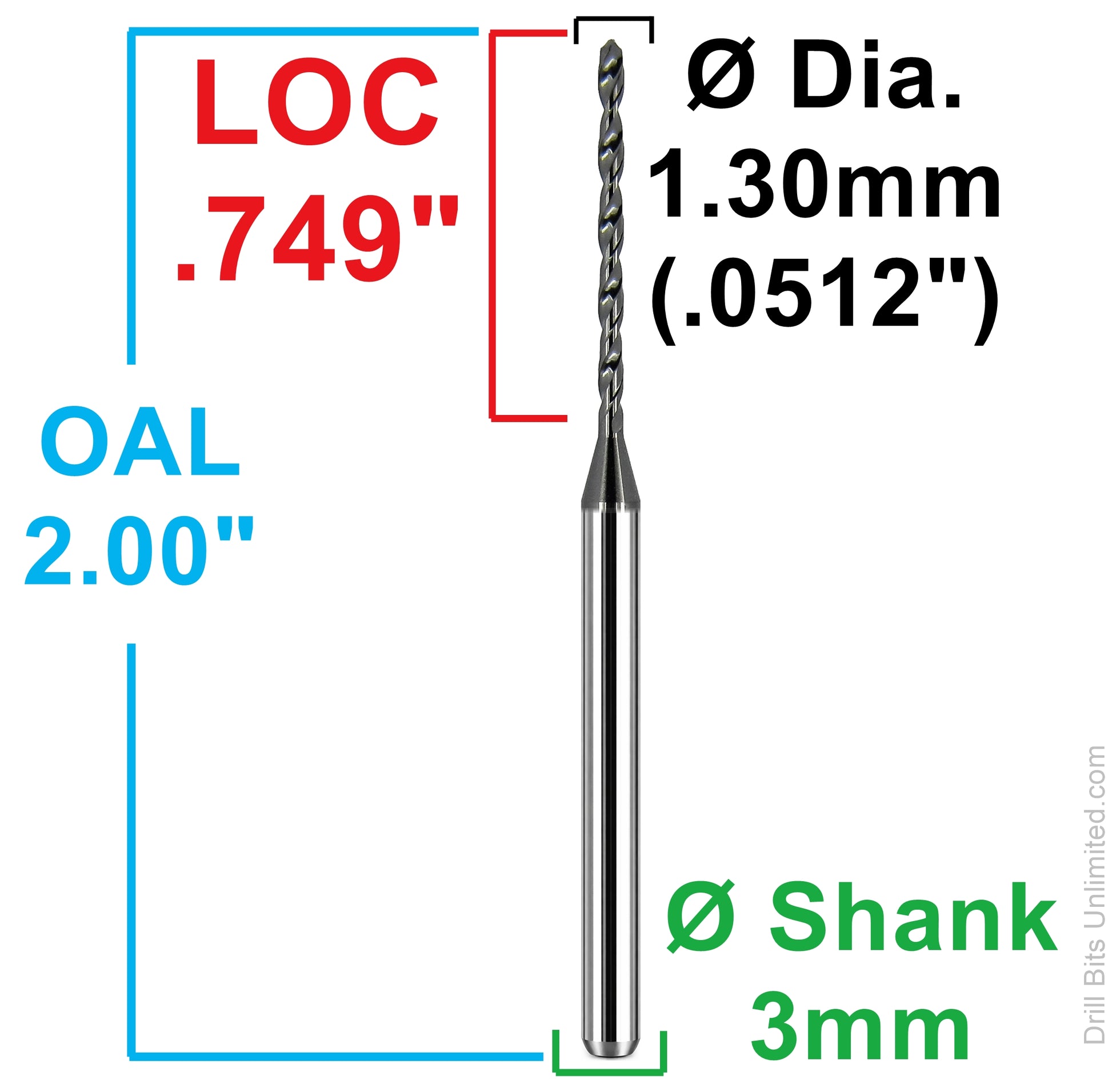

This drill features a long flute length of 0.749", giving it greater drilling depth capability than shorter micro drills while still maintaining the stability of a 3mm shank. With a 2.00" overall length, it offers a strong balance of reach, rigidity, and precise hole-making performance.

This version is ringless (no depth stop ring), is manufactured by Kyocera, and is made in the USA.

Manufacturer: Kyocera

Series: 226

Manufacturer Part Number: 226-0512D749

Country of Origin: United States

Typical Applications

• Precision CNC drilling
• Deeper micro-hole drilling
• Non-ferrous material drilling
• Composite and abrasive material drilling
• General production drilling where a longer flute length is needed

Benefits

• DLC coating helps reduce friction and improve wear resistance
• Long flute length supports deeper drilling capability
• Solid carbide construction supports rigidity and long tool life
• 3mm shank provides secure holding and good concentricity
• Ringless design allows flexible setup without a depth stop ring
• Made in the USA by Kyocera

Specifications
