Kyocera 1.60mm (0.0630", 1/16") Carbide Micro Drill Bit Short OAL 3mm Shank 226-0630.236SL K129

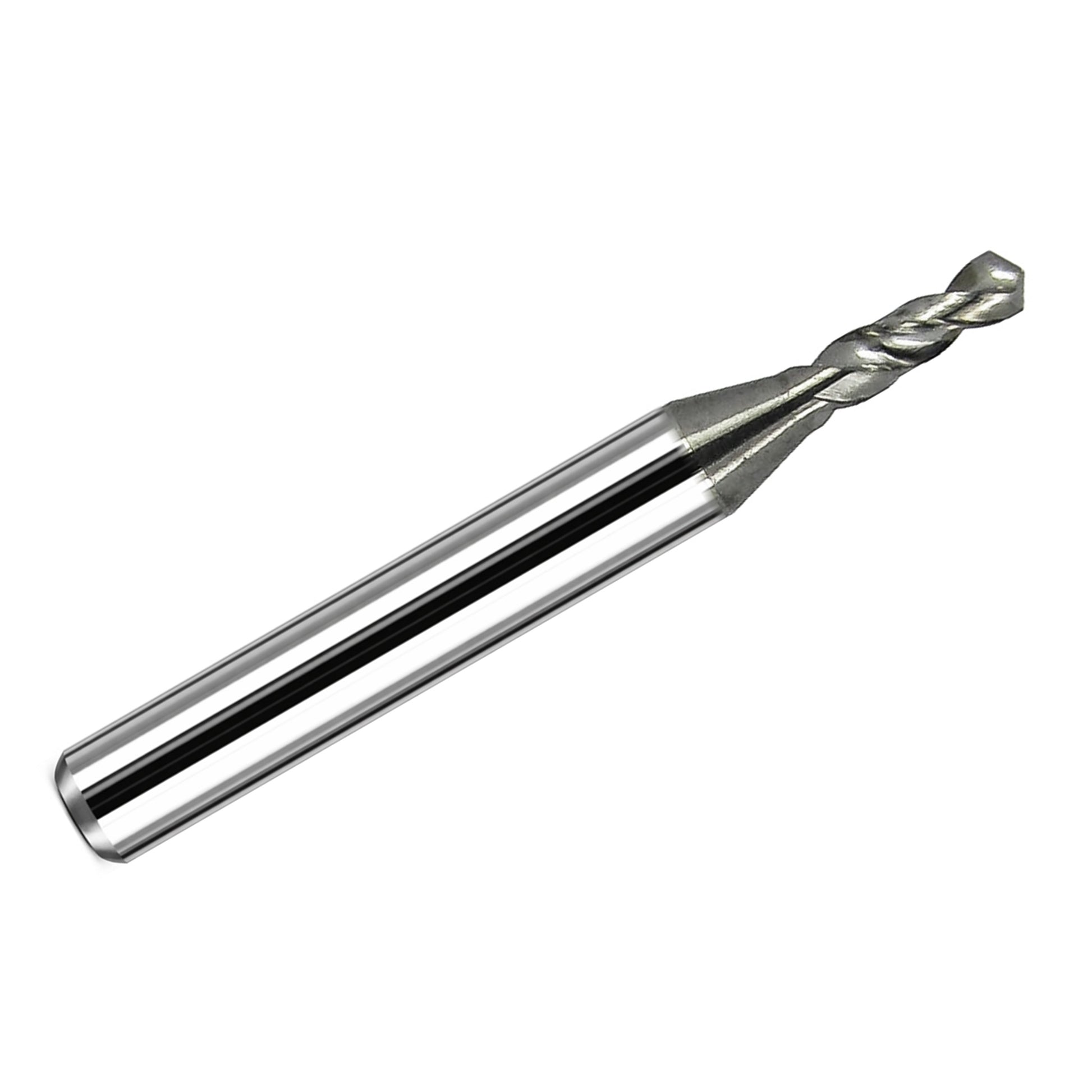

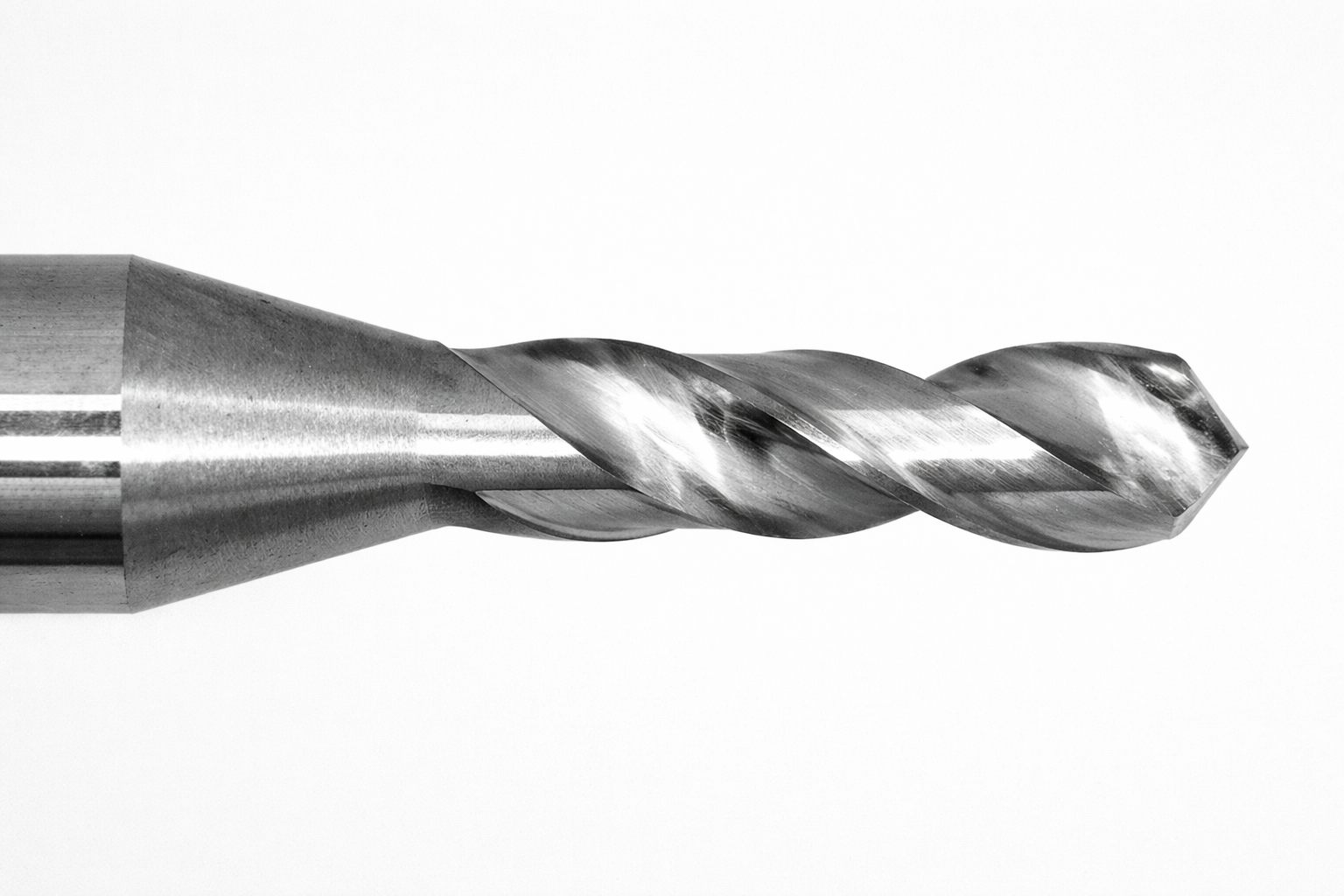

This 1.60mm (0.0630", 1/16") solid carbide micro drill bit is manufactured by Kyocera and features a compact short overall length design for precise drilling performance where rigidity and control are important.

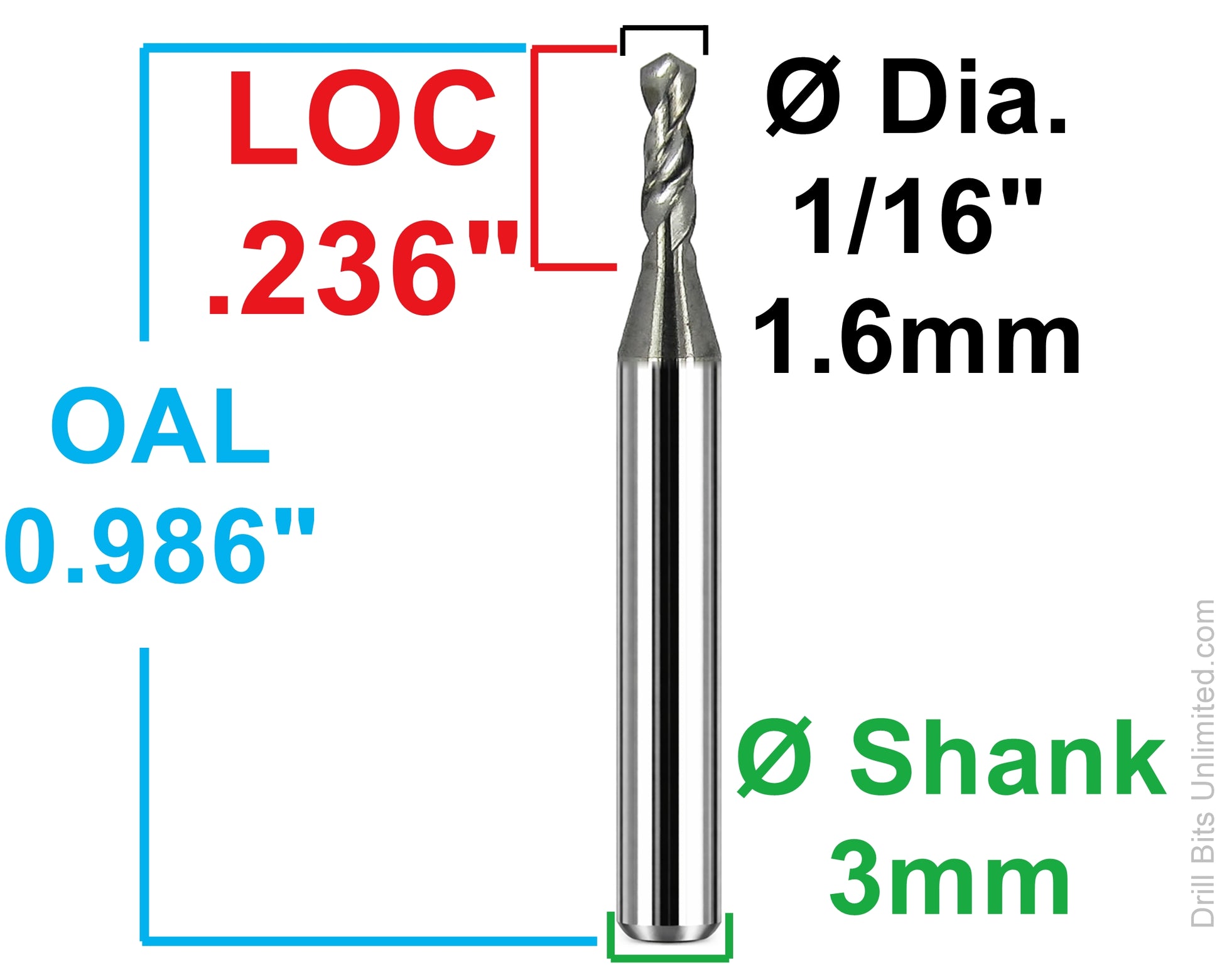

With a 0.236" flute length and a notably short 0.986" overall length, this drill is well suited for applications where a more compact body can help reduce deflection and improve stability.

The 3mm shank provides secure holding and good concentricity, making this tool a practical choice for precision CNC drilling and repeatable production work.

This tool is manufactured by Kyocera.

Manufacturer: Kyocera

Series: 226

Manufacturer Part Number: 226-0630.236SL

Typical Applications

• Precision CNC drilling
• Short-reach drilling setups
• Production drilling where rigidity is important
• General micro-hole drilling
• Applications where compact tool length is preferred

Benefits

• Short overall length helps improve rigidity and control
• Solid carbide construction supports precision and wear resistance
• 3mm shank provides secure holding and good concentricity
• Compact body design can help reduce deflection
• Suitable for repeatable precision drilling applications

Specifications
