Kyocera 2.95mm (0.1161") Carbide Micro Drill Bit AlTiN 130° Split Point 1/8" Shank 105-1161L400 K108
Kyocera 2.95mm (0.1161") Carbide Micro Drill Bit AlTiN 130° Split Point 1/8" Shank 105-1161L400 K108
Couldn't load pickup availability

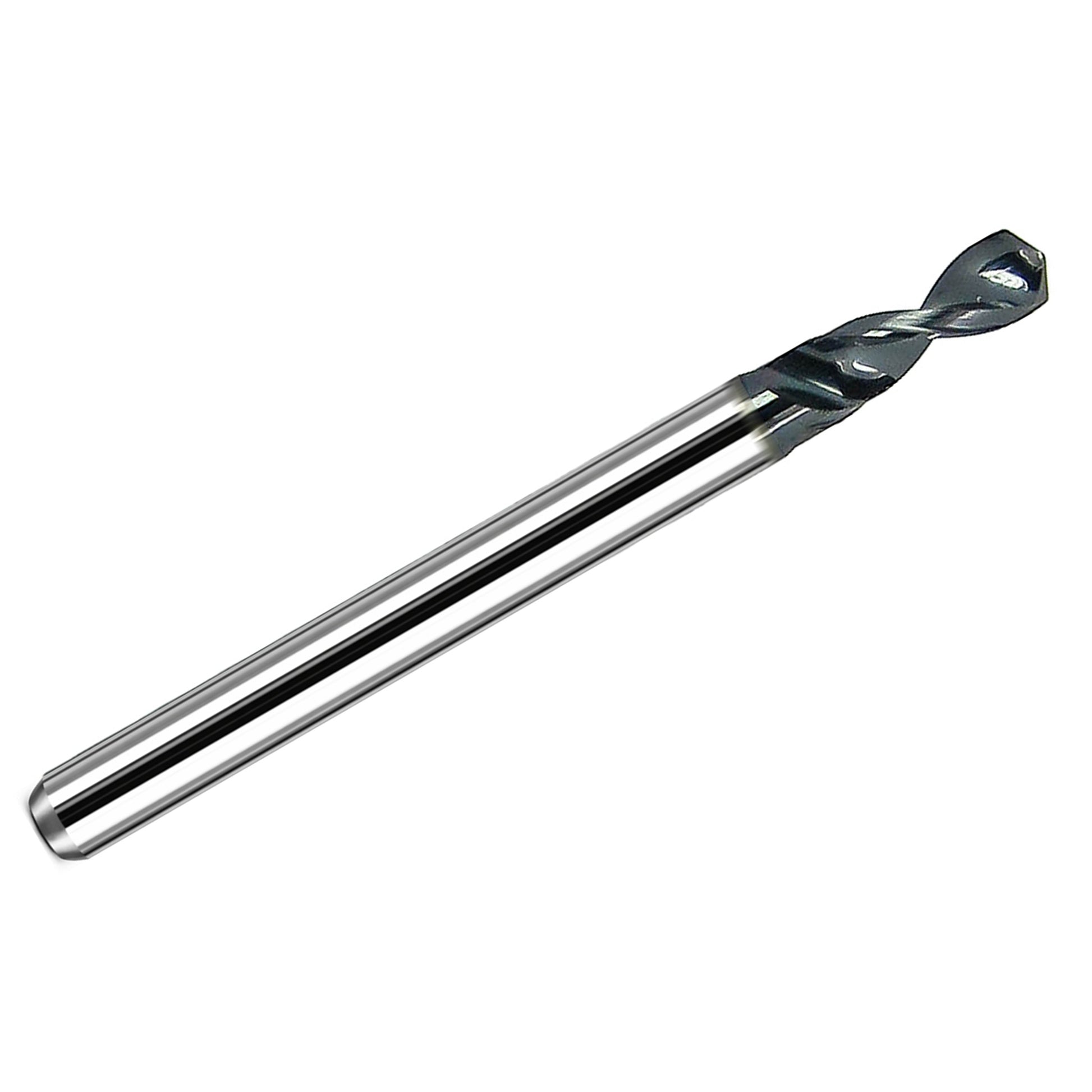

This 2.95mm (0.1161") solid carbide micro drill bit is manufactured by Kyocera from micro-grain solid carbide and features a high-performance AlTiN coating for demanding CNC drilling applications.

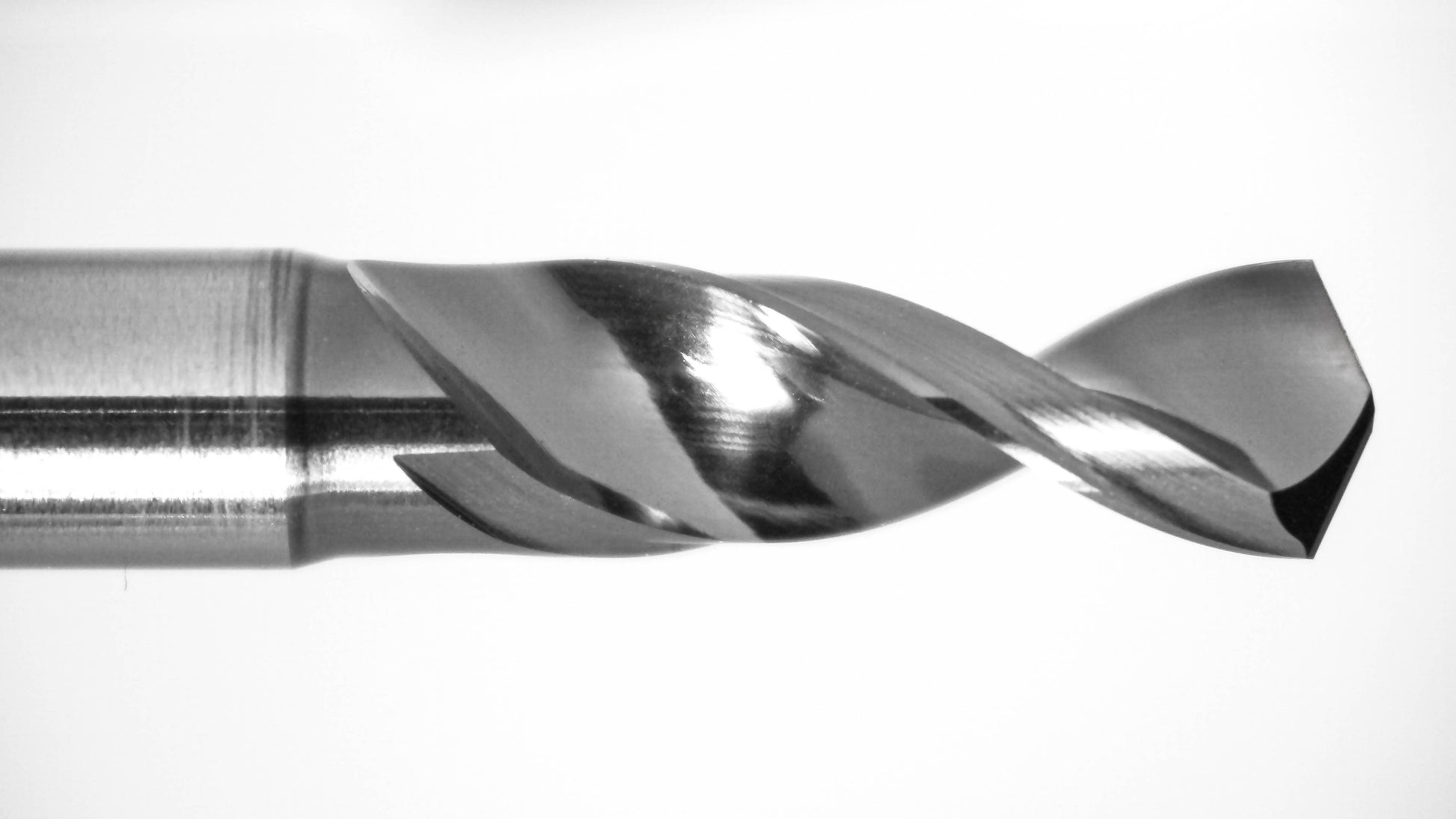

The 130° four-facet split point geometry improves centering accuracy and reduces walking, allowing for precise hole placement and improved hole quality in a wide range of materials.
Designed for high performance in steel, stainless steel, titanium, cast iron, copper alloys, composites, and graphite, this micro-length drill offers excellent rigidity, heat resistance, and long tool life in demanding machining environments.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Series: 105
Manufacturer Part Number: 105-1161L400
Country of Origin: United States
Typical Applications
- Precision CNC drilling
- Steel and stainless steel drilling
- Titanium and super alloy drilling
- Cast iron and copper alloy drilling
- Composite and graphite drilling
Benefits
- AlTiN coating improves wear resistance and heat protection
- 130° split point reduces walking and improves accuracy
- Micro-length design provides increased rigidity
- Micro-grain carbide enhances durability and tool life
- Consistent hole quality in demanding materials
Specifications
| Manufacturer | Kyocera |
| Tool Type | Micro Drill Bit |
| Series | 105 |

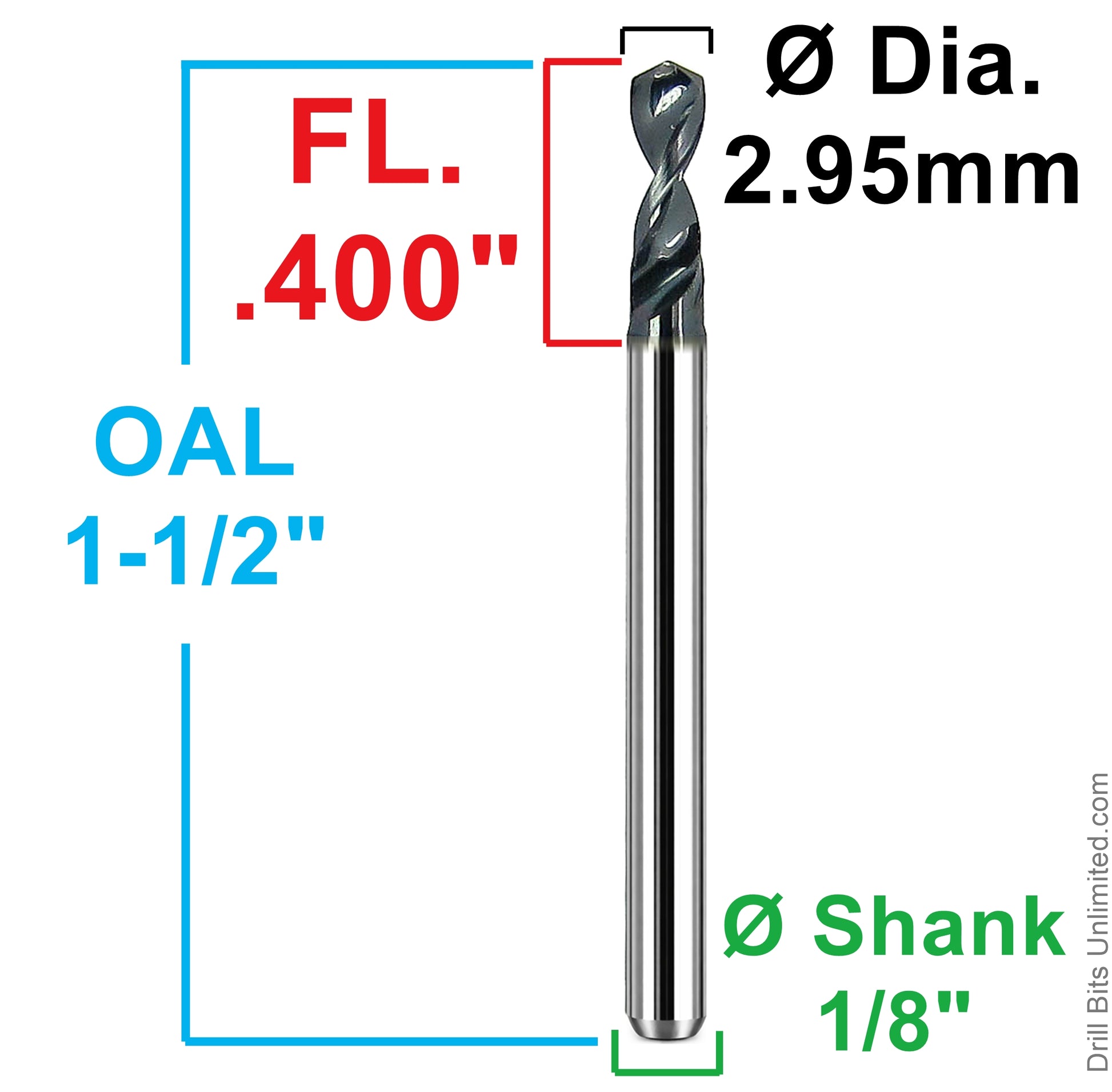

| Drill Diameter | 2.95mm (0.1161") |
| Flute Length | 0.4000" |
| Overall Length | 38mm (1.5") |
| Shank Diameter | 0.1250" (1/8") |
| Flutes | 2 |
| Point Angle | 130° Four-Facet Split Point |
| Material | Solid Micro-Grain Carbide |
| Coating | AlTiN |
| Cut Direction | Right Hand |
| Drill Length Class | Micro Length |
| Web Construction | Split / X-Thinned |
| Drilling Depth | 0.4000" |
| Drill Diameter Tolerance | +0.000mm / −0.008mm |
| Applications | Steel, Stainless Steel, Titanium, Cast Iron, Copper Alloys, Composites, CFRP, Graphite |
| Country of Origin | United States |
