0.1875" (3/16") x .281" LOC AlTiN Coated 3-Flute Ball Nose Carbide End Mill, 3/16" Shank | K096
0.1875" (3/16") x .281" LOC AlTiN Coated 3-Flute Ball Nose Carbide End Mill, 3/16" Shank | K096
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

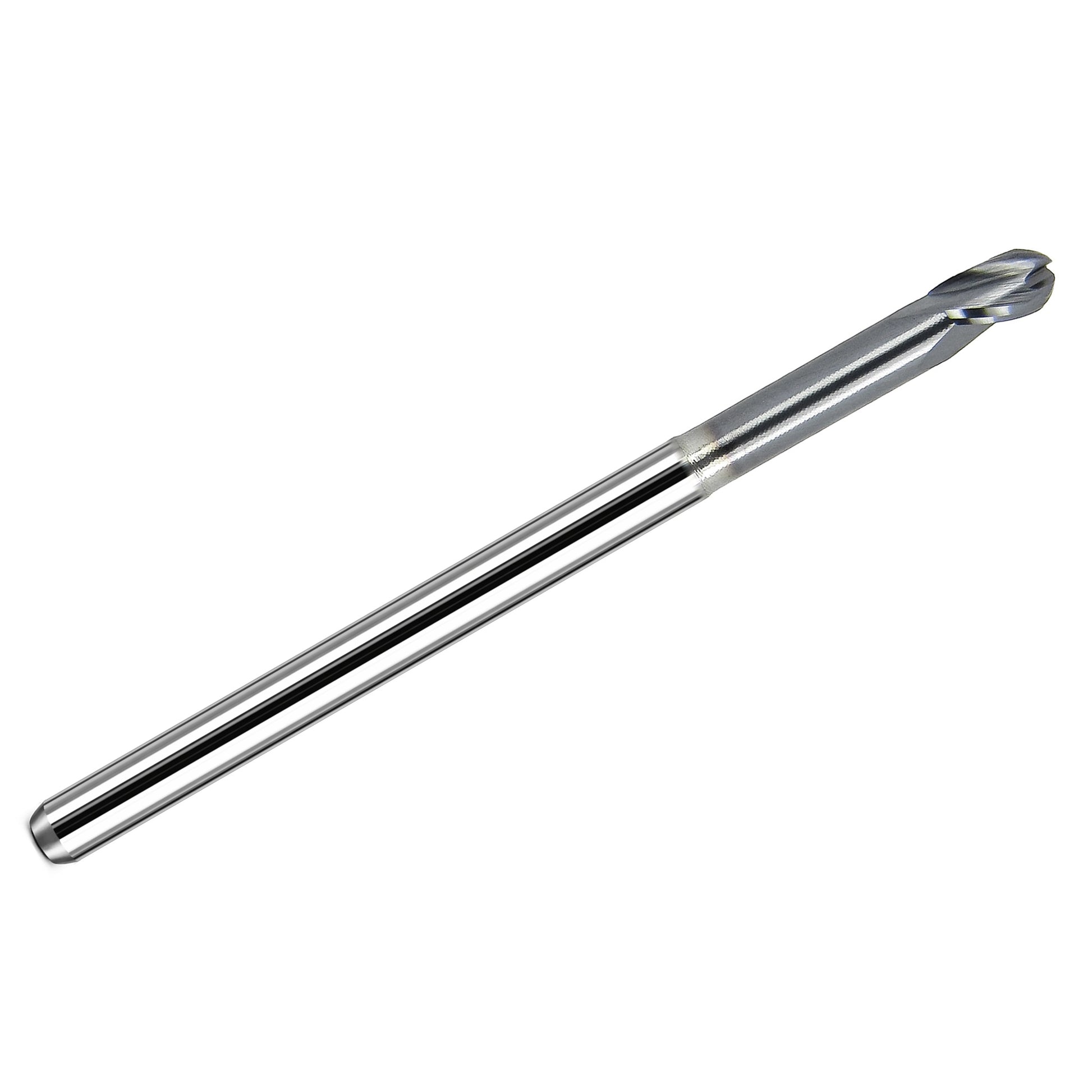

This 3/16" (0.1875") 3-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a durable AlTiN coating for improved heat resistance and extended tool life during demanding CNC machining operations.
Ball nose end mills are designed for 3D contour machining, precision profiling, and finishing work. The rounded cutting tip allows smooth machining of curved surfaces and complex profiles while producing excellent surface finishes.
The AlTiN coating improves oxidation resistance and thermal stability, making this tool ideal for machining steels, stainless steels, cast iron, hardened materials, and super alloys. The extended neck design provides increased reach and improved clearance when machining deeper cavities or complex features.
These precision tools are manufactured in the United States and engineered to deliver consistent performance and long tool life in demanding CNC machining environments.
Manufacturer: Kyocera
Manufacturer Part Number: 1755-1875L1000
Country of Origin: United States
Typical Applications
- 3D contour milling
- Precision CNC machining
- Machining steels and stainless steels
- Deep cavity machining
- Fine finishing operations
Benefits
- Ball nose geometry for smooth contour machining
- AlTiN coating improves heat resistance and tool life
- 3 flutes provide improved chip evacuation
- Extended neck design allows deeper reach and clearance
- Micro-grain carbide ensures durability and edge retention

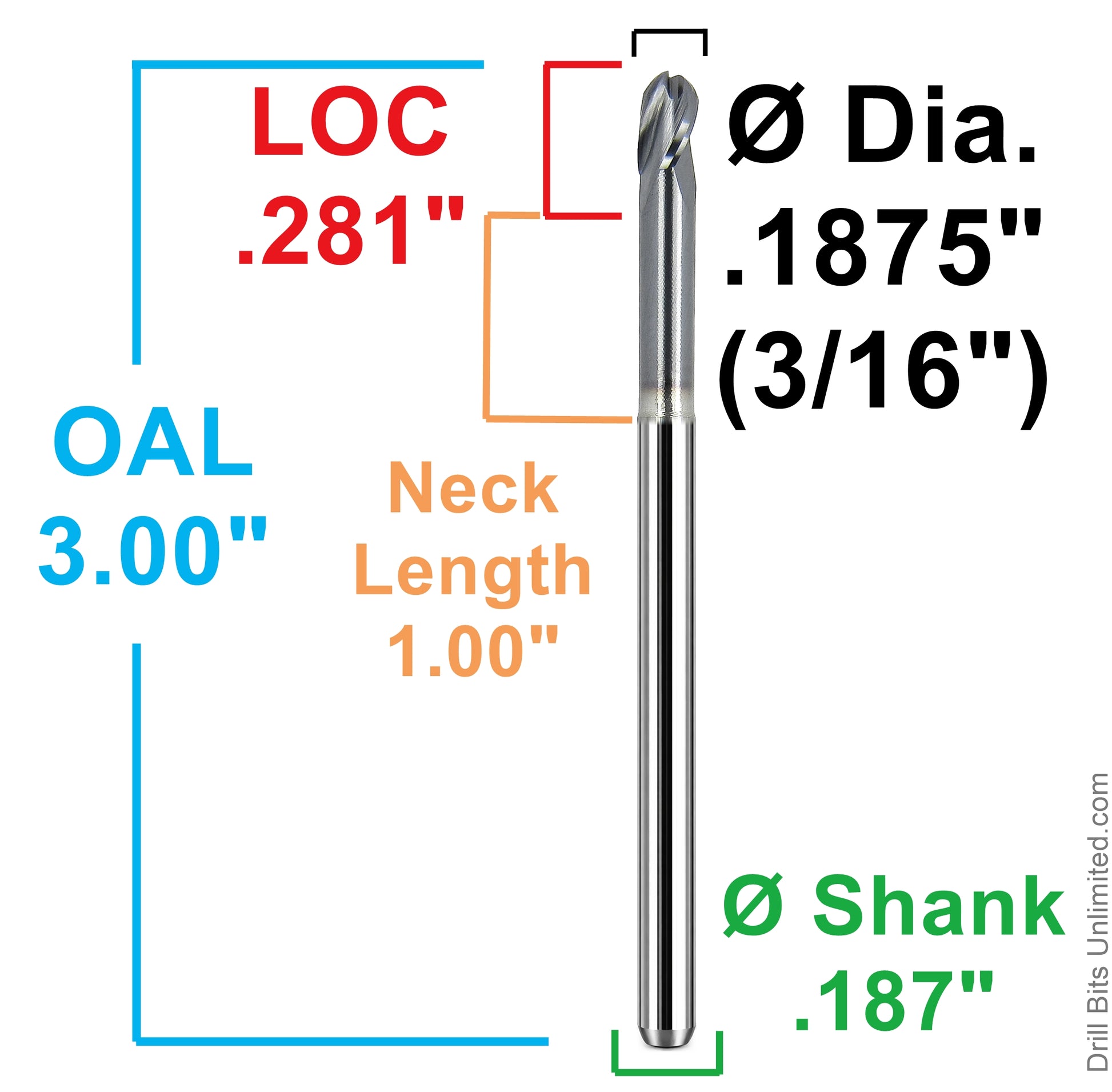

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1755 |
| Milling Diameter | 0.1875" (3/16") |
| Length of Cut (LOC) | 0.2810" |
| Neck Length | 1.0000" |
| Neck Diameter | 0.1767" |
| Overall Length | 3.000" |
| Shank Diameter | 0.187" |
| Number of Flutes | 3 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | AlTiN |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
