0.1969" (5.00mm) x 15mm LOC TITAN-AX 3-Flute Square End Carbide End Mill, 6mm Shank | K145
0.1969" (5.00mm) x 15mm LOC TITAN-AX 3-Flute Square End Carbide End Mill, 6mm Shank | K145
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

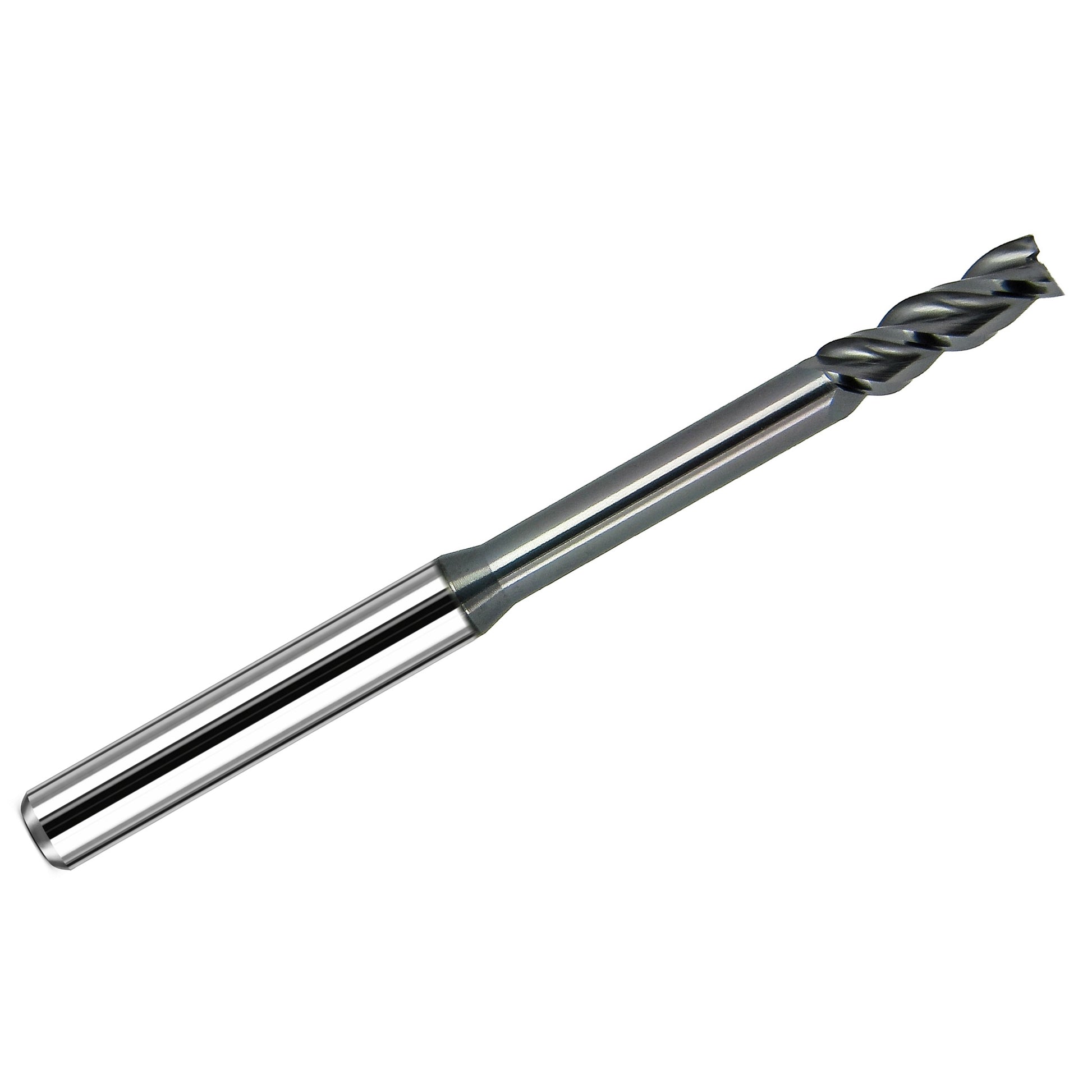

This 5.00mm (.1969") 3-flute extended reach square end carbide end mill is manufactured by Kyocera and features the high-performance TITAN-AX AX coating for demanding CNC machining applications. It is made from sub-micron grain carbide and is made in the USA.
This extended reach version provides increased clearance and access compared to standard length tools, making it useful for milling deeper features, narrow walls, and hard-to-reach areas while maintaining the rigidity of a reinforced shank design.

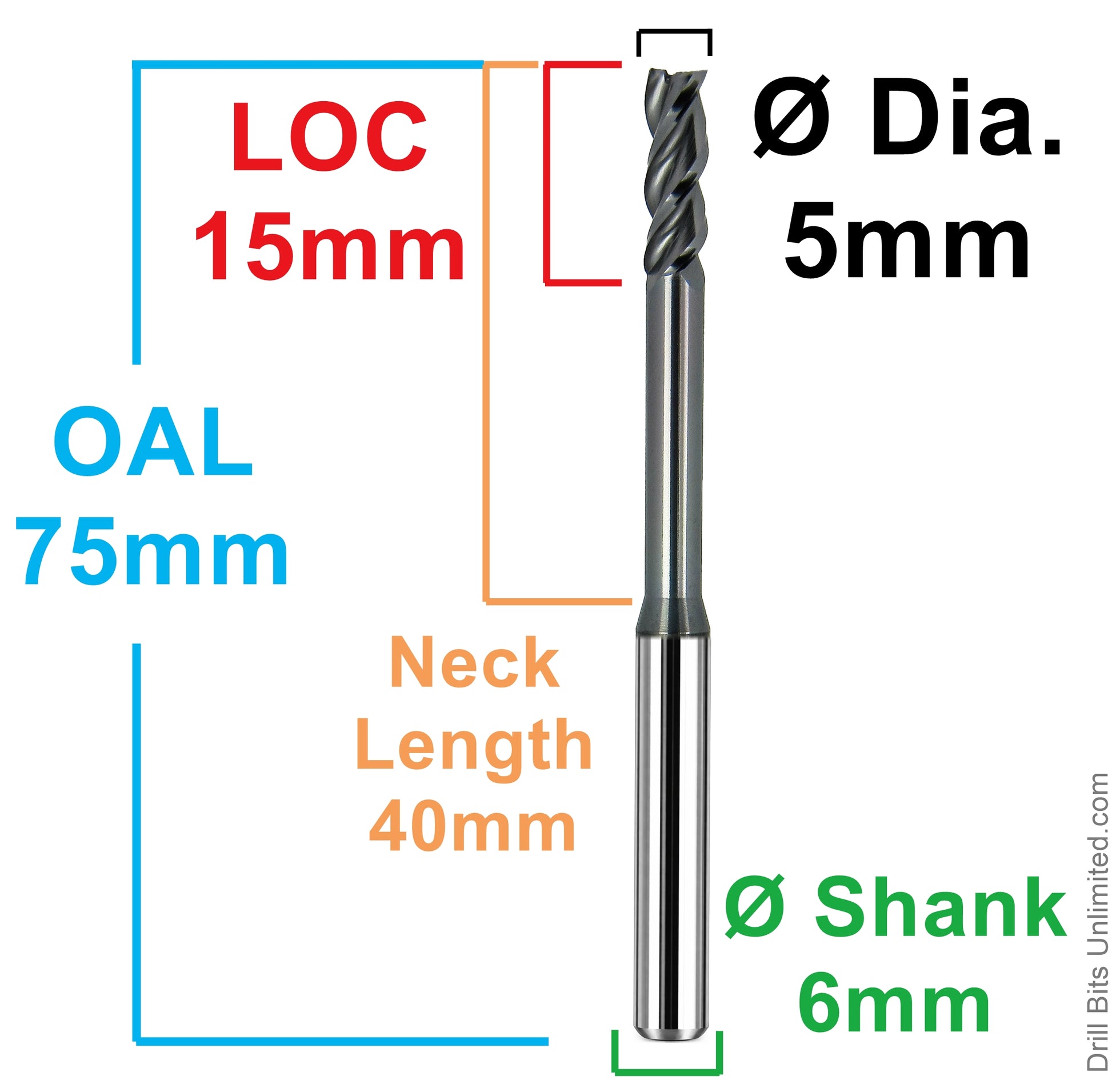

The tool features a 5.00mm cutting diameter, 15.00mm length of cut, 40.00mm neck length, 75.00mm overall length, and a 6.00mm shank. Its 3-flute square end geometry and variable helix design help support stable cutting performance in tough machining applications.
Kyocera’s TITAN-AX series is designed for tough machining applications and features a reinforced shank, variable 32° to 48° helix, and AX high-performance coating.
Manufacturer: Kyocera
Series: TITAN-AX
Manufacturer Part Number: T1969O591ER
Country of Origin: United States
Typical Applications
- Extended reach slotting and profiling
- Deep pocket and wall clearance work
- Tough machining applications
- General CNC milling in steel and alloy materials
- Precision square shoulder milling
Benefits
- Extended reach geometry improves access in deeper features
- 3 flutes balance chip evacuation and rigidity
- Variable helix design helps reduce vibration
- Reinforced shank improves strength and stability
- AX coating supports wear resistance in demanding machining
- Made in the USA by Kyocera
Specifications
| Manufacturer | Kyocera |
| Tool Type | Extended Reach Square End Mill |
| Series | TITAN-AX |
| Milling Diameter | 5.00mm (.1969") |
| Length of Cut (LOC) | 15.00mm (.591") |
| Neck Length | 40.00mm (1.575") |
| Overall Length | 75.00mm (2.953") |
| Shank Diameter | 6.00mm (.2362") |
| Number of Flutes | 3 |
| End Style | Square End |
| Material | Sub-Micron Grain Carbide |
| Finish / Coating | AX Coated |
| Helix Style | Variable Helix |
| Helix Range | 32° to 48° |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Shank Style | Straight / Reinforced Shank |
| Application | Tough Machining Applications |
| Country of Origin | United States |
