Kyocera ORION 10.40mm (0.4094") Solid Carbide 3xD Drill Bit TiAlN Nano 12mm Shank 165-4094AG2047 K137
Kyocera ORION 10.40mm (0.4094") Solid Carbide 3xD Drill Bit TiAlN Nano 12mm Shank 165-4094AG2047 K137
Couldn't load pickup availability

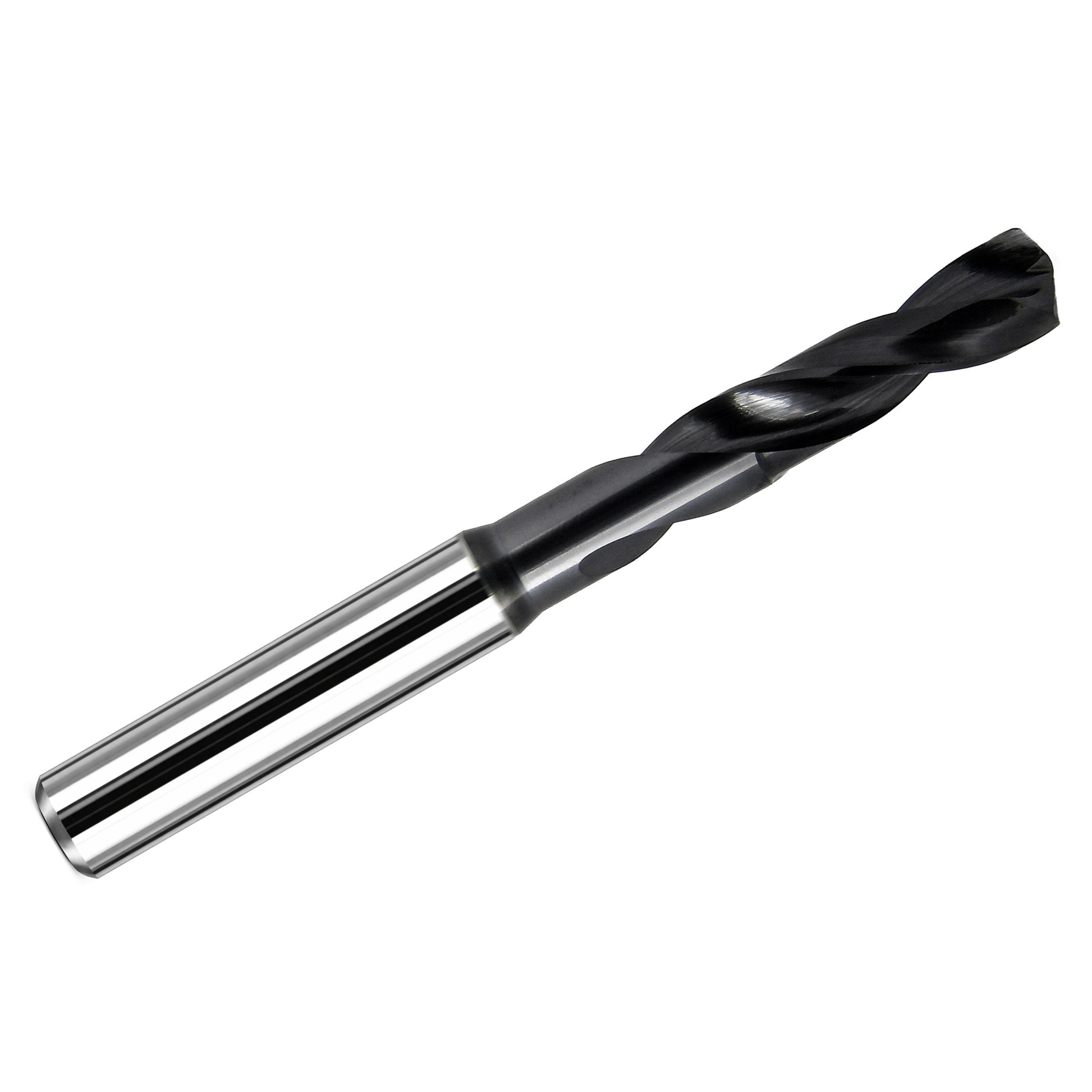

This 10.40mm (0.4094") solid carbide ORION high performance drill is manufactured by Kyocera and made in the USA. It features a TiAlN Nano coating for improved wear resistance, heat resistance, and long tool life in demanding drilling applications.
Part of the Kyocera ORION Metric Shank series, this 3xD drill is designed for precision metalworking with a 142° 6-facet point geometry that helps improve positioning accuracy, reduce heat buildup, and support excellent pilot hole performance.

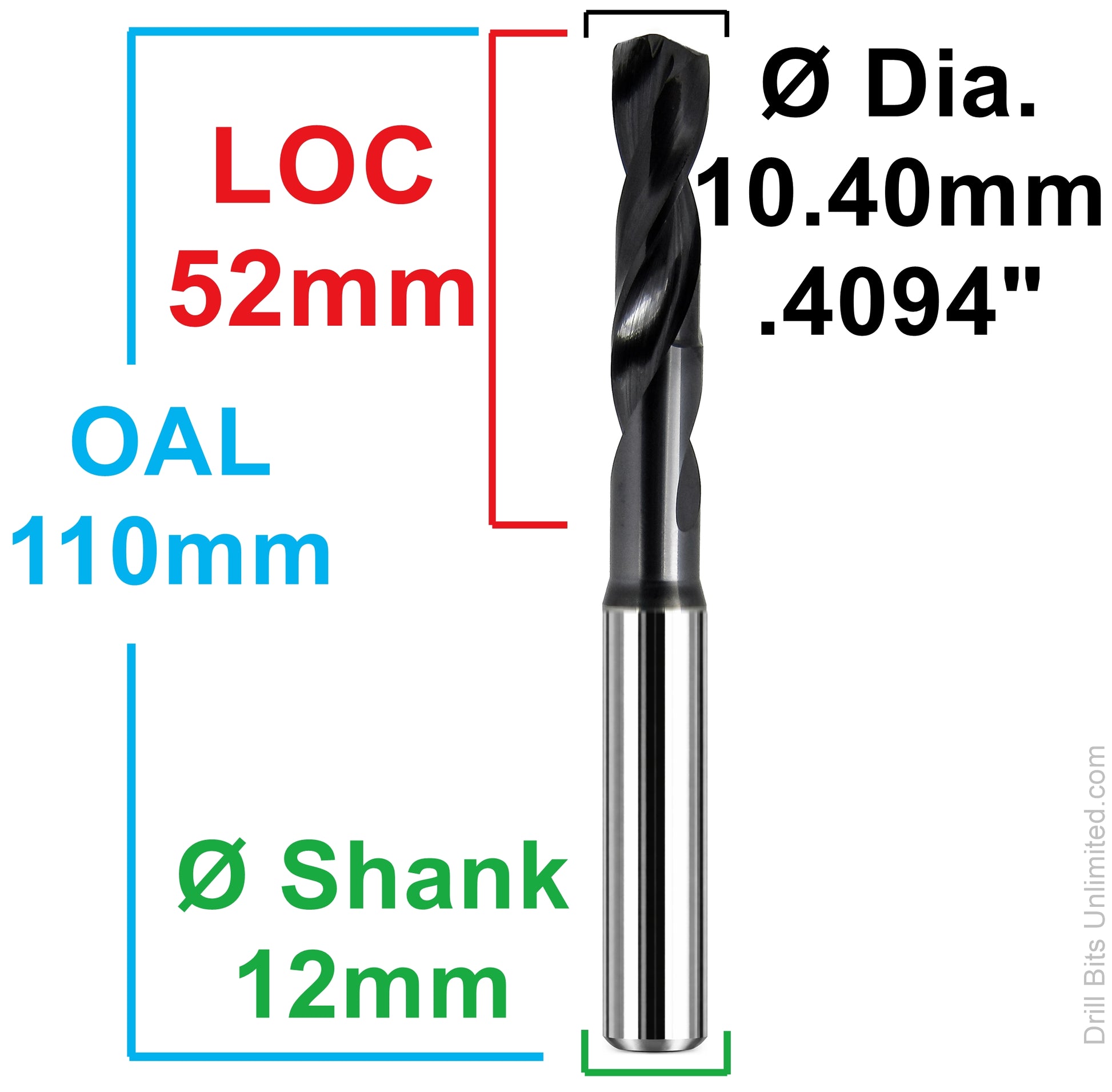

This drill uses a 12mm straight shank, 52mm flute length, and 110mm overall length, making it well suited for rigid, repeatable production drilling in steels, stainless steels, cast iron, non-ferrous materials, and specialty alloys according to the ORION series application data.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Series: 165 ORION Metric Shank
Manufacturer Part Number: 165-4094AG2047
Country of Origin: United States
Typical Applications
- Precision metalworking drilling
- 3xD production drilling
- Steel and stainless steel drilling
- Cast iron and non-ferrous drilling
- General CNC and machining center drilling
Benefits
- TiAlN Nano coating improves wear resistance and heat protection
- 142° 6-facet point supports accurate positioning and stable drilling
- 3xD geometry is optimized for efficient, repeatable drilling
- Solid carbide construction provides rigidity and long tool life
- 12mm metric shank provides secure holding in production setups
- Made in the USA by Kyocera
Specifications
| Manufacturer | Kyocera |
| Tool Type | High Performance Drill Bit |
| Series | 165 ORION Metric Shank |
| Drill Diameter | 10.40mm (0.4094") |
| Flute Length | 52.00mm |
| Overall Length | 110.00mm |
| Shank Diameter | 12.00mm |
| Depth x Diameter Ratio | 3xD |
| Number of Flutes | 2 |
| Flute Type | Spiral |
| Point Geometry | 6 Facet |
| Point Angle | 142° |
| Material | Solid Carbide |
| Grade | Micrograin |
| Finish / Coating | TiAlN Nano |
| Coolant Through | No |
| Coolant Style | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Dimension Type | Metric |
| Application | Metalworking |
| Country of Origin | United States |
