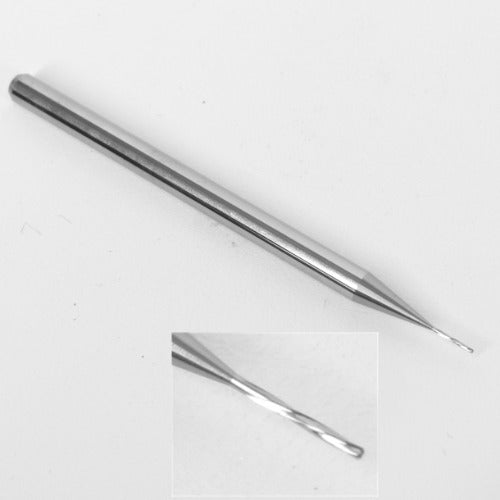

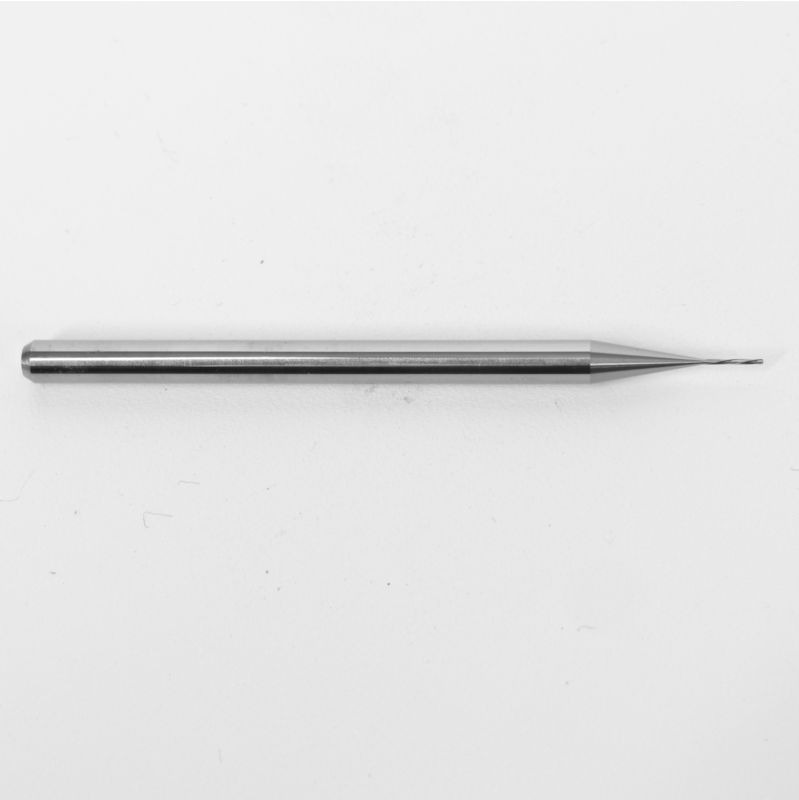

Micro Reamer, 0.39mm .01540" Cutting Dia, Standard Length MR34-0154.079 K058

Micro Reamer, 0.39mm .01540" Cutting Dia, Standard Length MR34-0154.079 K058

$54.95 USD
$54.95 USD
Sale Sold out

2 left in stock

SKU: K058

  • Cutting Diameter (Size): 0.39mmCutting Diameter (Decimal Inch): 0.0154
  • Cutting Diameter (mm): 0.39
  • Shank Diameter (Decimal Inch): 0.1181
  • Shank Diameter (mm): 3.00
  • Overall Length (Decimal Inch): 1.9685
  • Overall Length (mm): 50.00
  • Ream Length (Decimal Inch): 0.0787
  • Ream Length (mm): 2.00
  • Reach Length (Decimal Inch): 0.1575
  • Reach Length (mm): 4.00
  • Number of Flutes: 4
  • Flute Style: Left-Hand Spiral
  • Length Type: Standard Length
  • Hand of Cut: Right-Hand
  • Chamfer Angle (Degree): 45
  • Shank Type: Straight / Cylindrical
  • Material: Sub Micron Grain Carbide
  • Finish / Coating: Uncoated
  • Series: MR34
  • Primary Workpiece Material: Steel ~30HRC, Steel 30~40HRC, Hardened Steel ~55HRC, Hardened Steel ~68HRC, Stainless Steel, Nickel / Cobalt, Titanium Alloy
  • Secondary Workpiece Material: Cast Iron, Aluminum, Graphite, Copper Alloy, CFRP, Plastic, Thermoset Plastic, High Density Plastic
  • Application: Reaming Through Holes
  • Unit of Measure: mm
