10-Piece Lightly Used Carbide Chip Breaker PCB Router Set – .0500" to .0945" – Fish Tail & Drill Point – URCV10

This 10-piece lightly used solid carbide chip-breaker PCB router set includes five carefully selected cutting configurations, with two pieces of each. Cutting diameters range from .0500" (1.27mm) to .0945" (2.40mm), with both fish-tail and drill-point tip geometries.

These precision carbide routers were previously used in circuit board production, where demanding quality and dimensional standards typically require tools to be removed from service before they become heavily worn. They offer an economical alternative to new tooling for PCB routing, fiberglass composites, prototyping, and other suitable applications.

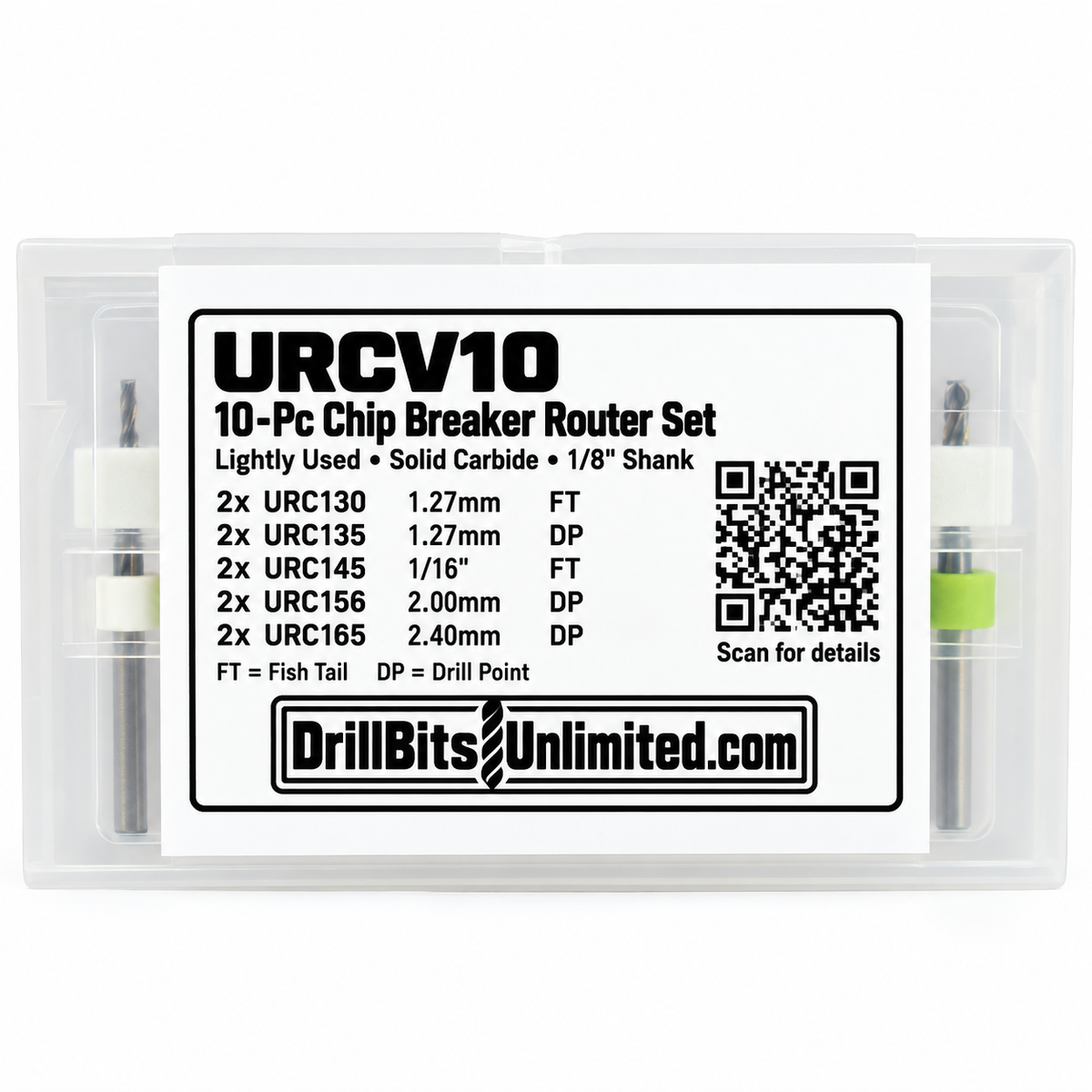

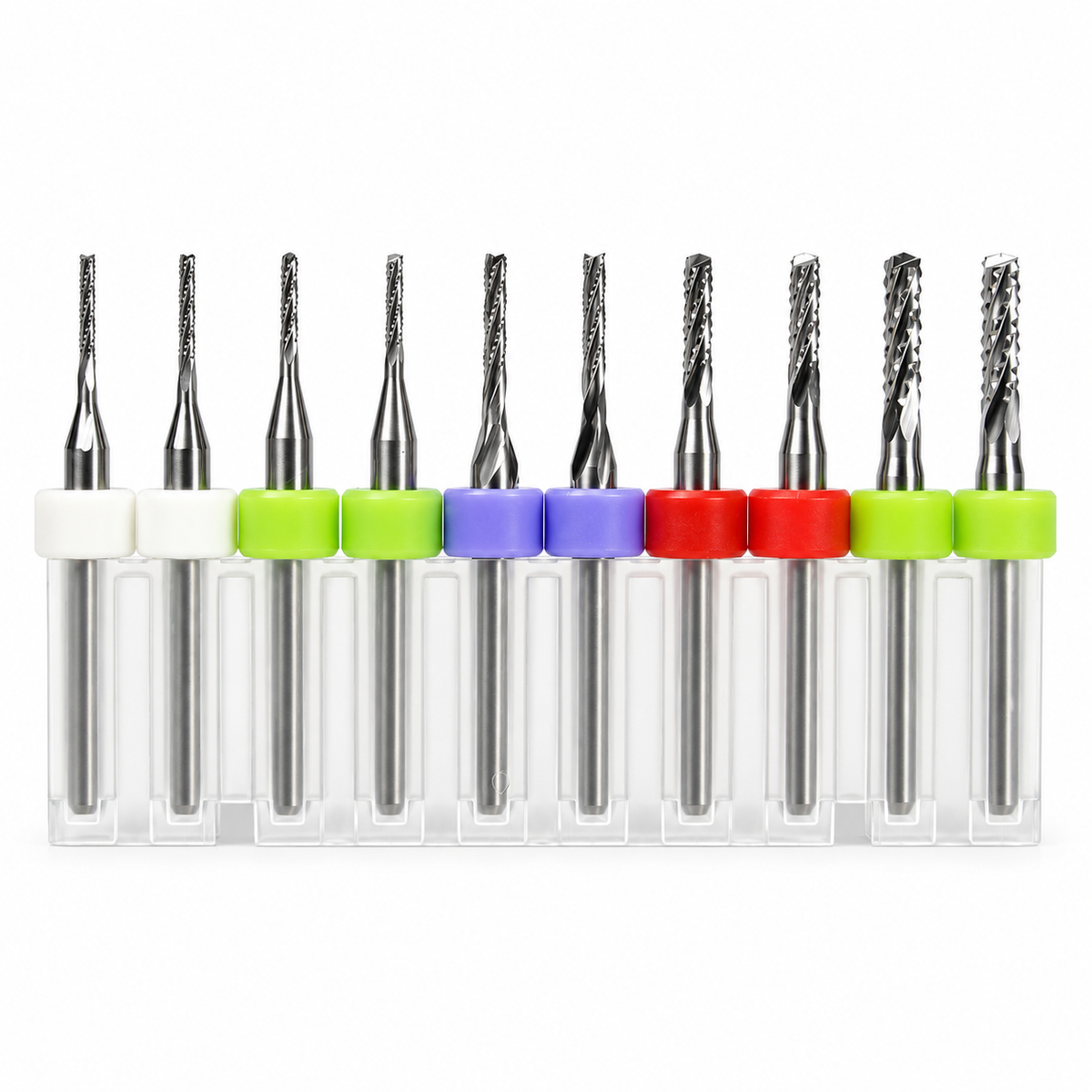

What's Included — 10 Pieces

• 2 × URC130: .0500" (1.27mm) diameter × .300" LOC — Fish Tail Tip
• 2 × URC135: .0500" (1.27mm) diameter × .250" LOC — Drill Point Tip
• 2 × URC145: .0625" (1/16") diameter × .350" LOC — Fish Tail Tip
• 2 × URC156: .0787" (2.00mm) diameter × .350" LOC — Drill Point Tip
• 2 × URC165: .0945" (2.40mm) diameter × .350" LOC — Drill Point Tip

Total: 10 solid carbide routers — five different cutting configurations, two pieces of each.

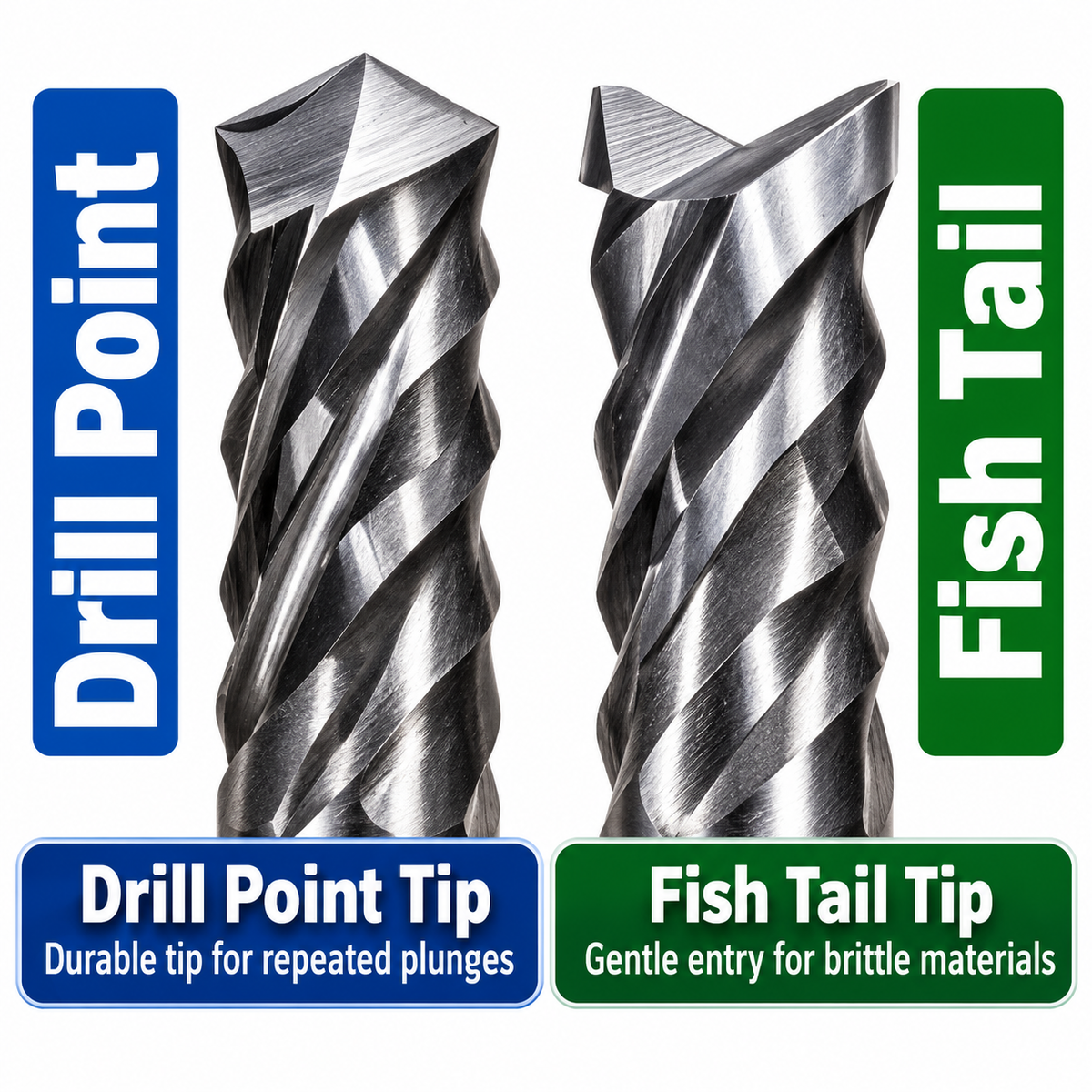

Fish Tail vs. Drill Point Tips — What's the Difference?

This assortment includes both tip styles, giving you flexibility to choose the geometry best suited to your routing application.

• Fish Tail Tips: Commonly used for through-routing, profiling, and edge cutting in PCB laminates and other layered materials. Their geometry can help produce controlled cuts and cleaner bottom edges when properly applied.
• Drill Point Tips: Feature a pointed cutting end that facilitates entry into the workpiece. These can be useful when the routing operation requires starting within the material rather than entering from an outside edge, provided the tool and cutting conditions are suitable for plunging.

Why include both? This set includes both tip styles at the same .0500" cutting diameter, allowing you to compare their performance in your application. The remaining tools provide additional diameters for common routing and profiling operations.

Why Choose This Assortment?

• Five useful cutting configurations: A selection of different diameters and tip styles instead of ten identical cutters.
• Two of each tool: Provides a replacement cutter for every included configuration.
• Fish-tail and drill-point tips: Offers flexibility for profiling, through-cutting, and suitable material-entry operations.
• Chip-breaker geometry: Segmented cutting edges help break material into smaller chips, improving chip control and evacuation in suitable materials.
• Solid carbide construction: Provides hardness and rigidity for precision routing with appropriate cutting parameters.
• Economical value: Previously used industrial tooling offered at a lower cost than comparable new cutters.
• Standard 1/8" shanks: Compatible with collets and equipment designed to accept 1/8" diameter shanks.

Typical Applications

• Printed circuit board (PCB) routing and profiling
• FR-4 and G10 fiberglass-reinforced laminates
• Fiberglass and suitable composite sheet materials
• Circuit board cutouts and slotting
• Prototype and hobby CNC routing
• Precision model-making and small-part fabrication
• Comparing router diameters and tip geometries

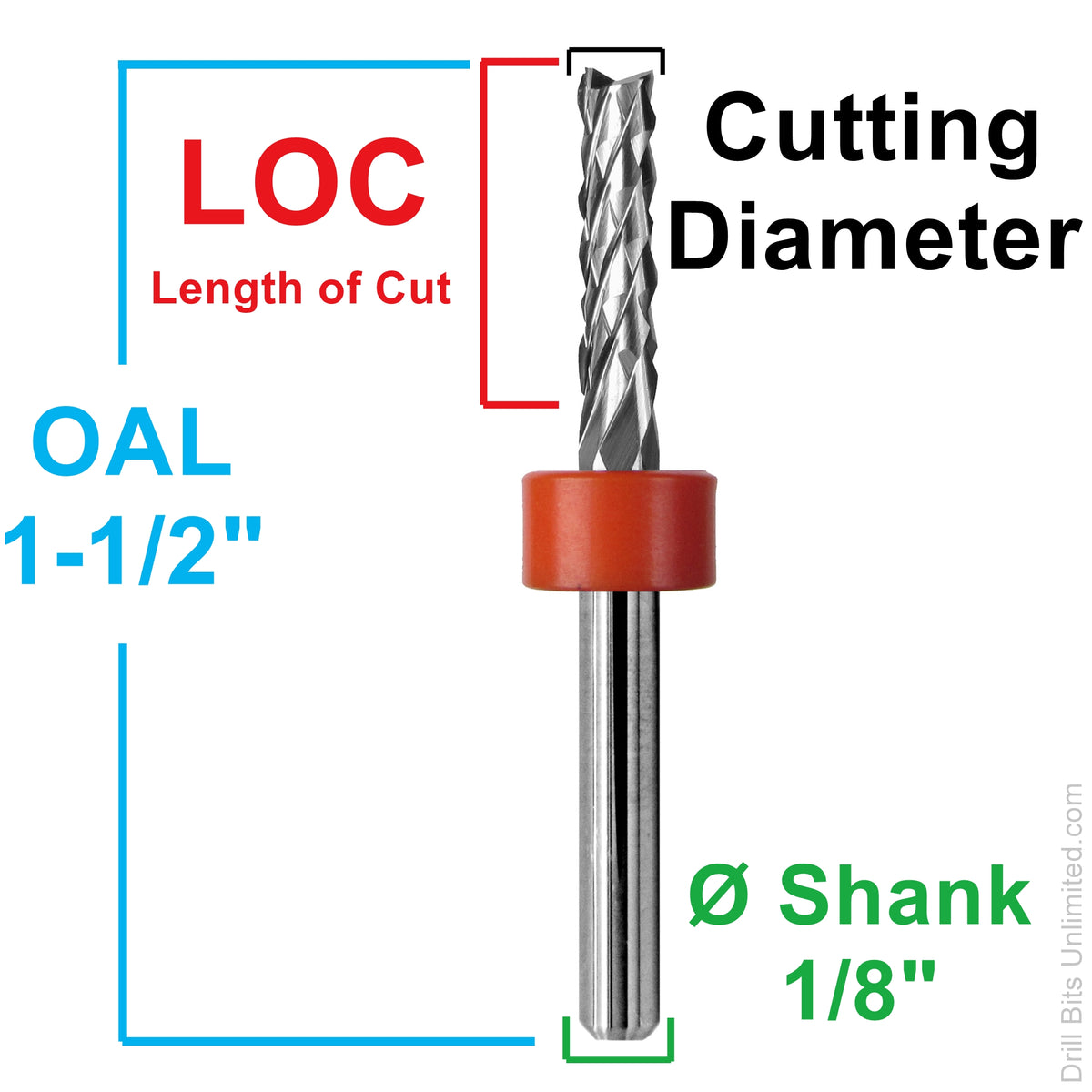

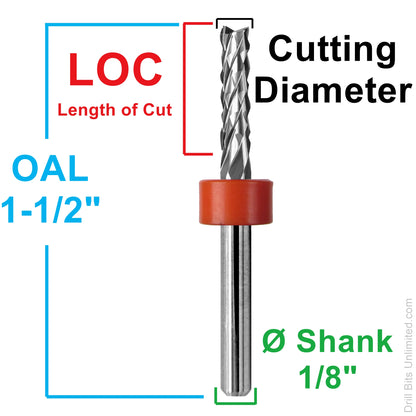

Product Specifications

• Set quantity: 10 pieces
• Configurations: 5 different tools, 2 pieces each
• Cutting material: Solid tungsten carbide
• Router geometry: Chip Breaker
• Cutting diameter range: .0500"–.0945" (1.27–2.40mm)
• Length of cut range: .250"–.350"
• Tip styles: Fish Tail and Drill Point
• Shank diameter: 1/8" (3.175mm)
• Condition: Lightly Used
• Set SKU: URCV10

Condition — Lightly Used Industrial Tooling

These router bits are previously used tools, not new cutters. They were originally used in precision PCB manufacturing applications and may show signs of previous use.

Because these tools are sold as lightly used, individual cutters may vary in appearance, wear, and remaining cutting life. They provide an economical option for customers who do not require new tooling for every application.

Router Guides & Related Tooling

Need new routers instead?

• Shop New Chip-Breaker PCB Routers — Browse individual cutting diameters, lengths of cut, and fish-tail or drill-point configurations.
• Shop New Diamond-Flute PCB Routers — Explore another cutting geometry for FR-4, G10, fiberglass, and other abrasive or layered materials where edge quality is important.

Need help choosing or using your router bits?

• Chip-Breaker Router Feed & Speed Chart — Recommended starting points for spindle speed, feed rate, and plunge feed based on router diameter. Adjust for your equipment, material, and tool condition.
• Chip Breaker vs. Diamond Flute Router Guide — Learn how the two cutting geometries differ in chip evacuation, edge quality, and material applications.
• Router Bits Selection Guide — Explore router styles, geometry options, and applications to help select the right cutter.

Important: Feed and speed charts provide general starting values for tooling. Because these routers are lightly used, begin conservatively, test on scrap material, and adjust spindle speed, feed rate, cutting depth, and tool-entry method according to tool condition, workholding, and machine capability.
