0.0197" (0.50mm) x .079" LOC Kyocera Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R103

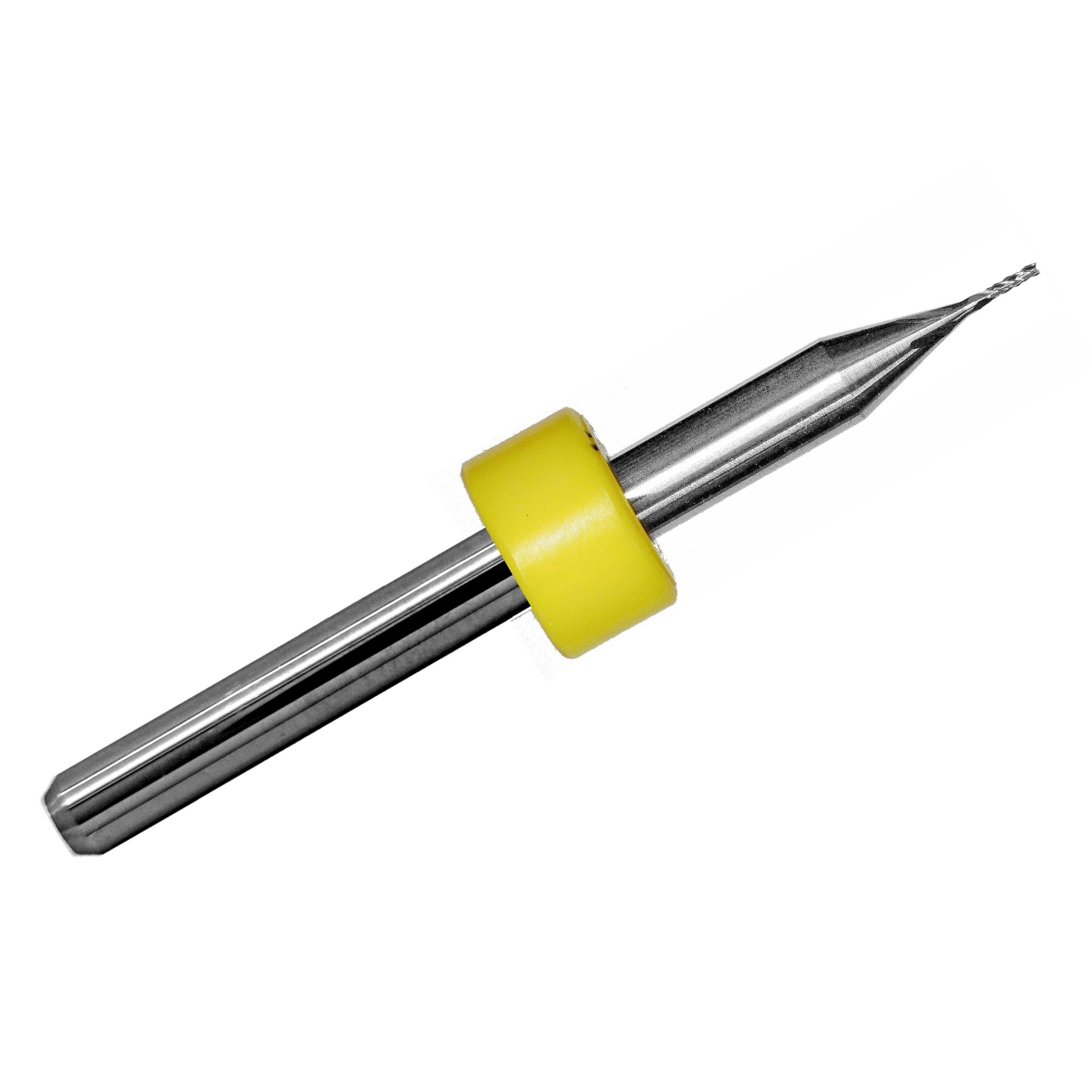

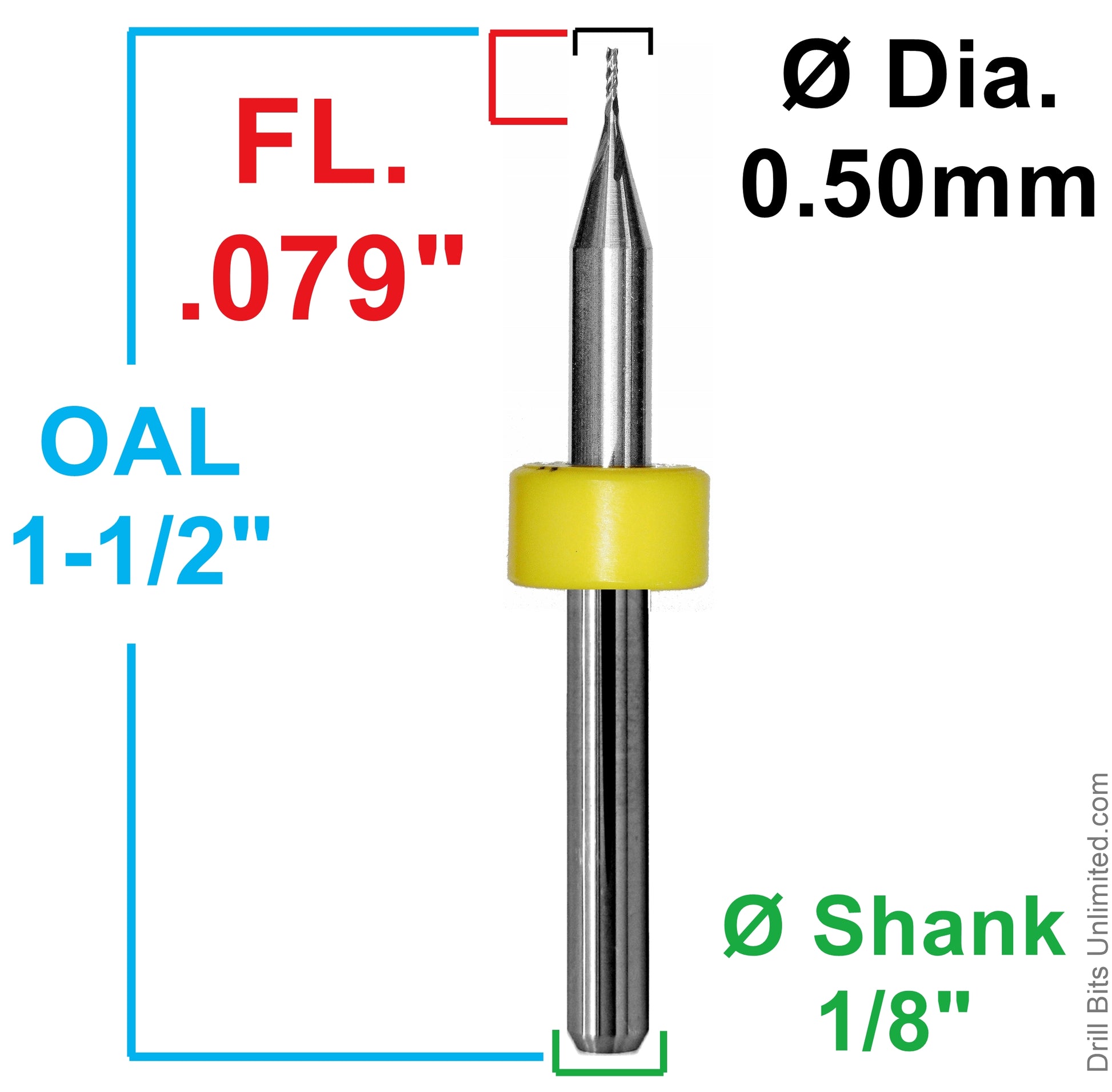

R103 Kyocera diamond flute PCB router features a 0.0197" (0.50mm) cutting diameter, .079" (approximately 2.01mm) length of cut, 1/8" shank, and 1-1/2" overall length. This uncoated solid carbide router is designed for fine-detail routing, profiling, and trimming of printed circuit board laminates and abrasive composite materials.

The diamond-cut flute geometry uses multiple small, intersecting cutting edges to distribute cutting action along the tool. This makes it well suited to controlled routing of FR-4, G10, fiberglass, and phenolic laminates, where minimizing edge chipping and delamination is important.

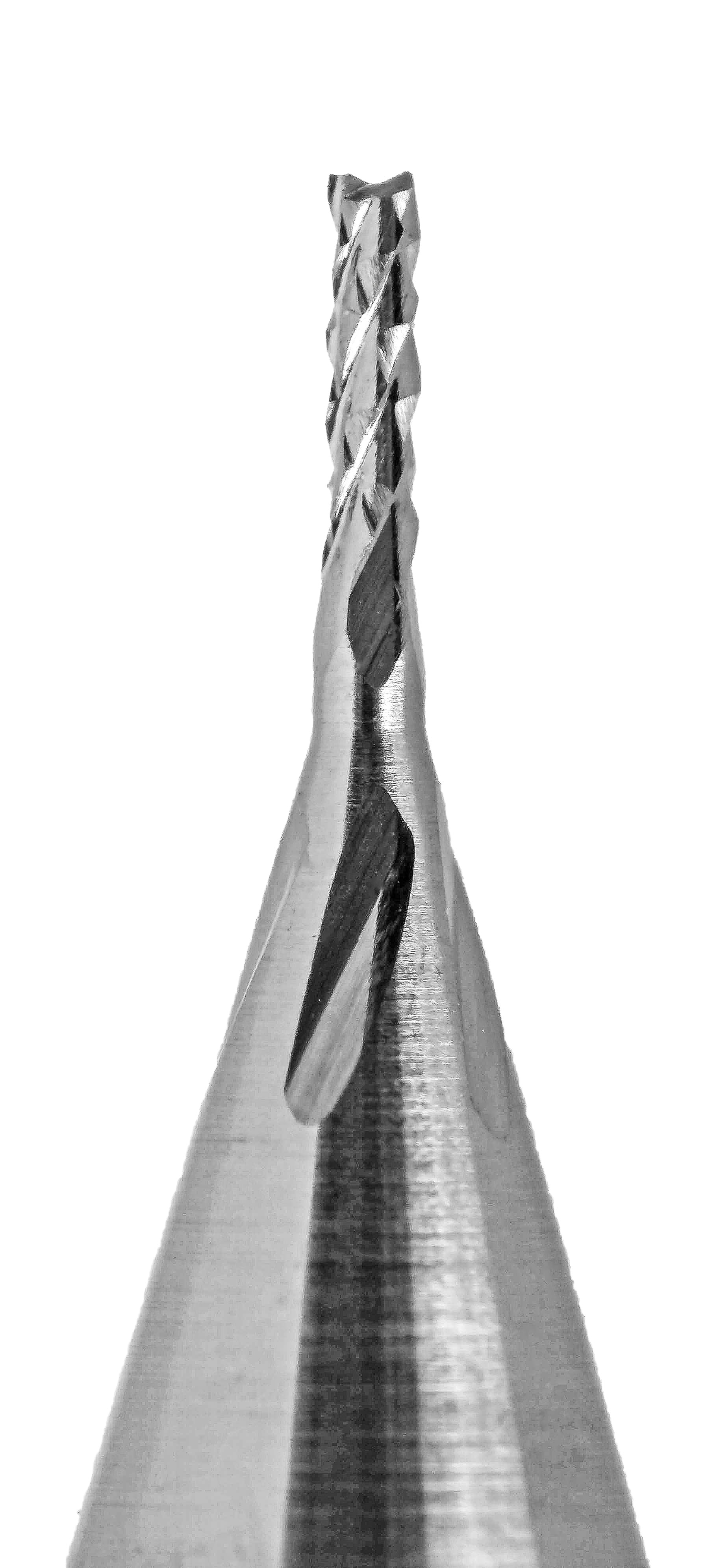

Its fish tail tip is designed for PCB routing and outline cutting, while the up-cut configuration helps direct debris away from the cutting area. The miniature 0.50mm diameter is useful for narrow profiles and intricate details, provided the machine has sufficient spindle precision and workpiece support.

Typical Applications

• Fine-detail PCB outline routing and profiling
• FR-4 and G10 fiberglass laminate machining
• Phenolic laminate trimming and contour cutting
• Precision slots and narrow contours in suitable composites
• Small-feature CNC routing and prototype work

Key Features

• 0.50mm cutting diameter: Suitable for miniature profiles and fine-detail routing.
• Diamond flute geometry: Multi-edge cutting pattern designed for abrasive laminates and composites.
• Fish tail tip: PCB-routing tip geometry for controlled profile and outline cutting.
• Up-cut direction: Helps evacuate machining debris from the cutting zone.
• Solid carbide: Provides rigidity and wear resistance for precision routing.
• 1/8" shank: Compatible with properly sized precision CNC spindle collets.

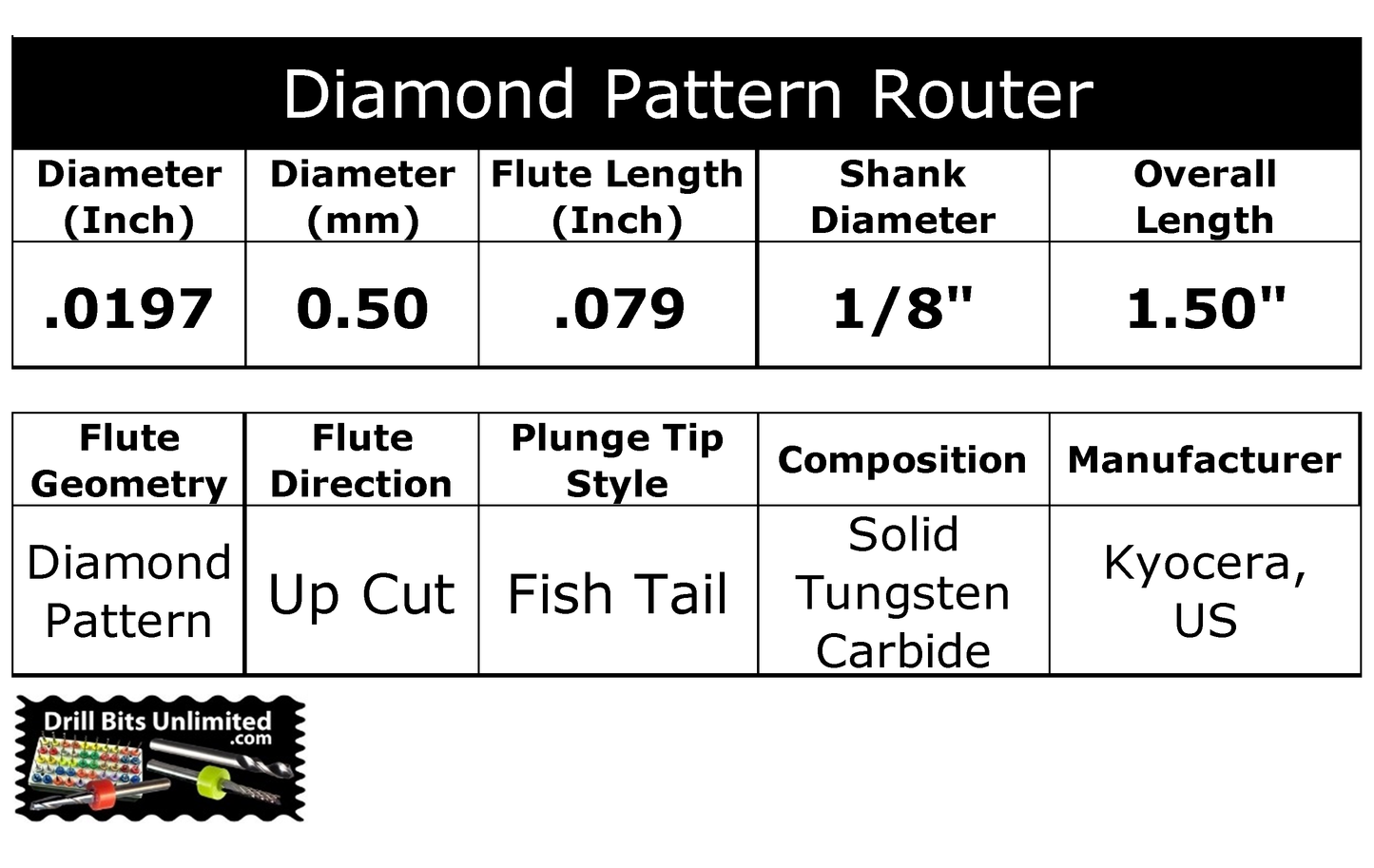

Specifications

Machining Recommendations

Due to its small 0.50mm cutting diameter, this router requires careful attention to spindle runout, feed rate, cutting depth, and workpiece support. Use a precision collet and avoid excessive side loading to minimize tool breakage.

Important: Diamond flute refers to the multi-edge cutting geometry, not a diamond coating. For extended tool life when machining highly abrasive materials such as carbon fiber, consider diamond-coated tooling.

Helpful Guides & Related Tooling

• Diamond-Flute Router Guide – Learn about diamond-cut geometry, applications, and tool selection.
• Diamond Flute Router Feed & Speed Chart – Find recommended starting machining parameters.
• Chip Breaker vs Diamond Flute Routers – Compare cutting geometry, edge quality, and chip evacuation.
• Diamond-Coated Routers for Abrasive Composites – Explore alternatives designed for extended tool life in demanding materials.
